Removing the alternator from a 2011 Kia Soul is a common task for DIY mechanics tackling electrical issues or battery drain problems. This specific model year features a relatively accessible alternator that sits at the front of the engine bay, but the procedure requires specific steps to ensure safety and prevent damage. Understanding the layout and having the right tools is essential for a successful removal without causing unnecessary stress to other components.

Tools and Safety Precautions

Before beginning the 2011 Kia Soul alternator removal, gathering the correct tools is the first critical step. You will need a standard set of wrenches, including socket sets that fit the specific bolt sizes on your vehicle. Additionally, a ratchet extension and a serpentine belt tool are often necessary to navigate the tight spaces and remove the belt tensioner safely. Always prioritize safety by disconnecting the negative battery terminal first; this simple action prevents electrical shorts and protects you from potential shocks while working near the engine's electrical system.

Disconnecting the Battery

The initial step involves locating the battery, typically found in the front left corner of the engine compartment. Using your wrench, loosen and remove the negative cable—usually marked in black or with a minus symbol—placing it aside where it cannot accidentally touch the terminal. It is vital to ensure this connection is completely off before proceeding to eliminate the risk of short-circuiting the vehicle's sensitive electronics, such as the radio presets or computer memory, which you may wish to preserve.

Removing the Serpentine Belt

With the battery disconnected, attention turns to the serpentine belt that drives the alternator. Locate the tensioner pulley, which is usually a small pulley equipped with a spring-loaded mechanism. Using your serpension belt tool, rotate the tensioner to release tension on the belt, allowing it to be slipped off the alternator pulley easily. Take note of the belt's routing path, either by taking a photo or referencing the diagram under the hood, as incorrect reinstallation can cause immediate damage and prevent the engine from running.

Accessing the Alternator Mounts

Once the belt is removed, you can visually confirm the alternator's position. The next phase of the 2011 Kia Soul alternator removal involves unbolting the alternator from its mounting brackets. Typically, there are two or three bolts securing the unit: one at the top and others at the bottom or rear. These bolts can be challenging to reach due to surrounding components like the power steering pump or exhaust manifold, so using swivel sockets or flexible extensions is highly recommended to navigate these obstructions efficiently.

Detaching Electrical Connections

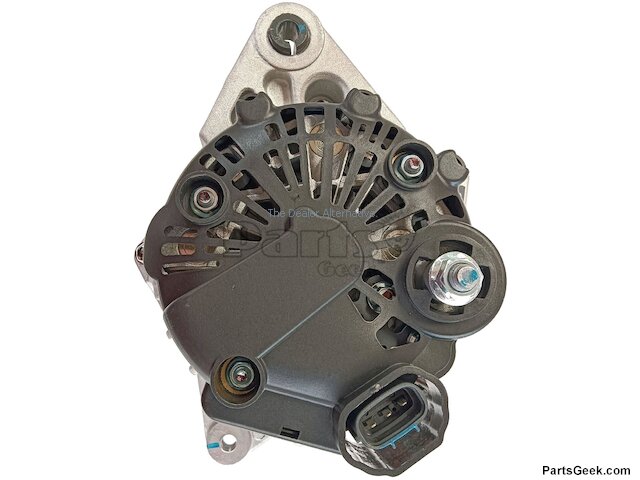

Before fully removing the alternator, you must disconnect the electrical wiring harness attached to the unit. This is usually a multi-pin connector secured with a plastic tab. Press the tab and gently pull the connector away from the alternator post. It is also common to have a smaller wire, often a blue or white connector, that feeds a charging indicator; disconnect this as well. Labeling these wires or taking a photo beforehand can save significant frustration when reinstalling the new or repaired unit.

With all connections severed and the mounting bolts removed, you can carefully lift the alternator straight out of its position. Be mindful of the weight and the potential for the unit to swing and contact other hoses or wires. It is helpful to have a partner assist with this step, or to use a sturdy bungee cord to secure the alternator out of the way temporarily. Proper disposal of the old unit is necessary, as many auto parts stores accept core charges for recycling.

Inspecting the Pulley and Bearings

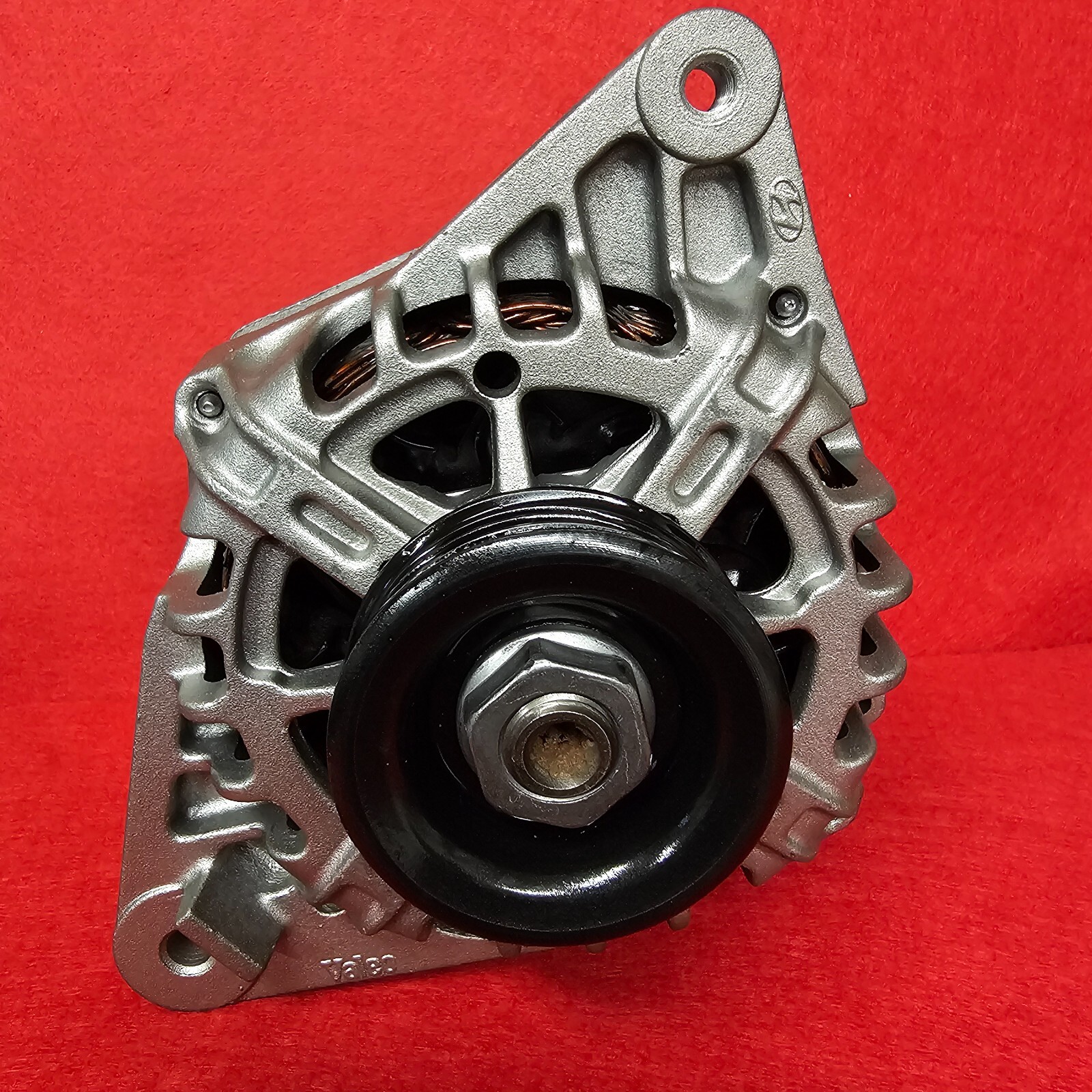

While the alternator is out, it is a valuable opportunity to inspect the pulley for cracks or wear and to check the internal bearings for any roughness. A failing alternator often makes grinding or whining noises, so verifying the condition of the replacement unit or your refurbished one ensures the problem is fully resolved. Taking the time to clean the mounting surface on the engine block can also prevent future installation issues and ensure a proper seal for the new component.

Reinstalling the new alternator follows the reverse order of removal, tightening the mounting bolts to the manufacturer's specified torque and ensuring the serpentine belt is routed exactly as remembered. After securing the electrical connections, reconnecting the battery is the final step. A successful replacement will be confirmed when the dashboard battery light turns off and the voltage gauge reads between 13.5 and 14.8 volts while the engine runs, indicating the charging system is functioning correctly.
