Build Your Own Air Hockey Table: DIY Plans for Fun and Affordability
Are you tired of cramped arcades and overpriced games? Why not bring the fun home with a DIY air hockey table? Not only is it a rewarding project, but it's also a cost-effective way to enjoy this classic game with friends and family. Let's dive into a comprehensive guide on how to build your own air hockey table using simple, easy-to-follow plans.
Gather Your Materials and Tools
Before you start, ensure you have all the necessary materials and tools. Here's a list to help you get started:
- Plywood (3/4" thick, 4' x 8' sheet)
- MDF (1/2" thick, 4' x 8' sheet)
- Air hockey puck and mallets
- Air hockey blower fan
- Screws (1-1/4", 2", and 2-1/2")
- Wood glue
- Sandpaper (120-grit and 220-grit)
- Paint or stain (optional)
- Tools: Circular saw, jigsaw, drill, screwdriver, tape measure, clamps, safety glasses
Design and Dimensions
First, decide on the size of your table. A standard air hockey table is 8 feet long and 4 feet wide, but you can adjust these measurements based on your space and preferences. Here's a simple design with the following dimensions:
| Part | Length (inches) | Width (inches) | Height (inches) |
|---|---|---|---|
| Table top | 96 | 48 | 1 |
| Legs (4 pieces) | 28 | 3 | 2 |
| Rails (4 pieces) | 96 | 3 | 1 |
| End caps (2 pieces) | 12 | 48 | 1 |
Cutting and Assembling the Table Top
Using a circular saw, cut the plywood and MDF according to the table's dimensions. Start by cutting the table top from the plywood. Apply wood glue along the edges and attach the MDF rails using 1-1/4" screws. Ensure the rails are flush with the edges of the table top. Let the glue dry, then attach the end caps using 2" screws.
Building the Legs and Assembly

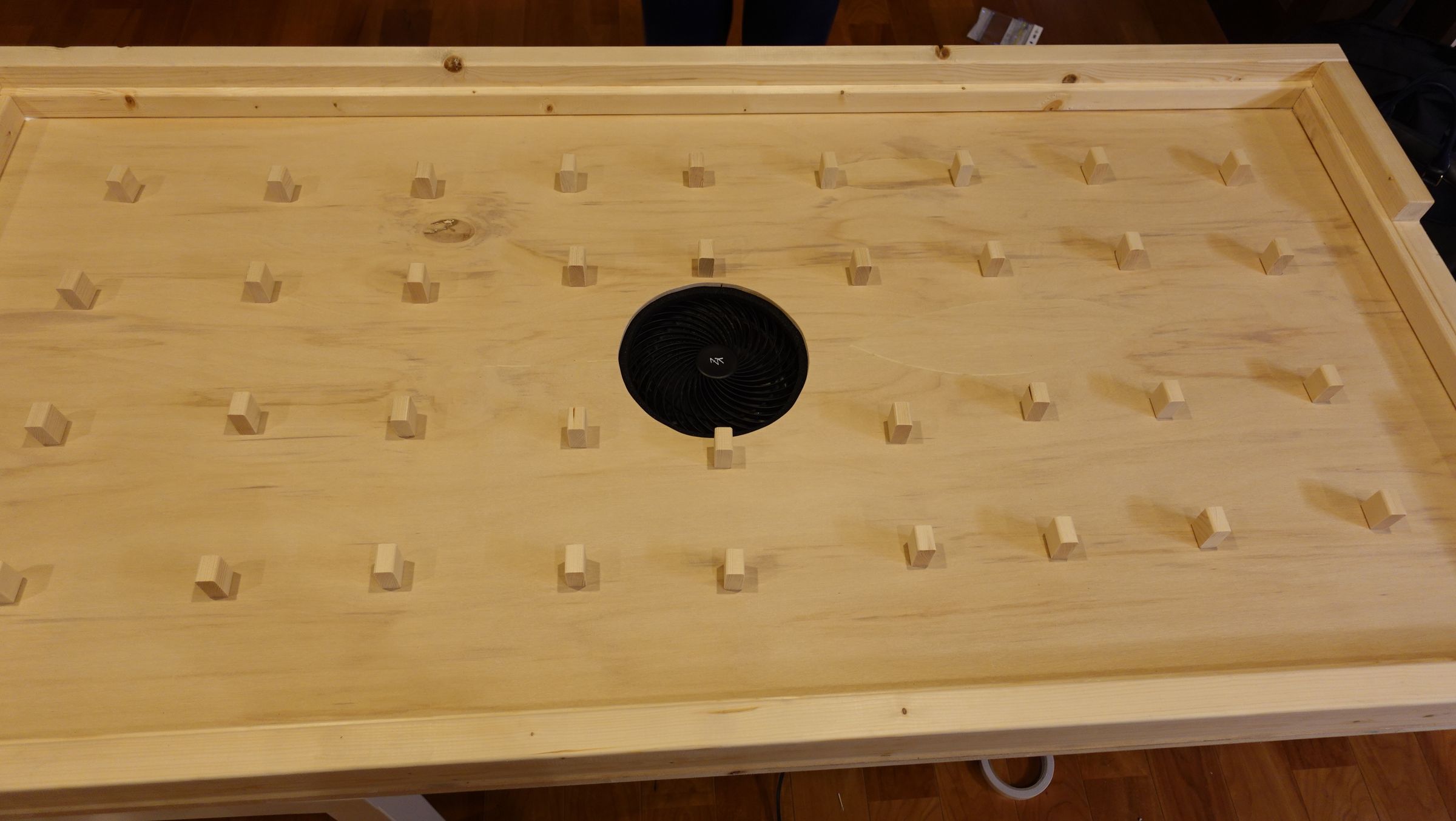

Cut the legs from the remaining plywood. You can adjust the height by changing the length of the legs. Attach the legs to the underside of the table using 2-1/2" screws, ensuring the table is level. Next, install the air hockey blower fan in the center of the table top, facing upwards. Connect the fan to a power source and test it to ensure it's working correctly.
Finishing Touches
Sand the table lightly with 120-grit sandpaper, then smooth it out with 220-grit. If desired, paint or stain the table to match your decor. Allow the paint or stain to dry completely before using the table. Once dry, attach the air hockey puck and mallets, and you're ready to play!
Troubleshooting Common Issues
While building your DIY air hockey table, you may encounter some challenges. Here are a few common issues and their solutions:
- Fan not blowing air: Ensure the fan is properly connected to the power source and that there are no obstructions blocking the airflow.
- Table wobbles or isn't level: Double-check that all legs are the same length and that the screws are securely fastened. You can also add support brackets or shims to stabilize the table.
- Puck doesn't slide smoothly: Ensure the table top is perfectly flat and that there are no rough spots or imperfections. You can also try using a different type of puck or applying a thin layer of wax to the table top.
Building a DIY air hockey table is a rewarding project that combines creativity, craftsmanship, and fun. With these simple plans, you'll have a custom air hockey table that's perfect for entertaining friends and family. So grab your tools and get started – the arcade experience is just a few hours away!
