Mastering the 1 Volume 1 Tone 3 Way Switch: A Comprehensive Guide
The 1 volume 1 tone 3 way switch is a versatile component that allows you to control the volume and tone of two pickups on an electric guitar with a single volume knob and a 3-way switch. This setup is popular among guitarists who want to simplify their instrument's controls while maintaining tonal flexibility. In this article, we'll delve into the workings of this switch, its benefits, and how to wire it for optimal performance.
Understanding the 1 Volume 1 Tone 3 Way Switch
The 1 volume 1 tone 3 way switch consists of a 3-way switch and a single volume and tone pot. The 3-way switch has three positions, each connecting the pickups to the output jack in a different way. The volume pot controls the overall output level, while the tone pot adjusts the high frequencies. Here's a simple breakdown:
- 3-Way Switch Positions:
- Position 1: Connects the bridge pickup directly to the output.
- Position 2: Connects both pickups in parallel to the output.
- Position 3: Connects the neck pickup directly to the output.

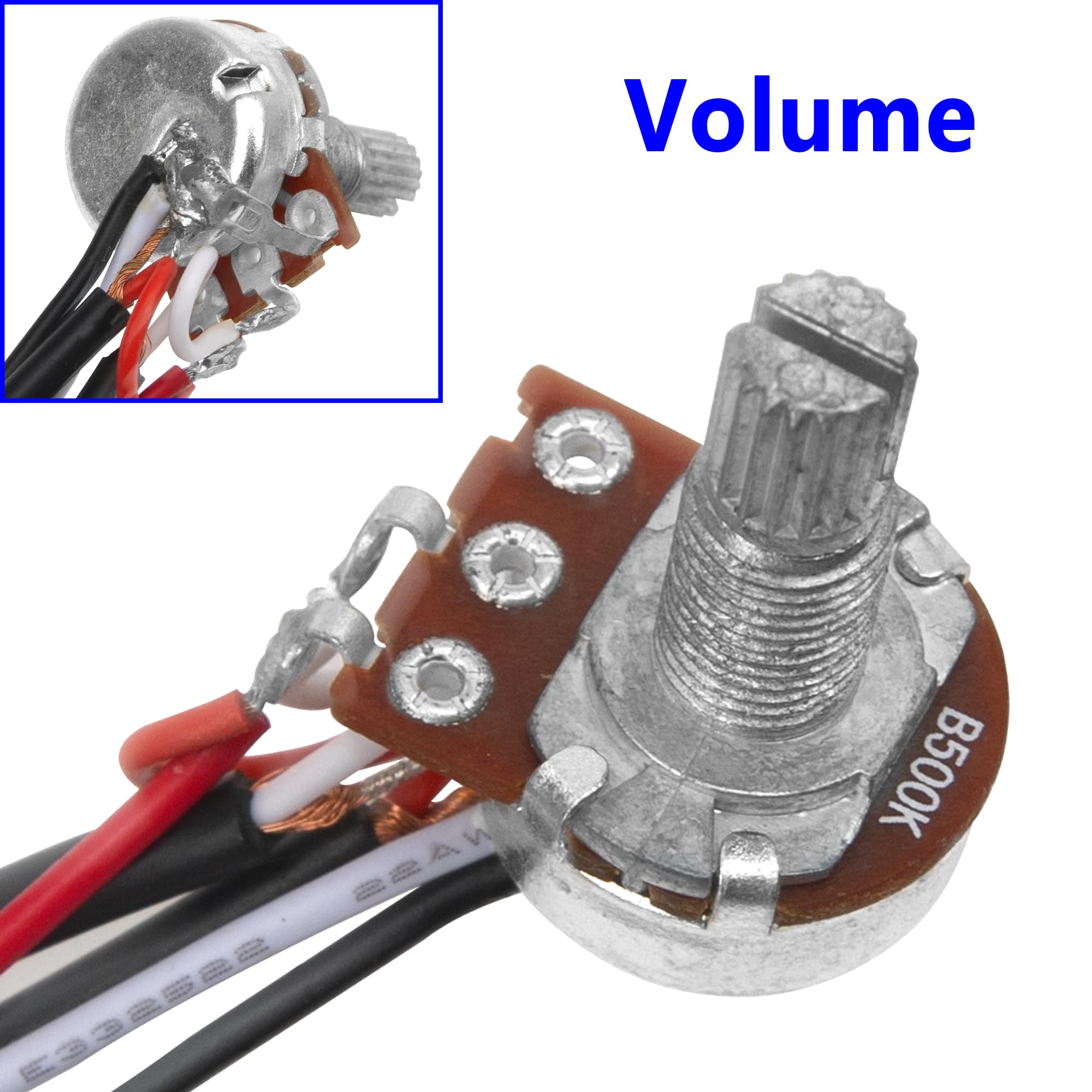

- Volume Pot: Controls the overall output level of the pickups.

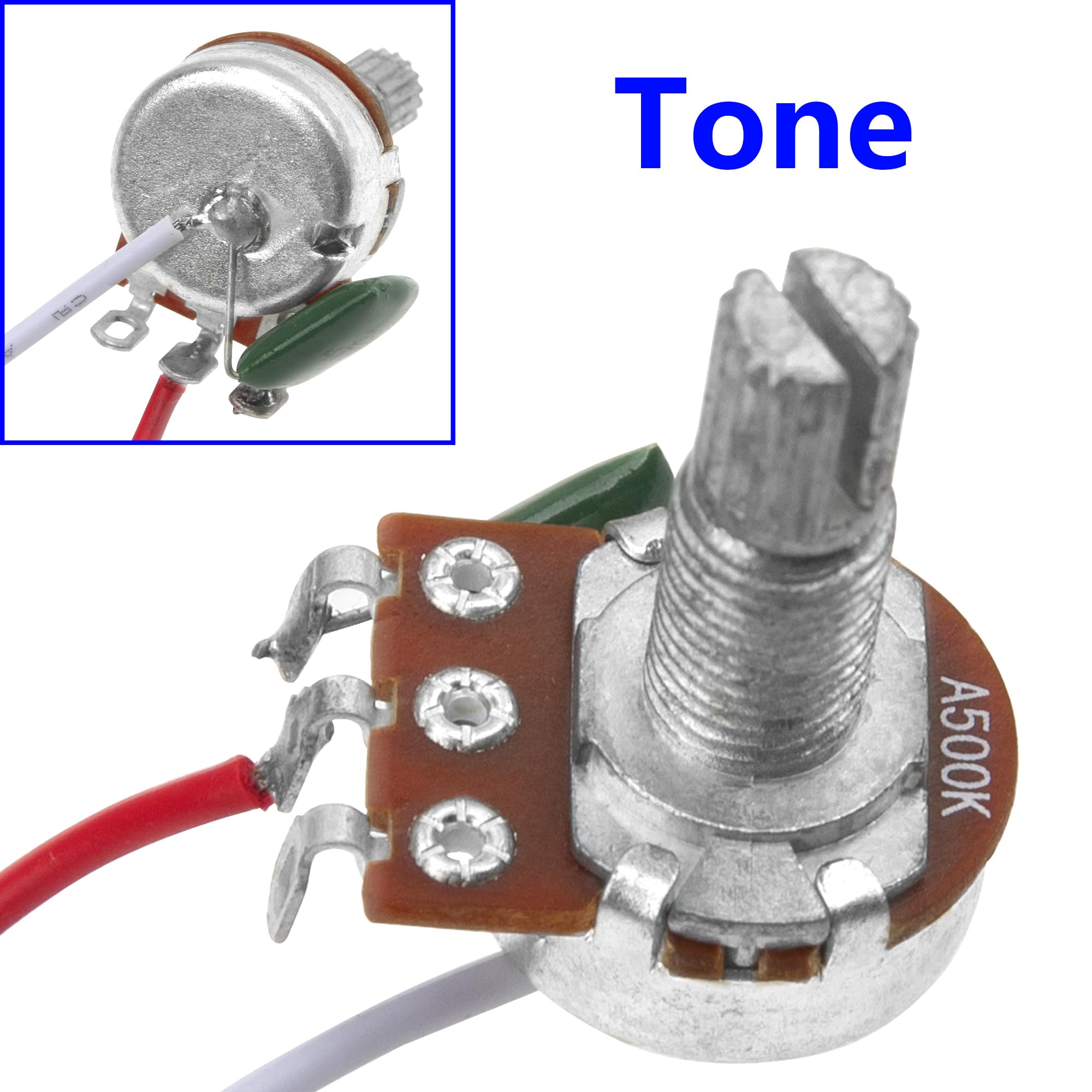

- Tone Pot: Adjusts the high-frequency response of the pickups.
Benefits of Using a 1 Volume 1 Tone 3 Way Switch
This switch setup offers several advantages, including:
- Simplified controls: With only one volume and one tone knob, it's easier to adjust your sound on the fly.
- Versatile tonal options: The 3-way switch allows you to access three distinct pickup combinations, providing a wide range of tones.
- Space-saving: This setup requires fewer knobs and switches, making it ideal for guitars with limited control cavity space.

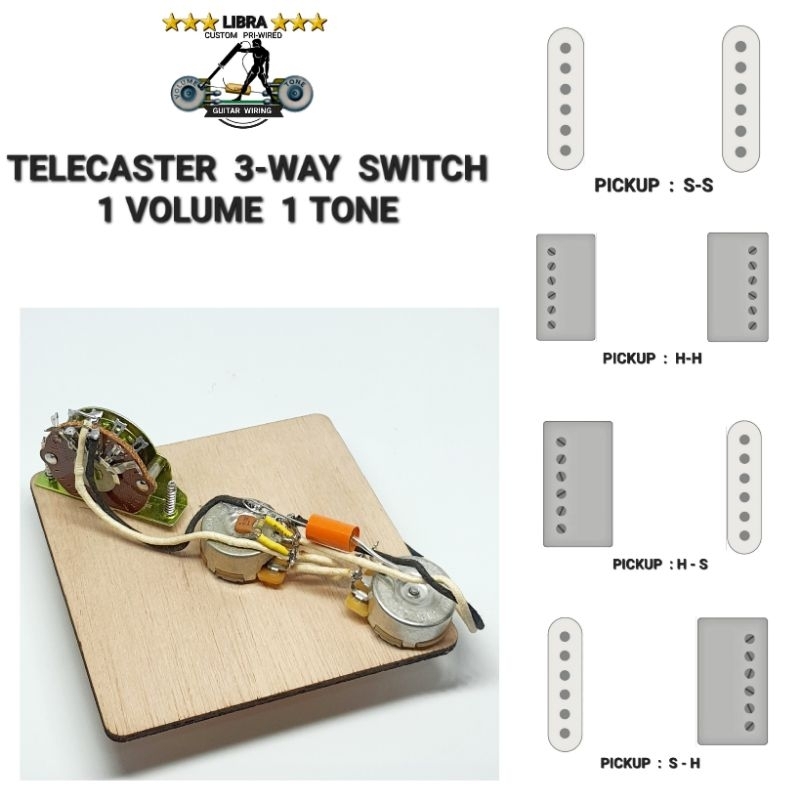

Wiring a 1 Volume 1 Tone 3 Way Switch
Wiring this switch setup is straightforward. Here's a step-by-step guide:
- Connect the hot wire from the bridge pickup to the input lug of the 3-way switch.
- Connect the hot wire from the neck pickup to the middle lug of the 3-way switch.
- Connect the ground wires from both pickups to the guitar's ground.
- Connect the output lug of the 3-way switch to the input lug of the volume pot.
- Connect the output lug of the volume pot to the input lug of the tone pot.
- Connect the output lug of the tone pot to the input lug of the output jack.
- Connect the ground lug of the output jack to the guitar's ground.
Adding a Tone Capacitor
For added tonal flexibility, you can install a tone capacitor (typically a .047uF or .022uF ceramic disc capacitor) across the tone pot. This allows you to roll off high frequencies more effectively when the tone knob is turned down. To install it, connect one leg to the tone pot's lug between the pot and the pickup, and the other leg to the ground.
Conclusion
The 1 volume 1 tone 3 way switch is a powerful tool for guitarists seeking a balance between tonal versatility and control simplicity. By understanding its workings and wiring it correctly, you can unlock a wide range of tones from your electric guitar. Whether you're a seasoned guitarist or just starting out, this switch setup is worth considering for your next build or modification.
