Understanding and Bypassing the 3-Wire Washer Lid Switch on Your Amana Washer
If your Amana washer is displaying error codes or refusing to operate due to a faulty lid switch, you might be wondering how to bypass the 3-wire washer lid switch. Before we dive into the bypass process, let's first understand the role of the lid switch and why you might need to bypass it.
What is the 3-Wire Washer Lid Switch?

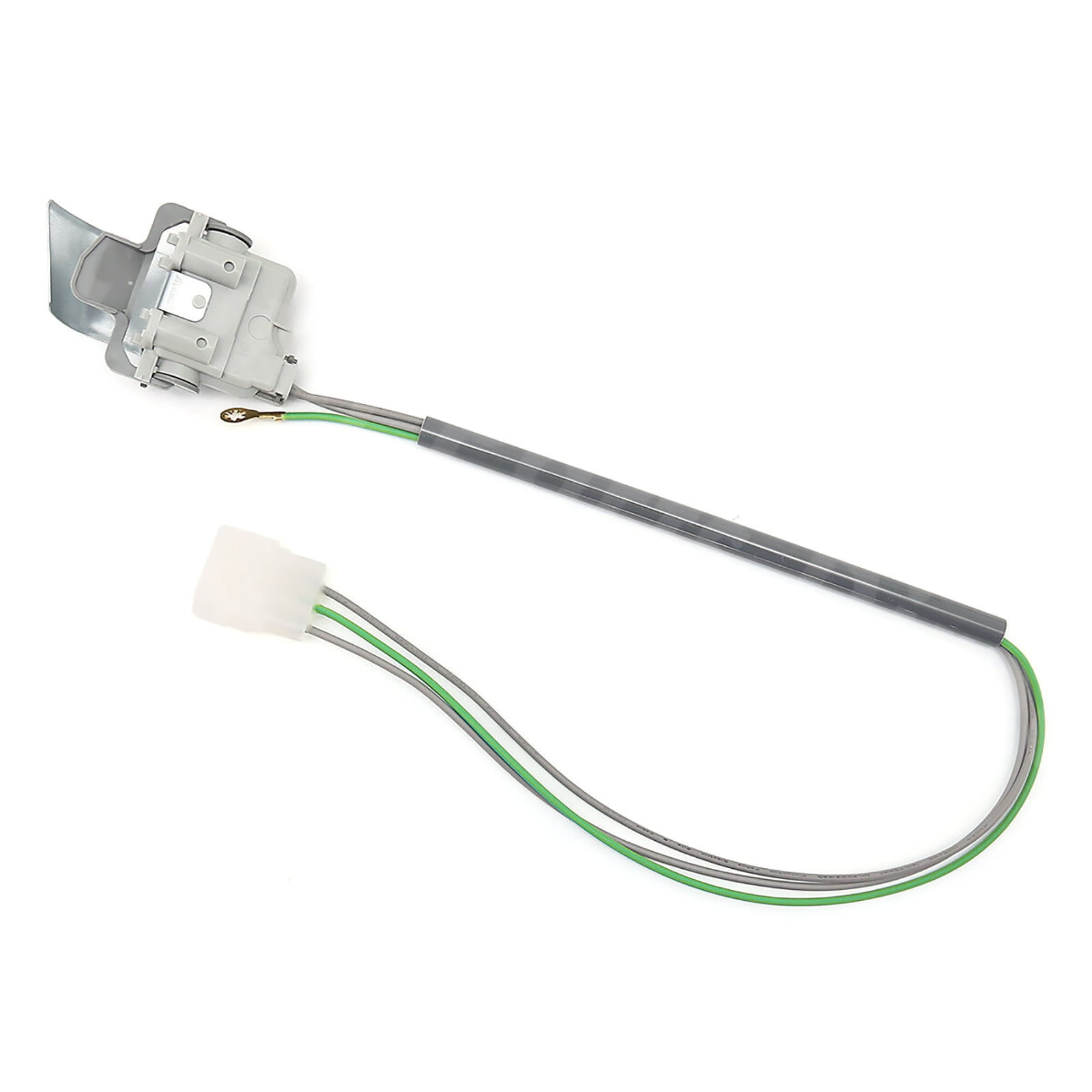

The 3-wire washer lid switch, also known as the door switch, is a safety feature in modern washers. It ensures that the washer will not operate unless the lid is securely closed. The three wires represent power, ground, and signal. When the lid is closed, the switch completes the circuit, allowing the washer to function.
Why Bypass the Lid Switch?
There are several reasons why you might need to bypass the lid switch. The most common is a faulty switch that's preventing your washer from working, even when the lid is closed. Other reasons include replacing the switch with a new one or performing maintenance tasks that require the washer to run with the lid open.
Steps to Bypass the 3-Wire Washer Lid Switch on Your Amana Washer
Safety First
Before you begin, ensure that your washer is unplugged from the power source to prevent any electrical shocks. Also, have a multimeter on hand to test the switch and wires.
Locate the Lid Switch
The lid switch is usually located near the washer's lid hinge. It's a small rectangular box with three wires connected to it. Consult your washer's manual for the exact location if you're having trouble finding it.
Test the Switch
Using your multimeter, set it to continuity mode and test the switch. With the lid closed, there should be continuity between the power and signal wires. If there's no continuity, or if there's continuity with the lid open, the switch is likely faulty and needs to be bypassed or replaced.
Bypassing the Lid Switch
To bypass the lid switch, you'll need to create a jumper wire that connects the power and signal wires directly. Here's how:
- Strip about 1/2 inch of insulation from the ends of two pieces of 18-22 gauge wire.
- Twist the exposed ends of one wire onto the power wire from the switch.
- Twist the exposed ends of the other wire onto the signal wire from the switch.
- Solder the connections to ensure a solid connection, then cover them with electrical tape or heat shrink tubing.
Your washer should now run with the lid open. However, remember that this is a temporary fix. Always replace the switch as soon as possible to ensure your washer's safety features are functioning correctly.
Replacing the Lid Switch
If you've decided to replace the lid switch instead of bypassing it, the process is similar. After locating and testing the switch, disconnect the wires and remove the switch. Install the new switch, ensuring the wires are connected to the correct terminals, and test the washer to ensure it's working correctly.
Troubleshooting Common Issues
Washer Won't Run After Bypassing the Switch
If your washer still won't run after bypassing the switch, there might be another issue at play. Check your washer's error codes and consult the manual for troubleshooting steps. It could be a problem with the control board, motor, or another component.
Washer Runs Intermittently After Bypassing the Switch
If your washer is running intermittently after bypassing the switch, it's possible that the switch is only partially faulty. You might need to replace the switch or check for other issues that could be causing the intermittent operation.
| Error Code | Possible Cause |
|---|---|
| F01 | Faulty lid switch or door interlock |
| F02 | Faulty water level switch |
| F03 | Faulty drain pump |
These are just a few examples of error codes you might encounter. Always consult your washer's manual for a complete list of error codes and their possible causes.
Bypassing the 3-wire washer lid switch on your Amana washer can be a useful temporary fix, but it's important to remember that the lid switch is a crucial safety feature. Always replace the switch as soon as possible to ensure your washer is safe to use. If you're unsure about any part of the process, don't hesitate to consult a professional technician.
