Mastering Wire Running Kits: A Comprehensive Guide
Embarking on a new electrical project can be an exciting endeavor, and having the right tools can make all the difference. One such essential tool is a wire running kit. This guide will walk you through the process of using a wire running kit, ensuring your electrical installations are neat, efficient, and up to code.
Understanding Wire Running Kits

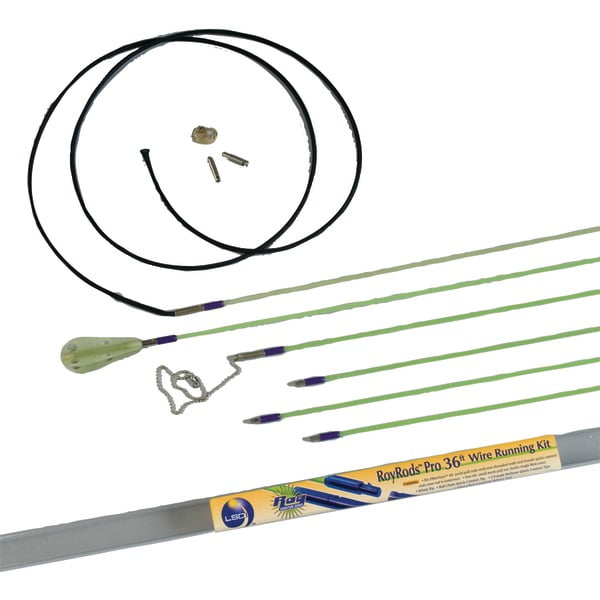

Before we dive into how to use a wire running kit, let's first understand what it is. A wire running kit, also known as a fish tape kit, is a tool designed to help route electrical wires through walls, ceilings, and floors. It consists of a flexible steel tape, a reel, and a handle for easy control and retrieval.
Key Components of a Wire Running Kit
- Fish Tape: The flexible steel tape is the core of the kit. It's used to push and pull wires through conduit or directly through holes in walls.
- Reel: The reel stores and dispenses the fish tape, making it easy to manage and preventing tangles.
- Handle: The handle allows you to control the fish tape, pushing and pulling it as needed.
Preparation: Gather Your Tools and Materials
Before you start, ensure you have all the necessary tools and materials. This includes your wire running kit, the wires you'll be installing, a drill (for making holes if needed), and safety gear such as safety glasses and work gloves.
Step-by-Step: Using a Wire Running Kit
Step 1: Plan Your Route
Before you start fishing, plan the route you'll take. This could be along a wall, through a ceiling, or through a floor. Knowing your route will save you time and ensure your wires are running smoothly.
Step 2: Make Access Holes
Using your drill, make access holes at both ends of your planned route. These holes should be slightly larger than the diameter of your wire to allow for easy passage.
Step 3: Attach the Wire to the Fish Tape
Strip about an inch of insulation from the end of your wire. Then, using electrical tape or a wire connector, securely attach the wire to the end of the fish tape. Ensure the connection is strong to prevent the wire from coming loose during the fishing process.
Step 4: Feed the Fish Tape
Starting from the hole where you want the wire to exit, feed the fish tape through the conduit or directly through the hole. Use the handle to control the tape, pushing it gently but firmly. If you encounter resistance, you may need to use a bend in the tape to navigate around obstacles.
Step 5: Pull the Wire Through
Once the fish tape has cleared the other end, it's time to pull the wire through. You can do this by pulling on the fish tape while holding the wire securely. Alternatively, you can use a helper or a come-along tool to provide extra pulling power.
Step 6: Retrieve the Fish Tape
After the wire is through, you can retrieve the fish tape by reeling it back onto the reel. Be careful not to damage the wire or the tape during this process.
Safety Tips
Safety should always be your top priority when working with electrical components. Here are some safety tips to keep in mind when using a wire running kit:
- Always turn off the power at the circuit breaker before starting any electrical work.
- Wear safety glasses and work gloves to protect your eyes and hands from debris and injury.
- Be cautious when drilling holes to avoid damaging pipes, wires, or other hidden obstacles.
- Never force the fish tape through a conduit or hole. If you encounter resistance, stop and reassess your route.
Troubleshooting Common Issues
Even with careful planning and execution, issues can arise. Here are some common problems you might encounter and how to troubleshoot them:
| Issue | Solution |
|---|---|
| The fish tape won't go through. | Check for obstacles in your path. You may need to use a bend in the tape to navigate around them. If the tape is still resistant, try using a smaller diameter tape. |
| The wire comes loose from the fish tape. | Re-secure the wire to the fish tape using more electrical tape or a stronger connector. |
| The wire gets tangled or kinks as it's pulled through. | Try using a smaller diameter wire or a larger conduit. You can also try pulling the wire in smaller sections rather than all at once. |
Using a wire running kit can save you time and effort when installing electrical wires. With a bit of planning and careful execution, you can ensure your wires are running smoothly and efficiently. Always remember to prioritize safety and troubleshoot any issues that arise.
