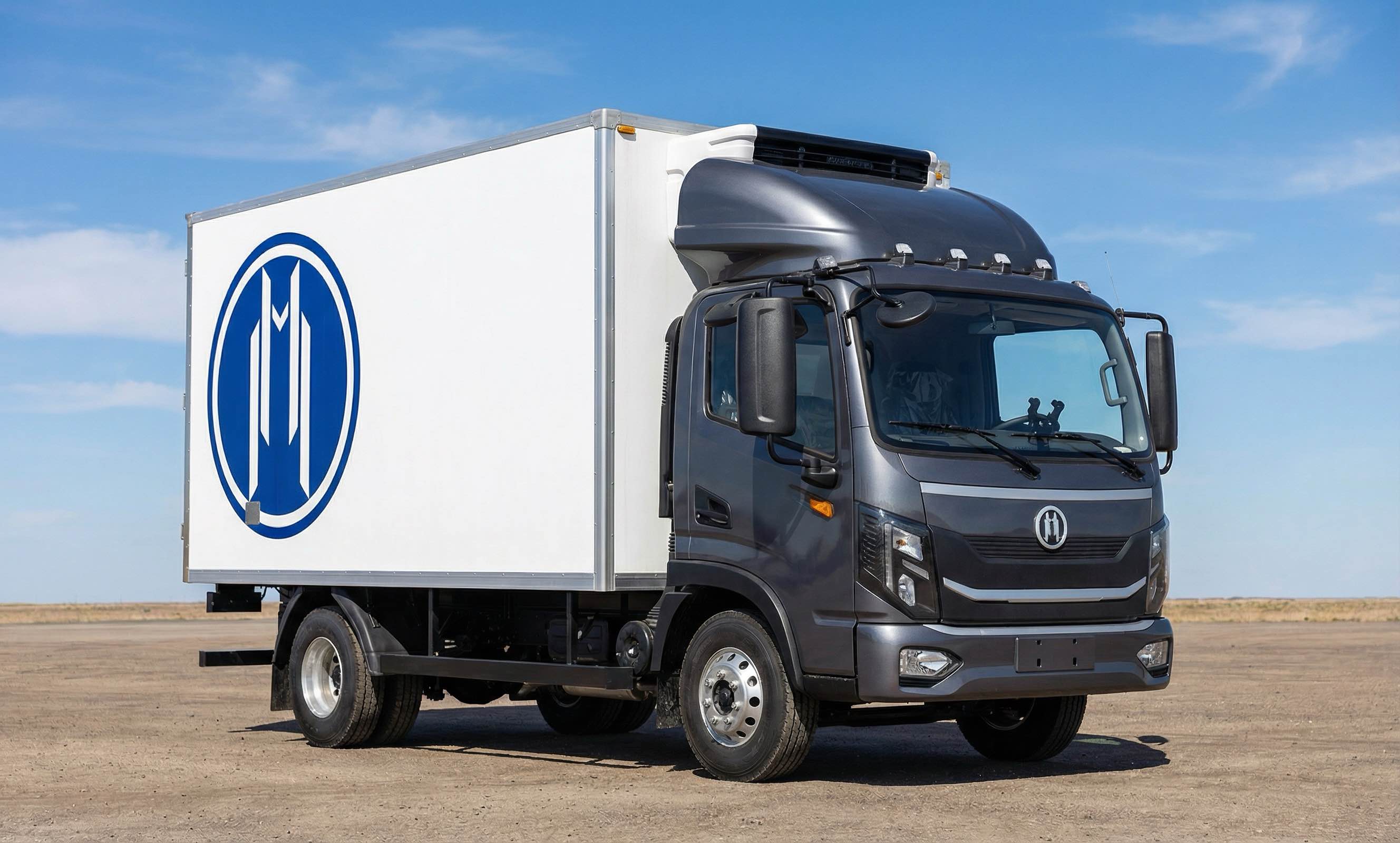

HM5 BEVRF
Class 5 - Refrig Box Truck
GENERAL SPECIFICATIONS
| GVWR | 19000.00 lbs |
| Curb Weight | 10200.00 lbs |
| Max Payload | 8800.00 lbs |
| Overall Length | 20.25 ft |
| Width | 7.17 ft |
| Height | 10.08 ft |
| Cab-to-Axle (CA) | CA in |
| Cab-to-End-of-Frame (CE) | 179.53 in |
| Bumper-to-back of Cab | 67.44 in |
| Turn radius | 22.64 ft |
| Ground Clearance | 8.27 in |
| Approach Angle | 20.00 degree |
| Departure Angle | 27.00 degree |
ELECTRIC DRIVE MOTOR
| Motor Type | 3P AC Synchronous Permanent Magnet |
| Rated Power | 87.17 hp |
| Peak Power | 187.74 hp |
| Rated Speed | 4244.0 rpm |
| Peak Speed | 1200.0 rpm |
| Rated Torque | 125.45 lb-ft |
| Peak Torque | 280.34 lb-ft |
| Rated Voltage | 540.0 V |
| Voltage Range | 350.00–700.00 |
| Cooling | Water Cooling |
| Efficiency | 95.00%% % |
HV BATTERY & CHARGING
| Chemistry | Lithium Iron Phosphate |
| Capacity | 150.8 kWh |
| Cell Rating | 245.5 ah |
| Mounting Location | Center |
| DC Fast Charge Power | 245.5 kW |
| Warranty Years | 8.0 yrs |
| Warranty Miles | 248548.0 miles |
SUSPENSION & AXLES
| Front Spring | 48.43 × 2.95 × 0.39 in - 3 leaves |
| Rear Spring | 51.18 × 2.95 × 0.39 in - 5 leaves |
| Auxiliary Spring | 35.43 × 2.36 × 0.63 in - 2 leaves |
| Front Suspension | Non-independent leaf spring suspension |
| Rear Suspension | Non-independent leaf spring suspension |
WHEELS & TIRES
| Wheel Material | Aluminum |
| Tire Size | 7.50R16LT 16 |
| Rim Width | 6.00 in |
| Tire Pressure | 126.15 psi |
| Max Allowable (front) | 7275.25 lbs |
| Front Single or Dual | single |
| Max Allowable (rear) | 12786.8 lbs |
| Rear Single or Dual | dual |
ELECTRICAL/MECHANICAL POWER TAKEOFF
| Electric Power Extraction Quality | 1.0 |
BRAKES
| Service Brakes | Air |
| Parking Brakes | Electronic Parking Brake |
| Auxiliary Brakes | Motor Regenerative |
HVAC / COOLING
| Heating Type | Resistive Heat Strips |
| Refrigerant | R1234yf |
| Refrigerant Capacity | 600 ± 20 |
PERFORMANCE
| Range (preliminary) | 339.8 mi |
| Top Speed | 68.4 mph |
| Gradeability | 25.0 % |
REFRIGERATED BODY
| Box Length | 14 ft |
| Inner Height | 86 in |
| Volume | 553.5 ft³ |
| Side Wall Insulation | 3.15 in |
| Floor Insulation | 3.94 in |
| Min Temperature | -20 °C |
| Max Temperature | 20 °C |
| Temperature Accuracy | 2 °C |
| Rear Door Type | Double Swing |
| Side Door Type | Single Side Door |
| Liftgate Capacity | 3306.93 lb |
REFRIGERATION UNIT
| Min Temperature | -25 °C |
| Max Temperature | 20 °C |
| Applicable Volume Min | 12 m³ |
| Applicable Volume Max | 18 m³ |
| Cooling Capacity @ 0°C | 4.9 kW |
| Cooling Capacity @ -20°C | 2.7 kW |
| Compressor Displacement | 34 cc/rev |
| Condenser Type | Parallel flow |
| Condenser Fan Count | 2 |
| Evaporator Type | Internal thread copper pipe aluminum fin |
| Evaporator Fan Count | 2 |
| Refrigerant | R404a |
| Refrigerant Charge | 1.5 kg |
| Power Input | 3.1 kW |
| Condenser Dimensions | 1400×1224×482 mm |
Specifications are subject to change without notice. The latest data is always reflected in this specification sheet.
