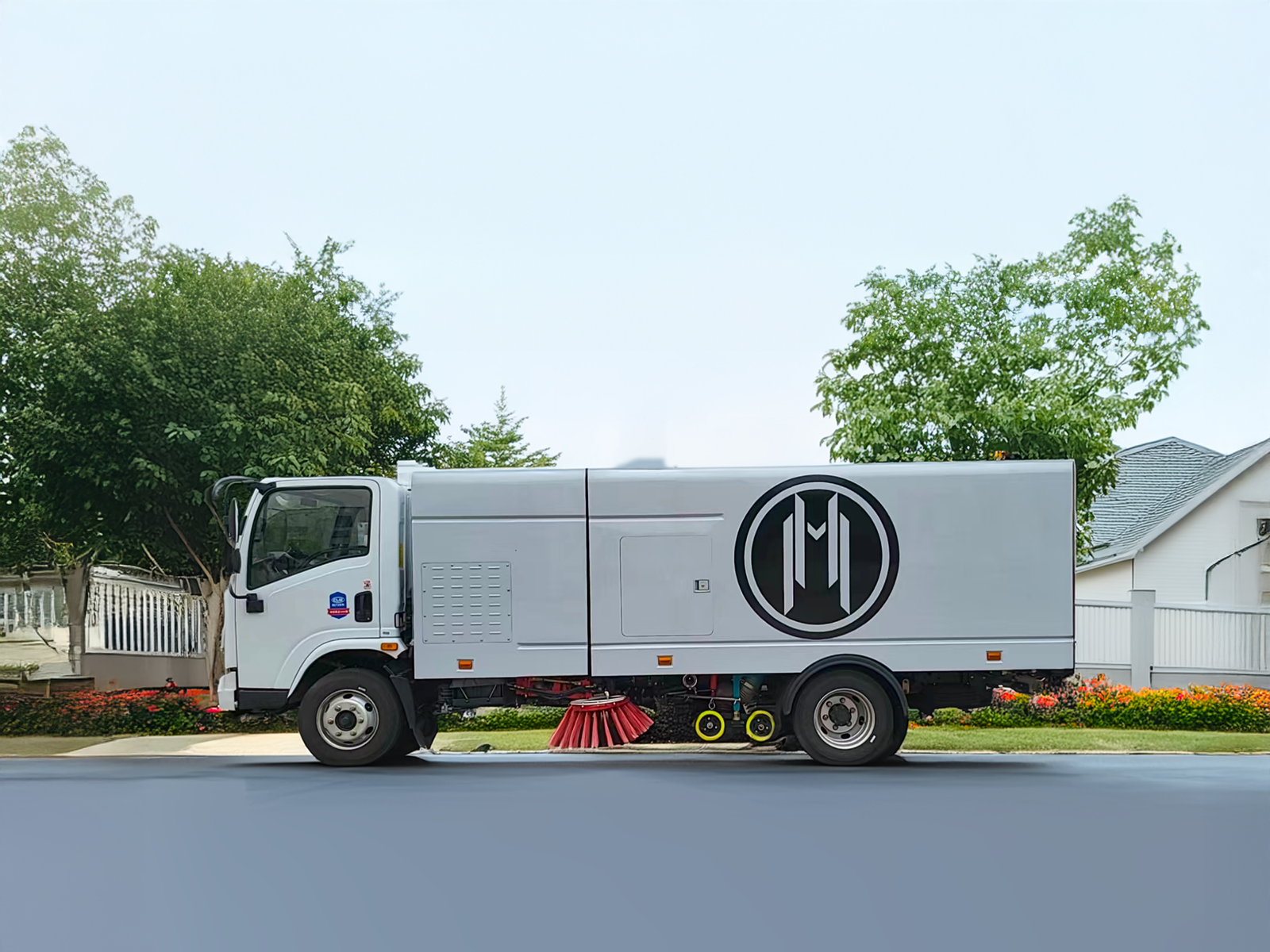

HM5 BEVSW
Class 5 - Sweeper Truck
GENERAL SPECIFICATIONS
| GVWR | 19000.0 lbs |
| Curb Weight | 12300.0 lbs |
| Max Payload | 6700.0 lbs |
| Overall Length | 22.58 ft |
| Width | 7.5 ft |
| Height | 9 ft |
| Cab-to-Axle (CA) | CA in |
| Cab-to-End-of-Frame (CE) | 179.53 in |
| Bumper-to-back of Cab | 67.44 in |
| Turn radius | 22.64 ft |
| Ground Clearance | 8.27 in |
| Approach Angle | 20.00 degree |
| Departure Angle | 27.00 degree |
ELECTRIC DRIVE MOTOR
| Motor Type | 3P AC Synchronous Permanent Magnet |
| Rated Power | 87.17 hp |
| Peak Power | 187.74 hp |
| Rated Speed | 4244.0 rpm |
| Peak Speed | 1200.0 rpm |
| Rated Torque | 125.45 lb-ft |
| Peak Torque | 280.34 lb-ft |
| Rated Voltage | 540.0 V |
| Voltage Range | 350.00–700.00 |
| Cooling | Water Cooling |
| Efficiency | 0.95 |
HV BATTERY & CHARGING
| Chemistry | Lithium Iron Phosphate |
| Capacity | 150.8 kWh |
| Cell Rating | 245.5 ah |
| Mounting Location | Center |
| DC Fast Charge Power | 245.5 kW |
| Warranty Years | 8.0 yrs |
| Warranty Miles | 248548.0 miles |
SUSPENSION & AXLES
| Front Spring | 48.43 × 2.95 × 0.39 in - 3 leaves |
| Rear Spring | 51.18 × 2.95 × 0.39 in - 5 leaves |
| Auxiliary Spring | 35.43 × 2.36 × 0.63 in - 2 leaves |
| Front Suspension | Non-independent leaf spring suspension |
| Rear Suspension | Non-independent leaf spring suspension |
WHEELS & TIRES
| Wheel Material | Aluminum |
| Tire Size | 7.50R16LT 16 |
| Rim Width | 6.00 in |
| Tire Pressure | 126.15 psi |
| Max Allowable (front) | 7275.25 lbs |
| Front Single or Dual | single |
| Max Allowable (rear) | 12786.8 lbs |
| Rear Single or Dual | dual |
ELECTRICAL/MECHANICAL POWER TAKEOFF
| Electric Power Extraction Quality | 1.0 |
BRAKES
| Service Brakes | Air |
| Parking Brakes | Electronic Parking Brake |
| Auxiliary Brakes | Motor Regenerative |
HVAC / COOLING
| Heating Type | Resistive Heat Strips |
| Refrigerant | R1234yf |
| Refrigerant Capacity | 650 |
PERFORMANCE
| Range (preliminary) | 160.7–192.8 mi |
| Top Speed | 68.4 mph |
| Gradeability | 25.0 % |
SWEEPING PATH
| Pickup Head Only | 1,600–2,000 mm (63–79 in) |
| Head + 1 Broom | 1 suction head / 2 side brushes |
| Head + 2 Brooms | 1 suction head / 4 side brushes |
GUTTER BROOMS
| Location | Both sides of vehicle |
| Diameter | 700 / 800 mm (27.6 / 31.5 in) |
| Type | Nylon + steel wire mixed bristle |
| Speed | 50–120 RPM |
| Suspension | Floating hydraulic |
| Drive | Hydraulic motor |
| Adjustments | Manual + auto obstacle avoidance |
| Center Deflector | Center-mounted deflector |
| Sealing | Wear-resistant rubber seal strip |
PICKUP HEAD
| Width | 600 mm (23.6 in) |
| Length | 2,200 mm (86.6 in) |
| Head Type | Center wide-body floating type |
| Hoses | Wire-reinforced suction hose |
| Drag Shoes | Polyurethane wear pad |
| Water Injection | High-pressure mist spray |
| Quick Disconnect | Standard quick-release fitting |
| Lift | Hydraulic cylinder lift |
SWEEPING CONTROLS
| Steering | OEM chassis steering |
| Console | In-cab CAN bus integrated control |
| Engine Gauges | Electric chassis / battery gauges |
| Display Info | Work status, pressure, battery level, fault codes |
| Switches | One-touch start/stop, brush lift, high-pressure water control |
| Standby | Idle / shutdown protection mode |
| Alarms | Low water level, pressure fault, system fault alarm |
SWEEPER POWER / CHASSIS
| Engine | Pure electric — permanent magnet synchronous motor |
| Horsepower | 165 kW (221 HP) |
| Torque | 1,150 N·m (848 lb·ft) |
| Displacement | N/A (electric) |
| Fuel Tank | N/A (electric) |
| Air Intake | N/A (electric) |
| Electrical | 579.6 V system voltage |
| Shutdowns | Overcurrent, overvoltage, overtemp, fault — auto-shutdown |
VARIABLE POWER DIVIDER
| Function | Intelligent power distribution — work / travel modes |
| Work Mode Speed | 5–25 km/h (3–16 mph) |
| Transport Mode | Max 85 km/h (53 mph) |
| Control | Electronic control (ECU) |
HYDRAULIC SYSTEM
| Pump | Gear hydraulic pump, belt-driven |
| Reservoir | 40–60 L (10.6–15.9 gal) |
| Cooling | Air-cooled oil-to-air radiator |
| Filtration | 5–10 μm return filter |
| Pressure | 16 MPa (2,321 PSI) standard |
| Valves | Solenoid directional valve + relief valve |
| Backup | Manual emergency pressure relief valve |
BLOWER
| Type | Centrifugal high-pressure blower |
| Diameter | Impeller dia. 400–500 mm (15.7–19.7 in) |
| Blade Width | 80–120 mm (3.1–4.7 in) |
| Blades | 7–10 curved blades |
| Construction | High-strength alloy steel, hardness ≥60 HB |
| Drive | Permanent magnet synchronous motor |
| Suction | ≥1,000 mm H₂O (≇47 in H₂O) |
| Airflow | 4,000–5,500 CFM (113–156 m³/min) |
| Noise Level | ≤78 dB(A) @ 50 ft |
| Housing | 2.5–5 mm (0.10–0.20 in) abrasion-resistant steel |
| Mounting | Bolt-fixed, parallel to hopper |
| Vacuum Enhancer | Center-mounted vacuum enhancement device |
| Bearings | Maintenance-free deep groove ball bearings |
DEBRIS HOPPER
| Volumetric Capacity | 5 m³ (6.5 cu yd) |
| Usable Capacity | 4.5 m³ (5.9 cu yd) |
| Construction | Stainless + carbon steel, arc anti-accumulation design |
| Dumping | Hydraulic rear discharge, max 45° tilt |
| Lift | Hydraulic scissor lift |
| Access | 500 × 700 mm (19.7 × 27.6 in) side door |
| Shrouding | Fully sealed enclosure |
| Roof | Sealed, sloped for water runoff |
DUST SEPARATOR
| Type | Wet dust suppression system |
| Cleanout | High-pressure self-cleaning + manual |
WATER SYSTEM
| Pump | High-pressure plunger pump |
| Tank Capacity | 5 m³ (1,320 gal) |
| Construction | Carbon steel |
| Fill | Top-fill; fire hydrant side inlet |
| Filtration | 5–10 μm |
| Spray Locations | Front corner spray nozzles; rear mist spray |
| Controls | Individual in-cab electronic switches |
| Features | Road edge high-pressure wash; road dust suppression |
| Materials | Carbon steel / stainless steel |
HAND HOSE (OPTIONAL)
| Diameter | 20–30 mm (0.8–1.2 in) |
| Length | 15 m (49 ft) |
| Material | Double-layer rubber braided nylon high-pressure hose |
| Mount | Dual-port quick-connect fitting |
| Airflow | High-pressure water jet; no independent airflow |
SAFETY FEATURES
| Lighting | All LED — work warning lights, reverse lights, side markers |
| Outriggers | N/A — no outrigger structure on sweeper |
| Backup | Rear-view camera with night vision |
| Other | Emergency stop button; pressure relief valve; water/pressure alarms |
ACCESSORIES
| Rear Bumper | Full-width steel anti-collision bumper with reflective markings |
| Mirrors | Wide-angle exterior mirror + blind-spot mirror |
PAINT
| Description | Primer + anti-corrosion mid-coat + weatherproof topcoat; customer-specified color |
WARRANTY
| Sweeper | 12 months or 20,000 km / 12,400 mi (whichever comes first) |
| Hydraulic Pumps & Fittings | 12 months (wear parts excluded) |
| Hydraulic Motors & Valves | 12 months (wear parts excluded) |
Specifications are subject to change without notice. The latest data is always reflected in this specification sheet.
