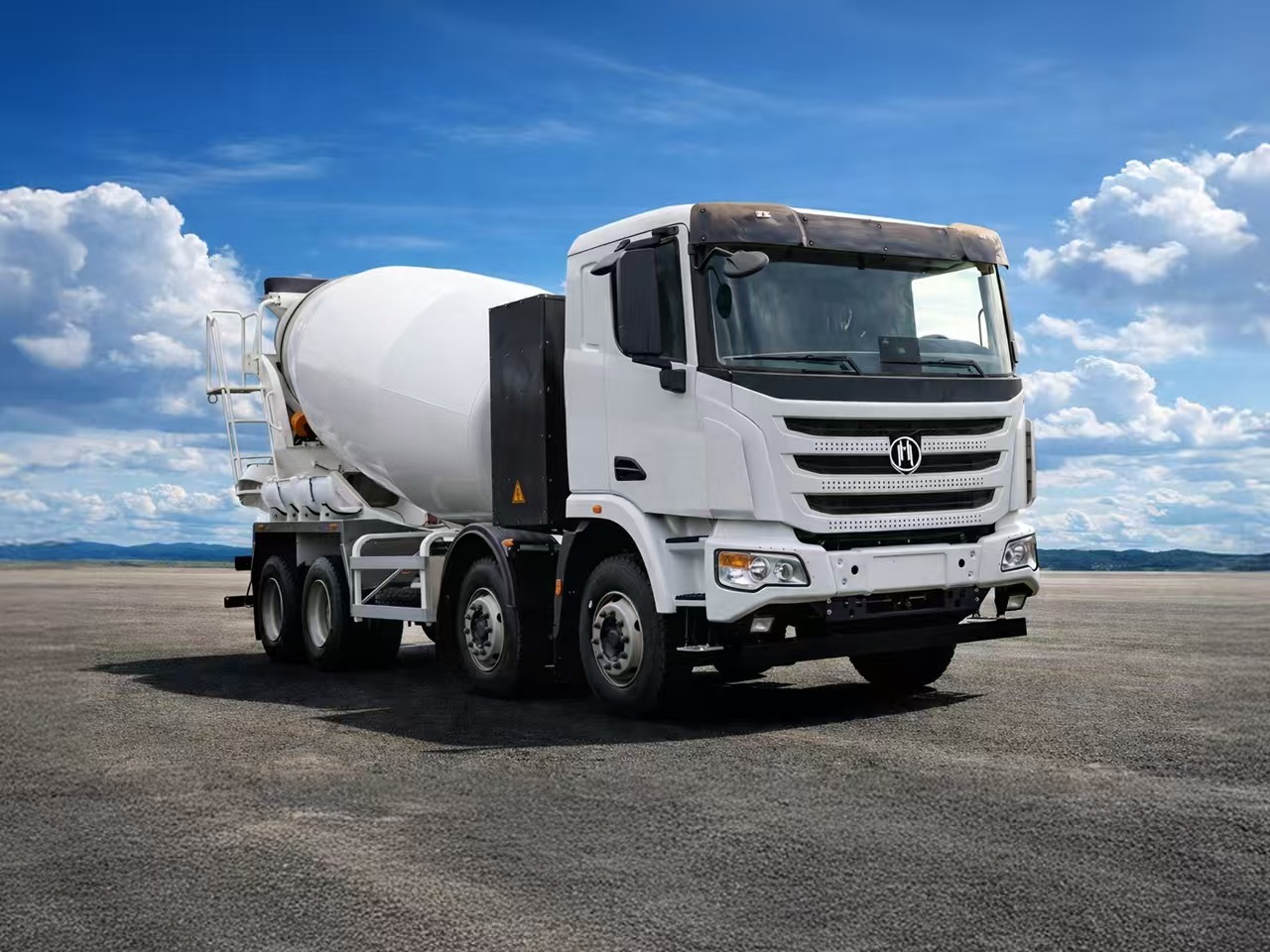

HM8 BEVCM
Class 8 - Cement Mixer
GENERAL SPECIFICATIONS
| Cab-to-Axle (CA) | 28.01 in |
| Cab-to-End-of-Frame (CE) | 282.85 in |
| Bumper-to-back of Cab | 85.73 in |
| Turn radius | 73.80 ft |
| Ground Clearance | 10.64 in |
| Approach Angle | 18.00 degree |
| Departure Angle | 15.00 degree |
ELECTRIC DRIVE MOTOR
| Motor Type | Permanent magnet synchronous motor |
| Rated Power | 380.80 hp |
| Peak Power | 571.20 hp |
| Rated Speed | 380.80 rpm |
| Peak Speed | 571.20 rpm |
| Rated Torque | 1107.00 lb-ft |
| Peak Torque | 1918.80 lb-ft |
| Rated Voltage | 630 V |
| Voltage Range | 400V-750V |
| Cooling | Liquid cooling |
| Efficiency | 94.00% % |
HV BATTERY & CHARGING
| Chemistry | Lithium Iron Phosphate |
| Capacity | 350.21 kWh |
| Cell Rating | 304.00 ah |
| Mounting Location | Back Install |
| DC Fast Charge Power | 240.00 kW |
| Warranty Years | 5.00 yrs |
| Warranty Miles | 62100.00 miles |
SUSPENSION & AXLES
| Front Spring | 65.01×3.546×0.985 |
| Rear Spring | 32.252×3.546×1.4972 |
| Front Suspension | Longitudinal Leaf Spring Rigid Axle Suspension |
| Rear Suspension | Longitudinal Leaf Spring Rigid Axle Suspension |
WHEELS & TIRES
| Wheel Material | 380CL（轮辐）、12LW（轮辋） |
| Tire Size | 295/80RR2.5 |
| Rim Width | 9.00 in |
| Tire Pressure | 130.50 psi |
| Max Allowable (front) | 31240.00 lbs |
| Max Allowable (rear) | 57200.00 lbs |
ELECTRICAL/MECHANICAL POWER TAKEOFF
BRAKES
| Service Brakes | Front drum / rear drum |
| Parking Brakes | Air Brake |
| Auxiliary Brakes | regenerative braking |
HVAC / COOLING
| Heating Type | PTC |
| Refrigerant | R1234yf |
| Refrigerant Capacity | 775g |
PERFORMANCE
| Range (preliminary) | 160.00 mi |
| Top Speed | 54.65 mph |
| Gradeability | 25 % |
All data preliminary and subject to change pending certification and validation testing.
