Tightening Torques Cylinder Head and Cover 2AZ Cylinder head bolts Replace, wash and oil cylinder head bolts. For repair work, only use screws with Torx head M20 M10. M10 head bolt tightening By c.d.iesel, May 1, 2009 in BMW 2002 and other '02 Share Followers 2.
Metric bolt sizing. Full designation would be written as M10 x 1.5 x (Lgt. in mm ex.
Bmw torque specs pdf - nogasw
30). M10 bolts like our Course & Fine series have four different, common pitches. Pitch is the distance from crest to crest of the threads in mm.
Course, is 1.5 mm pitch, Medium is 1.25 (common pitch for spark plugs) Fine is 1 mm and XFine is.75. This document provides torque specifications for various components of BMW 2002 models. It lists specifications for the engine, fuel supply system, clutch, transmission (automatic and manual), drive shaft, and other parts.
Metric Bolt Torque Chart Large
Torque values are given in both Newton-meters and pound-feet for each component, such as cylinder head bolts, main bearing caps, fuel injectors, transmission housing, and. Applicable range for tightening torques, refer to extract from company standard BMW N 600 02.0 0000M10 and M10x1. Crankshaft Hub Bolt/Nut (M10 Engine) - 310Nm Cylinder Head Bolts M10 - 60Nm, wait 15mins & tighten additional 33° then another 25° with engine at normal working temperature.
BMW N 600 02.0 - Torque Specs [back to Main Index] [BMW Torque Specs PDF] ┊ ├ 00 - General Instructions ├── 00-01 BMW N 600 02.0: General Instructions ├── 00-02 M4 / M5 Threads ├── 00-03 M6 / M7 Threads ├── 00-04 M8 / M8x1 Threads ├── 00-05 M10 / M10x1 Threads ├── 00-06 M12 / M12x1.5 Threads ├── 00-07 M14 / M14x1.5 Threads ├── 00. The tightening torque is the force used to tighten the metric fasteners during assembly with a tool. This torque is transmitted to the metric fasteners using an adjustable, suitable torque wrench.
Torque Specification Front Axle (sub-frame) | BMW 2002 and other '02

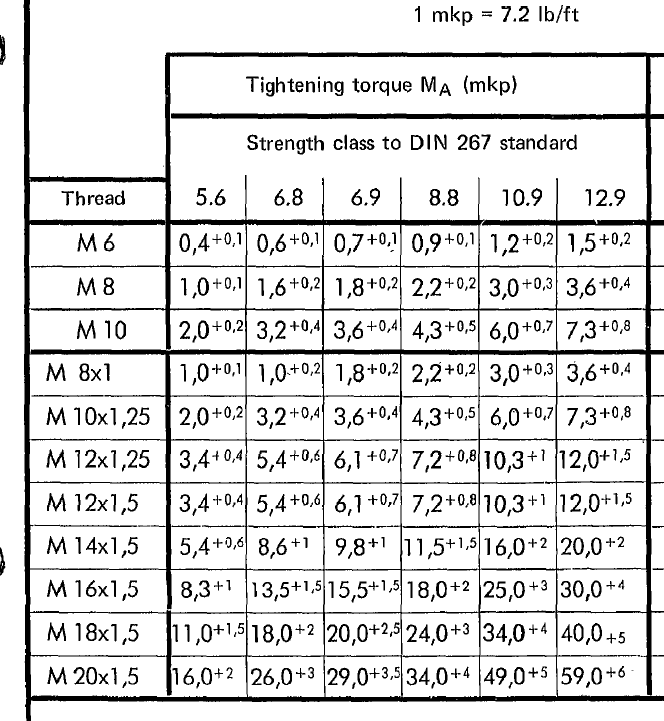

The corresponding values for the various screw sizes and strength classes for metric coarse threads can be found in the metric torque table below. Explore our bolt torque chart for metric bolts. Find recommended tightening specs by diameter and grade, including common sizes like M8 and M12.
Extract from company standard BMW N 600 02.0, 20/10/97 Torque specs are for M20, unless shown other wise. Camshaft bearing cap M6 bolt - 10 Nm/7.4 ft lbs M7 bolt - 15 Nm/11 ft lbs Sprocket to camshaft M10 bolt - 65Nm/48 ft lbs Cylinder Head Cover M6 bolt - 10 Nm/7.4 ft lbs M7 bolt - 15 Nm/11 ft lbs Connecting Rod Bolts, New, washed and very.
