Understanding RCA Female Solder Connectors
RCA female solder connectors, also known as phono connectors, are widely used in audio and video applications for their reliable and secure connections. They are a type of electrical connector that uses a bayonet-style mount and a center pin to transmit audio or video signals. This article delves into the details of RCA female solder connectors, their applications, and how to work with them.
What are RCA Female Solder Connectors?

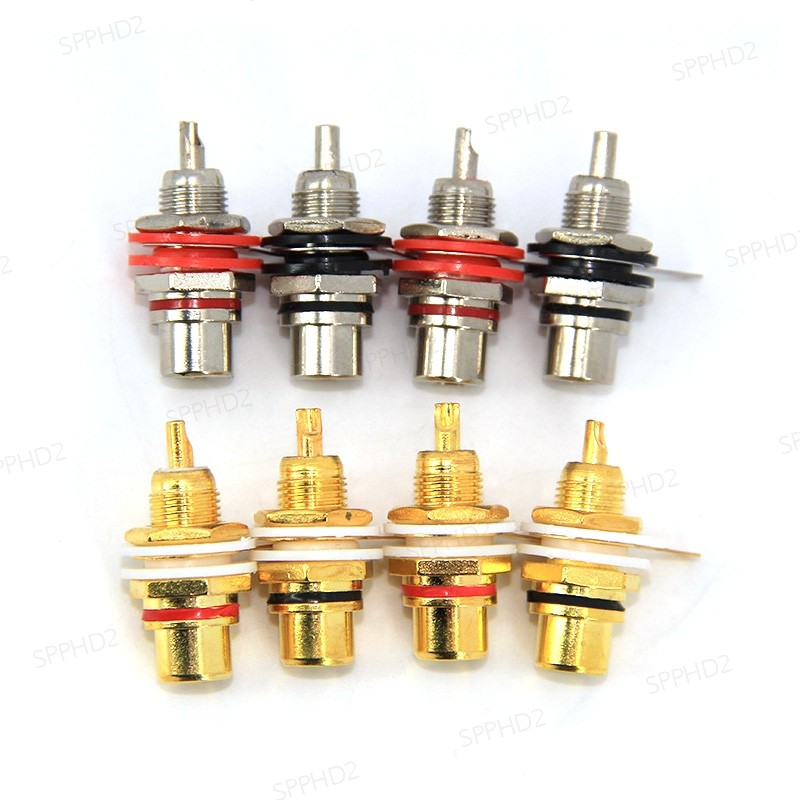

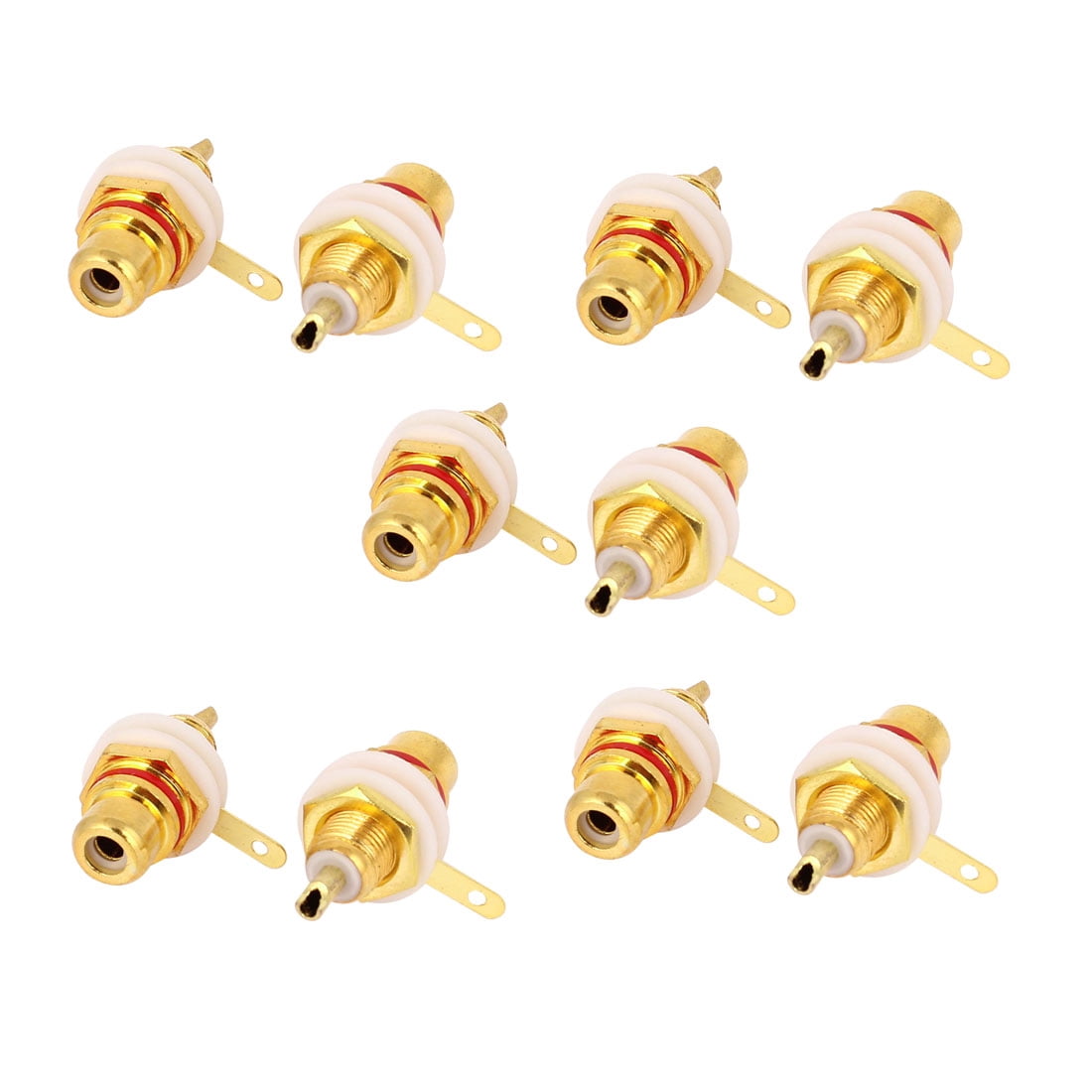

RCA female solder connectors are designed to receive RCA male plugs. They consist of a cylindrical body with a center hole, a metal sleeve, and solder tabs for secure attachment to circuit boards. The center hole accommodates the pin of the RCA male plug, while the metal sleeve ensures a tight fit and proper grounding. The solder tabs allow for easy soldering to the circuit board, making them a popular choice in permanent installations.
Key Features
- Bayonet-style mount: This allows for a secure and reliable connection, preventing accidental disconnection.
- Center pin: The center pin transmits the audio or video signal from the connected device.
- Solder tabs: These facilitate easy soldering to the circuit board, ensuring a permanent and secure connection.
- Insulation: The connector is typically insulated to prevent short circuits and ensure safety.
Applications of RCA Female Solder Connectors
RCA female solder connectors are commonly used in various audio and video applications due to their simplicity, reliability, and low cost. Some of their primary applications include:
- Home stereo systems and amplifiers
- Televisions and DVD/Blu-ray players
- Audio and video mixers
- CCTV systems and security cameras
- Car audio systems
Working with RCA Female Solder Connectors
Soldering RCA Female Connectors
Soldering RCA female connectors to a circuit board involves a few simple steps:
- Tin the solder tabs of the connector using a soldering iron and some solder.
- Position the connector on the circuit board, ensuring the center pin aligns with the corresponding hole.
- Solder the connector to the circuit board, applying heat to the solder tabs and ensuring a strong connection.
- Clip off any excess solder tabs using cutters.
Connecting RCA Cables
Connecting RCA cables to female solder connectors is straightforward:
- Insert the RCA male plug into the female connector, ensuring the pins align correctly.
- Twist the plug gently to engage the bayonet-style mount, securing the connection.
- Gently pull on the cable to test the connection and ensure it's secure.
Troubleshooting Common Issues
While RCA connectors are generally reliable, issues can arise. Some common problems and their solutions include:
| Issue | Solution |
|---|---|
| No sound or video | Check for proper connection, ensure cables are not damaged, and inspect the circuit board for any soldering issues. |
| Intermittent connection | Tighten the connection, check for any oxidation on the pins, or replace the connector if necessary. |
| Damaged connector | Replace the connector with a new one, ensuring it's properly soldered to the circuit board. |
In the world of audio and video, RCA female solder connectors play a crucial role in ensuring reliable and secure connections. Understanding their design, applications, and how to work with them is essential for anyone involved in the installation, maintenance, or repair of audio and video systems.
