The Ultimate Guide to Lighting Wire Gauge: Size, Safety & Code Compliance

Selecting the correct lighting wire gauge is a fundamental yet often overlooked aspect of any electrical installation, whether it is for a home theater, a stage performance, or an outdoor landscape setup. The wire acts as the circulatory system for your lighting system, carrying the necessary power to illuminate the fixtures. Using a wire that is too thin can lead to overheating, voltage drop, and potential safety hazards, while using a wire that is excessively heavy can result in unnecessary costs and cumbersome installation. Understanding the principles behind wire gauge ensures that your lighting installation operates efficiently, reliably, and safely.

Understanding American Wire Gauge (AWG)

The standard measurement system used in North America for denoting wire thickness is the American Wire Gauge (AWG). It is a logarithmic scale where the larger the gauge number, the smaller the physical diameter of the conductor. For instance, a 14 AWG wire is significantly thinner than a 10 AWG wire. This counter-intuitive numbering system is critical to remember when consulting electrical codes or product specifications. The gauge directly correlates with the wire’s electrical resistance; a smaller wire (higher gauge number) has higher resistance, which impedes the flow of current and leads to energy loss in the form of heat.

The Role of Resistance and Current

At the heart of wire selection is the relationship between current (measured in amperes), voltage, and resistance, governed by Ohm’s Law. Every lighting fixture draws a specific amount of current to operate. When current flows through a conductor, resistance causes a voltage drop. If the wire gauge is insufficient for the load, this voltage drop becomes significant, leading to dimming lights at the end of a run or under full load. Furthermore, the electrical energy lost due to resistance is converted into heat. While all wires generate some heat, an undersized wire cannot dissipate this heat effectively, creating a dangerous scenario that can degrade insulation and ultimately cause a fire.

Calculating Your Lighting Load

Before selecting a wire gauge, you must determine the total electrical load of your lighting circuit. This involves calculating the combined power consumption of all fixtures that will operate simultaneously on that circuit. You can find the amperage draw of each fixture on its manufacturer's data plate or in the product manual. By summing these values, you establish the required current for the circuit. It is a professional standard practice to apply a safety margin to this calculation, typically accounting for potential future additions or power surges, to ensure the wire remains capable under peak conditions.

Recommended Gauge for Common Lighting Applications

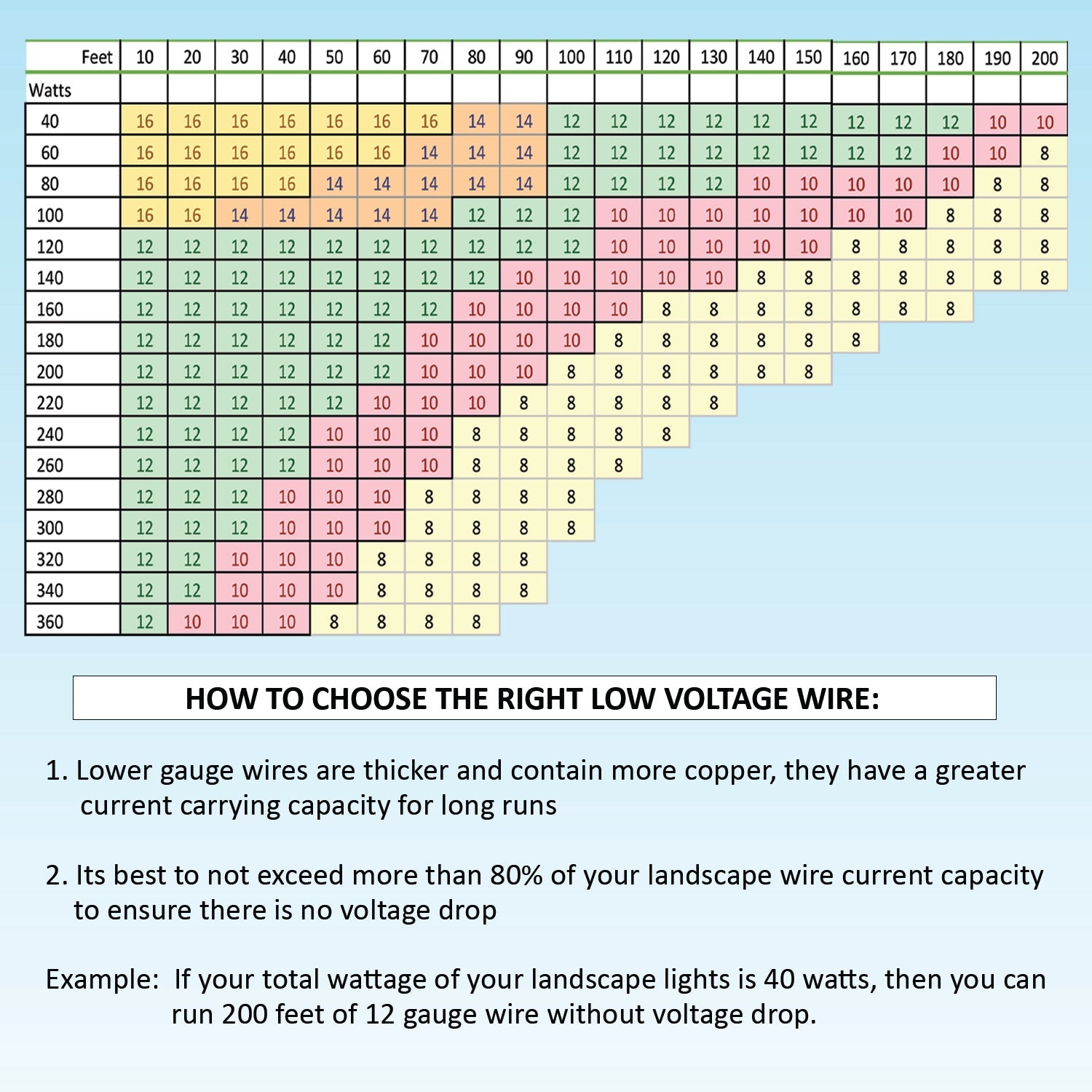

The appropriate gauge varies significantly depending on the application and the length of the run. For low-voltage landscape lighting, which typically draws minimal current, 16 or 18 AWG wire is often sufficient due to the short distances involved. However, for high-voltage systems or professional stage installations, the requirements are much more stringent. A general guideline for permanent lighting installations is to use 14 AWG for circuits under 15 amps and 12 AWG for circuits up to 20 amps. For larger theatrical installations or installations running longer distances where voltage drop is a concern, 10 AWG or thicker wire is recommended to maintain voltage integrity at the fixture.

Environmental and Installation Factors

The physical environment where the wire is installed can also dictate the gauge and type of wire you need. Outdoor installations exposed to moisture, UV radiation, and temperature fluctuations require weather-resistant insulation, often denoted as THWN or UF-B wire, which may have different thermal properties than indoor wire. Furthermore, if the wiring will be run through conduit or in cramped spaces, the physical flexibility of the wire—and the number of wires you can pull through—becomes a factor. A 12 AWG THHN wire might meet the electrical requirement, but if it is too stiff to navigate the installation path without damage, you might need to reconsider the approach or the type of conduit used.

Safety Standards and Code Compliance

Ultimately, adherence to local and national electrical codes, such as the National Electrical Code (NEC) in the United States, is non-negotiable. These codes establish the minimum requirements for wire gauge based on circuit amperage and environmental conditions. Compliance protects your property and the people within it from electrical hazards. Consulting a licensed electrician is highly recommended for any complex installation, as they can perform a professional voltage drop calculation and ensure that the chosen wire meets or exceeds safety standards. Proper grounding and junction box usage are also integral parts of a safe and legal lighting wire installation.
