Line Voltage Rail Lighting: Bright Ideas & Installation Tips

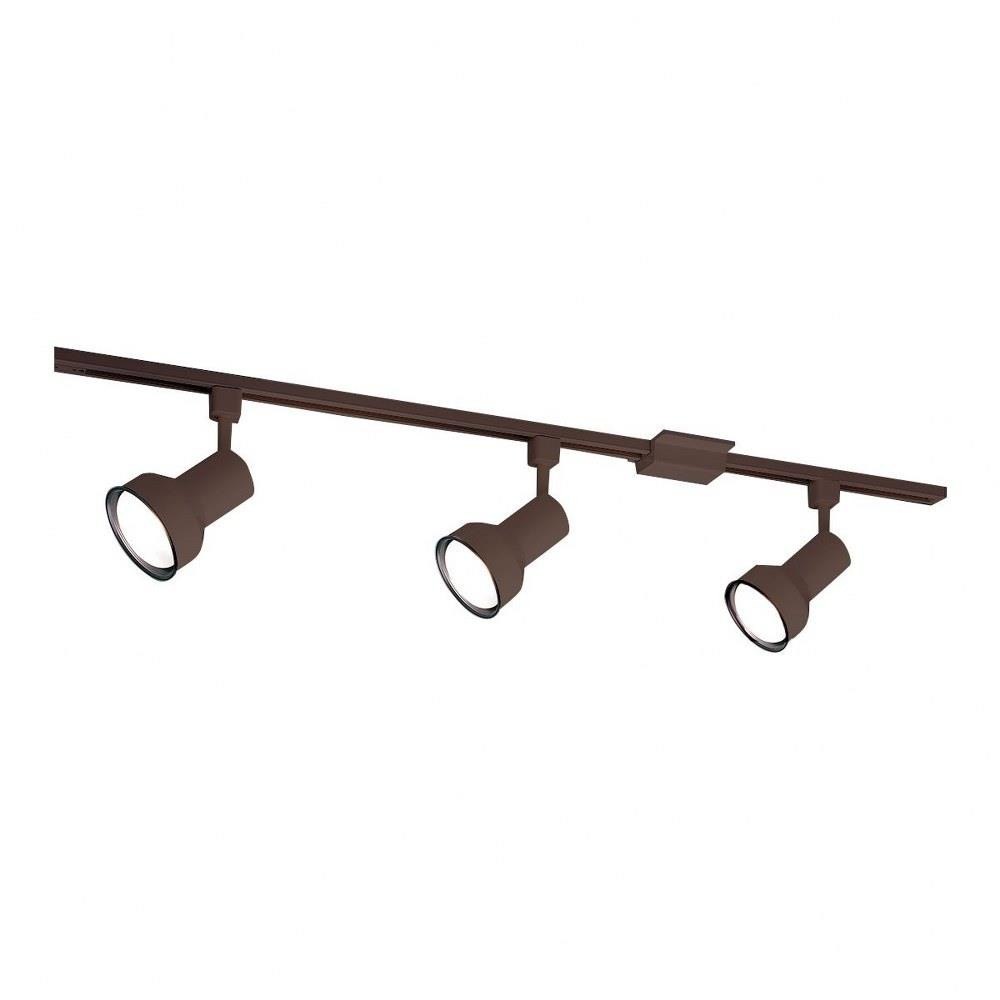

Line voltage rail lighting represents a sophisticated solution for architectural and commercial illumination, offering unparalleled design flexibility and consistent performance. This system suspends lightweight fixtures from a continuous rail conductor, distributing power magnetically or through direct contact. Unlike traditional wiring methods, the power source is integrated directly into the rail, eliminating the need for separate fixture wiring. The result is a clean, minimalist installation that draws attention to the light itself rather than the infrastructure. Architects and designers often specify this technology to achieve dramatic ceiling effects in high-end retail, galleries, and executive offices.

Core Operating Principles

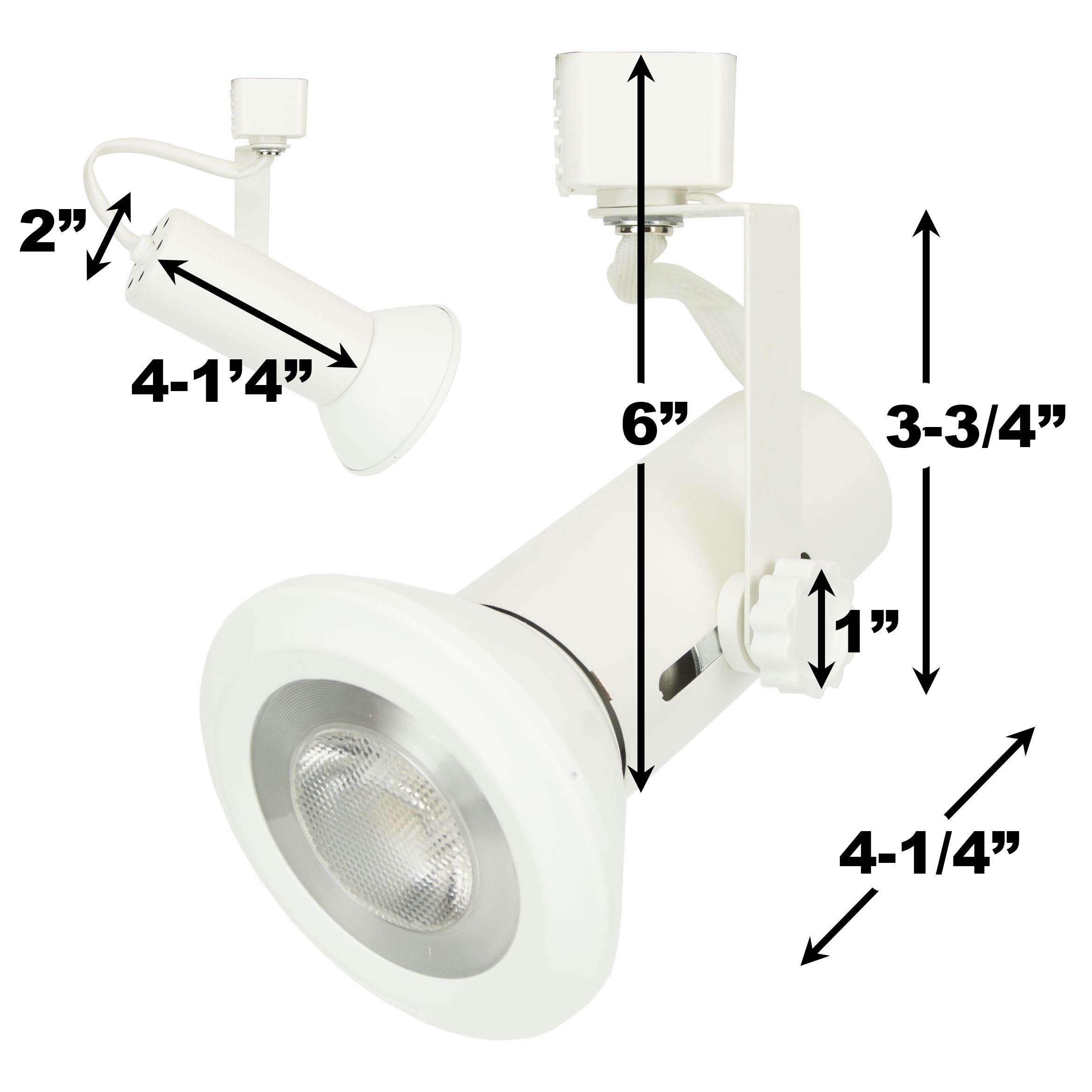

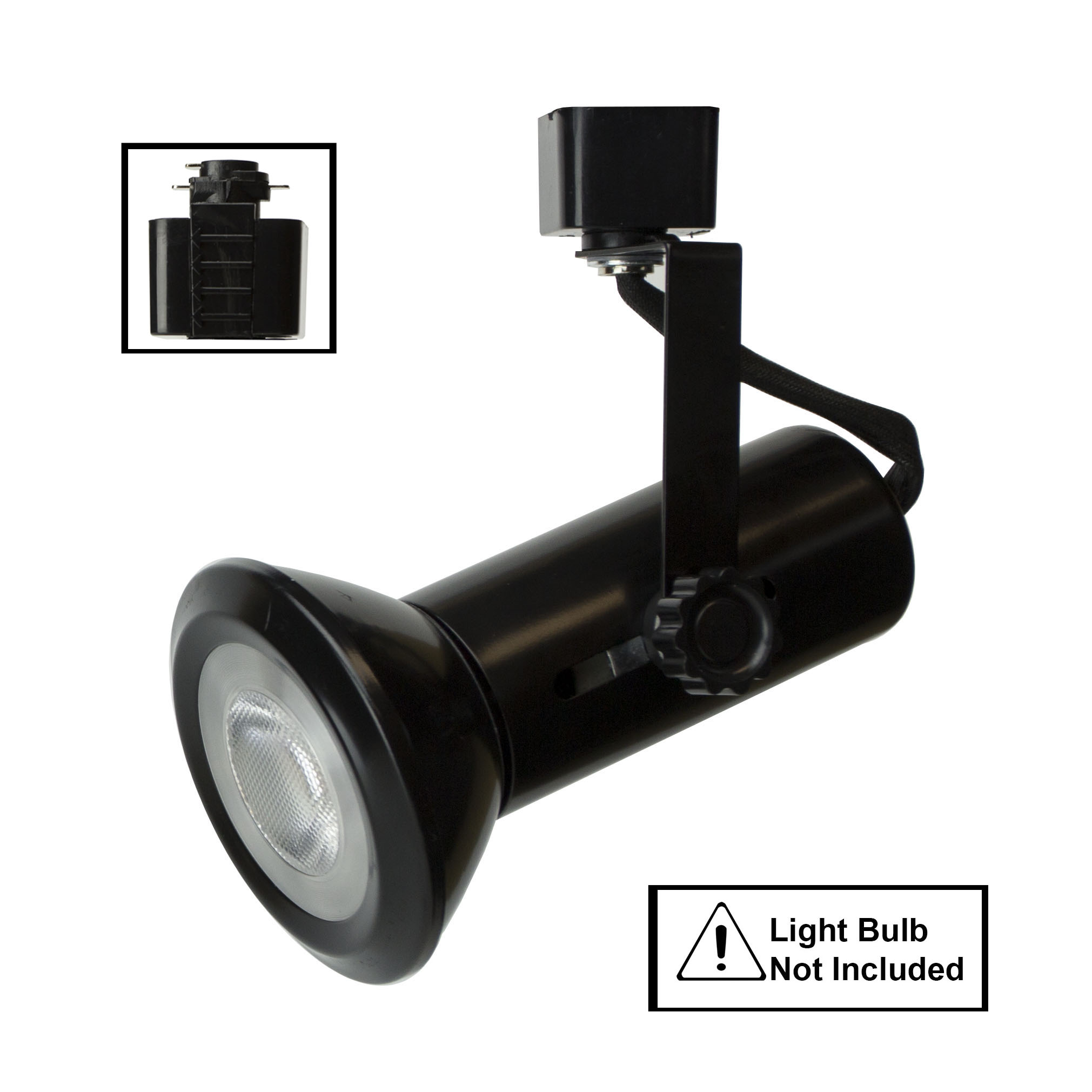

At its foundation, line voltage rail lighting operates on the principle of electromagnetic induction or direct conductive transfer. The central rail acts as both a structural element and a power highway, carrying the full 120 or 277 volts standard in commercial settings. Fixtures, often called "heads" or "cans," contain magnetic or electronic transformers that convert this high voltage to the low voltage required by the lamp. This allows the fixtures to glide freely along the energized track, maintaining a secure electrical connection without physical plugs or wires. The system is designed to be modular, enabling users to easily add or remove units without disrupting the entire circuit.

Magnetic vs. Electronic Systems

• Magnetic Systems: Known for their durability and ability to handle high inrush loads, these are ideal for applications with metal halide or high-output fluorescent lamps.
• Electronic Systems: Offering greater energy efficiency and compatibility with LED technology, they provide precise dimming capabilities and a cleaner power profile.

Design and Architectural Impact

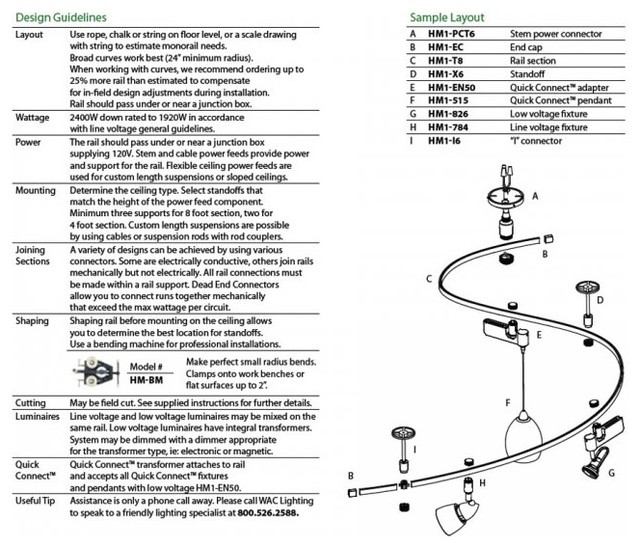

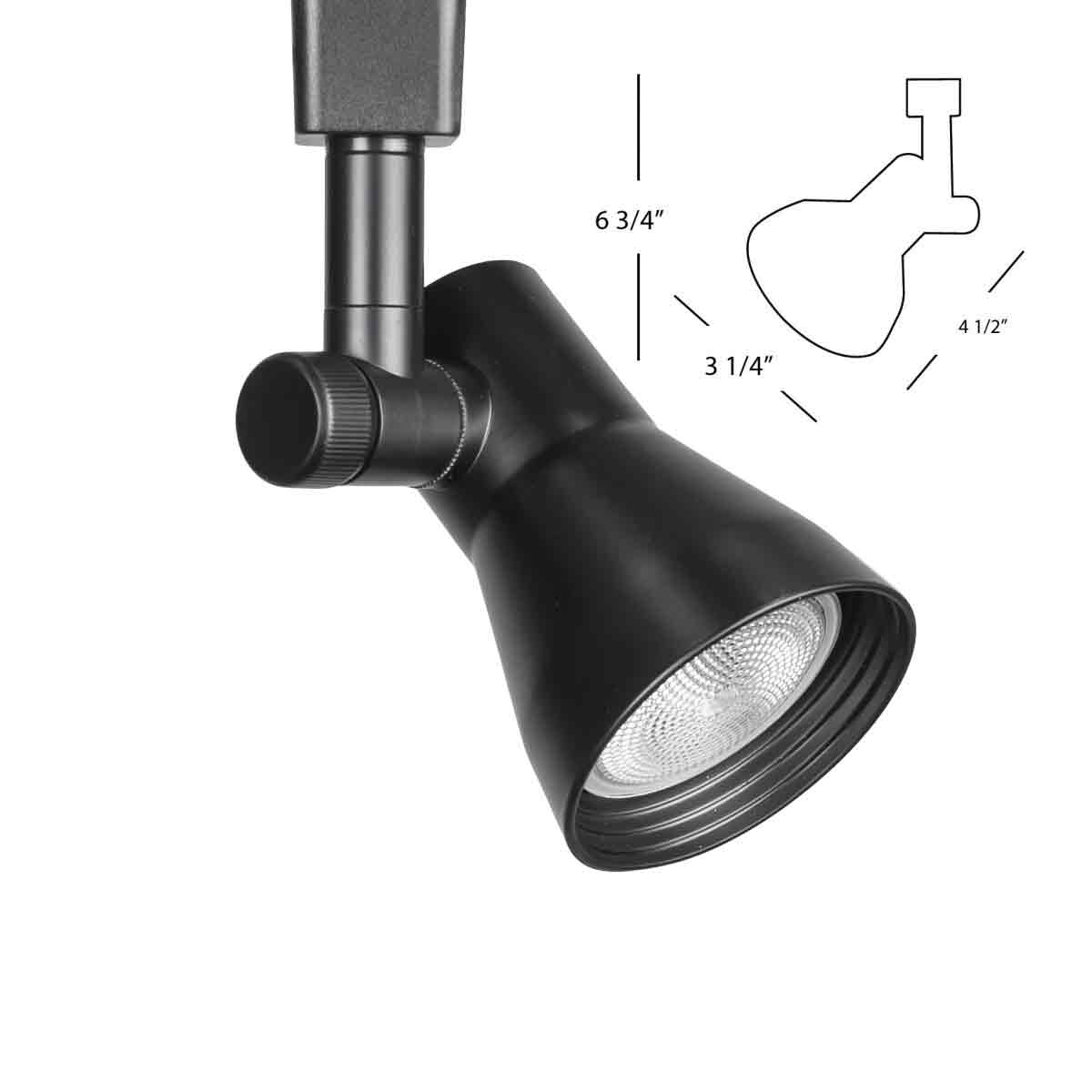

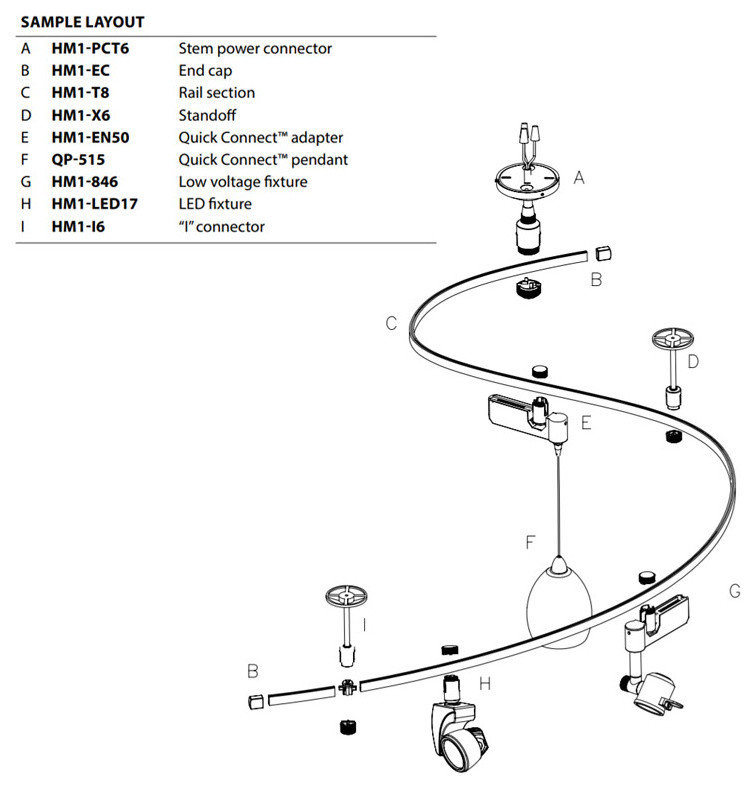

The most significant advantage of line voltage rail lighting is its aesthetic minimalism. Because the power is transmitted through the rail, there are no visible wires running to each individual fixture. This creates a sense of weightlessness, where the fixtures appear to hover along the track. Designers can configure the rail in straight lines, angles, or sweeping curves, tailoring the layout to the specific geometry of the space. The variety of head styles—from narrow spot beams to wide flood optics—allows for precise control of light distribution, enhancing the visual hierarchy within a room.

Customization and Flexibility

Modern line voltage systems are engineered for adaptability. Many manufacturers offer rails with multiple circuits, allowing different zones of the track to be controlled independently. This means track lighting can coexist with embedded downlights on the same ceiling plane, creating a layered lighting scheme. Additionally, the ability to pivot or rotate the fixture heads enables precise aiming after installation. For spaces that require frequent reconfiguration, such as museums or conference centers, the ability to slide and reposition "heads" without technical support is a major operational benefit.

Energy Efficiency and Technology Integration

Contrary to the misconception that high-voltage systems are inefficient, today's line voltage rail lighting is highly optimized for performance. The integration of LED technology has dramatically reduced power consumption and heat generation. Furthermore, these systems are increasingly compatible with smart controls, including daylight harvesting and occupancy sensors. By connecting the rail to a building management system, facility managers can automate dimming schedules, reducing energy use during off-peak hours without sacrificing illumination quality.

Key Performance Metrics

Installation and Maintenance Considerations

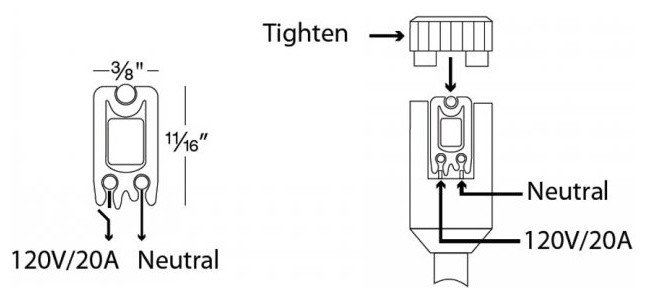

While the visual result is seamless, installation requires careful planning to ensure safety and performance. The rail must be securely mounted to withstand the weight of the fixtures and environmental vibrations. Professional electricians are typically required to connect the rail to the building's power supply, ensuring proper grounding and overload protection. However, once installed, maintenance is straightforward. Dust can be removed with a soft cloth, and faulty "heads" can be unplugged and replaced in minutes. This ease of service translates to lower long-term operational costs compared to more complex infrastructure.
