Low Voltage Outdoor Lighting Cable: Durable, Weatherproof Solutions

Selecting the correct low voltage outdoor lighting cable is the single most critical decision for ensuring the longevity, safety, and performance of your landscape illumination system. Unlike standard indoor wiring, these cables are specifically engineered to withstand environmental stressors such as moisture, UV radiation, and temperature fluctuations. Using an incorrect cable can lead to voltage drop, system failure, and hazardous conditions, making it essential to understand the specifications and standards before any installation begins.

Understanding Low Voltage Landscape Lighting

Low voltage lighting operates at 12 volts rather than the 120 volts found in standard household circuits, which significantly reduces the risk of electric shock and allows for safer DIY installation in gardens and patios. This reduction in voltage, however, introduces a unique challenge: the power can only travel a limited distance before it begins to degrade. This is where the cable specifications come into play, as the wire must maintain consistent voltage from the transformer to the farthest fixture to ensure optimal brightness.

Voltage Drop: The Core Challenge

Voltage drop occurs when the electrical current loses energy as it travels through the wire, resulting in dimmer lights at the end of the run. To combat this, installers must consider the amperage draw of their fixtures and the total length of the cable run. A cable that is too thin or too long will cause excessive voltage drop, leading to wasted energy and poor illumination. Proper calculation using wire gauge tables is necessary to match the cable capacity with the electrical load.

Key Specifications and Wire Gauges

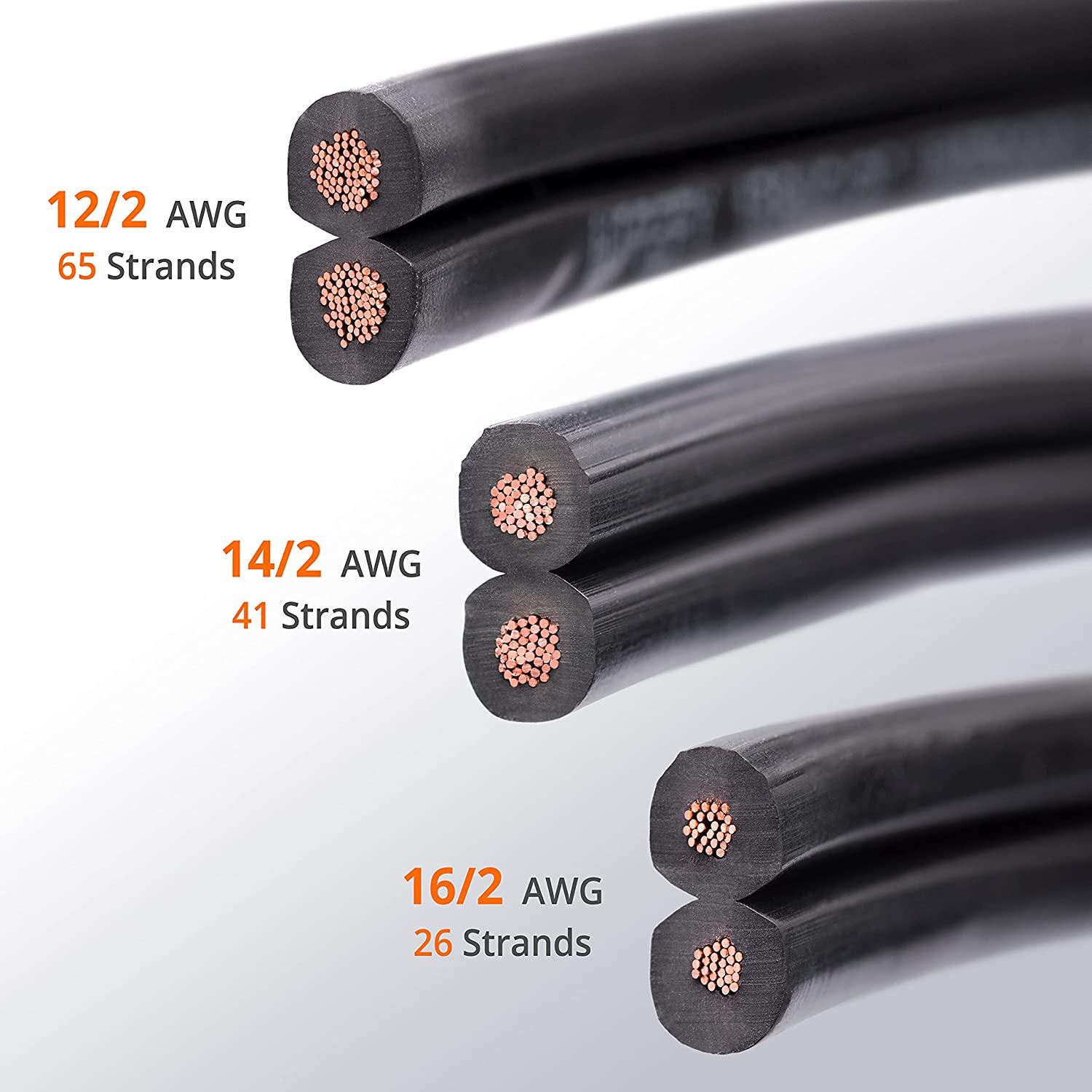

The physical composition of low voltage outdoor lighting cable is defined by its wire gauge, measured in American Wire Gauge (AWG). The most common sizes for residential landscape lighting are 12-gauge, 14-gauge, and 16-gauge. The lower the gauge number, the thicker the wire and the more power it can carry over longer distances without suffering from voltage drop.

Insulation and Environmental Protection

Because these cables are exposed to the elements, the insulation material is just as important as the copper core. Look for jackets made of durable PVC or polyethylene, which resist cracking, rot, and UV damage. Direct burial cables must meet specific standards, such as being rated for underground use without the need for conduit, which protects the wiring from physical damage during lawn maintenance.

Weather Resistance Standards

Outdoor cable is often rated by the UL (Underwriters Laboratories) or CSA (Canadian Standards Association) to meet wet location standards. These ratings ensure that the cable can handle prolonged exposure to rain, snow, and humidity. Additionally, the jacket color is usually black, which helps the cable blend into the landscape and resist fading compared to lighter-colored plastics.

Installation Best Practices

Even with the correct cable, improper handling can lead to premature failure. It is recommended to avoid cutting the cable and re-stripping the ends unless absolutely necessary, as this exposes the internal conductors to moisture. When burying the cable, a minimum depth of 6 inches is standard to protect against digging accidents and lawn equipment, while shielding it from the intense heat of direct sunlight.

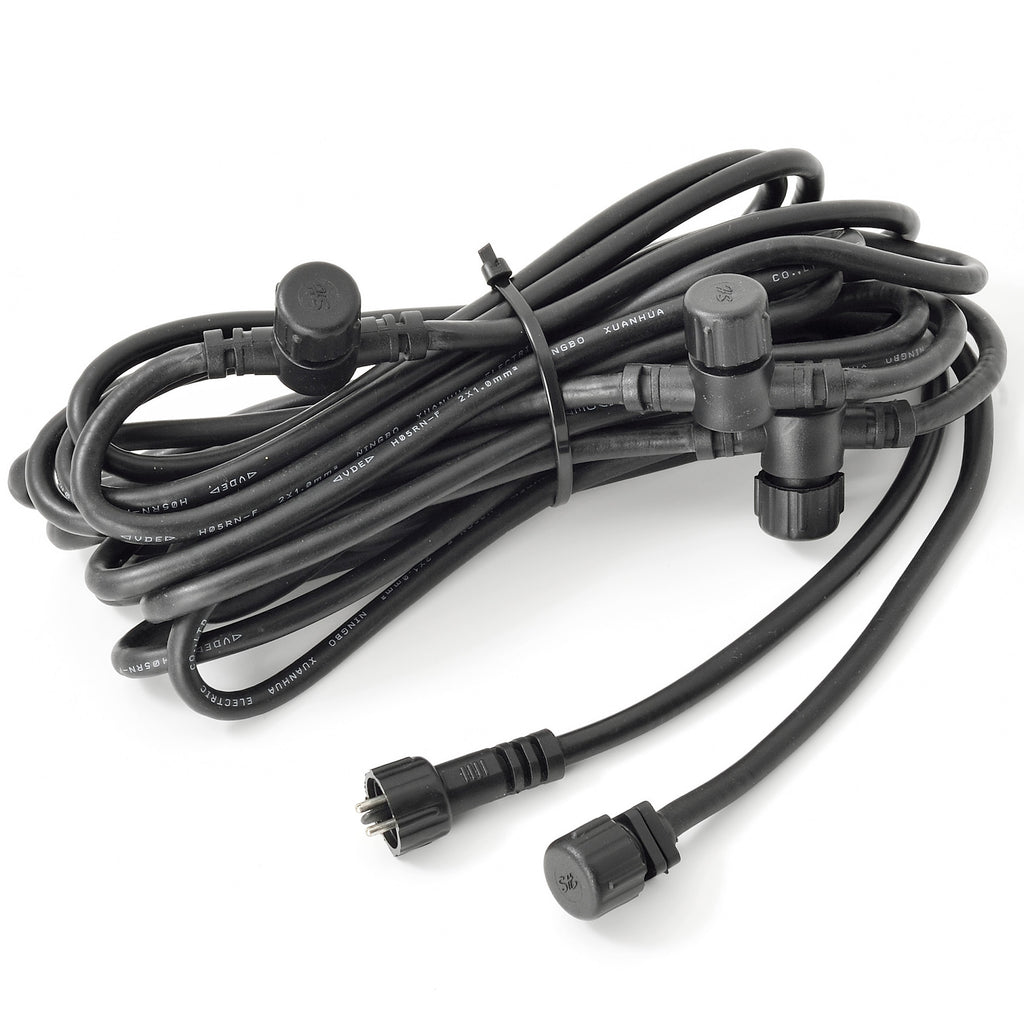

Furthermore, maintaining slack in the wiring where necessary allows for natural ground movement and thermal expansion. Utilizing proper waterproof splice connectors or heat-shrink butt connectors ensures that the electrical seal remains intact, preventing corrosion that can degrade the connection over time and lead to intermittent power issues.
