Track Lighting Head Replacement: Easy DIY Upgrade Guide

Track lighting head replacement is often the most practical solution when your existing system needs a performance upgrade or a simple refresh. Unlike replacing the entire track or fixture, swapping out the head allows you to modernize the light output, adjust the beam angle, or change the aesthetic without a significant investment. This guide walks through the critical steps and considerations to ensure your relighting project is successful.

Understanding Track Lighting Components

Before diving into the replacement process, it helps to understand the basic architecture of the system. The track itself is the electrical conduit mounted on the ceiling or wall, while the head is the removable component that houses the lamp and optics. Recognizing the interface between these parts is essential for a clean installation. You will typically encounter two main connection types: pin-based and magnetic.

Pin-Based Connectors

Pin-based systems use spring-loaded contacts that pierce the bulb base to deliver power. These are common in halogen and some LED retrofit systems. When replacing the head, you must ensure the new unit is compatible with the specific pin configuration, whether it is a single-ended or double-ended design. Using the wrong type can result in poor electrical contact or failure to illuminate.

Magnetic Connectors

Magnetic track lighting relies on a contact block that touches a metal band or pin strip embedded in the fixture. Power transfers through magnetic induction, which eliminates the need for piercing connections. Replacement heads for these systems are generally easier to swap since you only need to align the connector with the track and lock it into place.

Measuring and Matching SpecificationsAccuracy is vital when sourcing a new head, and specifications are your most valuable data points. You should verify the voltage, wattage, and base type of the existing lamp to find a direct match. Modern upgrades often involve switching to LED, which requires a compatible driver or a head specifically designed for low-voltage operation.

Specification	Why It Matters	Common Values
Base Type	Ensures the bulb physically fits	GU10, MR16, E26, Bi-Pin
Beam Angle	Controls the spread of light	10° (Spot), 24° (Narrow), 36° (Wide)
Lumen Output	Determines brightness level	300–1200+ lumens
Color Temperature	Impacts the mood and ambiance	2700K–3000K (Warm), 4000K (Neutral)
CRI Rating	Measures color accuracy	80+ (Standard), 90+ (High)
Input Voltage	Must match the power supply	120V, 12–24V, 240V
Dimmability	Allows for adjustable brightness	Yes / No
Finish/Design	Affects the visual integration	Matte Black, Brushed Nickel, White

Tools and Safety Preparation

Safety is the invisible framework of any electrical task. Always turn off the circuit at the breaker panel before accessing the track. Even if the switch is off, use a voltage tester to confirm that no current is present in the fixture. Gather your tools beforehand to avoid the need to climb the ladder multiple times.

• Non-contact voltage tester
• Ladder or stable step stool
• Screwdriver set (flathead and Phillips)
• Replacement track lighting head
• Soft cloth for handling glass or lenses
• Insulating tape (if modifying connections)

The Physical Replacement Process

Once the power is confirmed off, the physical swap is usually straightforward. Grip the head firmly but gently and rotate it counterclockwise to release it from the contact points. Some models feature a small lever or spring clip that must be depressed to unlock the assembly.

With the old unit removed, take a moment to inspect the contact surfaces. Look for signs of burning, discoloration, or dust buildup. Clean the contacts with a dry cloth if necessary. Align the new head’s connector with the track, ensuring the pins or magnets are oriented correctly. Apply firm, even pressure until you hear or feel a distinct click, indicating a secure lock.

Testing and Calibration

After the replacement, restore power at the breaker and test the new head. If the light does not turn on immediately, double-check the connection. The head might not be seated deeply enough, or the contacts may require a firmer push to engage. If the fixture is dim or flickering, turn the power back off and reseat the component.

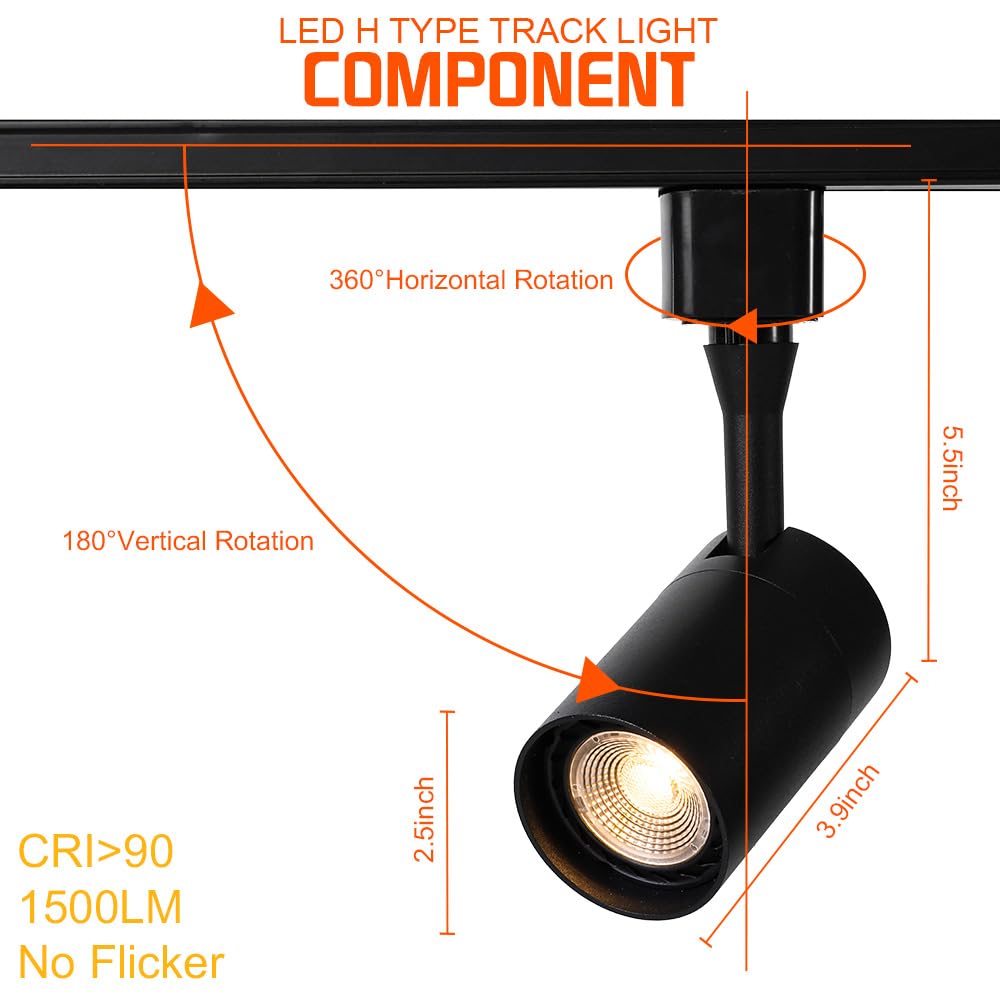

Now is the time to adjust the orientation of the head. Most track lighting systems allow for rotation. Aim the light toward the focal point in the room—such as a piece of art, a reading chair, or a kitchen counter—to maximize the functional and aesthetic impact of your track lighting head replacement.

Troubleshooting Common Issues

Even with a perfect match, you might encounter minor hiccups. Flickering is often caused by a loose connection. Gently twist the head side to side to see if the light stabilizes. If it does, the contacts need to be cleaned or the head needs to be aligned differently to maintain consistent pressure.

Dimming issues usually relate to wattage or compatibility. If you switched to LED, ensure the head is labeled as compatible with LED load. Some older dimmers struggle with the low current draw of LED drivers, causing a strobe effect or humming. In such cases, upgrading the dimmer module to a modern, compatible model resolves the issue.

Design and Upgrade Considerations

Track lighting head replacement is an opportunity to refresh the entire look of a space. If your previous fixtures were clear glass, consider switching to frosted or patterned lenses to diffuse the light more softly. Alternatively, you might opt for a color temperature shift, moving from a warm 2700K to a crisp 4000K to create a more modern, energetic atmosphere.

Furthermore, you might expand the functionality of your system by adding a head with a integrated LED driver. This eliminates the need for disposable halogen bulbs and reduces long-term energy consumption. By carefully selecting heads with different finishes or adjustable necks, you can create a layered lighting design that adds depth and sophistication to any environment.
