Understanding shower trap dimensions is essential for ensuring effective drainage and compliance with plumbing codes—accurate measurements prevent leaks and installation errors.

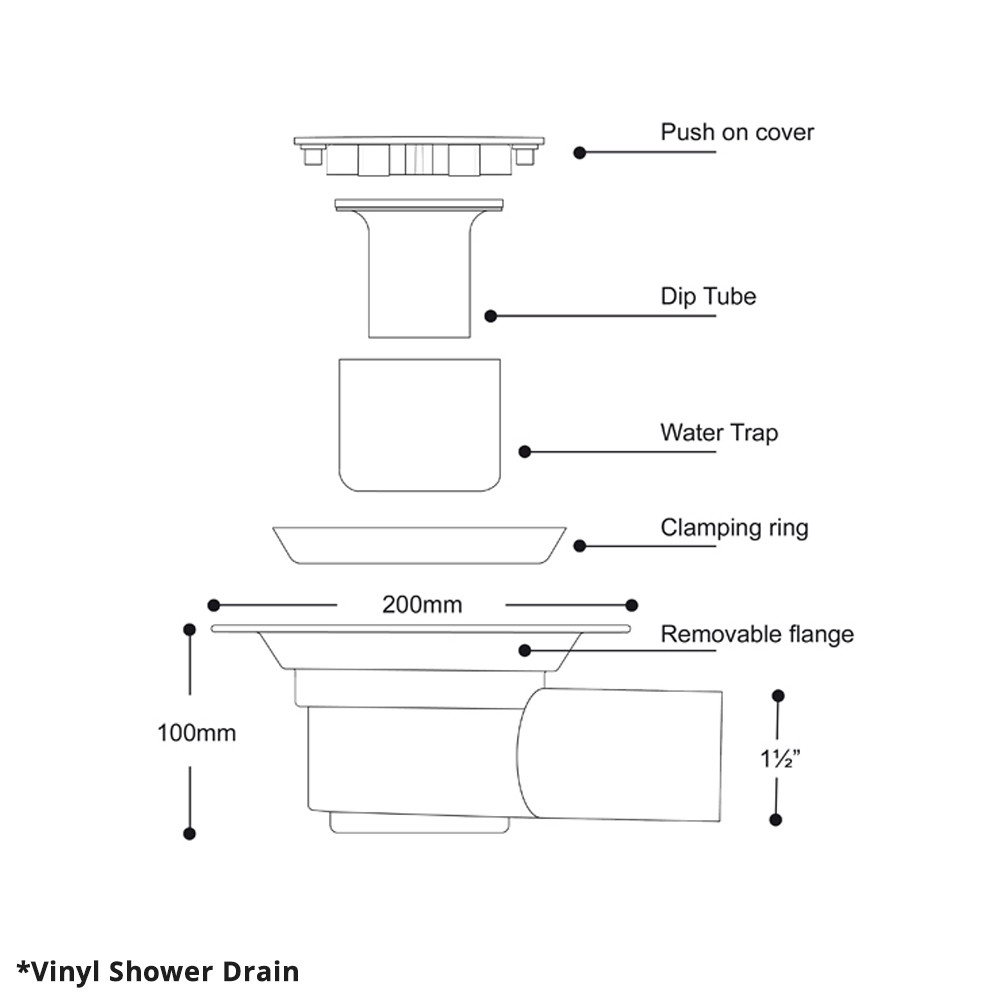

Standard Shower Trap Dimensions
Most residential shower traps follow a universal size: a 2-inch inlet diameter paired with a 2-inch outlet, yielding an internal diameter of approximately 2.5 inches and a depth of 4 to 6 inches. These dimensions support efficient water flow while maintaining proper waste separation. Variations may occur based on fixture type, but adherence to these specs ensures reliable performance.
Critical Measurement Details
Key dimensions include the trap body depth, inlet and outlet openings, and overall length. The typical depth ranges from 4 to 6 inches to prevent overflow during flushing. The outlet, often 2 inches, must align with drain pipe size. Depth variations depend on the trap design—concealed, wall-mounted, or pedestal—requiring precise installation to avoid blockages.
Importance of Accurate Sizing
Using incorrect shower trap dimensions risks inadequate drainage, leading to slow water removal or persistent odors. Proper measurements ensure optimal flow, reduce clogging likelihood, and prolong plumbing lifespan. Always verify dimensions against local building codes before purchase to avoid costly rework and ensure safety.
Selecting the right shower trap dimensions is crucial for efficient drainage and code compliance. Prioritize accuracy in measurements and consult plumbing standards before installation. For installation support or expert guidance, reach out to certified professionals today—ensuring leak-free, reliable performance every time.
The minimum size of a shower drain P-trap is 2 inches, the diameter of the pipe used to make the trap. This differs from other drain traps, such as the bathroom sink (1¼ inches) and the kitchen sink (1½ inches). The standard size for a P-trap in a shower is 1-1/2 inches in diameter.
However, it is important to confirm the specific size required for your particular shower by consulting with a plumber. Determine the mandated P-trap size (2″) for your shower. Understand plumbing code requirements for trap arm length and drainage slope.
Trap sizes for plumbing fixtures shall be as indicated in Table P3201.7. Where the tail-piece of a plumbing fixture is larger than that indicated in Table P3201.7, the trap size shall be the same nominal size as the fixture tailpiece. When choosing the size of a P trap for a shower, it is important to consider the diameter of the plumbing pipe the trap will be connecting to.
Generally, most homes have standard ½" supply lines, so you will likely need a ½" trap. However, you should make sure before purchasing a P trap that the size will fit your plumbing. Additionally, keep in mind that different manufacturers make.
Philadelphia Plumbing Code > 5 Traps, Cleanouts, Interceptors, and Backwater Valves > P. The minimum size for a shower trap is 2 inches, but you can find them in sizes up to 4 inches. If you have a large shower or one with multiple showerheads, you may need a 3 or 4.
Plumbing standards, such as the minimum size for the trap on a shower drain, are designed to foster sanitary plumbing systems, free from disease. The specific regulation you should follow depends on the local plumbing codes where the shower drain is installed. Drainage pipes for individual fixtures must be at least the pipe size of the trap/trap arm per table below.
Drains for kitchen sinks, showers and laundry standpipes must be 2" (kitchen trap arms may be 1-1/2") Drains and trap arms for toilets must be at least 3", trap arm length may be up to 6' in length measured from flange to vent. A drain trap is an important part of any plumbing system, and it is important to know the minimum size for a shower drain trap. The drain trap provides a water seal that helps prevent sewer gases from entering the home and prevents waste water from backing up into the home.
