Bosch GRL 250 HVCK Manual: A Comprehensive Guide
The Bosch GRL 250 HVCK is a robust, professional-grade laser level designed to tackle even the toughest construction and renovation tasks. This comprehensive guide will walk you through the ins and outs of your new laser level, ensuring you get the most out of this powerful tool.
Unboxing and First Impressions

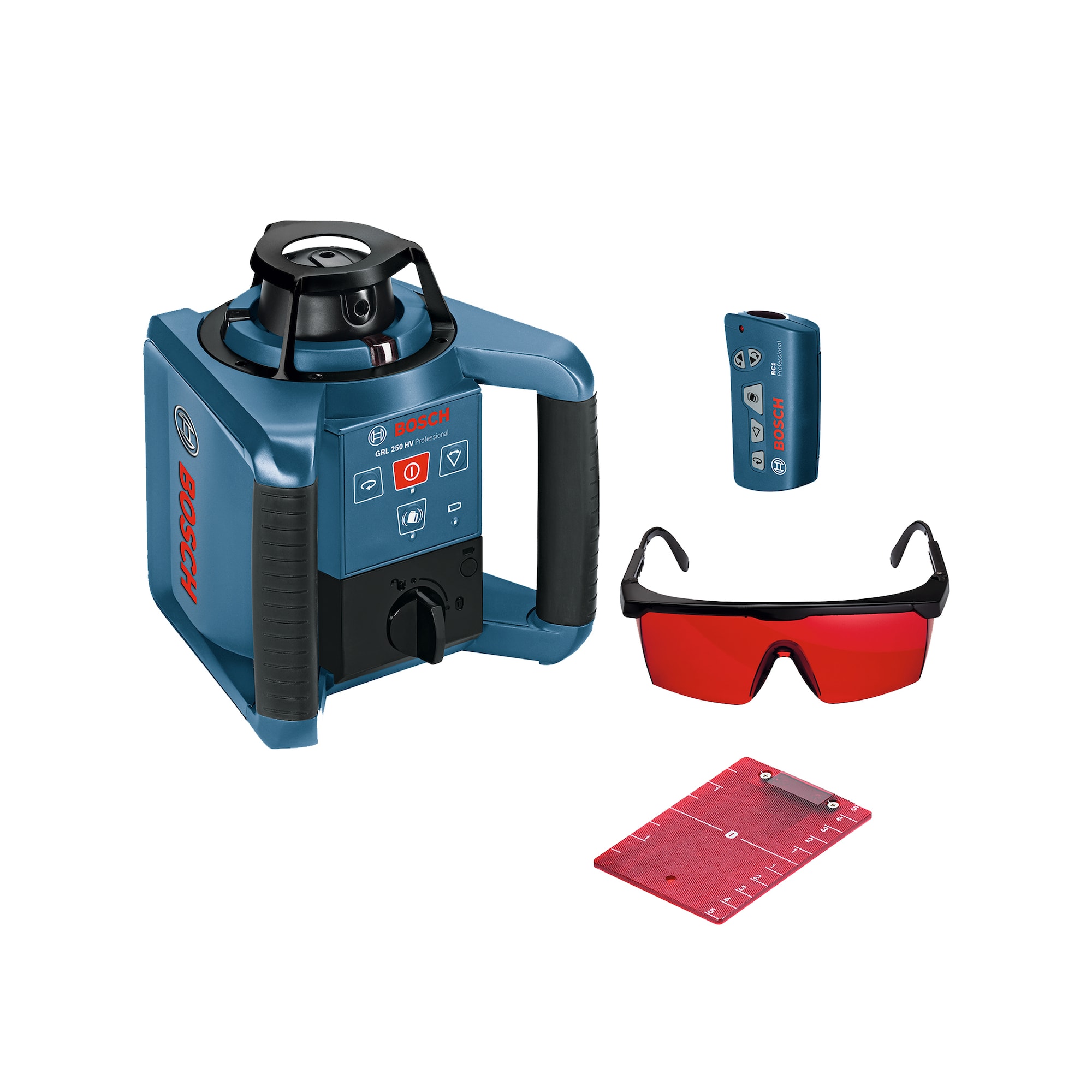

Upon unboxing, you'll find the GRL 250 HVCK securely packed with its carrying case, a rechargeable battery, and a USB charging cable. The laser level itself is compact and lightweight, fitting snugly in one hand. The robust build quality and IP54 rating ensure durability and resistance to dust and water, making it a reliable companion on any job site.
Key Features
- Laser Type: The GRL 250 HVCK uses a red laser diode (635 nm) with a visible range of up to 50 feet (15 m) in diameter.
- Accuracy: It boasts an accuracy of ±1/9" at 30 feet (1 m at 10 m), ensuring precise leveling and alignment.
- Self-Leveling: The laser level features a self-leveling pendulum that automatically adjusts for level and plumb within ±4 degrees of the horizontal or vertical plane.
- Mounting Options: The GRL 250 HVCK comes with a universal bracket for easy mounting on tripods, stands, or magnetic bases (not included).
- Battery Life: The built-in rechargeable battery provides up to 20 hours of continuous use.
Setting Up and Using the Bosch GRL 250 HVCK
Before using your new laser level, make sure to charge the battery fully. To turn on the GRL 250 HVCK, press and hold the power button for approximately two seconds. The laser level will self-level and project a laser line within a few seconds.
Leveling Modes
The Bosch GRL 250 HVCK offers three leveling modes:
- Level: Projects a horizontal laser line for leveling applications.
- Plumb: Projects a vertical laser line for plumb applications. To use this mode, mount the laser level on a tripod or use the included universal bracket to attach it to a wall or ceiling.
- Single Slope: Allows you to set a custom slope between -4° and +4° for applications like creating a sloped surface for drainage.
Adjusting the Laser Level
To adjust the laser level, use the manual mode knob to fine-tune the laser line within ±4 degrees of the horizontal or vertical plane. This is particularly useful when working in situations where the self-leveling feature cannot be used.
Troubleshooting Common Issues
If your Bosch GRL 250 HVCK is not working as expected, consult the following troubleshooting tips:
| Issue | Solution |
|---|---|
| Laser line is not visible or faint. | Ensure the laser level is within its visible range (up to 50 feet in diameter). Check for obstructions and adjust the laser level's position or angle. If the issue persists, clean the laser window with a soft, damp cloth. |
| Laser level does not self-level or remains on even after turning off. | Check if the laser level is within the self-leveling range (±4 degrees). If not, adjust its position or use the manual mode knob to fine-tune the laser line. If the issue persists, recalibrate the laser level following the instructions in the manual. |
Maintaining Your Bosch GRL 250 HVCK
To ensure the longevity of your Bosch GRL 250 HVCK, store it in a cool, dry place when not in use. Keep the laser window clean and free of debris, and periodically check the battery's charge level. If you notice any signs of wear or damage, contact Bosch's customer support for assistance.
With this comprehensive guide, you're now ready to tackle any leveling or alignment task with confidence using your Bosch GRL 250 HVCK laser level. Happy building!
