Cup and Cone Bearing Replacement: A Comprehensive Guide
Bearings are integral components in the smooth operation of various machinery, including bicycles, cars, and industrial equipment. Among these, cup and cone bearings play a crucial role in supporting radial loads and ensuring optimal performance. However, like any other mechanical part, they are subject to wear and tear over time, necessitating replacement. This article provides a comprehensive guide on cup and cone bearing replacement, ensuring your machinery continues to function at its best.
Understanding Cup and Cone Bearings

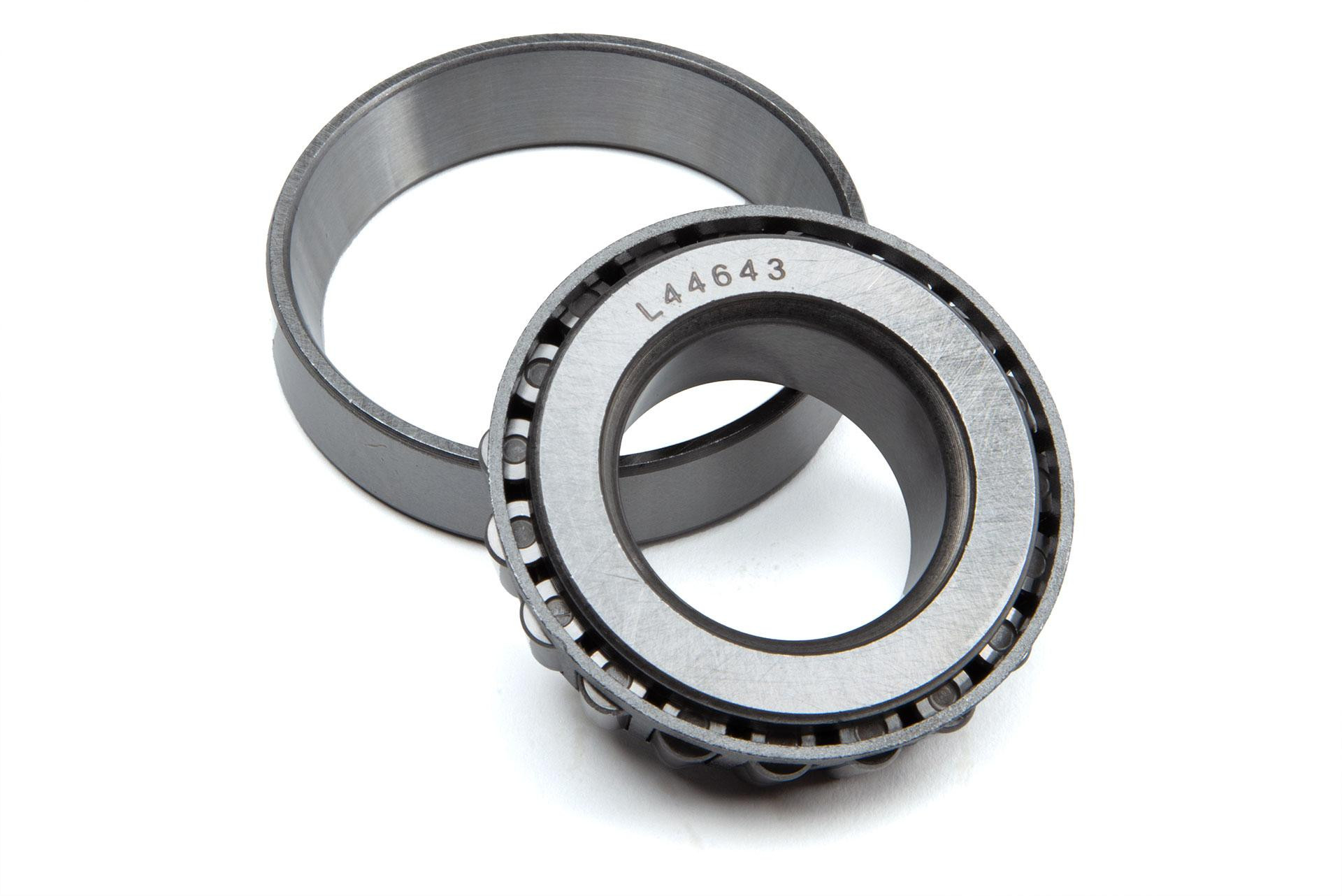

Cup and cone bearings consist of an outer race (cup), an inner race (cone), and a series of balls or rollers that facilitate rotation. The space between the races is filled with grease or oil to lubricate the moving parts and reduce friction. These bearings are commonly used in applications where radial loads are significant, such as bicycle hubs, car wheel bearings, and industrial machinery.
Signs of Worn-out Cup and Cone Bearings
Regular inspection of your machinery can help you identify worn-out bearings before they cause significant damage. Some common signs of worn-out cup and cone bearings include:
- Noise: A healthy bearing should operate silently. Grinding, squeaking, or rumbling noises indicate that the bearing is no longer functioning correctly.
- Excessive Play: If the shaft or spindle feels loose or wobbles, it could be a sign of excessive wear in the bearing.
- Difficult Movement: When the machinery becomes hard to move or operate, it might be due to seized or worn-out bearings.
- Visible Damage: Inspect the bearing for any visible signs of damage, such as pitting, scoring, or excessive wear on the races or balls.
Tools Required for Cup and Cone Bearing Replacement
Before you begin the replacement process, ensure you have the following tools and materials:
- New cup and cone bearings that match the original specifications
- Press or bearing removal and installation tools
- Hammer (if using a drift punch for removal)
- Grease or oil (depending on the bearing type)
- Rags or shop towels
- Safety glasses
Cup and Cone Bearing Replacement Steps
Follow these steps to replace your cup and cone bearings:
- Disassembly: Remove the components that cover the bearing, such as the wheel, hub, or casing, to access the bearing. This may involve using specific tools or following a disassembly procedure specific to your machinery.
- Bearing Removal:
- Using a press or bearing removal tool, carefully press the bearing out of its housing. If you don't have a press, you can use a drift punch and hammer to gently tap the bearing out. Be cautious not to damage the housing or the bearing itself.
- If the bearing is seized, you may need to use heat to expand the metal and facilitate removal. Always ensure the component is cool before handling it to prevent burns.
- Clean the Housing: Use a suitable solvent to clean the bearing housing, removing any old grease, dirt, or debris. Allow it to dry completely before installing the new bearing.
- Inspect the Housing: Check the housing for any signs of damage or wear. If necessary, repair or replace the housing before installing the new bearing.
- Prepare the New Bearing: Apply a thin layer of grease or oil to the new bearing, ensuring the races and balls are well-lubricated. This will help facilitate installation and reduce friction.
- Install the New Bearing:
- Using a press or bearing installation tool, carefully press the new bearing into the housing. Ensure it is properly seated and centered.
- If you don't have a press, you can use a drift punch and hammer to gently tap the bearing into place. Be cautious not to damage the bearing or housing.
- Reassemble: Reinstall the components you removed earlier, ensuring they are properly aligned and secured. Follow the reverse procedure of the disassembly process.
- Test the Machinery: Once the replacement is complete, test the machinery to ensure the new bearing is functioning correctly and providing smooth, silent operation.
Maintaining Cup and Cone Bearings
Regular maintenance is crucial to extend the lifespan of your cup and cone bearings. Some maintenance tips include:
- Inspect bearings regularly for signs of wear or damage.
- Clean and lubricate bearings according to the manufacturer's recommendations.
- Keep bearings away from contaminants, such as dirt, dust, and moisture.
- Ensure proper alignment and tension of the machinery to minimize excessive wear on the bearings.
By following this comprehensive guide, you can effectively replace worn-out cup and cone bearings and maintain optimal performance in your machinery. Always remember to prioritize safety during the replacement process and consult the manufacturer's guidelines for specific instructions tailored to your equipment.
