Troubleshooting Your Soldering Iron: Why Your Tip Isn't Getting Hot
If you're a hobbyist or professional in electronics, you're well aware of the frustration that comes with a soldering iron that won't heat up. You've checked the power, ensured the iron is plugged in, but the tip just won't get hot. Let's dive into the most common reasons why your soldering iron tip isn't heating up and how to troubleshoot these issues.
Understanding Your Soldering Iron
Before we start troubleshooting, it's essential to understand the basic components of a soldering iron. A typical soldering iron consists of a power supply unit, a heater element, and a tip. The power supply unit converts the mains power to a lower voltage and higher current suitable for the heater element. The heater element, usually a coil of high-resistance wire, heats up when electricity flows through it, and this heat is transferred to the tip.
Common Reasons for a Cold Soldering Iron Tip
- Faulty Power Supply Unit (PSU): The PSU could be faulty, preventing it from delivering the required power to the heater element.
- Damaged Heater Element: Overheating, misuse, or age can damage the heater element, preventing it from heating up.
- Loose Connection: A loose connection between the PSU, heater element, or tip can cause poor heat transfer or no heat at all.

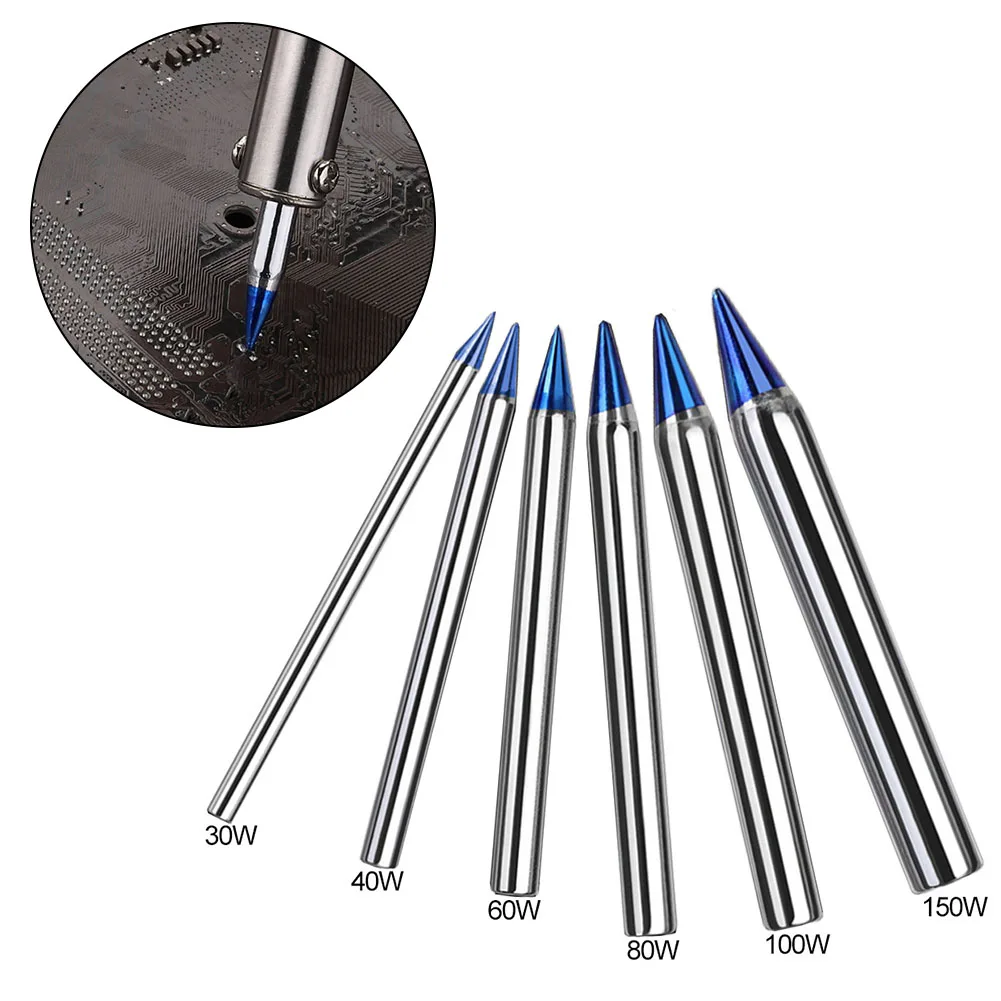

- Incorrect Tip: Using a tip that's not compatible with your soldering iron or is damaged can prevent it from heating up.
- Clogged Tip: A clogged tip can prevent heat from being transferred effectively to the solder.
Troubleshooting Your Soldering Iron
Check the Obvious First
Before you start dismantling your soldering iron, check the obvious. Ensure the iron is properly plugged in, the power supply is turned on, and there are no blown fuses. Also, check if the tip is securely attached to the heater element.
Inspect the Tip
If the tip is loose, tighten it. If it's damaged or the wrong type for your iron, replace it. If the tip is clogged with old solder, clean it using a brass wire brush or a tip tinner.
Test the Heater Element
Disconnect the tip and heater element from the PSU. Use a multimeter to test the resistance of the heater element. If it's open circuit (infinite resistance) or has a very low resistance, it's likely faulty and needs replacing.
Check the PSU
With the heater element disconnected, test the output of the PSU using a multimeter. It should read the correct voltage (usually around 12-24V DC). If it doesn't, the PSU is likely faulty and needs replacing.
Preventing Future Issues
To prevent your soldering iron from developing cold tip issues in the future, always use the correct tip for your iron, keep it clean, and store it properly when not in use. Also, avoid overheating the iron and leaving it on for extended periods when not in use.
In the world of electronics, a reliable soldering iron is a must-have tool. By understanding why your soldering iron tip isn't getting hot and how to troubleshoot these issues, you can ensure your iron is always ready to use, helping you to work more efficiently and effectively.
