Maximum Span of Beam: Ultimate Guide to Beam Length and Load Capacity

Understanding the Maximum Span of Beams: A Comprehensive Guide

The maximum span of a beam is a critical factor in structural engineering, determining the beam's stability, load-bearing capacity, and overall performance. This parameter is influenced by various factors, including the beam's material, cross-sectional dimensions, and the type of loading it's subjected to. Let's delve into the intricacies of maximum beam span, its calculation, and the key considerations that architects and engineers must keep in mind.

What is the Maximum Span of a Beam?

The maximum span of a beam, also known as the effective span, is the longest distance between two supports or reactions that the beam can safely span without failing. It's a crucial design parameter that ensures the beam's deflection remains within acceptable limits and prevents excessive stress that could lead to failure.

Key Factors Affecting Maximum Beam Span

• Material Properties: The strength and stiffness of the beam's material significantly influence its maximum span. For instance, steel beams can span longer distances than wooden beams due to their higher strength-to-weight ratio.
• Cross-Sectional Dimensions: The beam's depth, width, and shape also play a significant role. Deeper and wider beams can span longer distances due to their increased moment of inertia, which enhances their stiffness.
• Loading Type: The type of loading (uniform, concentrated, or distributed) and the magnitude of the loads also impact the maximum span. Heavily loaded beams will have shorter maximum spans.
• Support Conditions: The type of support (simple, continuous, or cantilever) affects the beam's deflection and, consequently, its maximum span.

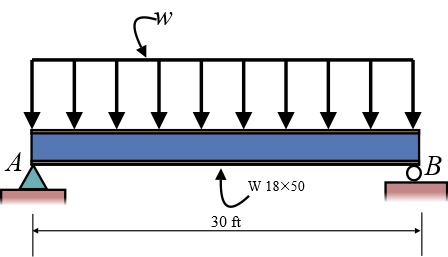

Calculating the Maximum Span of a Beam

The calculation of the maximum span involves determining the beam's deflection under various loading conditions and comparing it with acceptable deflection limits. The deflection (δ) can be calculated using the formula:

δ = (wL³)/(3EI)

Where:

• w = uniform load per unit length
• L = span length
• E = modulus of elasticity of the beam material
• I = moment of inertia of the beam's cross-section

The maximum span is then determined by iteratively solving for L in the above equation, ensuring that the calculated deflection does not exceed the acceptable limit (usually specified as L/360 for live loads and L/240 for total loads).

Acceptable Deflection Limits

The acceptable deflection limit depends on various factors, including the beam's function, the type of construction, and the applicable building codes. For instance, in residential construction, the deflection limit is often set at L/360, while in office buildings, it might be L/240. It's essential to consult relevant building codes and standards to determine the appropriate deflection limit for a given project.

Design Considerations for Maximum Beam Span

When designing beams for maximum span, engineers must consider several factors to ensure the beam's performance and longevity:

• Safety Factors: Safety factors must be applied to account for material variations, loading uncertainties, and other potential sources of error.
• Shear Stress: While calculating the maximum span, engineers must also ensure that the beam's shear stress remains within acceptable limits to prevent shear failure.
• Buckling: For long, slender beams, the risk of buckling must be assessed and addressed through appropriate design measures.
• Sustainability: The choice of beam material and dimensions should also consider the structure's long-term sustainability and environmental impact.

In conclusion, understanding and calculating the maximum span of a beam is a complex task that requires a solid grasp of structural engineering principles. By considering the key factors and applying appropriate design considerations, architects and engineers can create robust, efficient, and sustainable beam structures that meet the demands of modern construction.
