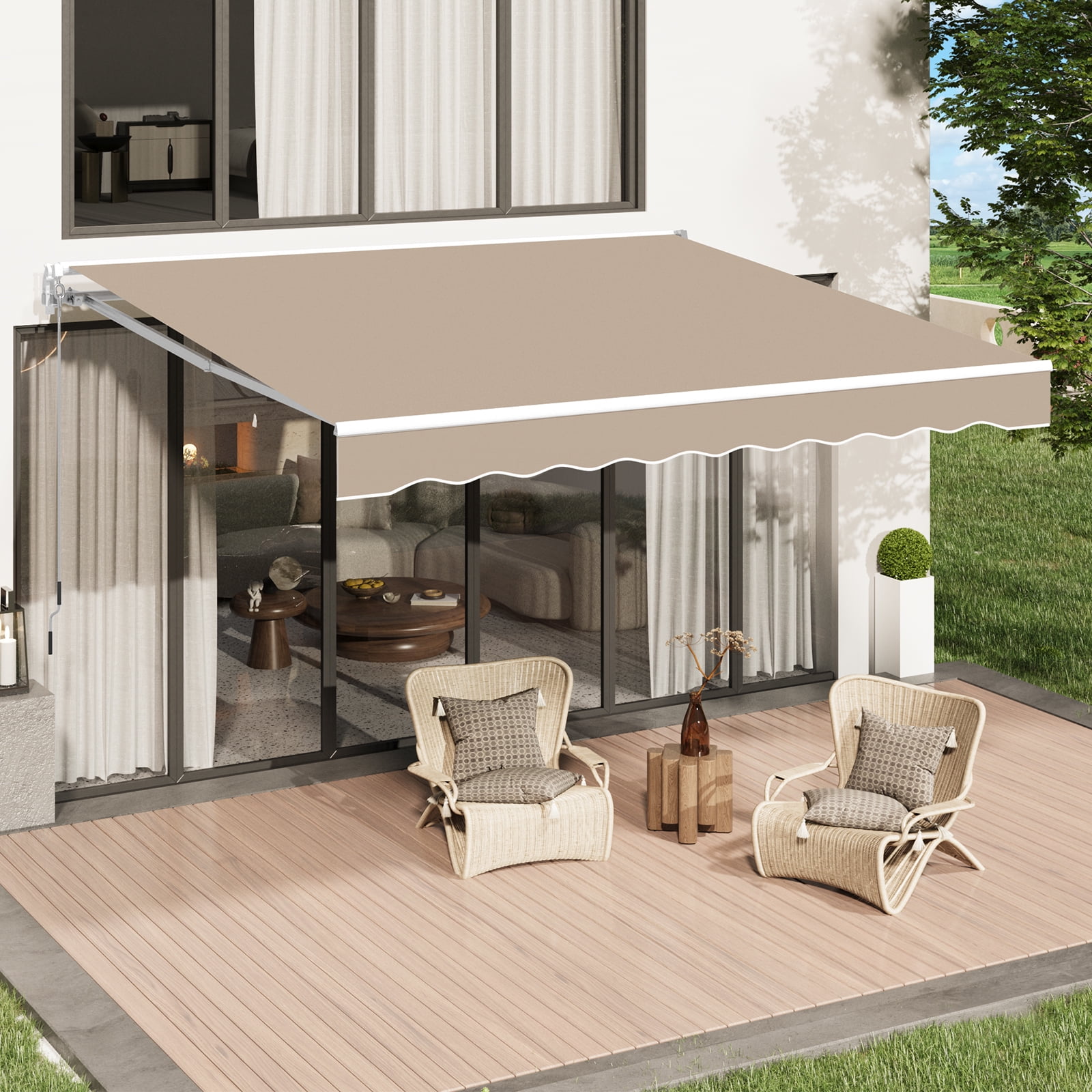

20 x 10 Manual Retractable Awning: Durable Shade & Easy Setup

The 20 x 10 manual retractable awning represents a significant investment in outdoor living, offering a substantial shaded area that transforms a patio or deck into a usable extension of the home. Measuring 20 feet in width and 10 feet in depth, this size provides ample coverage for a small seating area, a dining set, or a space to relax with a morning coffee. Unlike its motorized counterparts, the manual version relies on a hand crank or, less commonly, a simple pull-cable system, providing a reliable, cost-effective solution for homeowners who value control without complexity.

Understanding the Mechanics of Manual Retraction

The core mechanism behind a manual retractable awning is a sophisticated balance of torque and tension. Mounted to the side of a house or a freestanding structure, the fabric canopy is rolled around a sturdy, spring-loaded tube. When the user turns the hand crank, typically located on the front vertical frame, gears engage to either wind the fabric securely back into the tube or release it to extend outward. The critical element is the constant tension; high-quality models use a powerful spring system that creates just enough resistance to hold the awning firmly in place against wind and gravity, without making the crank too difficult to operate.

The Advantages of Choosing Manual Over Motorized

While automated systems offer convenience, the manual 20 x 10 awning holds distinct advantages that appeal to practical homeowners. The initial cost is significantly lower, eliminating the expense of batteries, wiring, and electronic components. This also translates to greater durability, as there are no motors or circuit boards to malfunction or succumb to weather damage. Furthermore, the manual operation provides a tactile, immediate connection to the environment—simply turning the handle allows for precise adjustments throughout the day as the sun moves, ensuring optimal shade without relying on electricity.

Fabric Selection and Weather Resistance

The longevity and performance of the awning are heavily dependent on the fabric chosen for the canopy. Modern retractable awnings utilize advanced synthetic materials, primarily acrylic or polyester, woven with UV-inhibiting dyes. These fabrics are engineered to resist fading, mildew, and staining, ensuring the awning maintains its vibrant appearance season after season. It is crucial to look for a fabric with a high UV protection factor (UPF rating) and a tight weave that blocks harmful rays while allowing light to filter through, creating a comfortable, glare-free environment.

Weather resistance extends beyond the fabric to the framework. The aluminum frame is typically powder-coated to prevent rust and corrosion, making it suitable for coastal environments with high salt content in the air. The headrail, which houses the spring mechanism, must be robust to support the weight of the extended canopy. A well-constructed 20 x 10 manual awning will feature reinforced joints and bolts, ensuring the structure remains stable during use. Additionally, while designed to withstand typical rain, most manual awnings are not intended to be left exposed during severe storms; a simple manual retraction before inclement weather is the standard practice to protect the investment.

Installation Considerations and Space Optimization

Proper installation is critical for the functionality and safety of a large manual awning. It requires a solid mounting surface, such as concrete, brick, or wood, and often necessitates drilling into the structural framework of the building to secure the L-shaped mounting bracket. Due to its dimensions, the 20-foot width requires two or more mounting brackets to prevent sagging. Clearance below the awning is also a factor; while it provides shade, the retracted box mechanism and the crank arm need adequate headroom to operate smoothly. When installed correctly, the awning creates a defined outdoor room, maximizing the utility of a small backyard or patio without the commitment of a permanent structure.

Maintenance for Long-Term Performance

Maintaining a manual retractable awning is relatively straightforward and involves regular care to preserve its function and appearance. Routine cleaning with mild soap and water removes dirt and debris that can degrade the fabric over time. It is advisable to rinse thoroughly and allow the fabric to air dry completely before retracting to prevent moisture from being trapped in the roll-up mechanism. Lubricating the moving metal parts of the crank and hinges annually with a silicone-based lubricant ensures smooth operation and prevents rust. Periodically checking the tension of the spring mechanism ensures the awning remains easy to extend and retract, preserving the original ease of use.

Ultimately, a 20 x 10 manual retractable awning is more than just a shade provider; it is an architectural feature that enhances the quality of outdoor space. Its blend of mechanical reliability, material resilience, and design flexibility makes it a favored choice for those seeking to expand their living area. By understanding the mechanics, selecting the right fabric, and committing to basic maintenance, homeowners can enjoy years of comfortable, stylish outdoor enjoyment.
