Selecting the correct exhaust fan capacitor size is a critical detail that significantly impacts the performance, longevity, and safety of your ventilation system. Often overlooked, this small component acts as the energy intermediary between the power grid and the motor, ensuring the fan reaches the necessary speed to effectively move air. An incorrect size can lead to anything from reduced airflow and annoying humming sounds to complete motor failure or a potential fire hazard.
Essentially, the capacitor provides the initial "push" or phase shift required to start the motor and then helps maintain efficient operation during running. Without it, many modern exhaust fans would either not start at all or struggle under the load, drawing excessive current. Understanding the relationship between your fan's motor requirements and the capacitor's electrical ratings is the key to diagnosing issues and ensuring a reliable installation.
Understanding Capacitor Function in Exhaust Fans
To determine the right size, it is essential to first understand what the capacitor does within the fan's motor circuit. Most exhaust fans use single-phase alternating current (AC) motors, which inherently lack the rotational force needed to start turning on their own. The capacitor solves this by storing and releasing electrical energy to create a second alternating current that is slightly out of phase with the main power supply.
This phase difference generates a rotating magnetic field within the motor's stator, effectively creating the torque required to spin the rotor. Once the motor reaches a specific percentage of its operating speed, a centrifugal switch or electronic relay disconnects the capacitor to prevent it from overheating. Therefore, the capacitor is not a continuous power source but a critical start-up and sometimes running component.
Identifying the Correct Capacitor Specifications

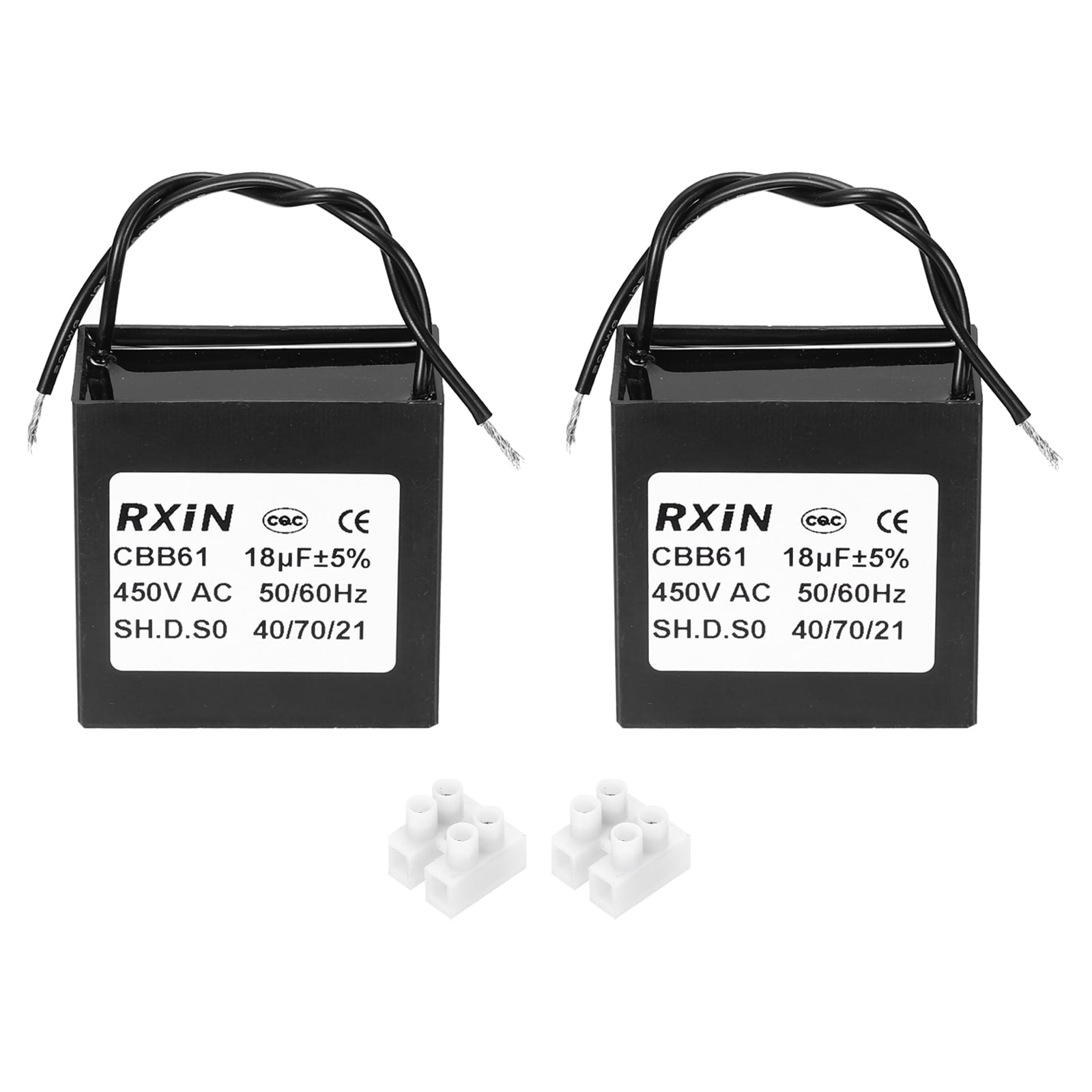

Replacing a faulty capacitor requires precision; guessing the size is a common mistake that leads to immediate failure. You must look for two specific values printed on the side of the old capacitor or in the motor documentation: Microfarads (µF) and Voltage (V).
| Specification | Purpose | Typical Range for Exhaust Fans |
|---|---|---|
| Microfarads (µF) | Measures the capacitance, or the amount of electrical energy stored. | 1.5 µF to 10 µF |
| Voltage (V) | Measures the electrical potential the capacitor can handle. | 125V or 250V |
As a general rule, the voltage rating of the new capacitor must be equal to or greater than the rating on the old one. However, the microfarad rating must match exactly, as even a slight deviation can prevent the motor from running correctly.
Common Symptoms of Capacitor FailureHow do you know if your capacitor size is wrong or the component is failing? The symptoms are often distinct and easy to identify. A frequent sign is a loud humming noise coming from the fan unit when the power is on, but the blades remain stationary. This indicates the start-up sequence is failing.
You might also notice the fan struggling to reach speed, starting slowly, or stopping randomly during operation. In some cases, the fan might only run if you manually spin the blades initially, which is a clear indicator of a weak capacitor. Ignoring these signs can lead to the windings overheating and burning out, resulting in a much more expensive repair than simply replacing the capacitor.
Matching Motor Type to Capacitor Size
Not all motors require the same electrical treatment, so the size of the capacitor is directly linked to the motor design. Capacitor Start Motors, the most common type found in standard residential exhaust fans, use a capacitor only during start-up. These typically fall in the lower microfarad range, such as 2.5µF to 5µF.
Capacitor Run Motors, often found in larger or more industrial-grade fans, use a capacitor both for starting and running. These usually require a higher microfarad rating, potentially ranging from 5µF to 15µF or more, and a specific voltage tolerance to handle continuous load. Always verify the motor type before purchasing a replacement to ensure the capacitor size aligns with the manufacturer's specifications.
Safety Considerations and Professional Advice
Working with electrical components inside an exhaust fan housing involves inherent risks, including electric shock and the possibility of short-circuiting your home’s wiring. Even when the power is turned off, capacitors can retain a charge for a period of time. If you are unsure about your ability to safely discharge and replace the capacitor, it is highly recommended to consult a qualified electrician.
For DIY enthusiasts, ensure the power is completely isolated at the breaker box before proceeding. When in doubt, opting for a slightly higher voltage rating capacitor of the exact microfarad value is a safe practice, but the physical dimensions and terminal configuration must match the original to ensure a secure fit.
