Homeowners often face the quiet frustration of a failing Broan 671 bathroom fan, a workhorse that silently pulls unwanted moisture and odors out of your space. When the motor dies, the unit becomes a static, useless box, rendering your ventilation system completely ineffective. Replacing the motor is not only a cost-effective solution compared to buying a whole new unit, but it is also a manageable DIY project for those comfortable with basic tools and safety precautions. This guide walks you through the entire process of how to replace broan 671 bathroom fan motor, focusing on safety, accuracy, and long-term reliability.
Before diving into the mechanical swap, preparation is key to a smooth and safe repair. You must gather the right tools, from screwdrivers and wire nuts to perhaps a multimeter for testing, ensuring you do not get halfway through only to realize you are missing a crucial item. Equally important is securing the electrical supply; turning off the correct circuit at the breaker panel prevents the risk of electric shock, a step that can never be overstated. Taking a photo of the original wiring before disconnecting anything can save significant time and confusion when it is time to reconnect the new motor.
Safety First and Initial Access
Power Down and Secure the Area
Safety is the absolute priority when learning how to replace broan 671 bathroom fan motor. Locate your home’s circuit breaker panel and turn off the dedicated circuit for the bathroom fan. Use a non-contact voltage tester near the fan’s wiring box after turning the power off to double-check that the wires are dead. Once confirmed, you can proceed with confidence, knowing there is no risk of accidental activation while you work.
Removing the Bathroom Cover
The first physical step involves accessing the motor housing, which is often hidden behind the bathroom ceiling or wall cover. Using a screwdriver, carefully remove the screws securing the plastic or metal cover to the ceiling. Gently lower the cover to expose the interior components, including the ductwork, the mounting bracket, and the electrical wiring connected to the old motor. Handle the cover with care to avoid damaging the drywall or paint surface.
Disconnecting the Old Motor
Release the Mounting Hardware

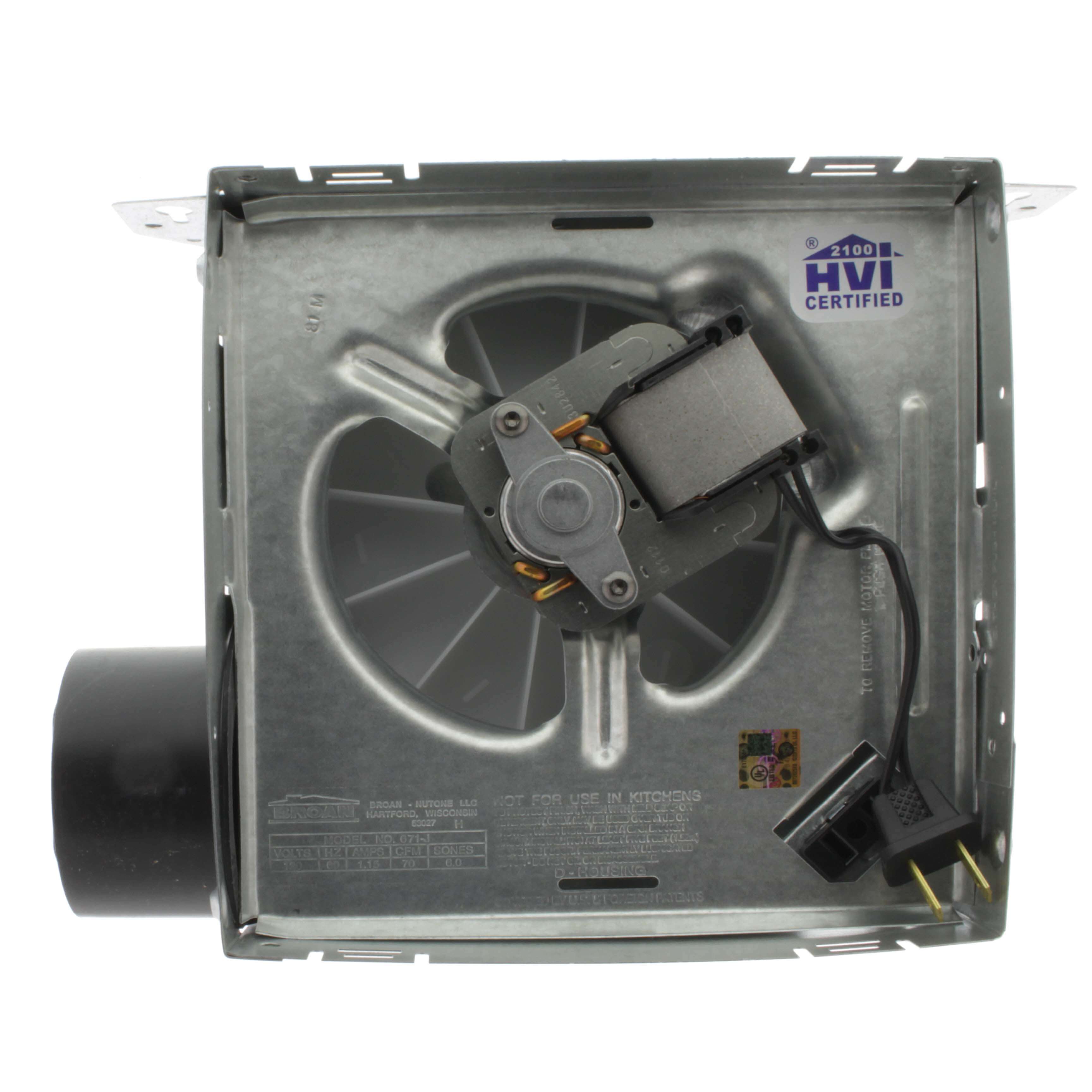

With the cover removed, you will see the motor secured to a bracket or mounting frame. The Broan 671 typically uses a few screws or a clip mechanism to hold the motor in place. Use the appropriate screwdriver or socket set to release these fasteners. Support the weight of the old motor with one hand while you remove the screws to prevent the unit from dropping and potentially damaging the ductwork or ceiling.
Label and Disconnect Wiring
Examine the wiring harness connecting the motor to the house wiring; it is usually a straightforward connection with a color-coded system. Before cutting or disconnecting any wires, take a moment to label them or take a clear photograph. Note which wires connect to the black (hot), white (neutral), and green or bare copper (ground). Disconnect the wires carefully, twisting the wire nuts counter-clockwise to release them, and set the old motor aside.
Installing the Replacement Motor
Mounting the New Unit
Take your new motor and align it with the existing mounting bracket. It is crucial that the new unit matches the mounting pattern of the Broan 671 to ensure a secure fit. Secure the motor to the bracket using the provided or existing screws, tightening them firmly but avoiding excessive force that could strip the threads or crack the motor housing. Once mounted, the unit should feel solid with no lateral movement.
Making Electrical Connections
This is the critical phase of how to replace broan 671 bathroom fan motor. Connect the wires according to your earlier labels or photo. Typically, you will connect the black motor wire to the black house wire, the white to white, and the green to the ground. Strip the insulation cleanly from the ends, twist the strands together, and secure them with a wire nut. Ensure the connection is tight and no bare copper is exposed, pushing the wire nut down firmly until it is secure.
Testing and Finalization
Restoring Power and Function Check
With all connections made and the motor firmly mounted, carefully restore power to the circuit by turning the breaker back on. Turn on the fan switch to test the new motor. Listen for any unusual noises such as grinding or excessive vibration, which could indicate an installation issue. If the fan runs smoothly and creates adequate airflow, you have successfully completed the repair.
Sealing and Reassembly
Once the motor is verified to be working, turn the power back off one last time to install the cover. Carefully tuck the wiring neatly into the electrical box, ensuring it is not pinched or strained. Align the cover with the mounting holes and secure it with the original screws. Turn the power back on at the breaker and run a final test to confirm that the bathroom fan is operating at full strength, completing the process of how to replace broan 671 bathroom fan motor.
