High level conclusions

Fuzzers reach 51.27% of cyclomatic complexity.

Fuzzers reach 40.56% of all functions.

Reachability and coverage overview

Functions statically reachable by fuzzers

101 / 249

Cyclomatic complexity statically reachable by fuzzers

1005 / 1960

Runtime code coverage of functions

101 / 249

The following table shows data about each function in the project. The functions included in this table correspond to all functions that exist in the executables of the fuzzers. As such, there may be functions that are from third-party libraries.

For further technical details on the meaning of columns in the below table, please see the Glossary .

Func name	Functions filename	Args	Function call depth	Reached by Fuzzers	Fuzzers runtime hit	Func lines hit %	I Count	BB Count	Cyclomatic complexity	Functions reached	Reached by functions	Accumulated cyclomatic complexity	Undiscovered complexity

Fuzzer: xplist_fuzzer

Call tree

The calltree shows the control flow of the fuzzer. This is overlaid with coverage information to display how much of the potential code a fuzzer can reach is in fact covered at runtime. In the following there is a link to a detailed calltree visualisation as well as a bitmap showing a high-level view of the calltree. For further information about these topics please see the glossary for full calltree and calltree overview

Call tree overview bitmap:

The distribution of callsites in terms of coloring is

Color	Runtime hitcount	Callsite count	Percentage
red	0	32	12.5%
gold	[1:9]	21	8.26%
yellow	[10:29]	17	6.69%
greenyellow	[30:49]	6	2.36%
lawngreen	50+	178	70.0%
All colors	254	100

Fuzz blockers

The followings are the branches where fuzzer fails to bypass.

Unique non-covered Complexity	Unique Reachable Complexities	Unique Reachable Functions	All non-covered Complexity	All Reachable Complexity	Function Name	Function Callsite	Blocked Branch
8	8	2 : View List ['hash_table_lookup', 'strlen']	8	8	plist_dict_get_item	call site: 00190	/src/libplist/src/plist.c:828
0	38	2 : View List ['node_attach', 'node_destroy']	0	38	node_create	call site: 00052	/src/libplist/libcnary/node.c:64
0	0	None	50	2009	node_from_xml	call site: 00041	/src/libplist/src/xplist.c:1109
0	0	None	50	2009	node_from_xml	call site: 00102	/src/libplist/src/xplist.c:1166
0	0	None	50	2009	node_from_xml	call site: 00128	/src/libplist/src/xplist.c:1217
0	0	None	50	2009	node_from_xml	call site: 00164	/src/libplist/src/xplist.c:1294
0	0	None	50	2009	node_from_xml	call site: 00174	/src/libplist/src/xplist.c:1328
0	0	None	50	2009	node_from_xml	call site: 00231	/src/libplist/src/xplist.c:1395
0	0	None	7	7	plist_dict_set_item	call site: 00212	/src/libplist/src/plist.c:873
0	0	None	2	41	text_parts_get_content	call site: 00102	/src/libplist/src/xplist.c:917
0	0	None	2	4	plist_get_type_and_value	call site: 00245	/src/libplist/src/plist.c:975
0	0	None	0	534	plist_from_xml	call site: 00001	/src/libplist/src/xplist.c:1476

Runtime coverage analysis

Covered functions

57

Functions that are reachable but not covered

18

Reachable functions

69

Percentage of reachable functions covered

73.91%

NB: The sum of covered functions and functions that are reachable but not covered need not be equal to Reachable functions . This is because the reachability analysis is an approximation and thus at runtime some functions may be covered that are not included in the reachability analysis. This is a limitation of our static analysis capabilities.

Function name	source code lines	source lines hit	percentage hit

Files reached

filename	functions hit
fuzz/xplist_fuzzer.cc	1
src/xplist.c	13
src/plist.c	16
libcnary/node.c	8
libcnary/node_list.c	5
src/ptrarray.c	4
src/hashtable.c	4
src/base64.c	1
src/time64.c	1

Fuzzer: bplist_fuzzer

Call tree

The calltree shows the control flow of the fuzzer. This is overlaid with coverage information to display how much of the potential code a fuzzer can reach is in fact covered at runtime. In the following there is a link to a detailed calltree visualisation as well as a bitmap showing a high-level view of the calltree. For further information about these topics please see the glossary for full calltree and calltree overview

Call tree overview bitmap:

The distribution of callsites in terms of coloring is

Color	Runtime hitcount	Callsite count	Percentage
red	0	16	10.4%
gold	[1:9]	18	11.7%
yellow	[10:29]	5	3.26%
greenyellow	[30:49]	6	3.92%
lawngreen	50+	108	70.5%
All colors	153	100

Fuzz blockers

The followings are the branches where fuzzer fails to bypass.

Unique non-covered Complexity	Unique Reachable Complexities	Unique Reachable Functions	All non-covered Complexity	All Reachable Complexity	Function Name	Function Callsite	Blocked Branch
0	38	2 : View List ['node_attach', 'node_destroy']	0	38	node_create	call site: 00040	/src/libplist/libcnary/node.c:64
0	0	None	16	1084	parse_dict_node	call site: 00141	/src/libplist/src/bplist.c:488
0	0	None	10	293	plist_from_bin	call site: 00001	/src/libplist/src/bplist.c:799
0	0	None	8	1100	parse_bin_node	call site: 00033	/src/libplist/src/bplist.c:579
0	0	None	4	4	plist_utf16be_to_utf8	call site: 00089	/src/libplist/src/bplist.c:340
0	0	None	2	41	parse_string_node	call site: 00080	/src/libplist/src/bplist.c:314
0	0	None	0	280	plist_from_bin	call site: 00017	/src/libplist/src/bplist.c:880
0	0	None	0	39	parse_data_node	call site: 00072	/src/libplist/src/bplist.c:421
0	0	None	0	0	node_create	call site: 00040	/src/libplist/libcnary/node.c:52
0	0	None	0	0	node_list_create	call site: 00043	/src/libplist/libcnary/node_list.c:39
0	0	None	0	0	node_list_remove	call site: 00047	/src/libplist/libcnary/node_list.c:135
0	0	None	0	0	node_list_remove	call site: 00047	/src/libplist/libcnary/node_list.c:137

Runtime coverage analysis

Covered functions

43

Functions that are reachable but not covered

9

Reachable functions

46

Percentage of reachable functions covered

80.43%

NB: The sum of covered functions and functions that are reachable but not covered need not be equal to Reachable functions . This is because the reachability analysis is an approximation and thus at runtime some functions may be covered that are not included in the reachability analysis. This is a limitation of our static analysis capabilities.

Function name	source code lines	source lines hit	percentage hit

Files reached

filename	functions hit
fuzz/bplist_fuzzer.cc	1
src/bplist.c	13
/usr/include/x86_64-linux-gnu/bits/byteswap.h	2
src/ptrarray.c	7
src/plist.c	5
libcnary/node.c	6
libcnary/node_list.c	4
src/hashtable.c	1

Fuzzer: jplist_fuzzer

Call tree

The calltree shows the control flow of the fuzzer. This is overlaid with coverage information to display how much of the potential code a fuzzer can reach is in fact covered at runtime. In the following there is a link to a detailed calltree visualisation as well as a bitmap showing a high-level view of the calltree. For further information about these topics please see the glossary for full calltree and calltree overview

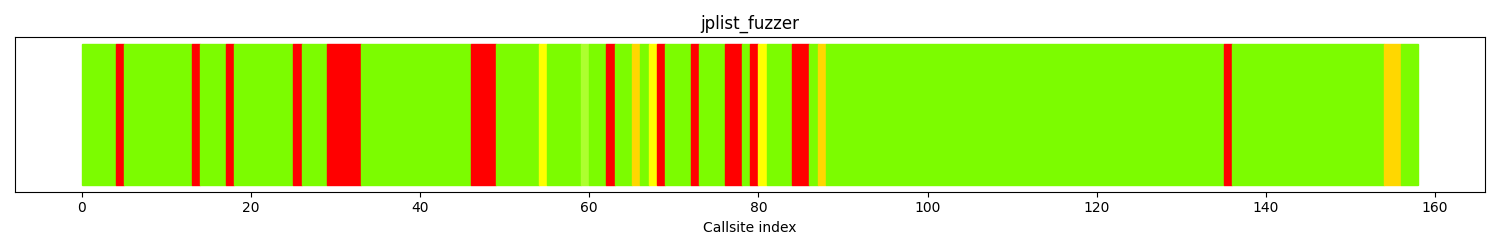

Call tree overview bitmap:

The distribution of callsites in terms of coloring is

Color	Runtime hitcount	Callsite count	Percentage
red	0	20	12.6%
gold	[1:9]	4	2.53%
yellow	[10:29]	3	1.89%
greenyellow	[30:49]	1	0.63%
lawngreen	50+	130	82.2%
All colors	158	100

Fuzz blockers

The followings are the branches where fuzzer fails to bypass.

Unique non-covered Complexity	Unique Reachable Complexities	Unique Reachable Functions	All non-covered Complexity	All Reachable Complexity	Function Name	Function Callsite	Blocked Branch
0	38	2 : View List ['node_attach', 'node_destroy']	0	38	node_create	call site: 00024	/src/libplist/libcnary/node.c:64
0	0	None	2	825	plist_from_json	call site: 00001	/src/libplist/src/jplist.c:787
0	0	None	2	823	plist_from_json	call site: 00003	/src/libplist/src/jplist.c:804
0	0	None	0	48	parse_array	call site: 00073	/src/libplist/src/jplist.c:689
0	0	None	0	48	parse_object	call site: 00081	/src/libplist/src/jplist.c:737
0	0	None	0	13	node_insert	call site: 00134	/src/libplist/libcnary/node.c:106
0	0	None	0	0	node_create	call site: 00024	/src/libplist/libcnary/node.c:52
0	0	None	0	0	node_list_create	call site: 00027	/src/libplist/libcnary/node_list.c:39
0	0	None	0	0	node_list_insert	call site: 00137	/src/libplist/libcnary/node_list.c:99
0	0	None	0	0	node_list_insert	call site: 00137	/src/libplist/libcnary/node_list.c:114
0	0	None	0	0	hash_table_destroy	call site: 00128	/src/libplist/src/hashtable.c:46
0	0	None	0	0	plist_from_json	call site: 00001	/src/libplist/src/jplist.c:791

Runtime coverage analysis

Covered functions

60

Functions that are reachable but not covered

14

Reachable functions

68

Percentage of reachable functions covered

79.41%

NB: The sum of covered functions and functions that are reachable but not covered need not be equal to Reachable functions . This is because the reachability analysis is an approximation and thus at runtime some functions may be covered that are not included in the reachability analysis. This is a limitation of our static analysis capabilities.

Function name	source code lines	source lines hit	percentage hit

Files reached

filename	functions hit
fuzz/jplist_fuzzer.cc	1
src/jplist.c	7
src/jsmn.c	6
src/plist.c	19
libcnary/node.c	8
libcnary/node_list.c	5
src/ptrarray.c	4
src/hashtable.c	4

Fuzzer: oplist_fuzzer

Call tree

The calltree shows the control flow of the fuzzer. This is overlaid with coverage information to display how much of the potential code a fuzzer can reach is in fact covered at runtime. In the following there is a link to a detailed calltree visualisation as well as a bitmap showing a high-level view of the calltree. For further information about these topics please see the glossary for full calltree and calltree overview

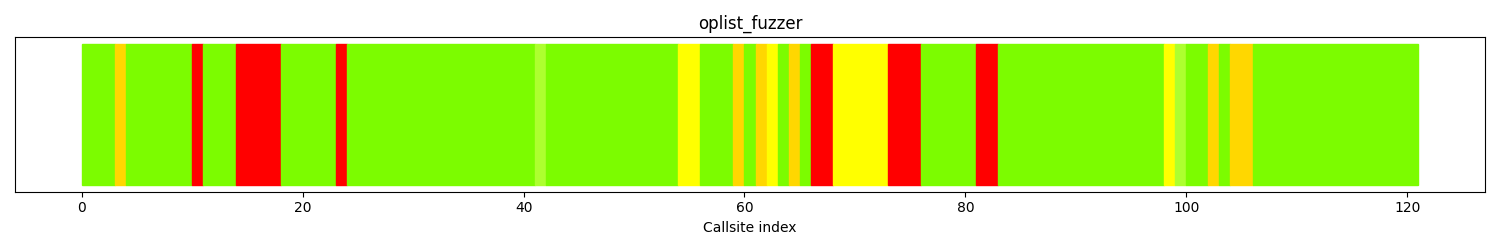

Call tree overview bitmap:

The distribution of callsites in terms of coloring is

Color	Runtime hitcount	Callsite count	Percentage
red	0	13	10.7%
gold	[1:9]	7	5.78%
yellow	[10:29]	9	7.43%
greenyellow	[30:49]	2	1.65%
lawngreen	50+	90	74.3%
All colors	121	100

Fuzz blockers

The followings are the branches where fuzzer fails to bypass.

Unique non-covered Complexity	Unique Reachable Complexities	Unique Reachable Functions	All non-covered Complexity	All Reachable Complexity	Function Name	Function Callsite	Blocked Branch
6	6	1 : View List ['byte_array_grow']	6	6	byte_array_append	call site: 00065	/src/libplist/src/bytearray.c:76
2	2	1 : View List ['fwrite']	2	2	byte_array_append	call site: 00065	/src/libplist/src/bytearray.c:68
0	38	2 : View List ['node_attach', 'node_destroy']	0	38	node_create	call site: 00009	/src/libplist/libcnary/node.c:64
0	13	1 : View List ['plist_free_data']	0	113	node_from_openstep	call site: 00019	/src/libplist/src/oplist.c:741
0	13	1 : View List ['plist_free_data']	0	109	node_from_openstep	call site: 00019	/src/libplist/src/oplist.c:776
0	0	None	0	932	plist_from_openstep	call site: 00001	/src/libplist/src/oplist.c:900
0	0	None	0	96	node_from_openstep	call site: 00019	/src/libplist/src/oplist.c:635
0	0	None	0	13	node_insert	call site: 00000	/src/libplist/libcnary/node.c:106
0	0	None	0	8	plist_get_string_ptr	call site: 00106	/src/libplist/src/plist.c:1057
0	0	None	0	0	node_create	call site: 00009	/src/libplist/libcnary/node.c:52
0	0	None	0	0	node_list_create	call site: 00012	/src/libplist/libcnary/node_list.c:39
0	0	None	0	0	node_list_insert	call site: 00000	/src/libplist/libcnary/node_list.c:99

Runtime coverage analysis

Covered functions

51

Functions that are reachable but not covered

13

Reachable functions

58

Percentage of reachable functions covered

77.59%

NB: The sum of covered functions and functions that are reachable but not covered need not be equal to Reachable functions . This is because the reachability analysis is an approximation and thus at runtime some functions may be covered that are not included in the reachability analysis. This is a limitation of our static analysis capabilities.

Function name	source code lines	source lines hit	percentage hit

Files reached

filename	functions hit
fuzz/oplist_fuzzer.cc	1
src/oplist.c	4
src/plist.c	11
libcnary/node.c	6
libcnary/node_list.c	4
src/ptrarray.c	4
src/hashtable.c	1
src/bytearray.c	4

Optimal target analysis

Remaining optimal interesting functions

The following table shows a list of functions that are optimal targets. Optimal targets are identified by finding the functions that in combination, yield a high code coverage.

Func name	Functions filename	Arg count	Args	Function depth	hitcount	instr count	bb count	cyclomatic complexity	Reachable functions	Incoming references	total cyclomatic complexity	Unreached complexity
plist_write_to_file	/src/libplist/src/plist.c	4	['char *', 'char *', 'int ', 'int ']	4	0	70	11	5	73	0	502	408
plist_read_from_file	/src/libplist/src/plist.c	3	['char *', 'char **', 'int *']	6	0	170	25	11	127	0	1108	61
timelocal64	/src/libplist/src/time64.c	1	['struct.tm *']	2	0	16	3	2	11	0	50	46
plist_sort	/src/libplist/src/plist.c	1	['char *']	3	0	275	40	14	11	1	65	42
plist_write_to_string	/src/libplist/src/plist.c	5	['char *', 'char **', 'int *', 'int ', 'int ']	5	0	106	11	12	39	0	324	38
plist_dict_merge	/src/libplist/src/plist.c	2	['char **', 'char *']	6	0	110	24	10	45	0	196	37

Implementing fuzzers that target the above functions will improve reachability such that it becomes:

Functions statically reachable by fuzzers

167 / 249

Cyclomatic complexity statically reachable by fuzzers

1603 / 1960

All functions overview

If you implement fuzzers for these functions, the status of all functions in the project will be:

Func name	Functions filename	Args	Function call depth	Reached by Fuzzers	Fuzzers runtime hit	Func lines hit %	I Count	BB Count	Cyclomatic complexity	Functions reached	Reached by functions	Accumulated cyclomatic complexity	Undiscovered complexity

This section shows analysis of runtime coverage data.

For futher technical details on how this section is generated, please see the Glossary .

Complex functions with low coverage

Func name	Function total lines	Lines covered at runtime	percentage covered	Reached by fuzzers
plist_get_type_and_value	34	14	41.17%	['xplist_fuzzer']

This section shows which files and directories are considered in this report. The main reason for showing this is fuzz introspector may include more code in the reasoning than is desired. This section helps identify if too many files/directories are included, e.g. third party code, which may be irrelevant for the threat model. In the event too much is included, fuzz introspector supports a configuration file that can exclude data from the report. See the following link for more information on how to create a config file: link

Files in report

Source file	Reached by	Covered by
	[]	[]
/usr/include/x86_64-linux-gnu/bits/byteswap.h	['bplist_fuzzer']	[]
/src/libplist/src/oplist.c	['oplist_fuzzer']	['oplist_fuzzer']
/src/libplist/src/jsmn.c	['jplist_fuzzer']	['jplist_fuzzer']
/src/libplist/src/plist.c	['xplist_fuzzer', 'bplist_fuzzer', 'jplist_fuzzer', 'oplist_fuzzer']	['xplist_fuzzer', 'bplist_fuzzer', 'jplist_fuzzer', 'oplist_fuzzer']
/src/libplist/src/hashtable.c	['xplist_fuzzer', 'bplist_fuzzer', 'jplist_fuzzer', 'oplist_fuzzer']	['xplist_fuzzer', 'bplist_fuzzer', 'jplist_fuzzer', 'oplist_fuzzer']
/src/libplist/libcnary/node_list.c	['xplist_fuzzer', 'bplist_fuzzer', 'jplist_fuzzer', 'oplist_fuzzer']	['xplist_fuzzer', 'bplist_fuzzer', 'jplist_fuzzer', 'oplist_fuzzer']
/src/libplist/src/jplist.c	['jplist_fuzzer']	['jplist_fuzzer']
/src/libplist/fuzz/jplist_fuzzer.cc	['jplist_fuzzer']	['jplist_fuzzer']
/src/libplist/src/time64.c	['xplist_fuzzer']	['xplist_fuzzer']
/src/libplist/fuzz/bplist_fuzzer.cc	['bplist_fuzzer']	['bplist_fuzzer']
/src/libplist/src/ptrarray.c	['xplist_fuzzer', 'bplist_fuzzer', 'jplist_fuzzer', 'oplist_fuzzer']	['xplist_fuzzer', 'bplist_fuzzer', 'jplist_fuzzer', 'oplist_fuzzer']
/src/libplist/libcnary/node.c	['xplist_fuzzer', 'bplist_fuzzer', 'jplist_fuzzer', 'oplist_fuzzer']	['xplist_fuzzer', 'bplist_fuzzer', 'jplist_fuzzer', 'oplist_fuzzer']
/src/libplist/src/out-default.c	[]	[]
/src/libplist/fuzz/oplist_fuzzer.cc	['oplist_fuzzer']	['oplist_fuzzer']
/src/libplist/fuzz/xplist_fuzzer.cc	['xplist_fuzzer']	['xplist_fuzzer']
/src/libplist/src/bytearray.c	['oplist_fuzzer']	['oplist_fuzzer']
/src/libplist/src/out-plutil.c	[]	[]
/src/libplist/src/base64.c	['xplist_fuzzer']	['xplist_fuzzer']
/src/libplist/src/xplist.c	['xplist_fuzzer']	['xplist_fuzzer']
/src/libplist/src/out-limd.c	[]	[]
/src/libplist/src/bplist.c	['bplist_fuzzer']	['bplist_fuzzer']

Directories in report

Directory
/src/libplist/fuzz/
/usr/include/x86_64-linux-gnu/bits/
/src/libplist/src/
/src/libplist/libcnary/
