Premium Professional Tap and Die Set with Drill Bits: 120-Piece Complete Threading Kit to Complete Your Workshop

The tap and die set with drill bits represents one of the most practical and versatile solutions for anyone tackling metalworking, plumbing, or general DIY projects. This specific combination transforms a standard toolkit into a complete thread-forming station, allowing a user to create a hole, tap internal threads, and cut external threads with a single, coordinated kit. Understanding the components, proper usage, and maintenance of this specialized set is essential for achieving clean, strong, and reliable threads every time.

Breaking Down the Core Components

At its heart, this specialized set is a synergy of three distinct tool types working in harmony. The drill bits handle the initial material removal, creating the precise starting hole required for tapping. The tap cuts the internal threads within a pre-drilled hole, while the die handle and die itself work to reduce the diameter of a rod, creating the male counterpart. The synergy of these components—drill bits, tap, and die—is what defines the functionality and efficiency of the set.

The Critical Role of the Drill Bits

Selecting the correct drill bit is the most crucial first step in the threading process. A tap drill chart is an indispensable reference, as the bit size must correspond precisely to the thread size and pitch being cut. Using a bit that is too small will cause the tap to jam under excessive pressure, while a bit that is too large will result in weak, shallow threads that lack shear strength. The right bit ensures the tap has enough material to bite into without being overloaded, leading to a smoother operation and a higher-quality finish.

Operational Workflow and Best Practices

Efficiency and accuracy are achieved by following a disciplined sequence. The process typically begins with marking the center of the intended hole to prevent the drill bit from wandering. The correctly sized drill bit is then used to create a clean, perpendicular hole. Before inserting the tap, a proper tapping fluid is applied to reduce friction and heat, which protects both the tool and the workpiece. The tap is then engaged and slowly turned, with a quarter-turn rotation followed by a half-turn in the reverse direction to break and clear the chips. This cycle is repeated until the desired depth is achieved.

• Secure the workpiece in a vise to prevent movement and ensure safety.
• Apply a liberal amount of cutting fluid to the pre-drilled hole.
• Insert the tap and turn clockwise to cut threads, reversing regularly to clear debris.
• Once the tap is through, inspect the threads for sharpness and completeness.

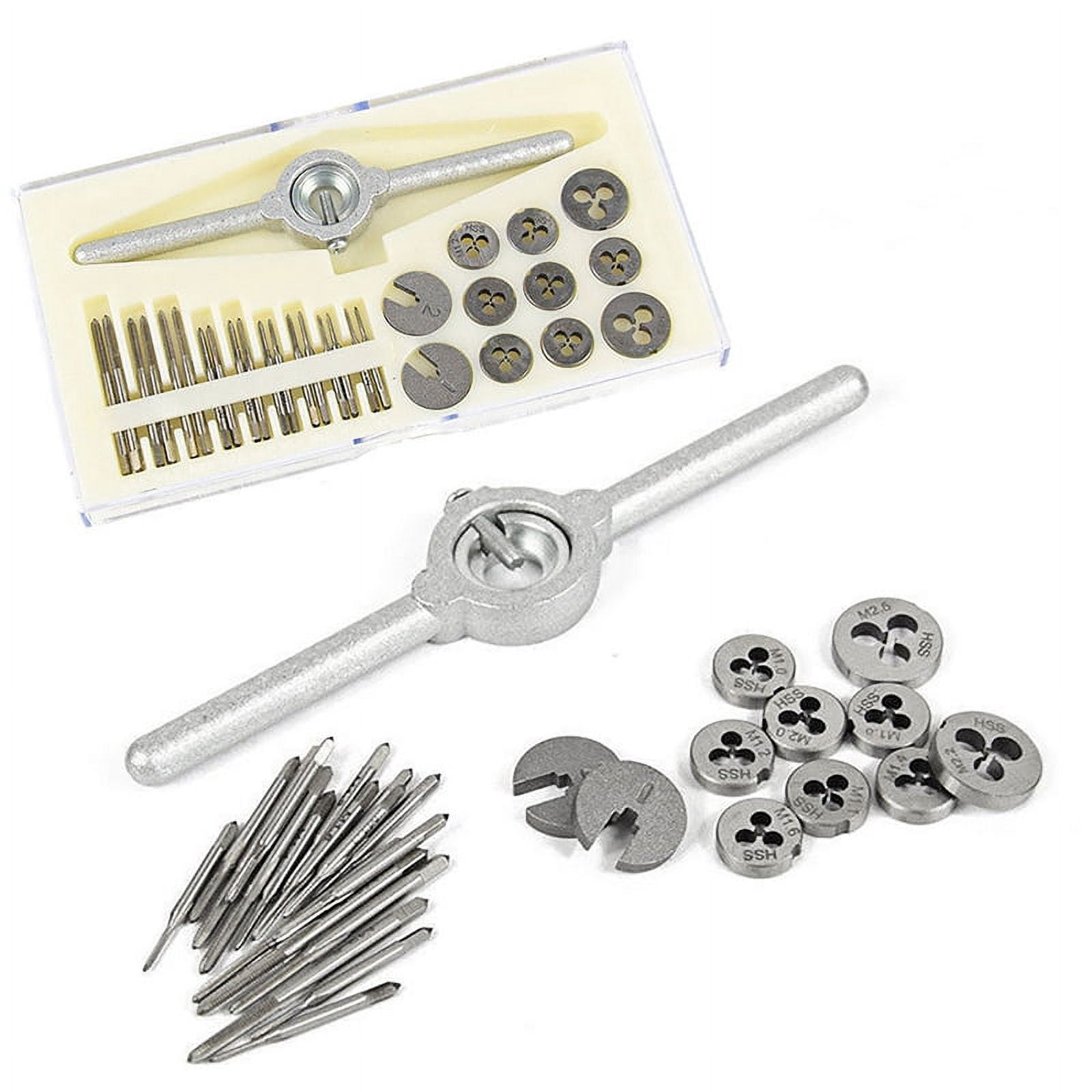

The Function of the Die and Die Set

While the tap creates the female thread, the die is responsible for creating the male thread. This process, known as die cutting or threading a rod, involves securing the die into a die holder and feeding a pre-cut metal rod through it. By turning the die holder, material is gradually removed, forming a clean, continuous thread on the rod's end. This threaded rod, or stud, can then be inserted into the tapped hole and secured with a nut, creating a very strong and adjustable fastening method.

Material Considerations and Tool Durability

The performance and longevity of a tap and die set with drill bits are heavily influenced by the materials used in their construction. High-speed steel (HSS) is the most common and cost-effective option, suitable for general use on steel, iron, and aluminum. For more demanding applications involving stainless steel or other hardened materials, cobalt or titanium-coated HSS bits and dies are recommended, as they offer superior heat resistance and wear life. Carbide-tipped tools represent the premium tier, providing exceptional durability for production-level work.

Maintenance for Long-Term Reliability

Proper maintenance is the key to extending the life and maintaining the precision of any tap and die set. After each use, all components should be thoroughly cleaned to remove embedded metal chips and cutting fluid. Drying the tools completely is critical to prevent rust and corrosion. Cutting tools should be stored in a dry environment, ideally in a protective case or toolbox drawer where they are not subject to excessive moisture or physical damage. A light coating of防锈油 (rust-preventative oil) can be applied to HSS tools for long-term storage.
