Ultimate Armor Stone Revetment: Durable Erosion Control Solutions
Revetment is a facing of stone, concrete units, or slabs, etc., built to protect scarp, the foot of a cliff or a dune, a dike or a seawall against erosion....
Armor stone revetment stands as one of the most time-tested solutions for managing water and soil interaction along shorelines and riverbanks. This method utilizes carefully selected, durable rock pieces to form a protective layer that absorbs and dissipates the energy of waves, currents, and ice flow. By deflecting hydraulic forces, the stone covering prevents the underlying soil from being eroded, ensuring the stability of the bank and the integrity of the protected area.
The Engineering Principles Behind Stone Revetments
The effectiveness of an armor stone revetment is rooted in fundamental engineering physics. The primary function of the stone layer is to absorb impact energy through its mass and friction. When wave action strikes the revetment, the energy is transferred through the stone units, with significant dissipation occurring due to the friction between the individual stones. This mechanism reduces the reflective wave force that would otherwise scour the adjacent soil, allowing the structure to remain stable even under high-flow conditions.
Critical Design Considerations

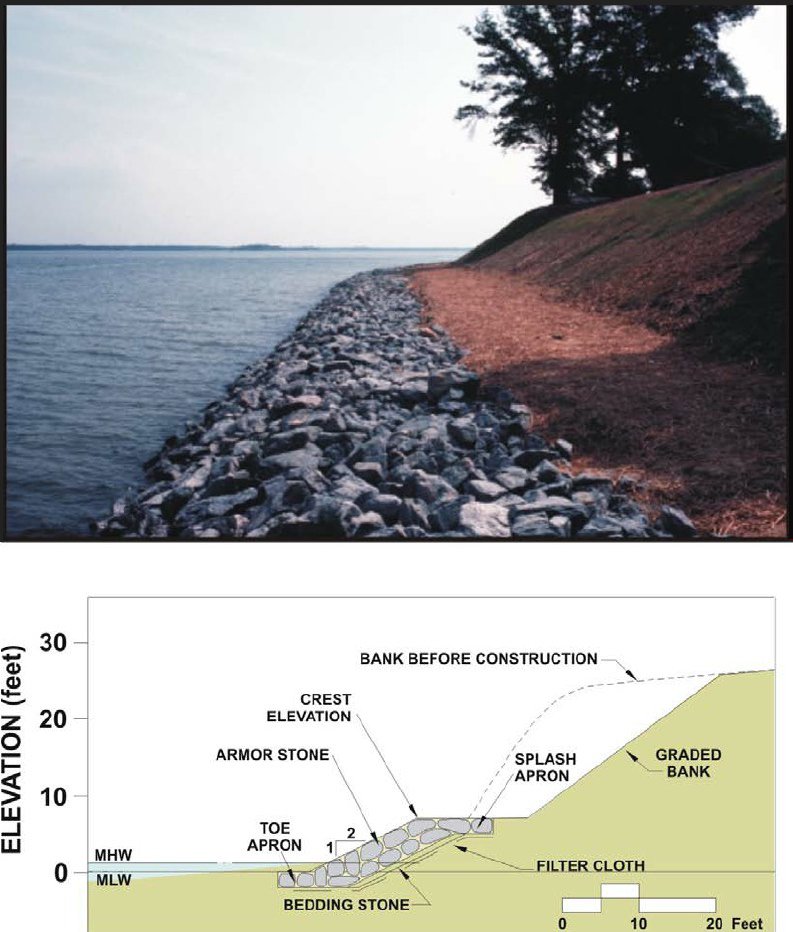

Proper installation of armor stone revetment is not a one-size-fits-all application; it requires meticulous attention to hydraulic and geotechnical parameters. The design process begins with a thorough analysis of the site-specific conditions, including flow velocity, water depth, and soil composition. Engineers must calculate the required stone weight and gradation to ensure the armor unit can resist sliding and overturning forces. Furthermore, the underlying filter layer, often referred to as the “turtle,” is crucial to prevent the migration of fine soil particles into the stone matrix, which could compromise the structural integrity.
Material Selection and Stone Gradation
The choice of rock type is a decisive factor in the longevity of the revetment. Common materials include granite, basalt, and limestone, selected for their resistance to weathering and abrasion. Simply placing rock is insufficient; the success lies in the gradation—the precise distribution of stone sizes. A well-designed gradation creates a stable interlocking structure that minimizes movement and gaps. This strategic sizing ensures that smaller stones fill voids, locking the larger units in place and creating a monolithic-like mass capable of withstanding immense pressure.
Advantages Over Alternative Solutions
When compared to structural alternatives such as concrete seawalls or gabion walls, armor stone revetment offers distinct environmental and aesthetic benefits. The porous nature of the stone allows for the natural exchange of water, which maintains the ecological equilibrium of the aquatic habitat. Unlike rigid hardscapes, the rock revetment integrates seamlessly with the natural landscape, often appearing as if it has always been part of the environment. This natural appearance is particularly valuable in residential areas and public recreational spaces where visual appeal is paramount.
Installation and Long-Term Maintenance

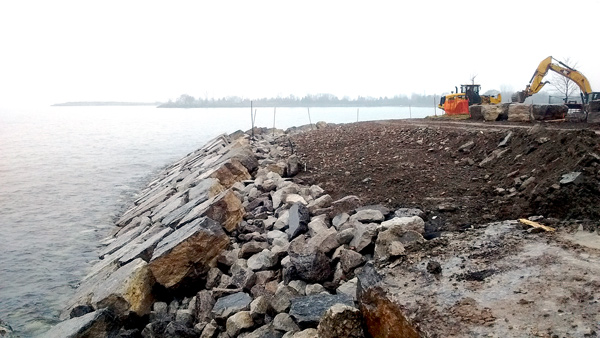

The installation of stone revetment is a complex logistical operation that requires skilled contractors. The process typically involves placing the filter layer first, followed by the strategic placement of the armor stone using specialized lifting techniques to ensure correct orientation and interlock. While the structure is designed for permanence, it is not entirely exempt from maintenance. Routine inspections are recommended to identify and address any displaced or broken stones. Promptly restoring the original gradation and placement is essential to prevent minor issues from escalating into significant failures.
Environmental and Sustainability Factors
Modern coastal management increasingly favors solutions that work with nature rather than against it. Armor stone revetment aligns with this philosophy by creating a stable habitat for marine organisms. The nooks and crannies between the stones provide refuge for aquatic life, promoting biodiversity along the protected shore. From a sustainability perspective, the longevity of natural stone drastically reduces the need for frequent repairs or reconstruction, minimizing the consumption of resources and carbon footprint associated with maintenance activities over the structure's lifespan.
