Stone masonry represents one of the most enduring and sophisticated construction techniques in the history of architecture. Defined as the art of building structures using individual units of stone laid in a mortar bed, this method transforms raw geological material into permanent, load-bearing walls and decorative facades. Understanding the specific classifications within stone masonry is essential for architects, engineers, and contractors, as the chosen type dictates structural integrity, aesthetic outcome, labor intensity, and long-term maintenance requirements.

The Distinction: Rubble Masonry vs. Ashlar Masonry

The foundational classification of stone masonry divides the craft into two primary categories: Rubble Masonry and Ashlar Masonry. This distinction is based on the degree of processing applied to the individual stone units before they are laid. Rubble masonry utilizes stones that are roughly shaped and laid in courses, relying on the skill of the mason to create stability through strategic placement and the use of substantial mortar joints. Conversely, Ashlar masonry employs stones that are meticulously cut, dressed, and shaped to precise dimensions, resulting in a uniform grid of blocks that create a smooth, planar surface on both faces.

Variations within Rubble Masonry

Despite its seemingly simple definition, rubble masonry encompasses several distinct approaches based on the selection and preparation of the stone. The common thread is the use of fractured stone with irregular seating surfaces, which demands a high mortar content to fill the voids and bind the units together. The specific type employed often depends on the availability of local materials and the structural demands of the project.

• Dry Rubble Masonry: In this method, stones are carefully selected and interlocked without the use of mortar. The stability relies entirely on the friction and sheer weight of the stones, making it a technique often seen in historic boundary walls and dry-stone constructions.

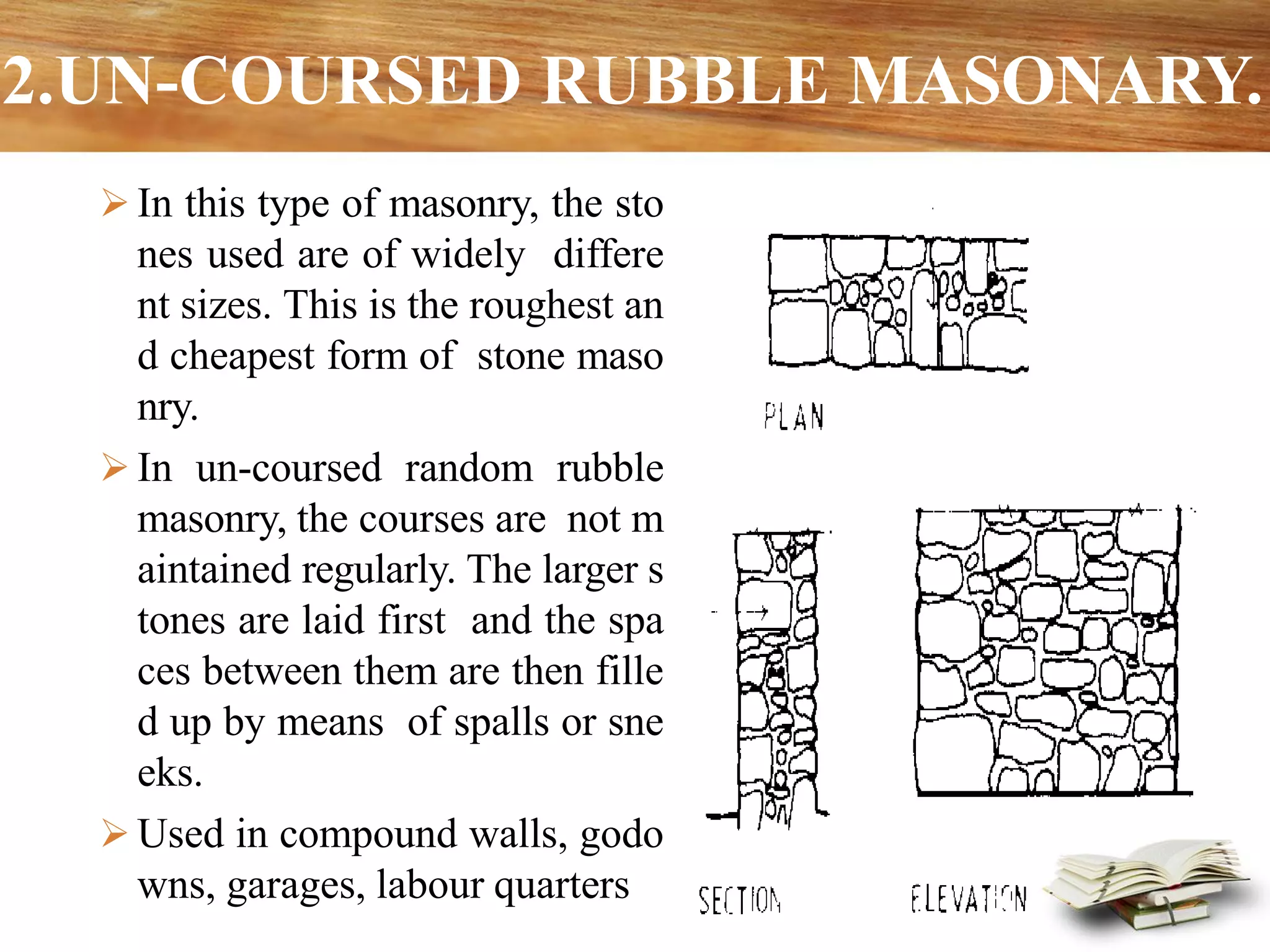

• Random Rubble Masonry: Here, undressed stones of varying shapes and sizes are thrown into the wall matrix and bonded together with mortar. The layout is typically arranged with headers—stones placed vertically—to tie the two faces together, resulting in a dense, monolithic wall of considerable character.
• Coursed Rubble Masonry: This type introduces a layer of organization. Stones are selected to roughly uniform thickness within a specific course (layer), and the height is kept consistent. Larger stones are often placed at the corners or as quoin stones to provide structural strength and a visual framework.

Variations within Ashlar Masonry

Ashlar masonry is the domain of precision engineering and refined aesthetics. Because the stones are cut to specific dimensions, the resulting walls exhibit minimal joint thickness and a high degree of planarity. This category is further subdivided based on the tooling and exposure of the bedding and joints.

• Tooled Ashlar: The bed joints and sometimes the perpendicular joints are tooled with a chisel to create a regular pattern, such as a straight line or a decorative groove. This finish bridges the gap between structural honesty and decorative refinement.
• Polished or Rock-Faced Ashlar: In this variation, the stone face is left natural or bush-hammered to create a rugged texture, while the edges are meticulously straight and squared. This creates a stark contrast between the rough texture and the clean lines of the block.
• Marble and Granite Ashlar: For high-end applications where structural necessity meets architectural sculpture, stones like granite and marble are cut with extreme precision. This results in a "block ashlar" appearance where the joints are barely visible, creating a seamless curtain of stone.

Specialized Masonry Techniques

Beyond the broad categories of rubble and ashlar, several specialized masonry techniques exist that cater to specific structural or aesthetic goals. These methods often combine the principles of stacking and locking to create walls that are both beautiful and resistant to lateral forces, such as wind or seismic activity.

Bond Patterns and Interlock

The structural integrity of any stone wall, regardless of whether it is rubble or ashlar, is heavily dependent on the bond pattern. A bond refers to the overlapping arrangement of stones to tie the wall together and prevent vertical joints from aligning, which would create a straight vertical plane of weakness. Common patterns include:

• Stretcher Bond: Where stones are laid primarily in their length, with minimal overlap.
• Header Bond: Where stones are laid primarily in their width, ensuring a continuous vertical joint pattern.
• English Bond: Alternating courses of headers and stretchers, providing exceptional strength through complete interleaving.
• Flemish Bond: A single course where each stone is alternately a header and a stretcher, creating a repeating checkered pattern that is both strong and visually appealing.

Applications and Material Selection

The choice between rubble and ashlar masonry is rarely arbitrary; it is dictated by the functional requirements of the structure and the desired visual language. Rubble masonry is frequently employed in situations where raw power and thermal mass are desired, such as in agricultural buildings, historic defensive structures, or the foundational elements of large institutional buildings. The irregular shapes create a tight, solid mass that is highly resistant to impact and weathering.

Ashlar masonry, due to its refined appearance and precise load distribution, is typically reserved for façades, lining walls, and high-visibility structures where aesthetics are paramount. The dimensional accuracy of ashlar allows for the creation of large, uninterrupted surfaces that can be framed with contrasting mortar colors or metal accents. Furthermore, the reduced mortar content in ashlar walls generally results in higher compressive strength and lower water absorption compared to rubble alternatives.

Modern Interpretations and PDF Resources

While the fundamental principles of stone masonry are centuries old, the delivery of knowledge has evolved significantly. Today, comprehensive guides detailing these types of stone masonry are frequently compiled into portable document format (PDF) resources. These digital manuals serve as vital references for trade professionals, providing standardized diagrams, specification tables, and detailing guidelines that ensure consistency across projects. Architects utilize these PDFs to communicate detailed requirements to contractors, while construction managers rely on them for quality control and compliance verification.

Such resources often include annotated cross-sections, mortar mix tables specific to regional climates, and troubleshooting guides for common issues like efflorescence or cracking. Access to these organized PDFs allows professionals to move beyond theoretical classifications and understand the practical execution of coursed rubble, diamond rustication, or carved ashlar, ensuring that the ancient craft of stone building is executed with modern precision.
