Samsung TV Back Removal Tool: A Comprehensive Guide
If you're a Samsung TV owner who's ever wanted to access the internal components or mount your TV flush against a wall, you've likely encountered the need for a Samsung TV back removal tool. This guide will walk you through the process, ensuring you have the right tool and follow the correct steps to safely remove your Samsung TV's back panel.
Why Remove the Back Panel?
There are several reasons why you might need to remove the back panel of your Samsung TV:
- To access internal components for repairs or upgrades.
- To install a flush mount kit for a seamless wall installation.
- To clean dust and debris that can accumulate over time.
What You'll Need: The Right Samsung TV Back Removal Tool
Samsung uses specific screws and clips to secure the back panel of their TVs. To remove it safely, you'll need the right tools:
- A Samsung-approved back panel removal tool (model-specific, see below).
- An anti-static wristband to prevent electrostatic discharge.
- Phillips #2 screwdriver (for some models).
Model-Specific Tools
Samsung offers model-specific back panel removal tools. Here are a few examples:
| TV Model | Tool Part Number |
|---|---|
| Samsung QLED Q60/Q70/Q80/Q90 (2019-2021) | EA82-00113A |
| Samsung NU7100/NU7300/NU7400 (2018-2019) | EA82-00112A |
| Samsung RU7100/RU7300/RU7400 (2019) | EA82-00114A |
Always check your specific model's tool requirements, as they can vary.
Step-by-Step: Removing the Samsung TV Back Panel
Now that you have the right tool, follow these steps to safely remove your Samsung TV's back panel:
Preparation
1. Turn off and unplug your TV. Allow it to cool for at least 30 minutes to prevent any heat-related issues.
2. Ground yourself by touching a metal object or wearing an anti-static wristband to prevent electrostatic discharge.
Accessing the Screws
3. Remove any rear covers or grilles using the provided tool or a flathead screwdriver. The process varies by model, so consult your TV's user manual if needed.
Removing the Screws
4. Use the appropriate tool (Phillips #2 screwdriver or Samsung-approved tool) to remove the screws securing the back panel. Some models may have screws hidden under rubber feet or stickers.
Unclipping the Back Panel

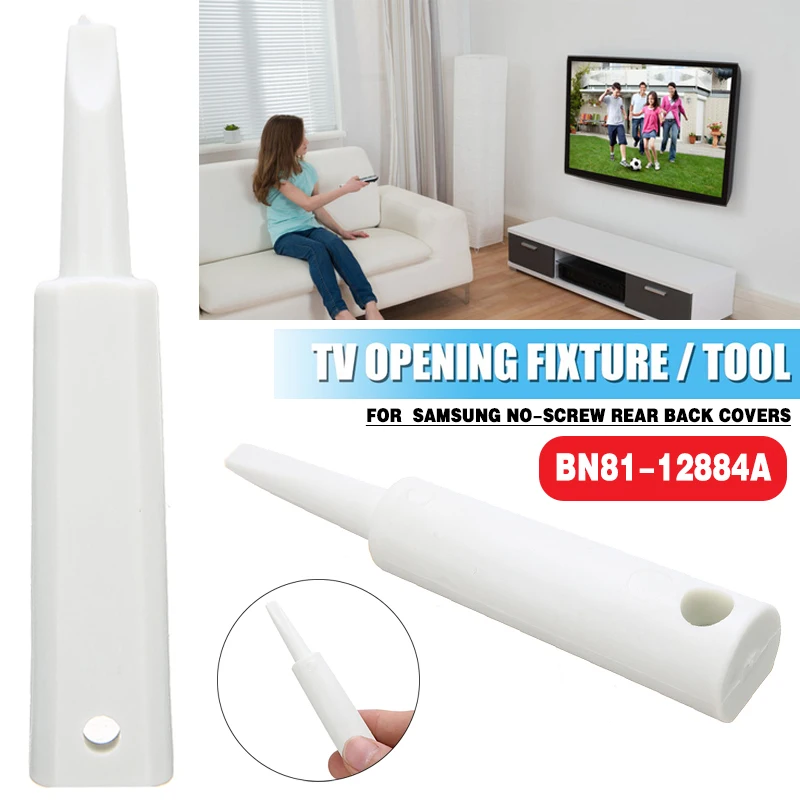

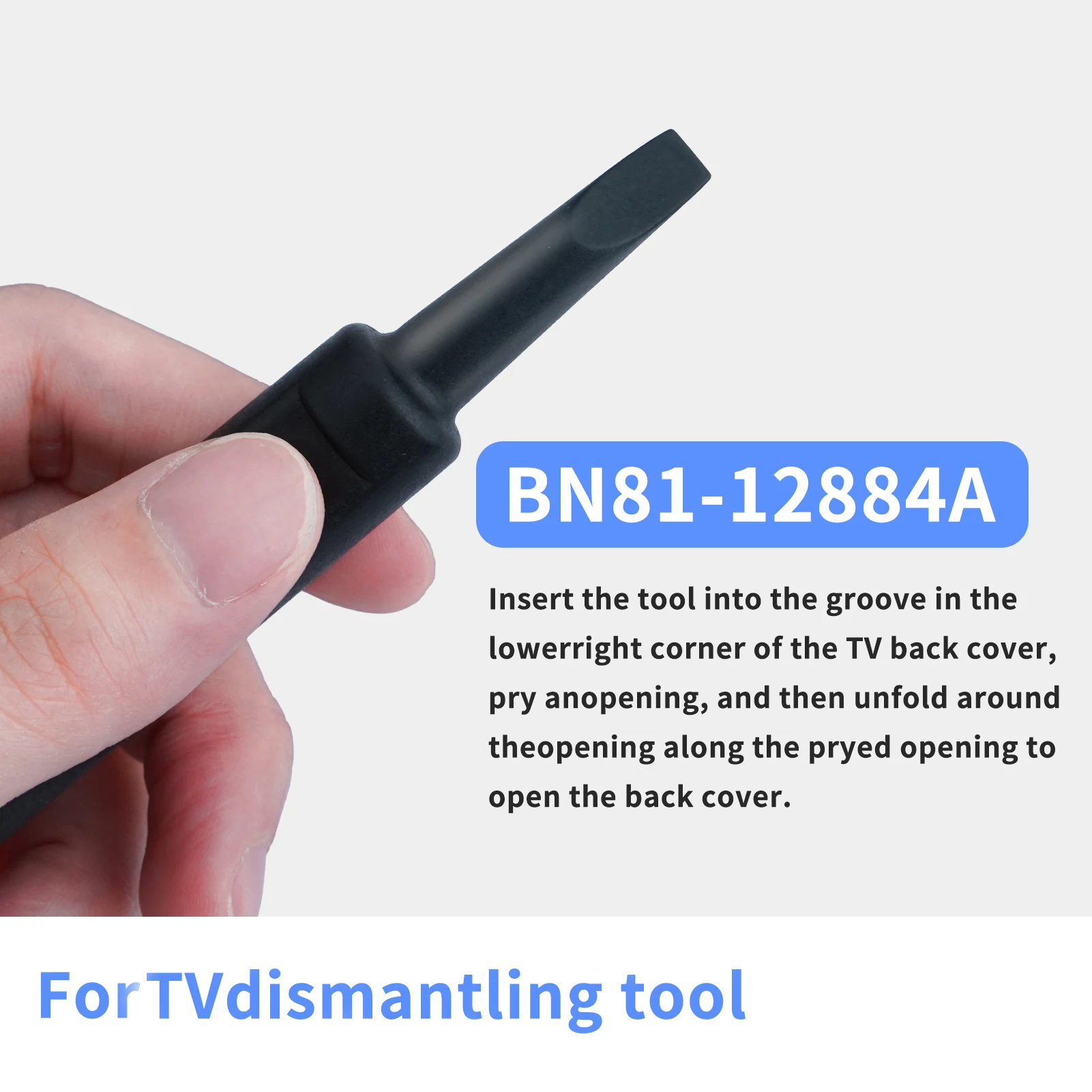

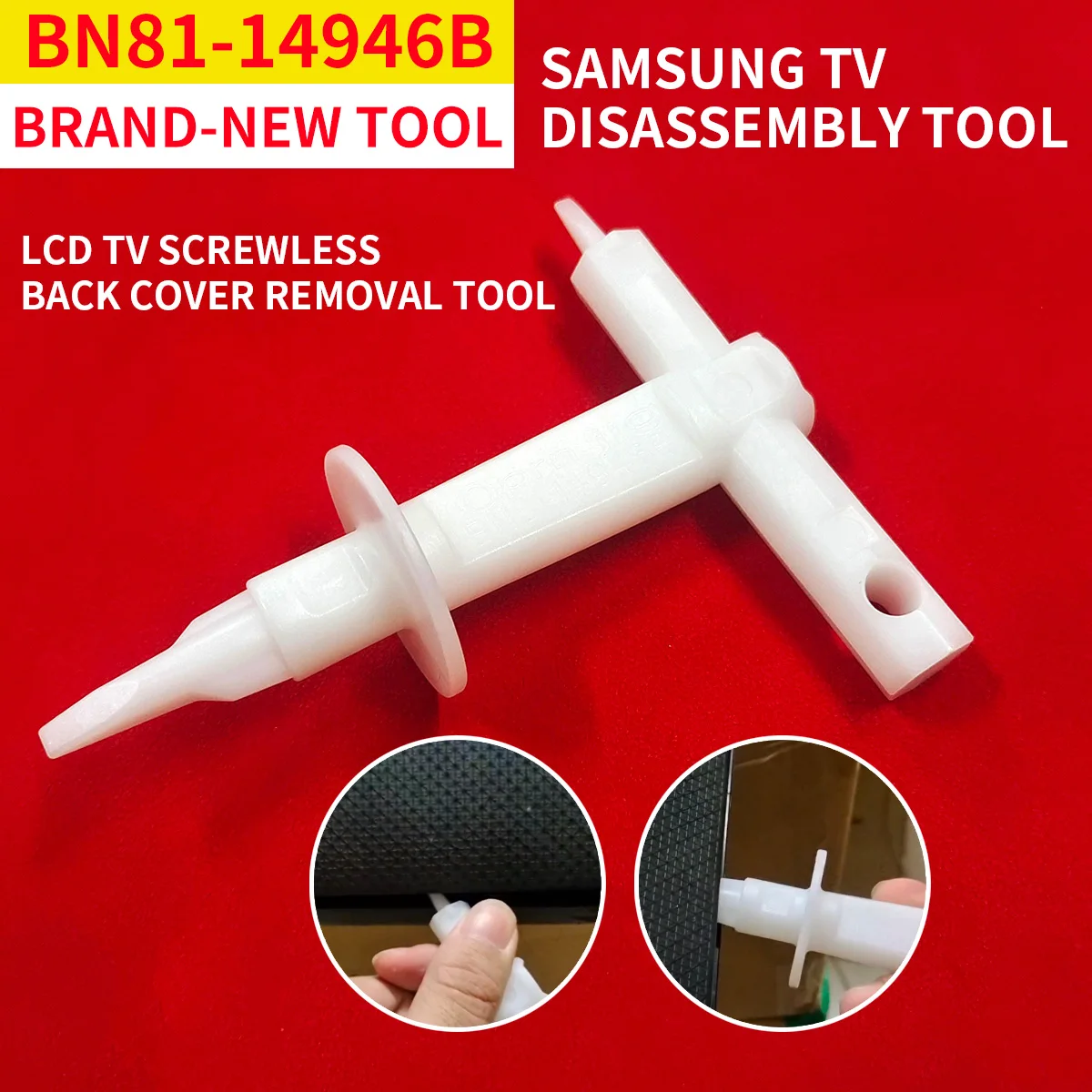

5. Carefully insert the Samsung-approved back panel removal tool into the designated slots around the perimeter of the back panel. Gently pry the clips to release the back panel from the TV.
6. Work your way around the entire perimeter, releasing all clips. The back panel should now be free but still connected by screws.
Disconnecting the Cables
7. Carefully disconnect the cables connecting the back panel to the main TV unit. These may include power, data, and speaker cables.
Removing the Back Panel
8. Gently lift the back panel off the TV, ensuring all cables are disconnected and clear of the way.
Reassembly and Safety
Reassembly is simply the reverse of the removal process. Ensure all screws are tightened securely, and the back panel is properly reattached and sealed. Always handle internal components with care to avoid damage or electrostatic discharge.
If you're unsure about any part of the process, consult a professional technician to avoid damaging your Samsung TV.
