Searching and Downloading OpenStreetMap Data (QGIS3)

Getting high quality data is essential for any GIS task. One great resource for free and openly licensed data is OpenStreetMap(OSM) . The OSM database consists of all types of mapping data - streets, local data, building polygons, administrative boundaries etc. Getting access to OSM data in a GIS format in QGIS is possible via the QuickOSM plugin. This tutorial explains the process for searching, downloading and using this plugin.

Overview of the task

We will extract locations of all bars and pubs in London from the OpenStreetMap database and save it as a vector layer.

Other skills you will learn

  • How to chain multiple queries in QuickOSM plugin.

Procedure

  1. Search and install the QuickOSM plugin from the QGIS Official Plugin Repository. See Menggunakan Plugins for instructions on downloading plugins. Make sure you have the checkbox selected. Click Close.

../../_images/160.png

  1. Once installed, launch the plugin from Vector ‣ QuickOSM ‣ QuickOSM....

../../_images/239.png

  1. In the Quick query tab, you can set a filter to select a subset. The attributes of the map features in the OSM database are stored as Tags. Tags are represented with a key and a value. The key is a topic and a value is a specific form. See the OSM Map Features wiki page for a comprehensive list of tags for various types of features. Bars are represented using the tag amenity:bar and pubs with the tag amenity:pub. We will first extract the bars. Select amenity as the Key from the drop-down menu.

../../_images/326.png

  1. Select bar from the Value drop-down menu.

../../_images/49.png

  1. We can chain multiple queries in the latest version (v2.0.0 +) of the QuickOSM plugin. Click on the plus button next query selection bar will appear. Click on the first selection box where we can get option And and Or. And will select only feature which is true for all queries. Or will select all features which are true for any of the queries. Click Or to select both bar and pub features.

../../_images/510.png

  1. Select amenity as the Key from the drop-down menu. Then select pub from the Value drop-down menu.

../../_images/610.png

  1. Enter London as the In to restrict the search within the city boundary.

../../_images/710.png

  1. Expand the Advanced section. In the OSM data model, features are represented using nodes, ways and relations. As we are interested in the point features, you can select only Node and Points . Click Run query.

../../_images/810.png

  1. Once the query finishes, switch to the main QGIS window. You will see a new layer called amenity_bar_amenity_pub_London added to the Layers panel. The canvas will show the locations of the bars and pubs that were extracted.

../../_images/910.png

  1. Open the Attribute table of the layer. There are 2091 features. The column amenity contains the category whether the feature is pub or bar. Using this categorical column, lets style our layer.

../../_images/1015.png

  1. Click on the Open the Layer Styling panel icon, select Categorized then in Value select amenity then click Classify. Now the layer will be styled with 2 color featuring both bars and pubs.

../../_images/1118.png

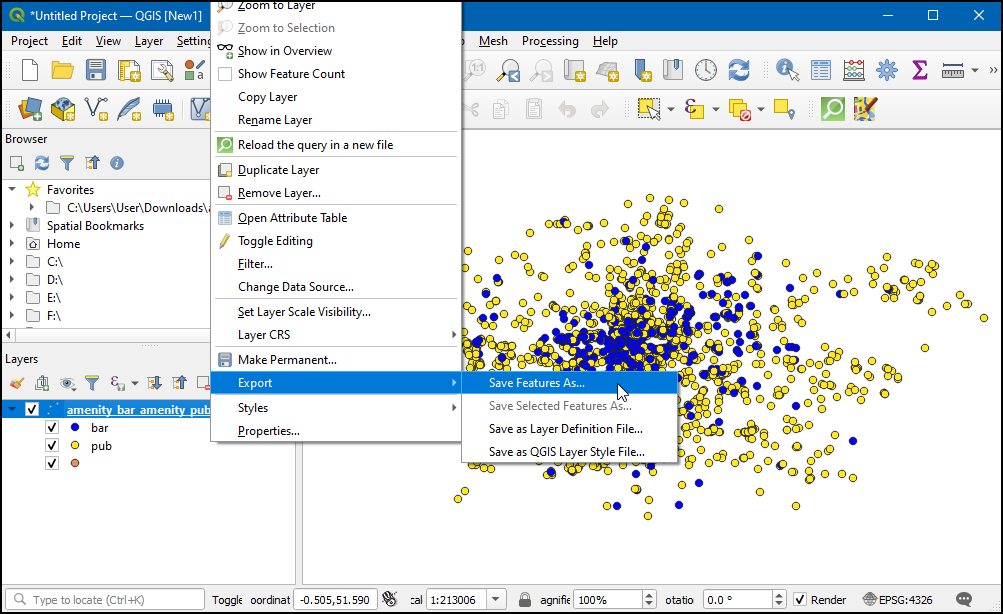

  1. Now right-click on the layer, Export ‣ Save Feature As... to export the layer as GeoPackage.

../../_images/1216.png

  1. In the Save Vector Layer as... dialog box, in Format choose GeoPackage, in File name click ... and browse to the directory where you want to save the data and name the output london.gpkg. In Layer name enter bar_and_pubs. Click OK.

../../_images/1314.png

  1. Now a GeoPackage layer london_bar_and_pubs will be added to the canvas.

../../_images/1412.png

If you want to report any issues with this tutorial, please comment below. (requires GitHub account)
