2005 Toyota Matrix EVAP Canister Location – Precise Guide

Locating the EVAP canister in a 2005 Toyota Matrix is essential for diagnosing fuel system issues—this article provides a clear, reliable guide to pinpoint its exact position for efficient repairs.

In the 2005 Toyota Matrix, the EVAP canister is typically situated near the fuel tank, inside the engine bay, often mounted under the rear seat or near the rear wheel well. Its exact placement varies slightly by engine variant, but the most common location is adjacent to the fuel tank filler neck, secured with brackets. This area is accessible via the underbody panel, requiring careful inspection after removing protective covers.

To locate the EVAP canister, begin by inspecting the fuel system area under the vehicle. Use a flashlight to examine the rear side of the fuel tank; the canister appears as a cylindrical, black plastic component with fuel cap markings. Refer to your vehicle’s service manual for exact coordinates—some models place it near the rear strut support or along the fuel line routing. Avoid confusion with the fuel tank itself, as the canister is a separate component with a dedicated vent and purge valve.

Accurate knowledge of the 2005 Matrix EVAP canister location ensures efficient diagnostics and repairs, reducing misdiagnosis risks and saving time. Proper access allows for timely replacement or cleaning, maintaining optimal emissions performance and fuel system integrity.

Always disconnect the battery before working on fuel system components. Consult a wiring diagram to verify connections, and use proper tools to remove brackets or covers. If unsure, seek a professional technician to avoid damage to sensitive EVAP components.

Accurately identifying the 2005 Toyota Matrix EVAP canister location empowers both DIY enthusiasts and mechanics to perform reliable fuel system maintenance. With the right guidance, troubleshooting becomes efficient and effective—keep your Matrix running smoothly.

This DIY will also help people who have canister failures or damage unrelated to the TSB mentioned (like fuel filling or other EVAP codes). This DIY is for 2005-2008 Corolla, Matrix, and Pontiac Vibe and should be identical for 2ZZGE cars as well. 2008 Toyota Matrix, EVAP canister location is shown.

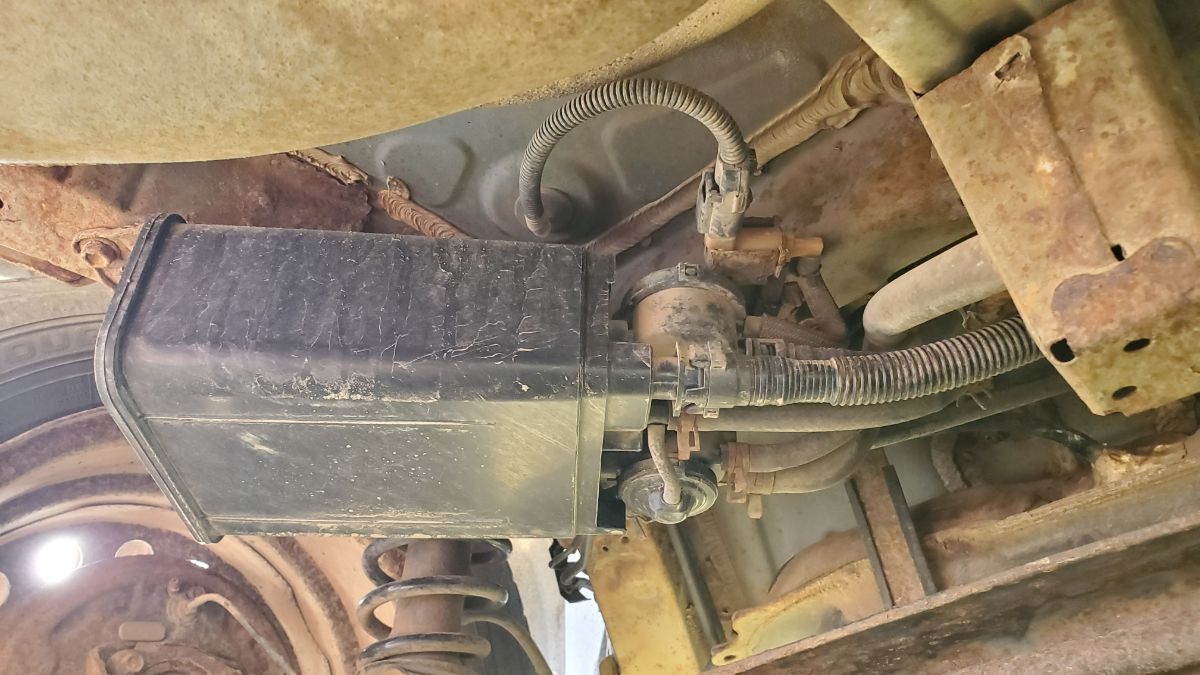

This site contains affiliate links for which I may be compensated. Toyota Corolla Vehicle Maintenance How to Replace the Charcoal Canister in a 2003-2011 Toyota Corolla/Matrix By Richard Tomlinsen 2023-09-21 You're cruising down the highway in your trusty 2005 Toyota Corolla, feeling the wind in your hair and the thrill of the open road. Suddenly, the dreaded check engine light flickers to life on your.

The EVAP canister on a 2006 Toyota Matrix AWD is not behind the driver's rear wheel as in FWD models. Instead, it's typically mounted near the fuel tank or under the vehicle's rear frame. Persistent P043F, P2419, P043E, P2402, and P2401 codes indicate leaks or faulty purge valves.

Inspect hoses and connections for cracks or disconnections. Replace the canister only after confirming its. The Vapor Canister in Toyota Matrix cars, is a part of evaporation emissions control system also known as EVAP, which is aimed to minimize hydrocarbon emissions.

Signs Your Charcoal Canister Is Failing The charcoal canister is the centerpiece of the evaporative emission control (EVAP) system, a technology designed to prevent vapors from your fuel tank from. Charcoal canister is at the core of every EVAP system. It consists of activated carbon -- a substance with an extremely large effective surface area (due to its pores and/or granular structure).

http://www.wellsve.com/ This video demonstrates how to test for a Toyota EVAP code p0446. How to also test an early vacuum switching valve and replace the canister. 03~04 TOYOTA COROLLA MATRIX / Replace canister & Gas cap (P0441,P0442,P0446), & sway bar link + ATF ISSUE OF P0441,P0442,P0446 POSSIBLE PROBLEM FOR CHECK 1.

Here's an overview of the EVAP system. Its basically there to vent gasoline vapors and catch it in the charcoal canister. Its held there until its released into the car's air intake to get burned by the engine.

EVAP float to ensure liquid gas doesn't go into the charcoal canister: Here's the gas tank chopped open: Vapour pressure sensor.
