How to Mount an ARB Awning: A Comprehensive Guide
Embarking on an off-road adventure or camping trip with your 4WD vehicle? An ARB awning can significantly enhance your outdoor experience by providing shade and shelter. Here's a step-by-step guide on how to mount an ARB awning, ensuring a secure and functional setup.
Understanding Your ARB Awning
Before you begin, familiarize yourself with the components of your ARB awning. The main parts include the awning itself, the mounting bracket, the arm assembly, and the tensioning straps. Understanding these components will help you mount the awning correctly.
Gather Your Tools
To mount your ARB awning, you'll need the following tools:
- Drill and appropriate drill bit (based on your vehicle's sheet metal thickness)
- Tape measure
- Marker or pencil
- Socket wrench or screwdriver (depending on your vehicle's fasteners)
- Ratchet strap (optional, for securing the awning during drilling)
Find the Perfect Mounting Location
Choose a location on your vehicle where the awning will be secure and not interfere with other equipment or opening doors. The most common location is on the driver's side, just behind the cab. Ensure the chosen spot is flat and free from any obstructions.
Mark the Mounting Points
Using your tape measure and marker, mark the four mounting points on your vehicle's sheet metal. The mounting points should be approximately 16 inches apart, as per ARB's standard mounting pattern. Double-check your measurements to ensure accuracy.
Drill the Mounting Holes
Secure the awning bracket to your vehicle using a ratchet strap to prevent it from moving during drilling. Drill holes at the marked locations, using a drill bit slightly smaller than the diameter of the mounting bolts. Be cautious when drilling to avoid damaging any underlying components.

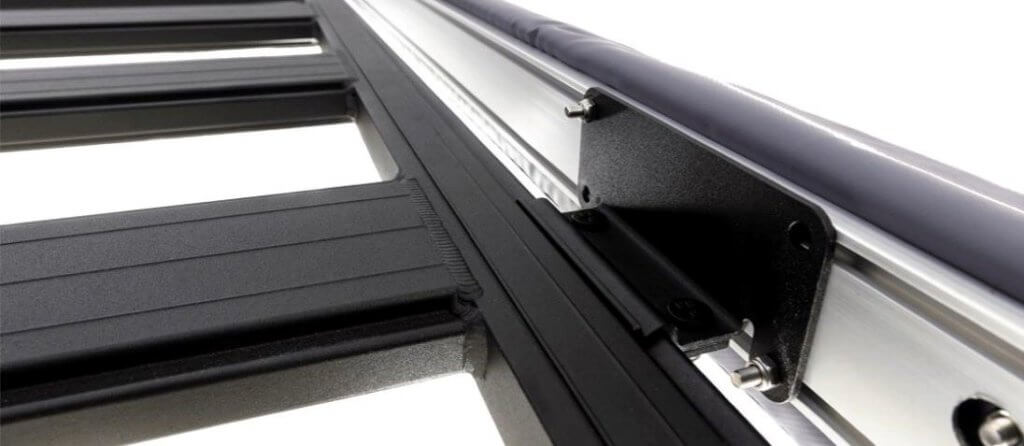

Attach the Mounting Bracket
Position the mounting bracket over the drilled holes and secure it using the provided bolts and nuts. Tighten the bolts using a socket wrench or screwdriver, ensuring they are snug but not overtightened. Be careful not to strip the threads or damage the bracket.
Assemble the Awning Arm Assembly
Assemble the awning arm assembly by connecting the two arms and the awning to the mounting bracket. Ensure the awning is properly aligned and the arms are fully extended. Tighten any set screws or bolts to secure the assembly.
Secure the Awning with Tensioning Straps
Attach the tensioning straps to the awning and the vehicle's roof rack or other secure points. This will provide additional support and stability to the awning, preventing it from flapping in the wind. Adjust the straps as needed to achieve the desired tension.
Test Your ARB Awning
Gently extend and retract the awning several times to ensure it operates smoothly and is securely mounted. Inspect the mounting points and bolts to confirm they remain tight and secure. With proper care and maintenance, your ARB awning will provide years of reliable service.
