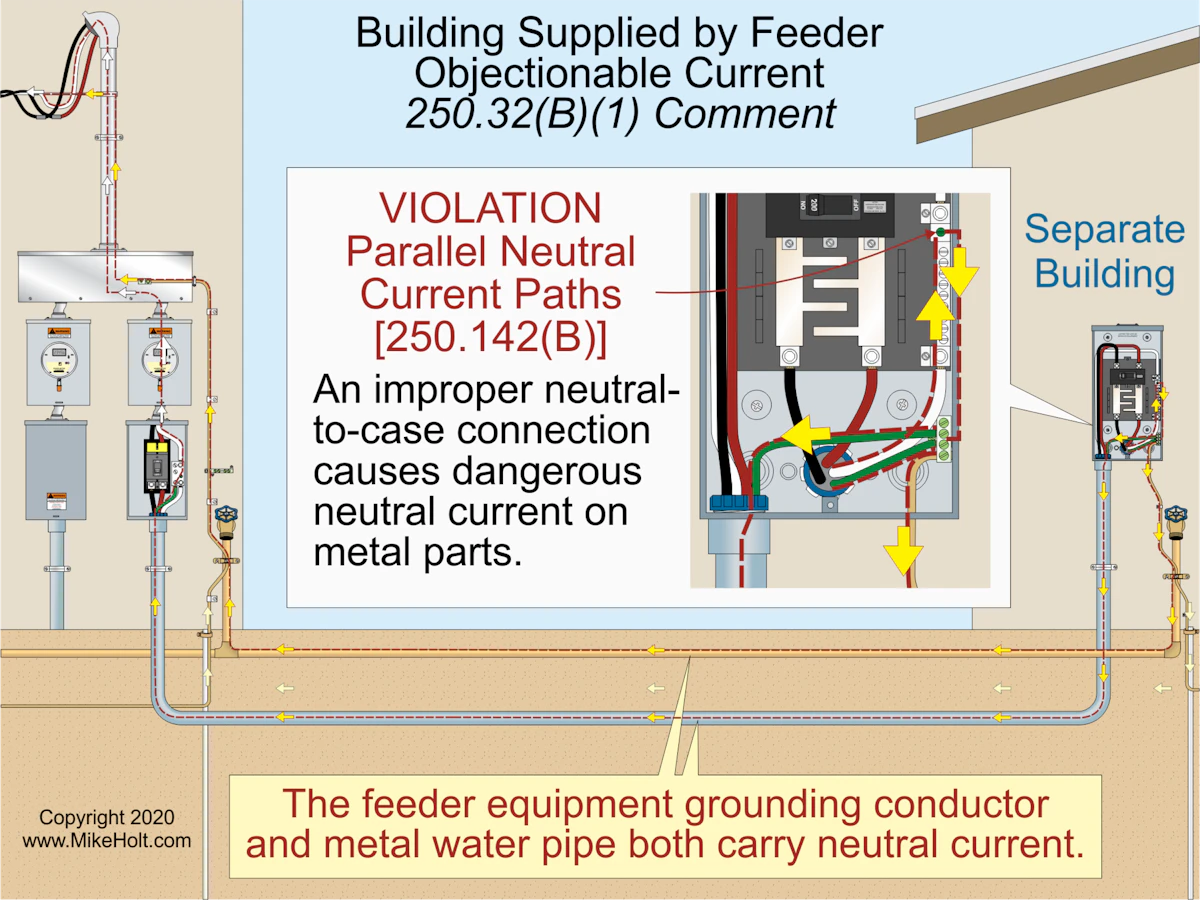

proper grounding setup involves two distinct parts: equipment grounding (connecting all non-current-carrying metal frames together) and system grounding (connecting one of the active current-carrying wires to the ground rod).
Master the non-negotiable steps for grounding your off-grid solar system to ensure regulatory compliance and critical electrical safety.
Such details provide a deeper understanding and appreciation for Off Grid Electrical Grounding Requirements.

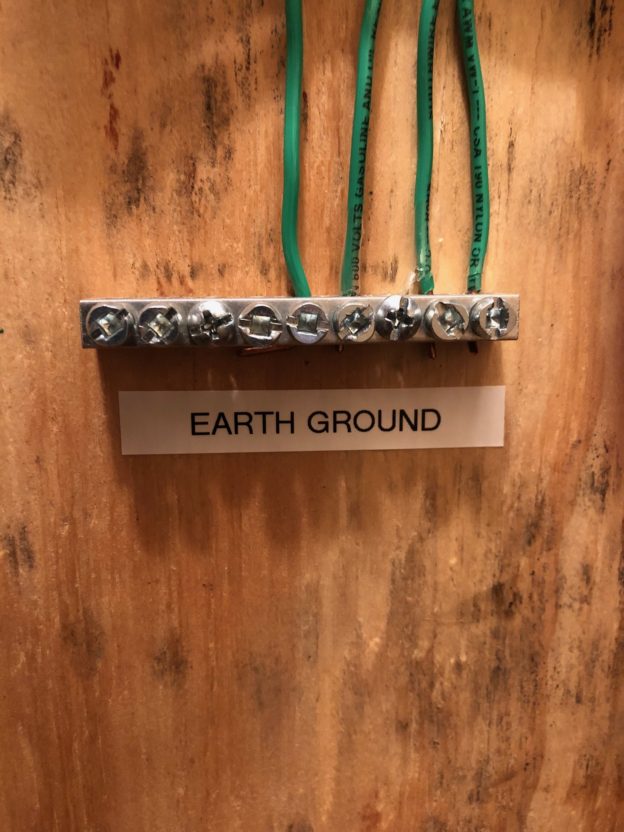

In a stationary off-grid system, a separate DC grounding system should be used for the charger, batteries, and inverter input, independent of the household AC grounding system, to avoid interference.
Different techniques exist, each suited to specific solar battery configurations and site requirements. We will discuss these grounding methods in detail, including best practices and common pitfalls to avoid, ensuring your off-grid solar system remains both safe and efficient.
Such details provide a deeper understanding and appreciation for Off Grid Electrical Grounding Requirements.
Ground your off-grid solar system properly to protect against lightning strikes and electrical faults. Install copper-clad ground rods at least 8 feet deep and connect them to your solar array frames, inverter, and battery bank using 6 AWG copper wire.
These tables help you properly size wiring for the grounding and bonding of your electrical system. Becoming familiar with the proper use of these tables can help installers ensure proper grounding and bonding on their projects and, in turn, ensure the safety of those within the building.
