The Ultimate Guide to Truss for Lighting: Installation, Types, and Costs

In the complex ecosystem of professional event production and architectural lighting, the truss for lighting stands as the critical backbone of any sophisticated setup. Often overlooked in favor of the more visually striking lights themselves, this modular structural system is the invisible framework that ensures safety, precision, and scalability. It provides the necessary physical support to suspend heavy fixtures high above crowds and stages while creating the spatial architecture that defines the aesthetic environment. Understanding its function, components, and engineering principles is essential for any professional responsible for designing or implementing a lighting rig.

The Core Functionality and Structural Advantages

The primary purpose of a truss for lighting is to convert a chaotic collection of lighting fixtures, cables, and accessories into a single, coherent, and load-bearing structure. By connecting individual lengths of aluminum or steel alloy, truss creates a rigid grid that can span vast distances without requiring intermediate support pillars. This capability is indispensable in venues like cathedrals, warehouses, or outdoor festivals where traditional ceiling mounts are absent. The inherent strength of the triangular geometry inherent in most truss profiles allows the system to handle immense vertical loads and resist lateral forces, ensuring that the entire installation remains stable and secure under various environmental conditions.

Modularity: The System’s Greatest Strength

One of the defining characteristics of modern truss systems is their remarkable modularity. Because lighting and production requirements vary wildly from a small conference setup to a massive stadium tour, the ability to customize the rig is non-negotiable. Users start with standardized sections—often referred to as "chunks"—which can be connected using robust steel or aluminum couplers. This "plug-and-play" methodology means a single inventory of truss can be assembled into a flat configuration for warehouse lighting, a curved proscenium arch for a concert hall, or a towering vertical stack for a festival stage. This flexibility not only saves capital expenditure but also drastically reduces the time required for pre-production planning and on-site assembly.

Material Composition and Engineering

The choice of material significantly impacts the performance and handling characteristics of a truss for lighting. Aluminum is overwhelmingly the preferred material in the industry due to its exceptional strength-to-weight ratio. It resists corrosion, does not require painting, and is considerably easier for crew members to lift and maneuver on-site compared to steel. High-grade 6061-T6 aluminum is commonly used for its durability. However, for applications requiring extreme load capacities or in highly corrosive industrial environments, galvanized steel truss remains an option. Regardless of the material, the engineering tolerances are precise; the straightness of the tubes, the integrity of the press-cast end plates, and the quality of the connection hardware all determine the safety factor of the entire rig.

Integration with Lighting Hardware

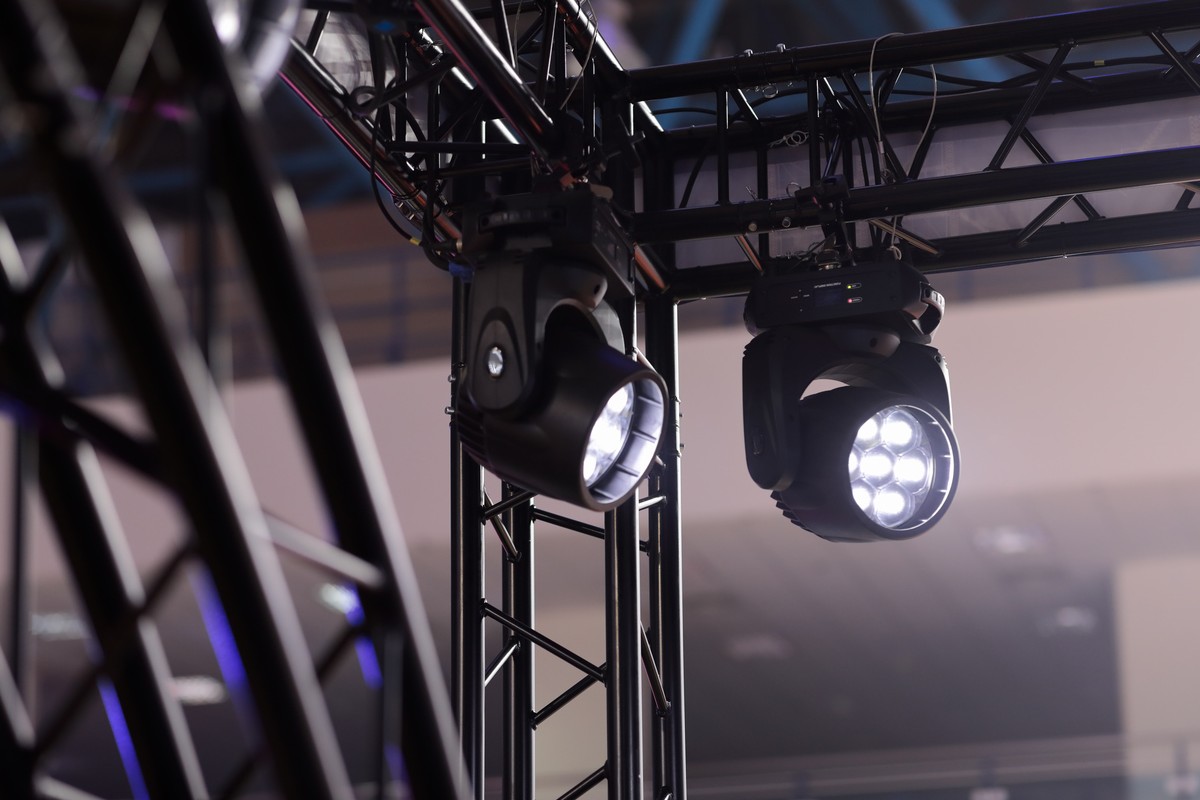

Truss is not merely a support structure; it is an active platform that dictates the workflow of the entire lighting crew. Lighting fixtures—be it moving heads, LED PAR cans, or intricate pixel walls—are typically mounted using "truss clamps" or "C-clamps." These devices attach directly to the profile of the truss, allowing for rapid positioning and adjustment without the need for bolting into the main structure. Furthermore, truss incorporates dedicated infrastructure for managing the "catenary"—the complex web of power and data cables. Cable trays, raceways, and dedicated "super cords" run along the spine of the truss, keeping the electrical delivery organized and safe, reducing the risk of tripping hazards, and ensuring that a single cable failure does not cripple an entire section of the rig.

Safety Protocols and Load Management

Working with a truss for lighting demands rigorous adherence to safety standards, as the consequences of failure can be catastrophic. Every connection point, known as a "node," must be checked for tightness, and the entire rig must undergo a "pull test" before power is applied to the fixtures. Load management is a precise science; manufacturers provide detailed specifications regarding the safe working load limit (SWL) for each type of truss. Exceeding this limit by hanging fixtures that are too heavy, or positioning them too far from the center of the truss, creates a leverage effect that can lead to buckling or detachment. Consequently, a thorough site survey and load calculation are mandatory steps that precede any physical assembly of the rig.

The Aesthetic and Architectural Dimension

Beyond its structural necessity, the truss for lighting plays a significant role in the visual language of an event or installation. In many modern architectural settings, the truss is not hidden but celebrated. Exposed truss weaves a geometric pattern across the ceiling, turning the infrastructure into part of the interior design. In concert venues, the truss is often finished with black fabric or paint to create a seamless, immersive backdrop for the performance, ensuring that the audience’s focus remains on the art rather than the machinery. The ability to shape space—creating catwalks, framing stage features, and directing the eye—is a direct result of the truss system, proving that engineering and artistry are inextricably linked in the world of professional lighting.
