Ultimate Guide to Diamond Plate Floor Transition: Stylish & Safe Designs

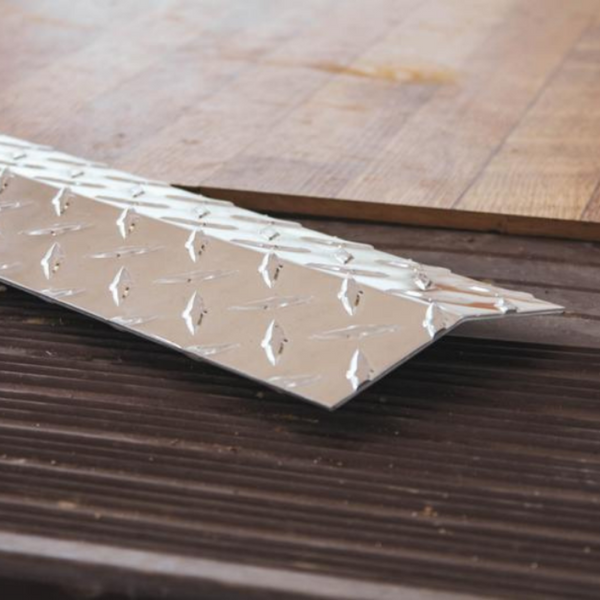

When you are renovating a commercial kitchen, a loading dock, or a high-traffic industrial space, the transition between the diamond plate flooring and the adjacent surface is a detail that demands careful planning. A diamond plate floor transition is not merely a cosmetic cover; it is a critical component that ensures safety, maintains structural integrity, and provides a durable solution for managing height differences. This specialized engineering solution protects the edges of the plates while creating a smooth, navigable surface for equipment and personnel.

Understanding the Purpose and Function

The primary function of a diamond plate floor transition is to bridge the gap where two different flooring materials meet, or where the diamond plate meets a fixed structure like a wall or a machine base. Without this transition, the exposed edge of the diamond plate curls, creating a dangerous trip hazard and accelerating wear and tear. These transitions are designed to distribute weight and stress evenly, preventing the plates from buckling or bending under heavy loads from forklifts or rolling carts.

Material Composition and Durability

Manufactured from heavy-duty materials such as stainless steel, aluminum, or coated carbon steel, these transitions are built to withstand harsh industrial environments. The choice of material often depends on the specific setting; stainless steel is ideal for wet food processing areas due to its corrosion resistance, while aluminum offers a lighter alternative for indoor use. The robust construction ensures that the transition piece remains flat and stable, even under constant friction from wheeled traffic.

Design Variations and Configurations

Not all transitions are created equal, and the design directly impacts functionality. Some feature a smooth, finished lip to minimize the gap, while others incorporate a ribbed grip pattern to prevent slipping. There are configurations specifically designed for flush mounting, where the transition sits level with the diamond plate, and others that allow for a slight stand-off to accommodate wiring or drainage. Selecting the right profile is essential for achieving a seamless integration that meets safety codes and operational needs.

• Closed Transition: Creates a completely level surface, eliminating gaps for debris accumulation.
• Open Transition: Allows for drainage or airflow, commonly used in exterior entrances.
• Thresholds: Used to bridge the gap between diamond plate and ceramic tile or other non-metallic surfaces.

Safety and Compliance Considerations

Industrial safety regulations, such as those from OSHA, mandate that walkways and floor surfaces provide safe traction and minimize hazards. A well-installed diamond plate floor transition ensures compliance by eliminating sharp, upturned edges and sudden changes in elevation. This proactive approach to safety reduces liability and protects workers from slips, trips, and falls, which are leading causes of workplace injuries in industrial settings.

Installation Best Practices

Proper installation is the key to maximizing the lifespan and effectiveness of the transition. It requires precise measurement to ensure the transition aligns perfectly with the edge of the diamond plate. Installers typically use industrial-grade adhesives or mechanical fasteners to secure the piece firmly in place. The transition must be installed with enough tension to keep it flush, but not so tight that it causes warping of the surrounding floor as the temperature fluctuates.

Routine maintenance involves inspecting the transition for loose fasteners or signs of bending. Keeping the surface clean prevents the buildup of grease and grime, which can make the area slippery. By treating the diamond plate floor transition as an integral part of the floor system rather than an afterthought, facility managers can ensure a long-lasting, safe, and professional-looking environment that stands up to the demands of heavy use.
