Trillo File Manager

Trillo File Manager

Trillo File Manager is an application for managing files on GCP Cloud Storage using - an intuitive UI. It supports secure and HIPAA compliant file transfers.

Key Use Cases
Core Features

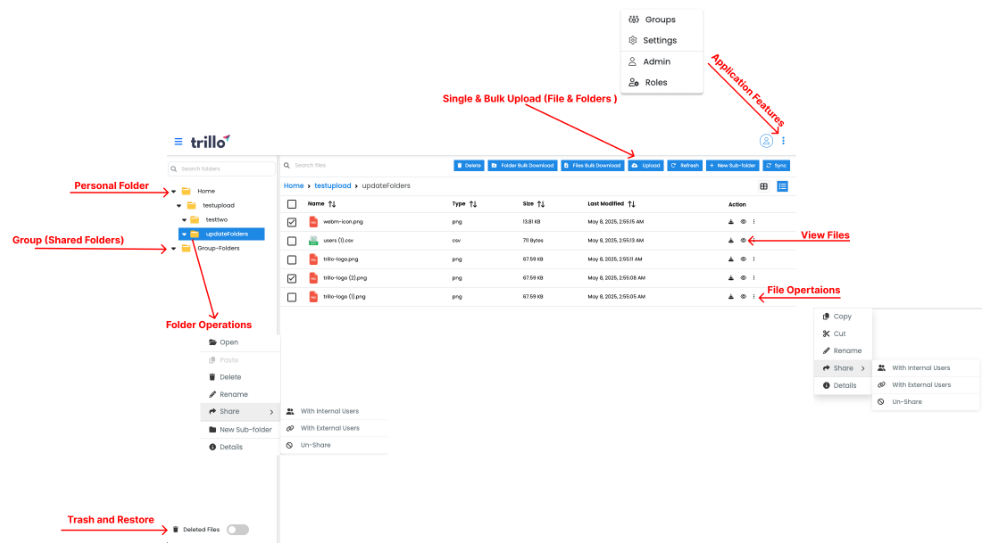

Trillo File Manager Homepage

Sharing & Access

Download for External Users

Create secure download links to share files externally—ideal for sending documents, software, or media to clients or partners.

Download Link for Sharing

Upload for External Users

— Allow external users to upload files directly to a designated folder helpful for collaboration and data collection. This process is secure and organized for easy access.

Upload link for external users

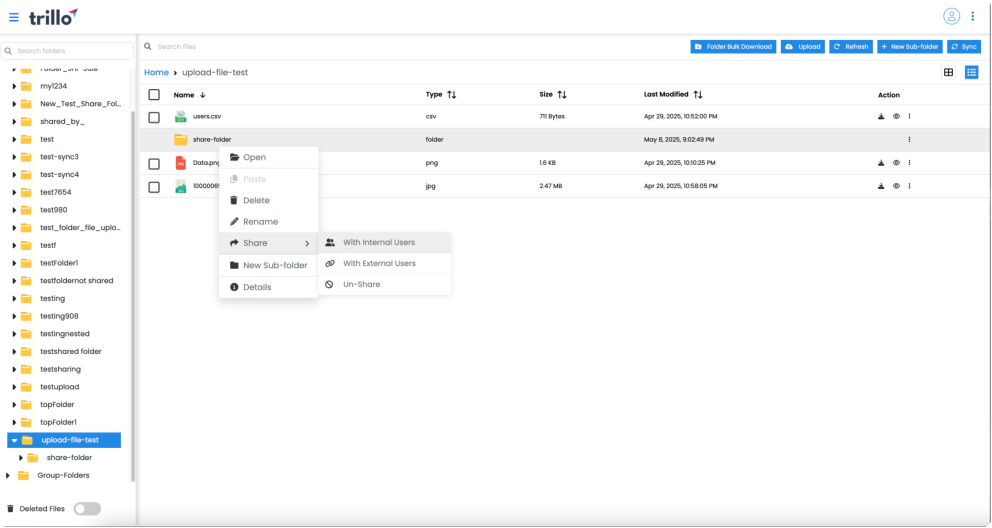

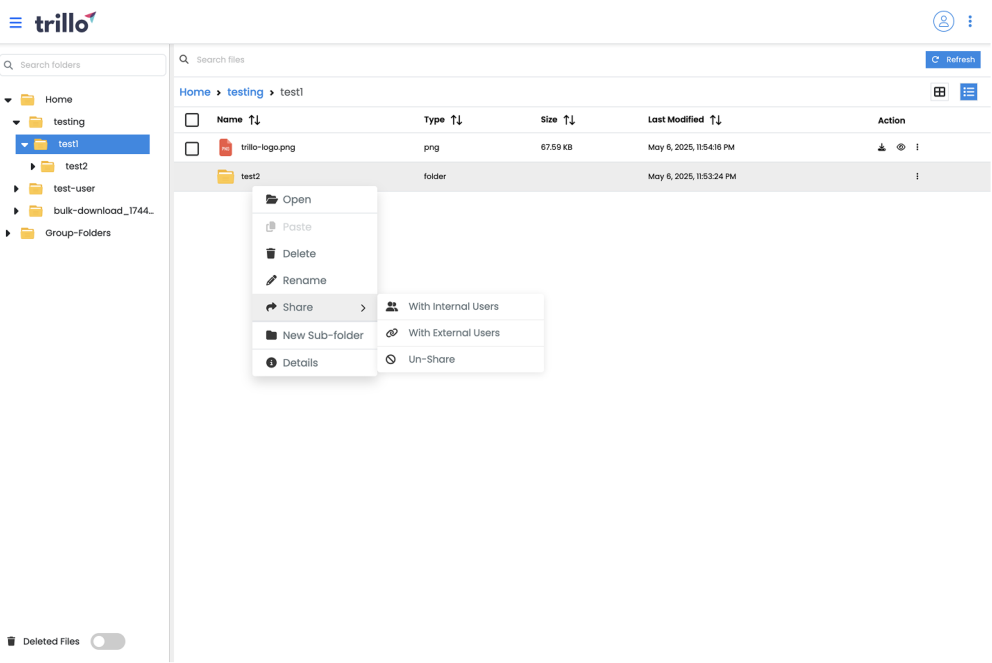

Folder and File Sharing (Internal Users)

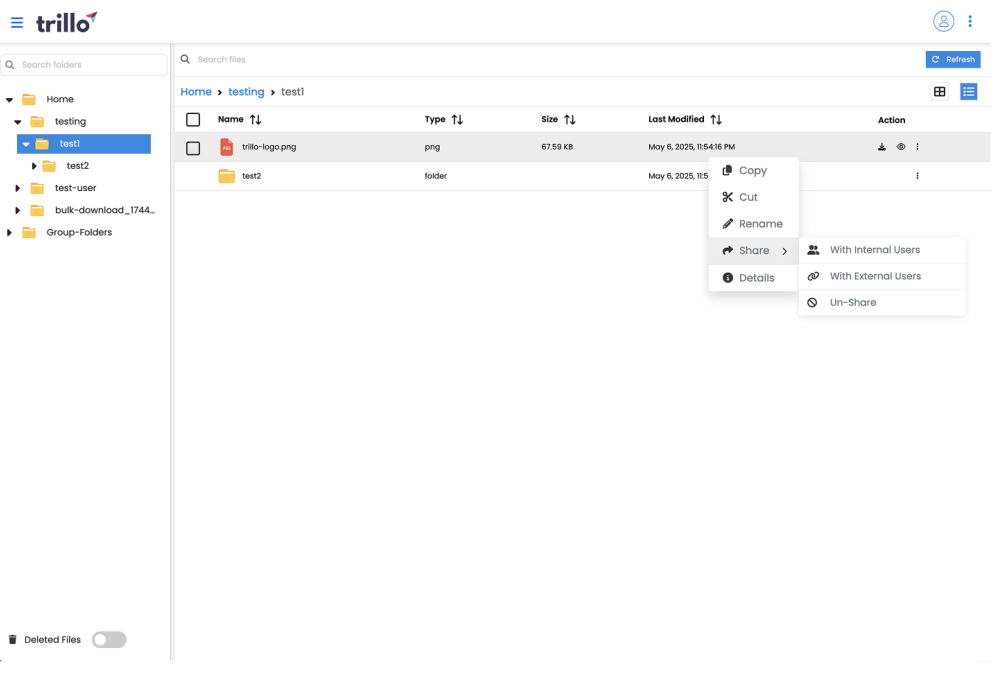

Share with internal users

Share folders or individual files with other internal users:

Share with internal users

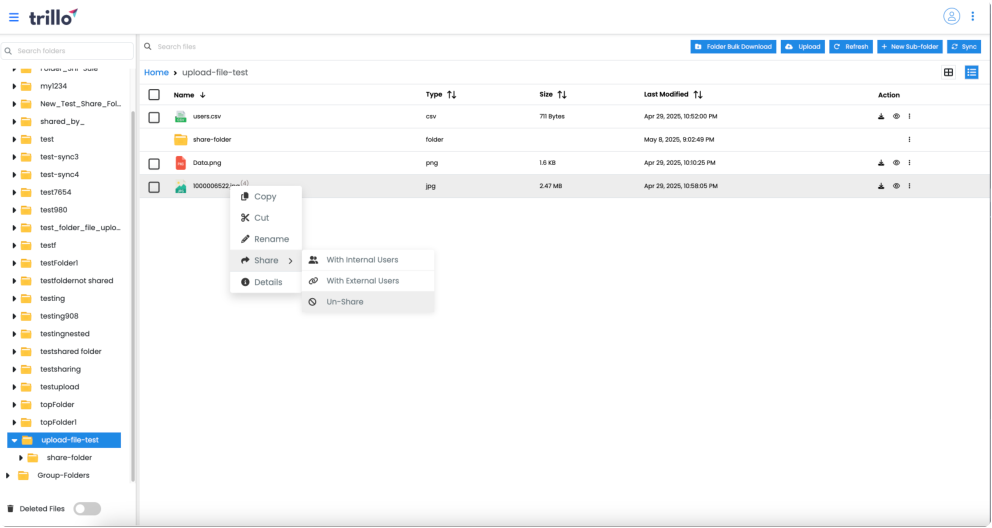

- Un share Folders and Files

Revoke access to previously shared items:

Un-share Folders and Files

Upload & Download Features

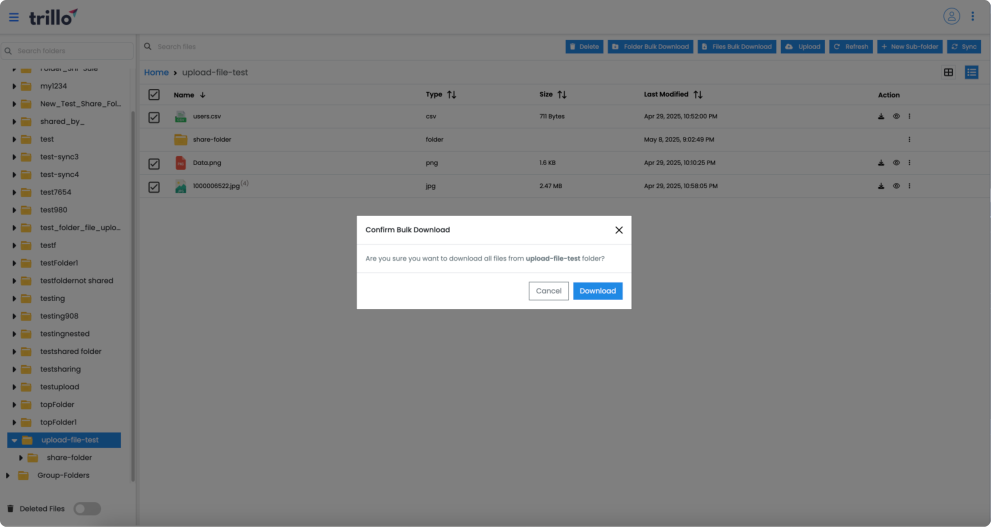

Bulk Download

Download multiple files or entire folders in a single step:

Select multiple files and click on the button Files Bulk Download

Folder and File Upload

Upload full folders (including nested directories) or multiple files at once:

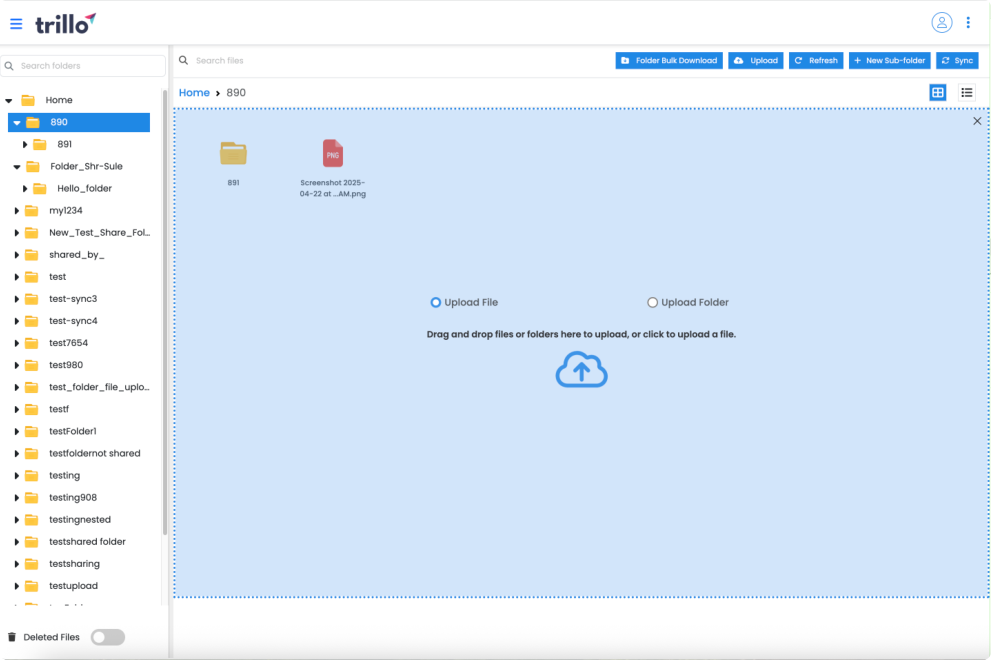

Folder and files upload

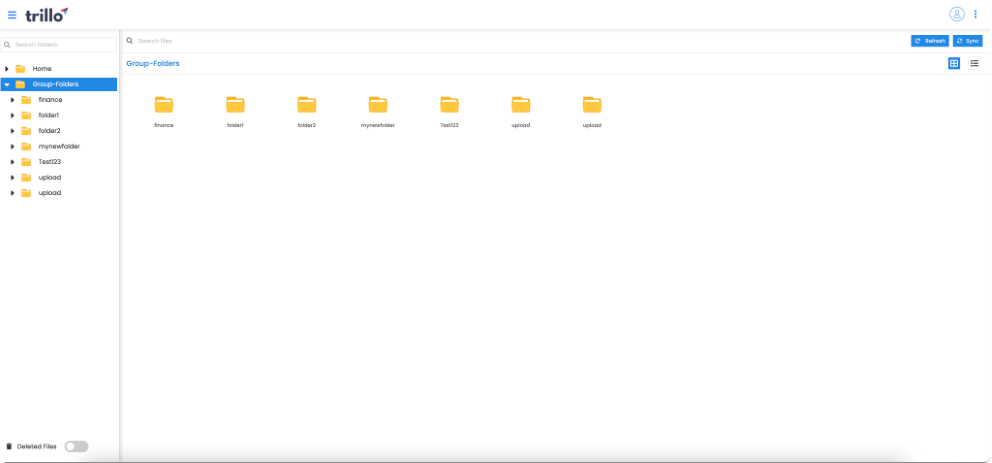

Group Folders

Group Folders are shared directories accessible to all members of a specific group or team. They centralize files in one location, making collaboration and organization easier. Access permissions (view, edit, manage) can be managed at the group level for security and control.

Group Folder

User Management

User management is a critical aspect of modern software systems, encompassing a range of functionalities that allow administrators to manage user accounts, permissions, and authentication processes. Effective user management ensures that only authorized individuals can access and interact with a system, enhancing security, usability, and compliance with regulatory requirements.

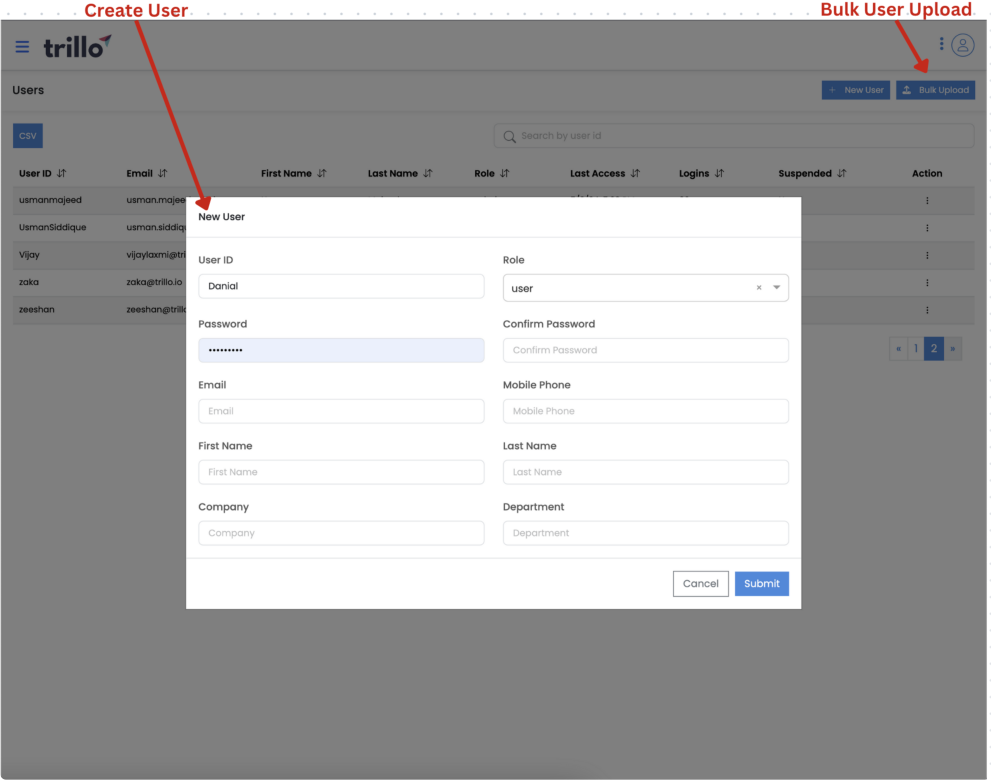

User Management: Adding new user

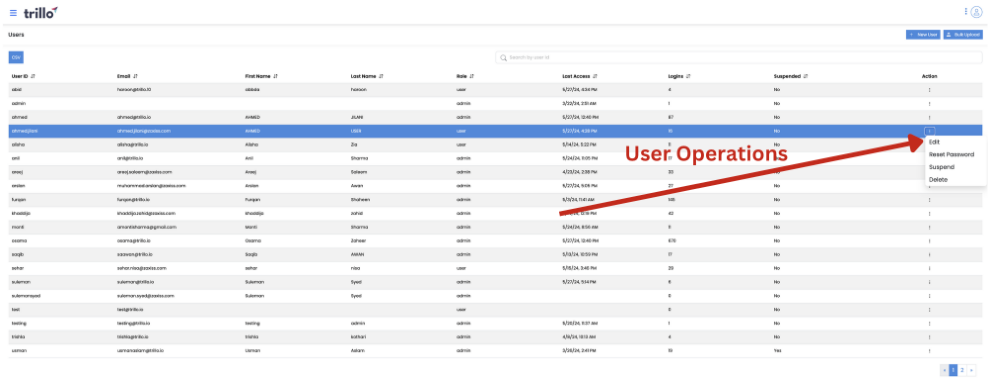

User Management: User Operations

Roles

In user management, roles play a pivotal role in defining and controlling access to resources within a software system. By assigning roles to users, administrators can efficiently manage permissions and ensure that users can access only the functionalities and data necessary for their specific duties. This approach enhances security, streamlines operations, and improves compliance with organizational policies.

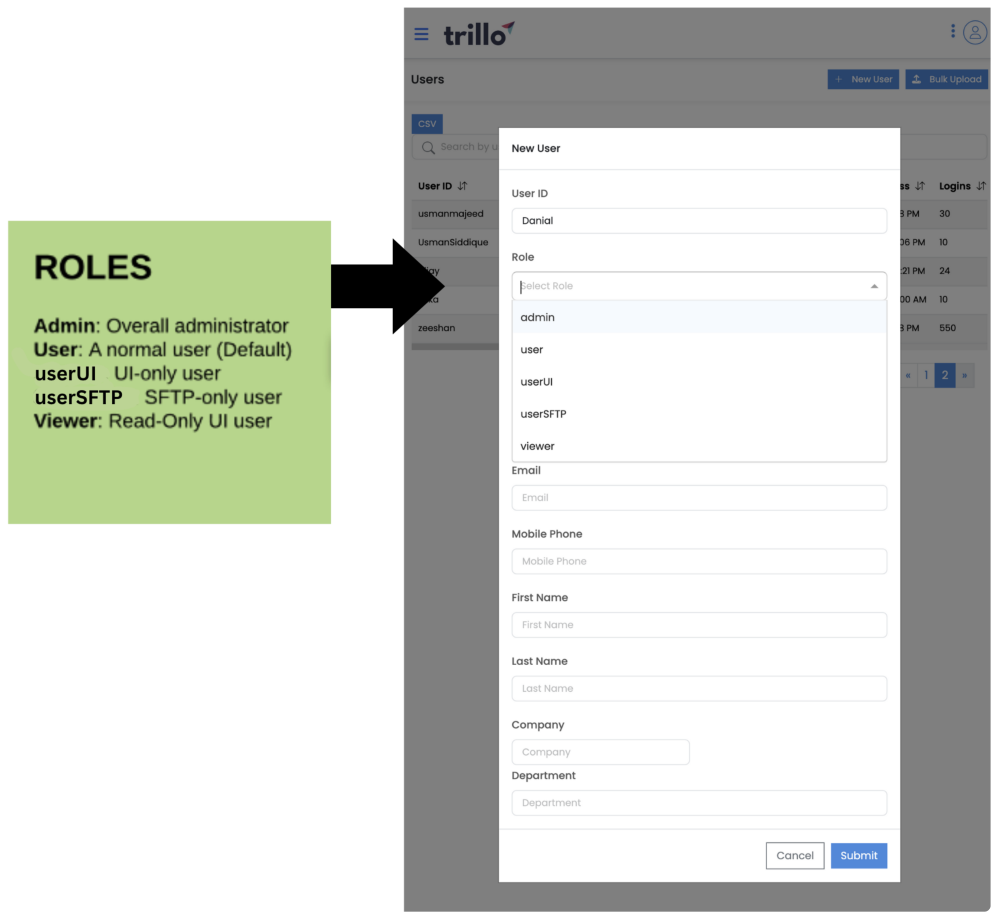

User Managment Roles

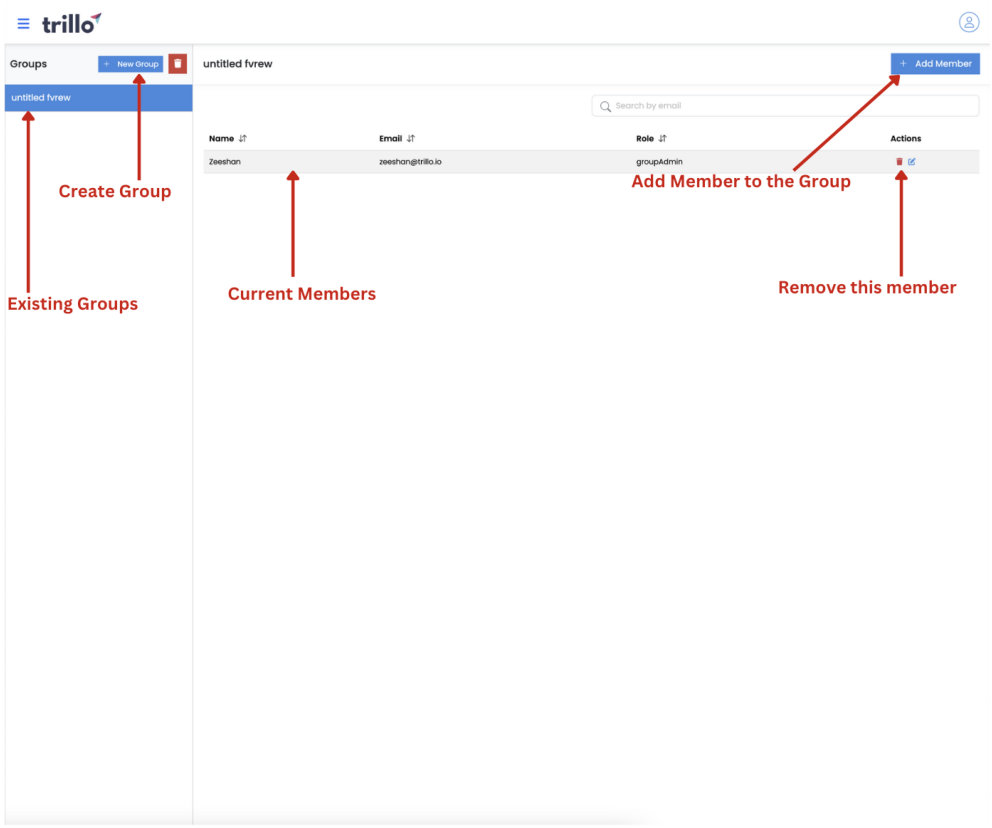

Group Management

Group management is an integral aspect of user management within software systems, enabling administrators to organize users into groups based on roles, departments, projects, or other criteria. This approach simplifies the administration of permissions and access control, enhances collaboration, and ensures a structured and scalable way to manage users.

Group Managment Homepage

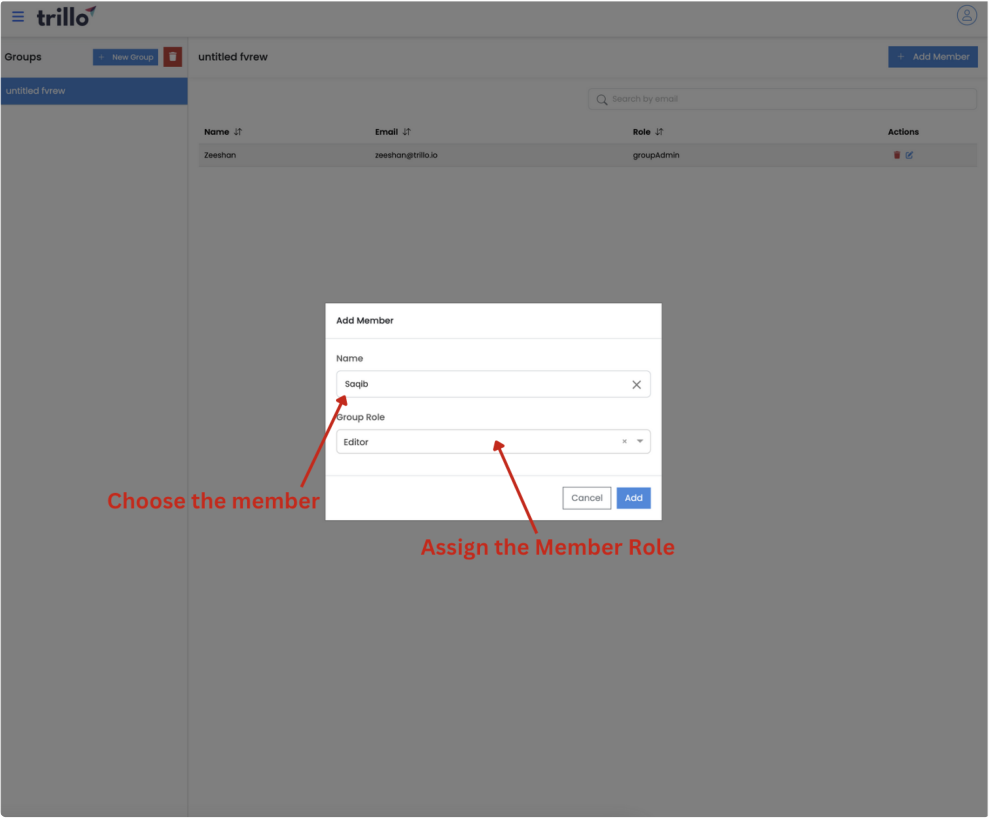

Adding a member to a group

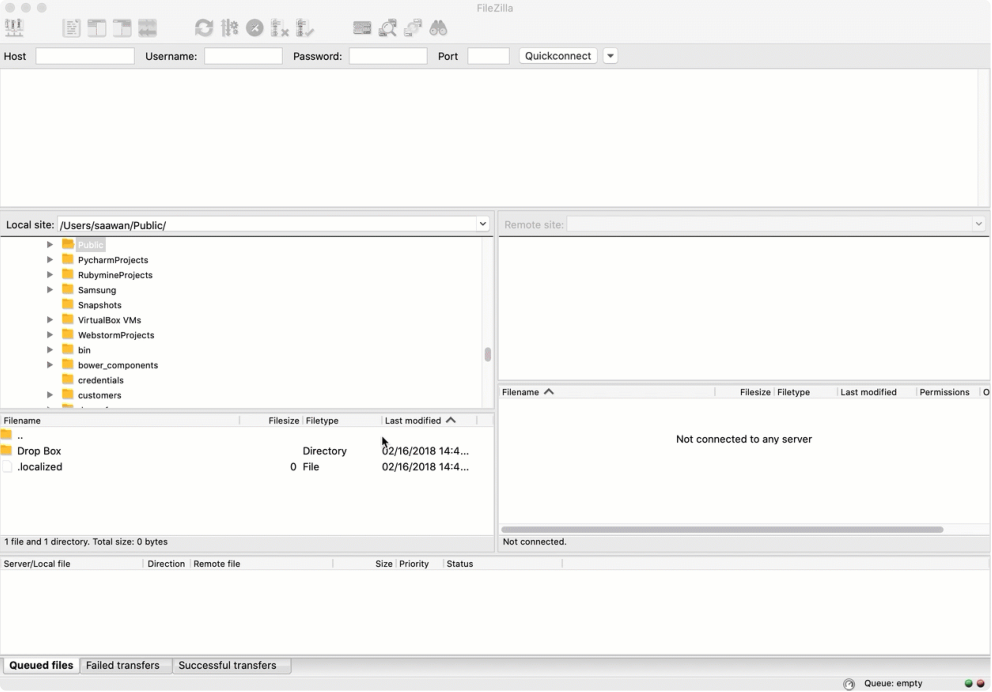

SFTP (FileZilla Client)

Secure File Transfer Protocol (SFTP) is a robust method for securely transferring files between systems over a network. Unlike FTP, which transfers data in plain text, SFTP uses SSH (Secure Shell) to encrypt the data, ensuring that the transfer remains secure from eavesdropping and tampering. FileZilla Client is a popular, - open source FTP application that supports SFTP, making it easy for users to transfer files securely.

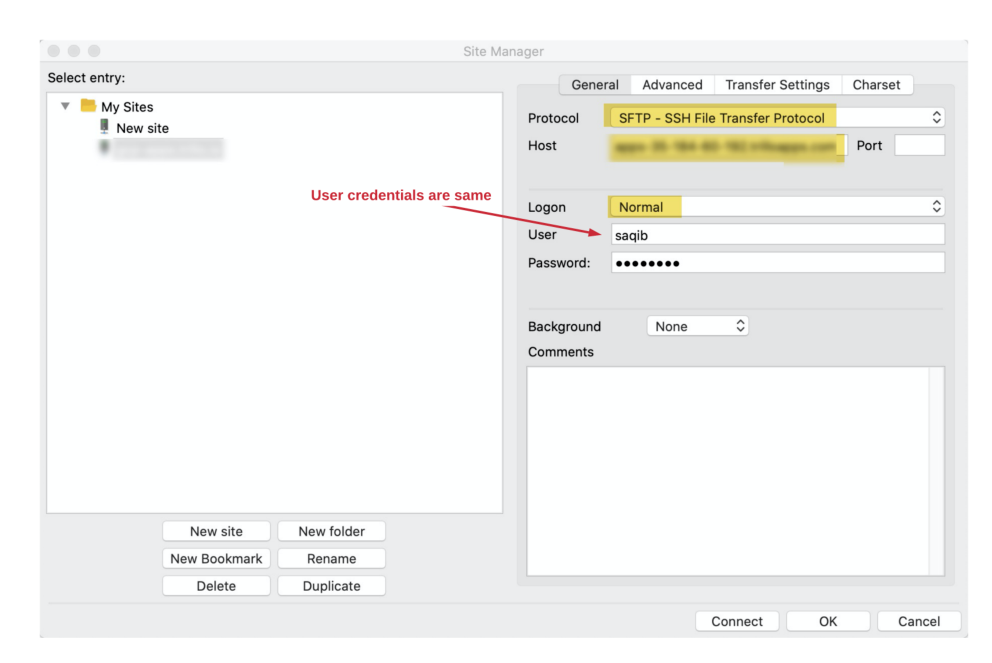

FileZilla Connection Page

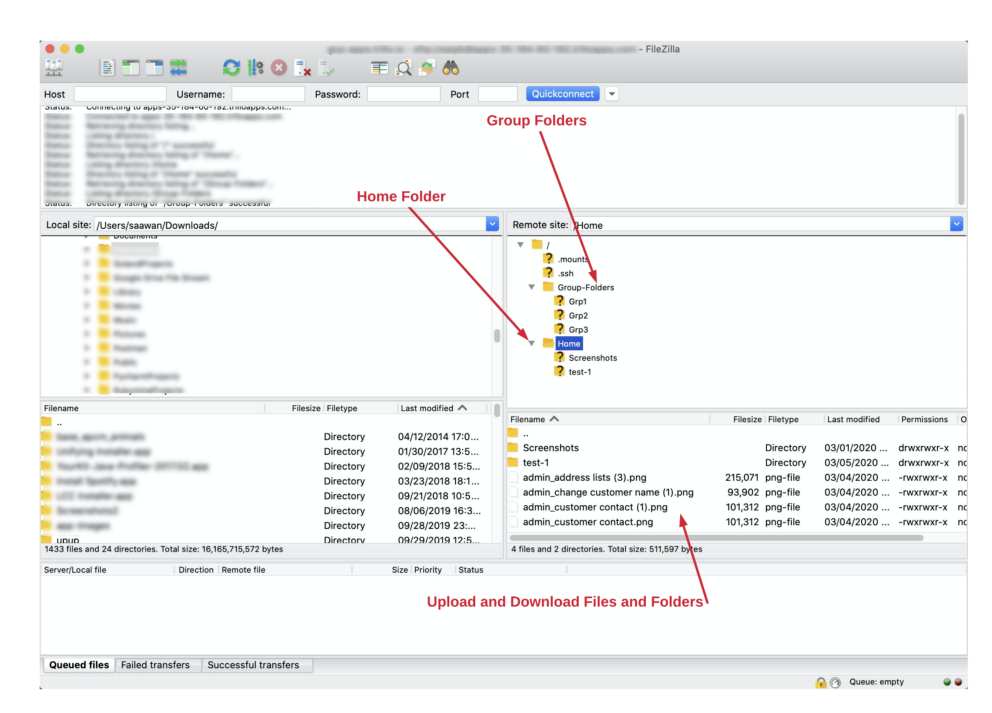

Connected FileZilla Page

Settings

Add your Logo

Incorporating your logo into various aspects of your business operations and materials is a vital part of establishing brand consistency and recognition. Whether itʼs on your website, marketing materials, or internal documents, your logo helps to create a unified brand identity that customers and employees can easily recognize and trust.

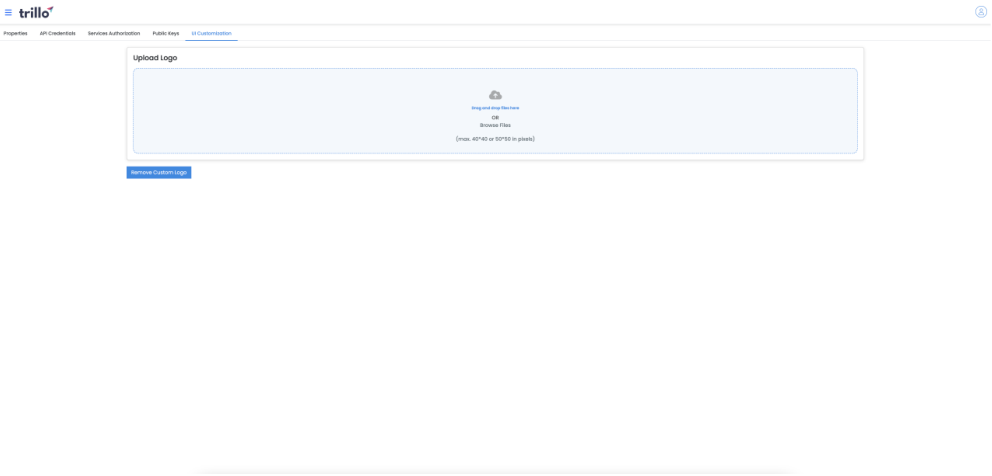

Adding Custom logo for application

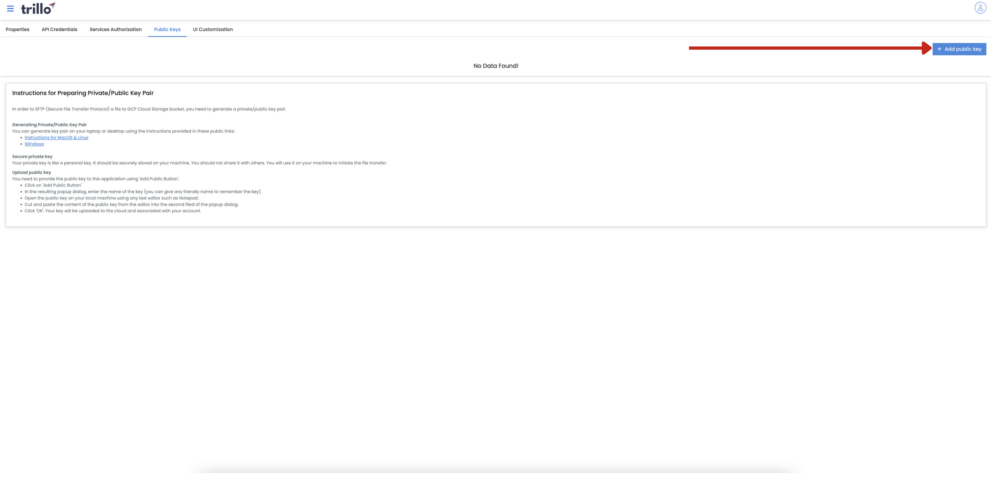

Add your own public SSH keys

Adding own public SSH key

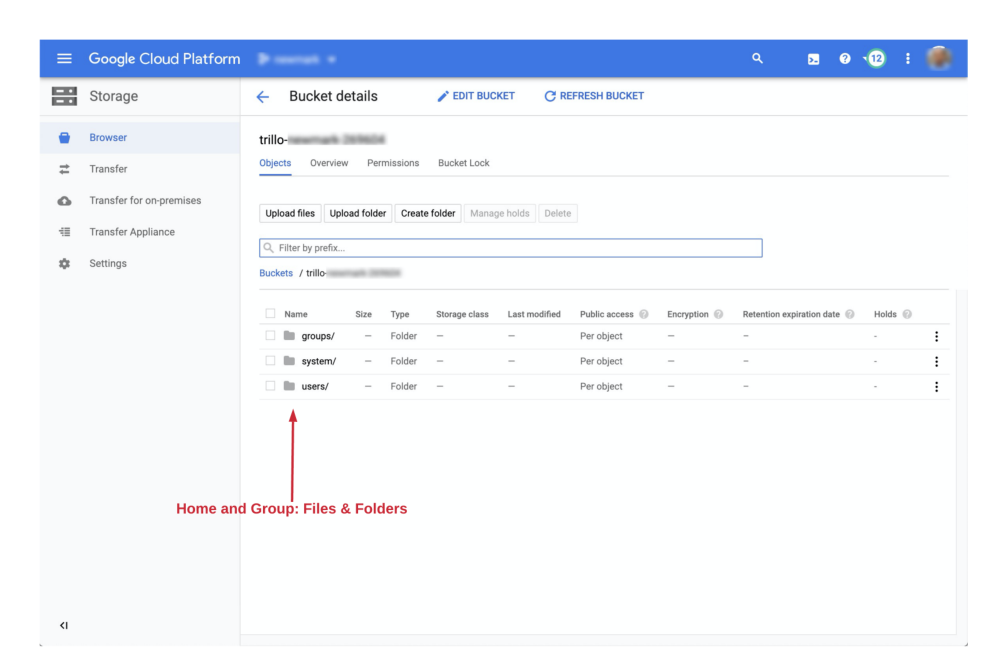

Cloud Storage

Cloud storage refers to storing data on remote servers accessed via the internet. These servers are maintained and operated by cloud service providers who offer storage solutions to individuals and organizations. Users can store, manage, and access their data from anywhere with an internet connection.

GCP Cloud Storage Page

Logs & Audits

Logs and audits are the silent guardians of digital landscapes, diligently recording every digital footprint and transaction. In the realm of cybersecurity and data governance, they serve as invaluable tools for maintaining accountability, ensuring compliance, and investigating incidents.

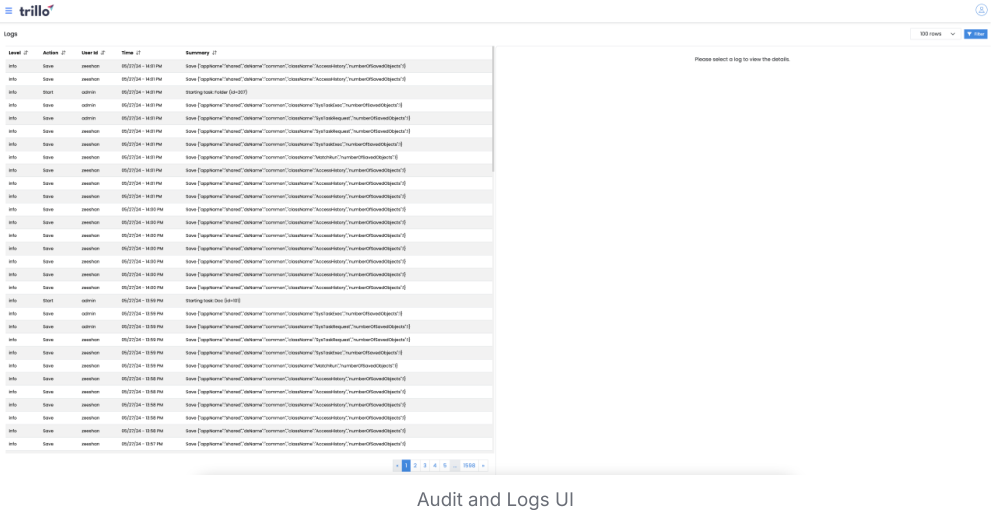

Audit and Logs UI

Install (GCP Marketplace)

Installing from GCP marketplace

Please follow the steps in the exact sequence.

  1. Preparing for the installation

  2. Deploy from the marketplace

  3. Provision FM VM

  4. Application Install

  5. Create FM Users

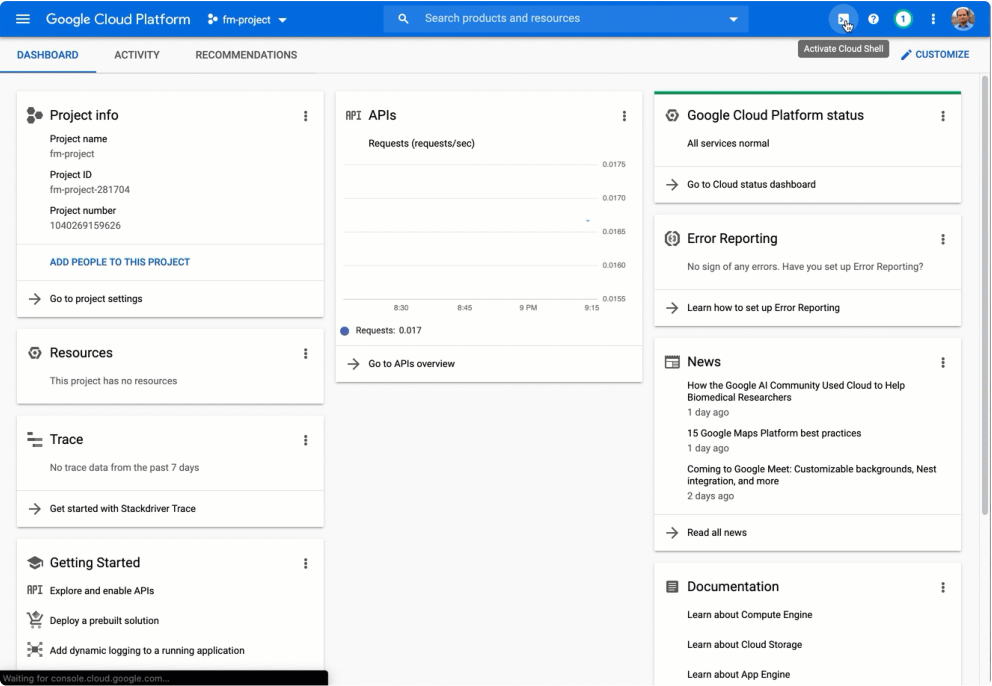

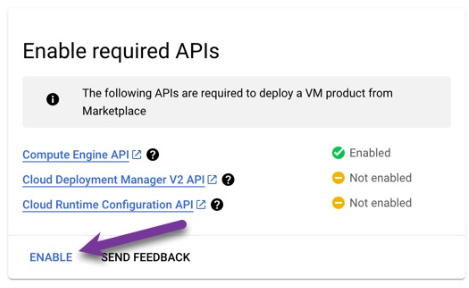

Preparing the GCP project for the install

As an administrator of the Google project, you must first execute the following steps before deploying the application from the marketplace.

We provide a script that can set up the project from the Google Cloud console command line. You can download the script and see what it does and also can execute it directly as:

gsutil cp gs://trillo-public/fm/trillo rt-preinstall.sh . && chmod +x
./trillo rt-preinstall.sh && ./trillo rt-preinstall.sh

The complete operation is shown below.

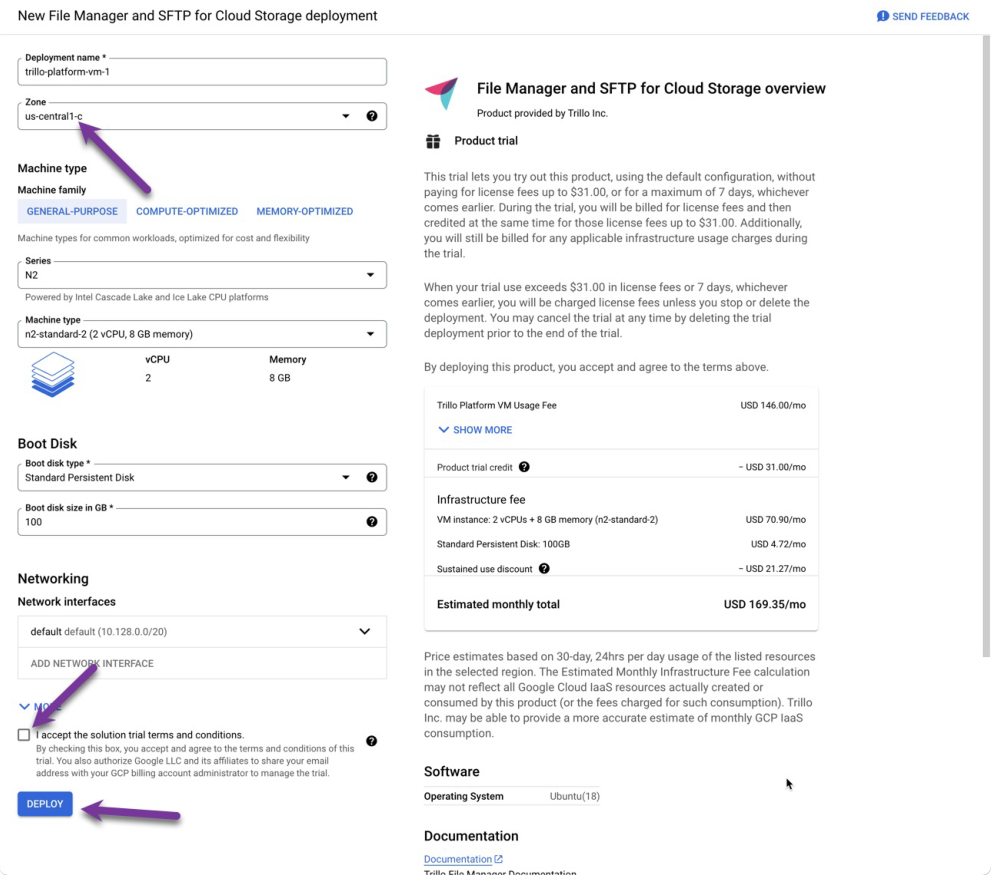

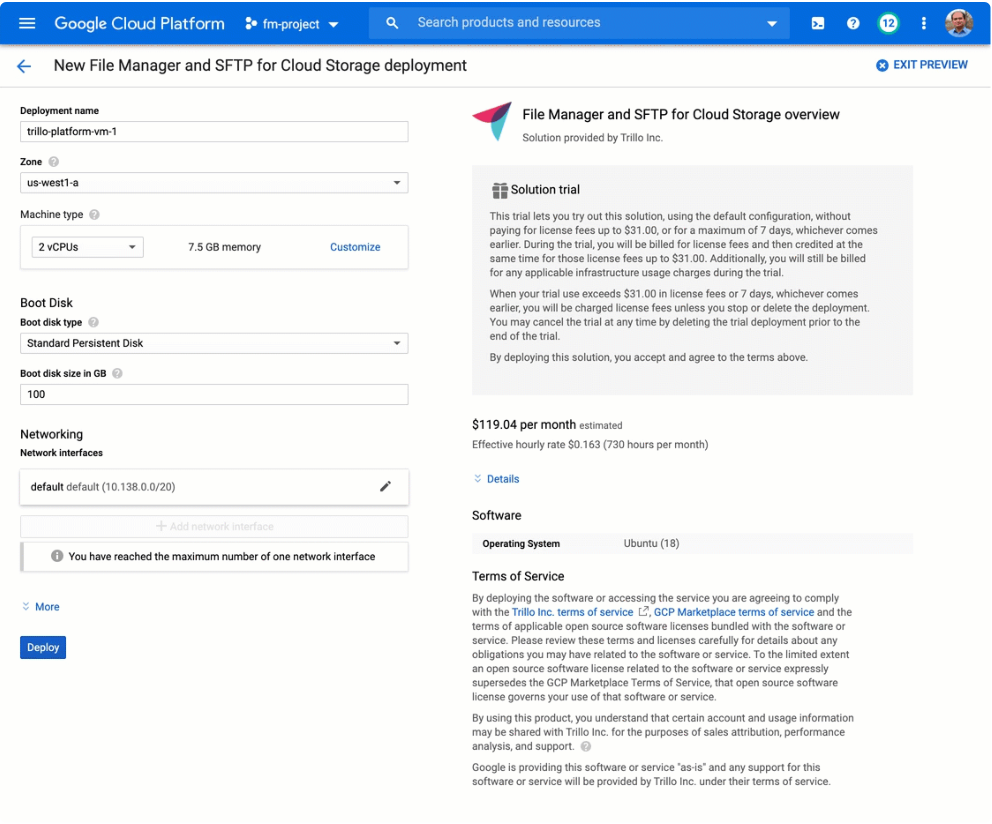

Deploy from Marketplace

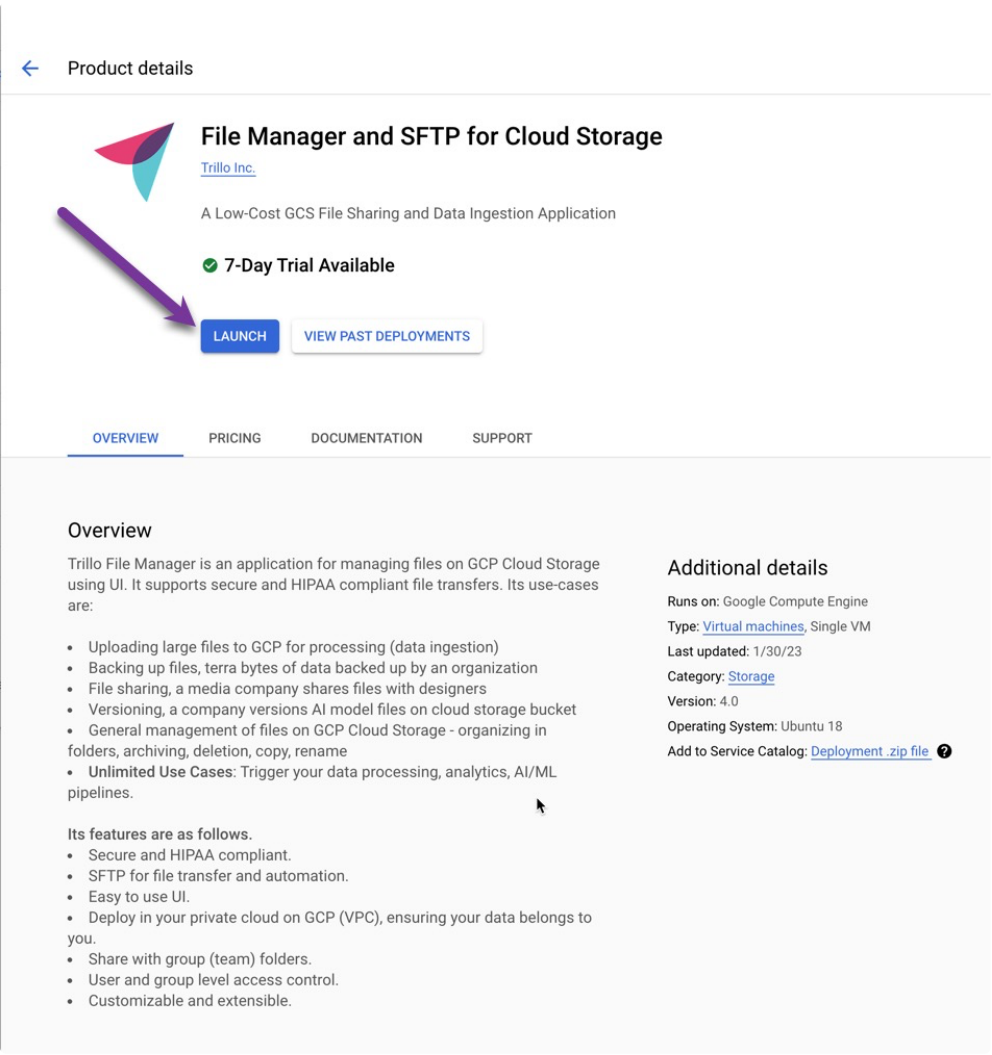

•In the GCP marketplace ( https://console.cloud.google.com/marketplace ), search for the "File Manager and SFTP for Cloud Storage". Launch the installation and select the appropriate zone. Finally, you are ready to deploy.

Launch

Deployment Video

Preparing VM

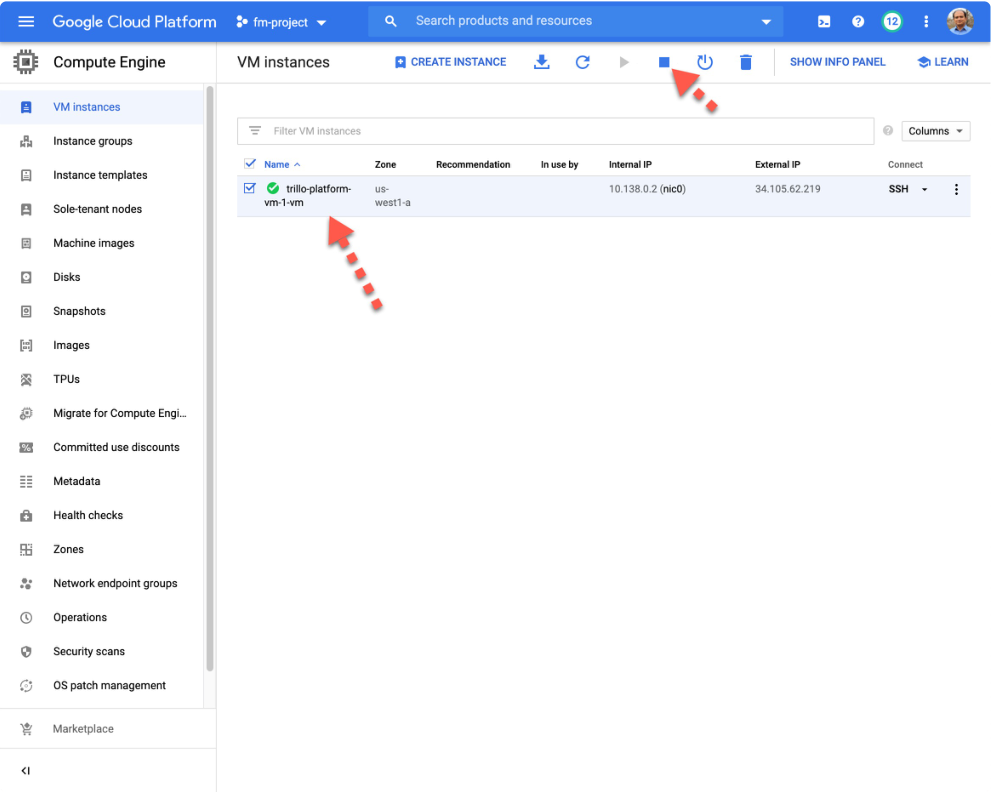

File Manager VM

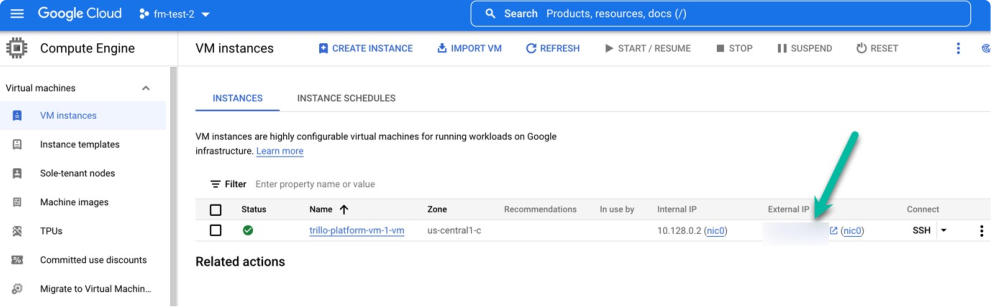

On the compute engine page you will notice that the file manager virtual machine has been deployed. We will select this virtual machine and stop it. We need to provision it correctly to install the software.

Preparing FM VM

Once the virtual machine is completely stopped then you can edit it. We want to set three things correctly before it and install the application.

  1. Reserve an IP address so that valid certificates can be obtained.

  2. Allow both HTTP & HTTPS so that the server can be accessed via HTTPS. HTTP is only needed for certificate renewal.

  3. Assign the correct service account to this virtual machine. You have already created a service account for this machine during the pre-installation phase.

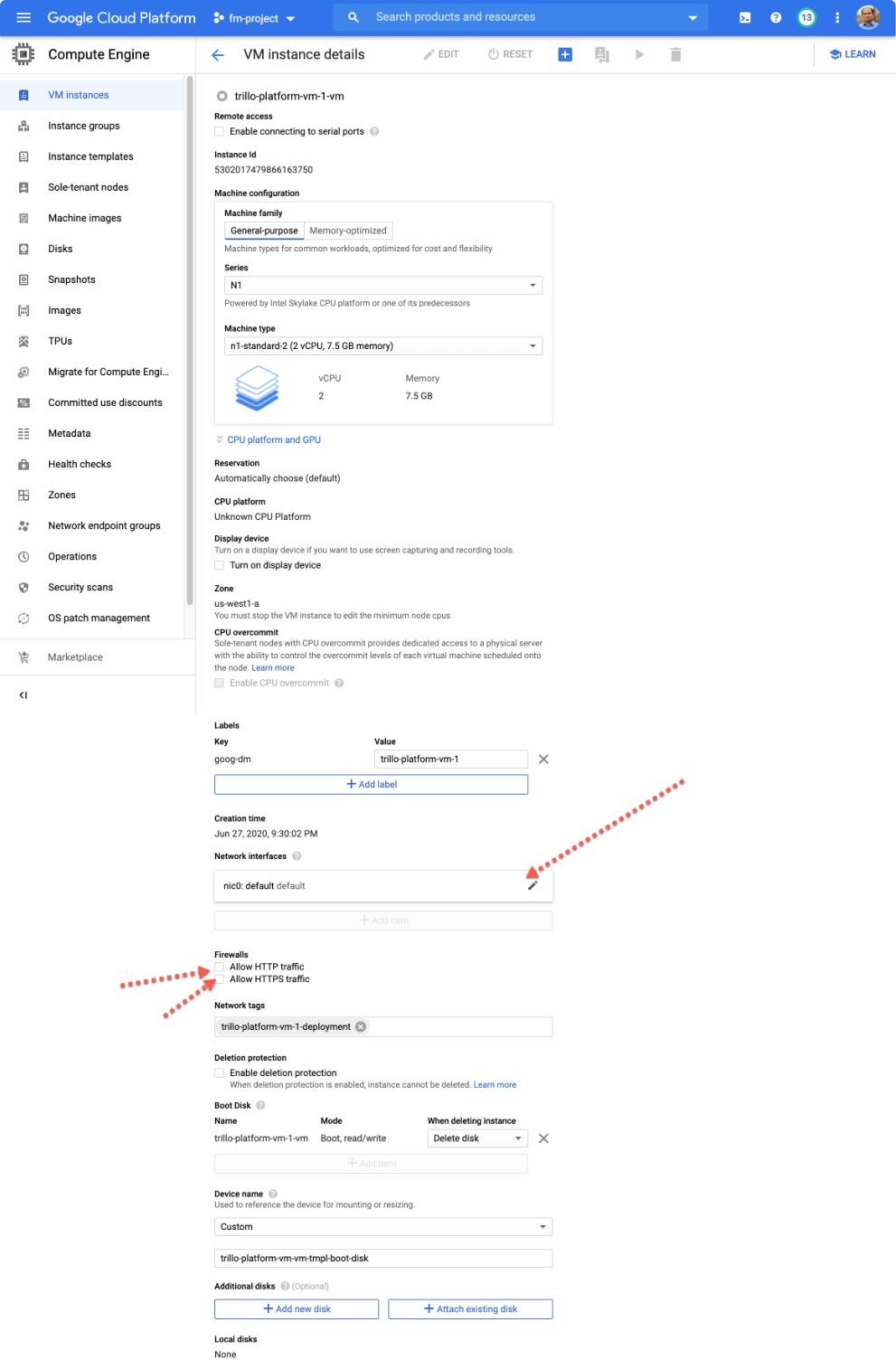

These three steps are highlighted in the following figure

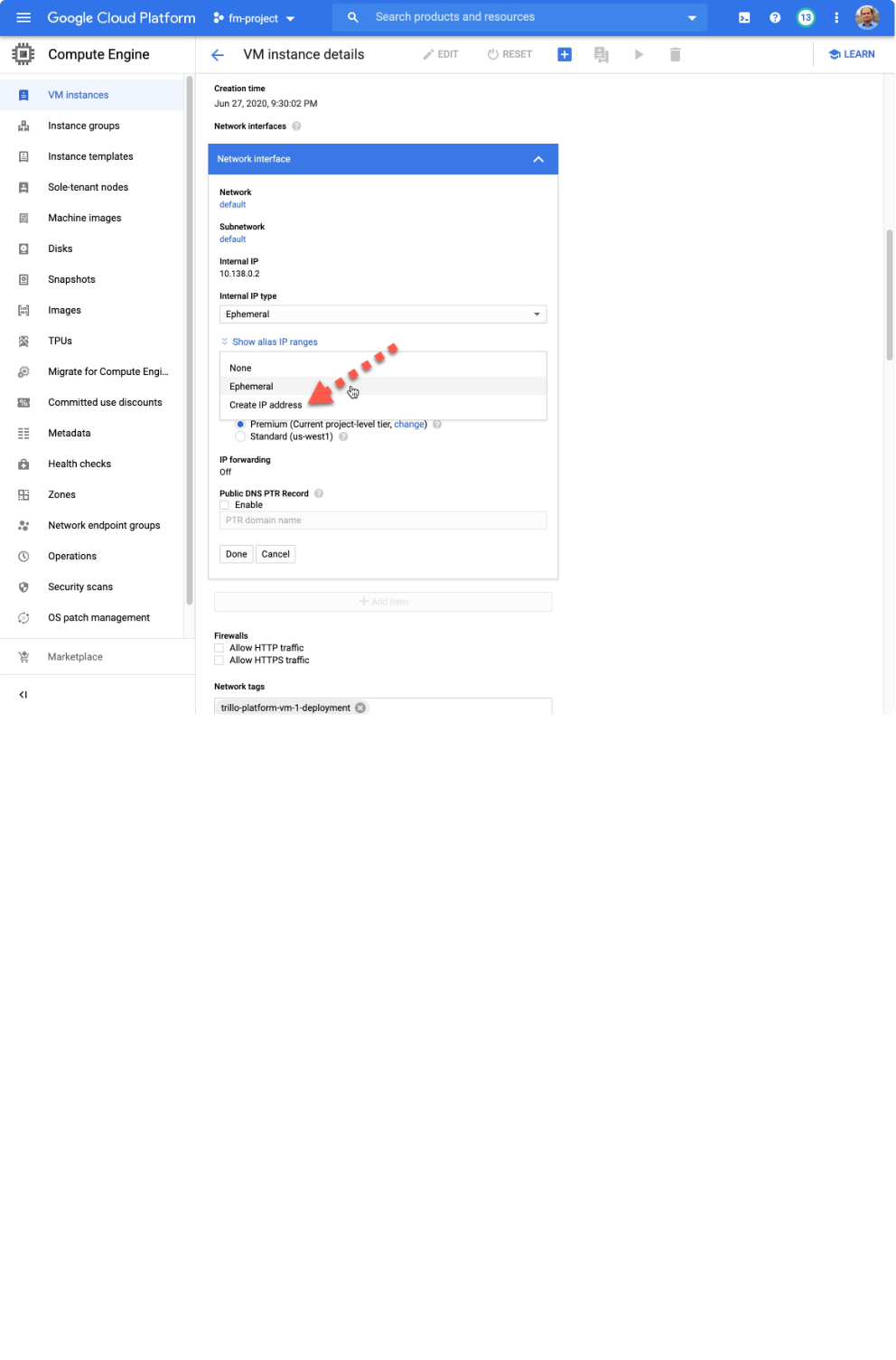

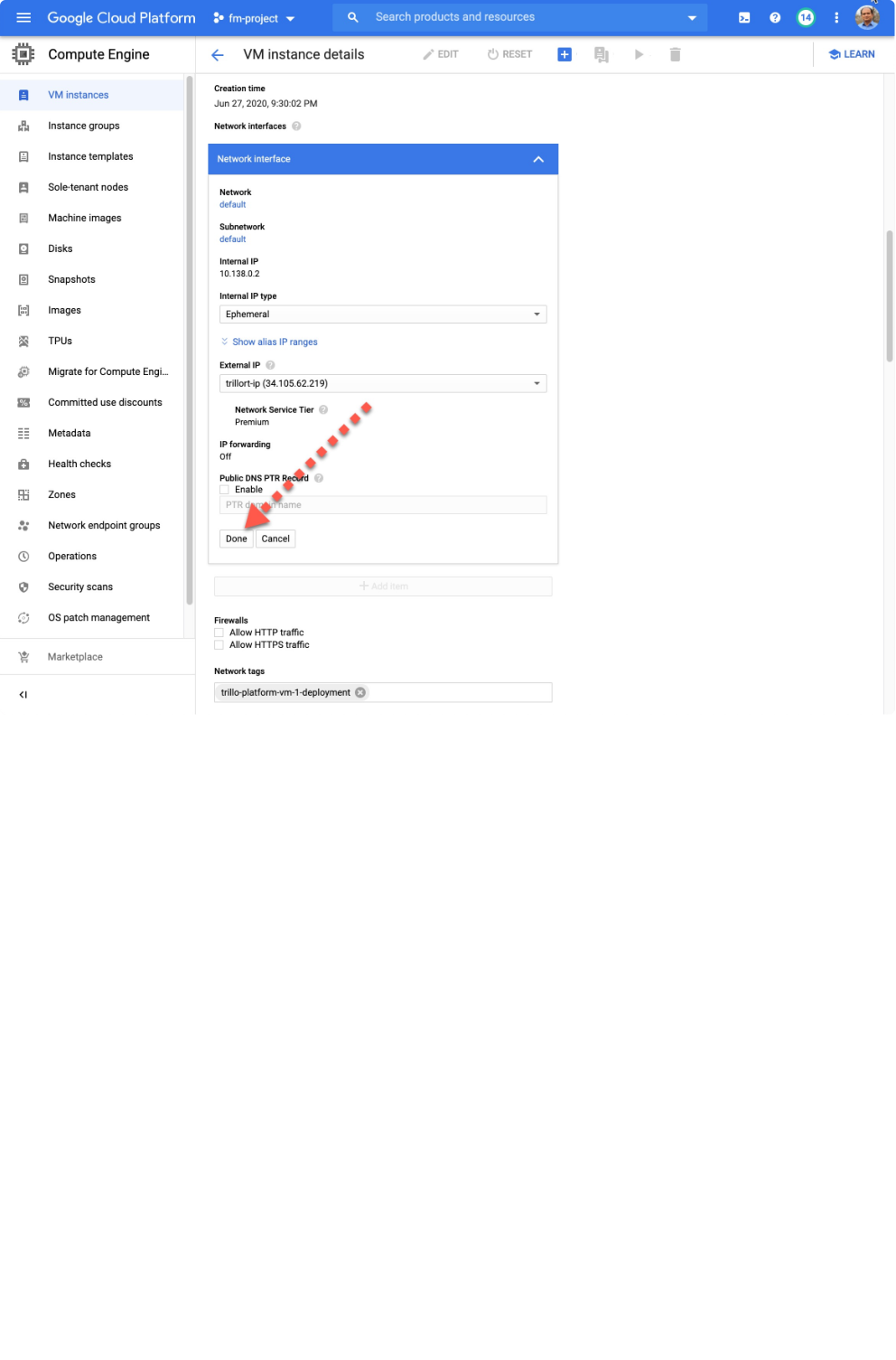

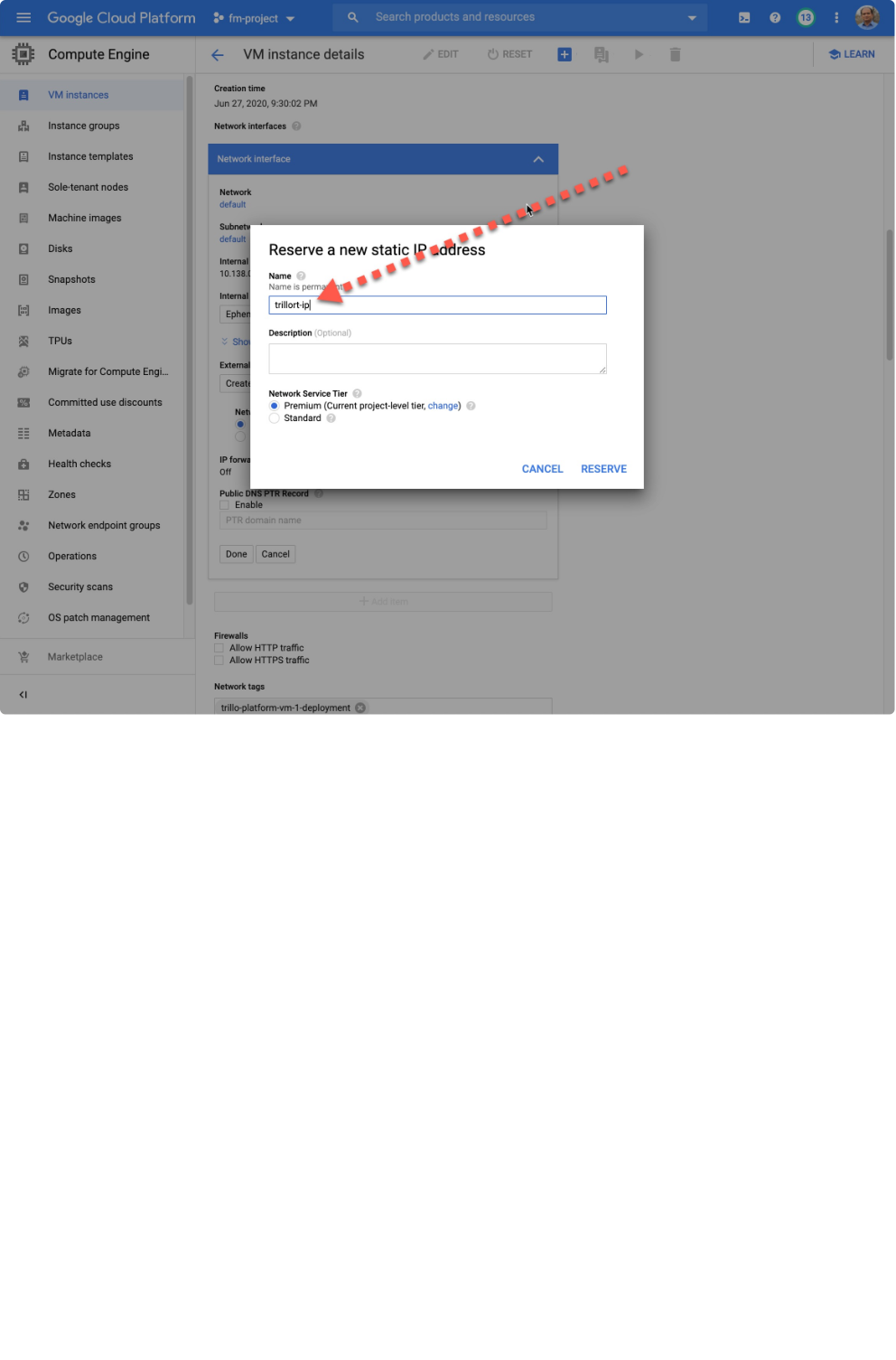

Step-1: Reserve IP address

Create the new external IP address as shown below. Click "Done" when finished.

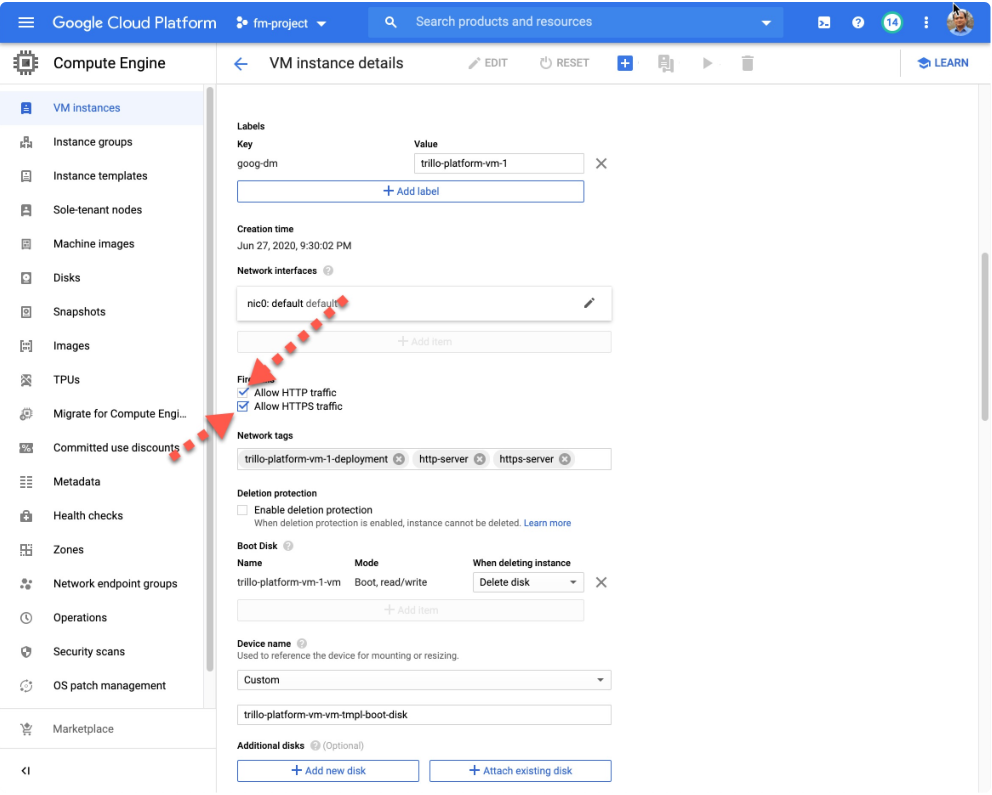

Step-2: Allow HTTP & HTTPS

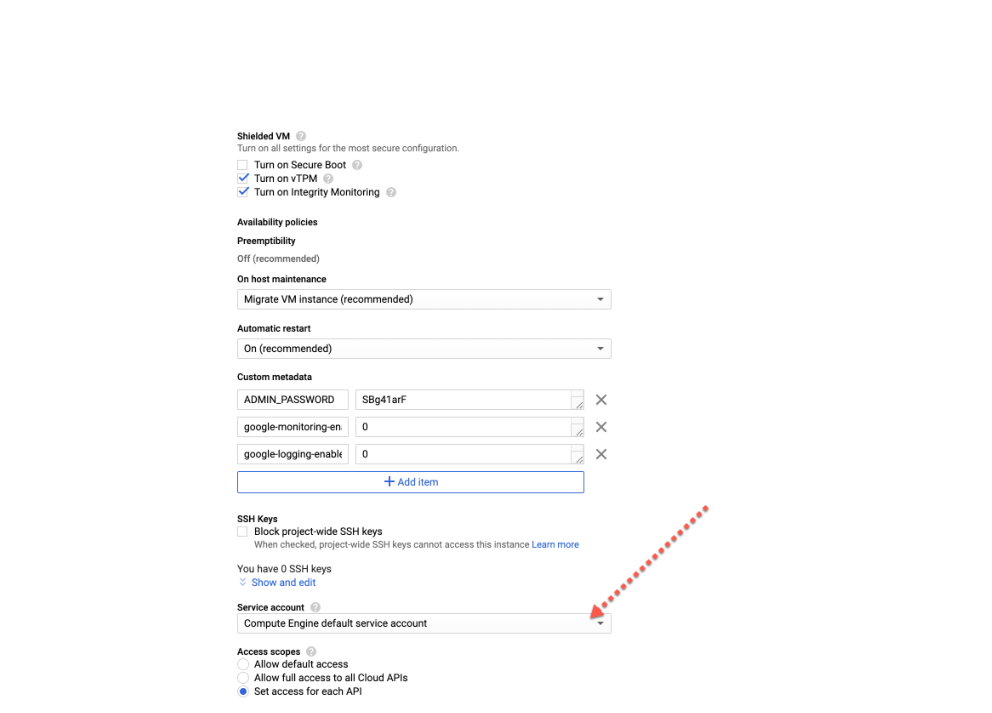

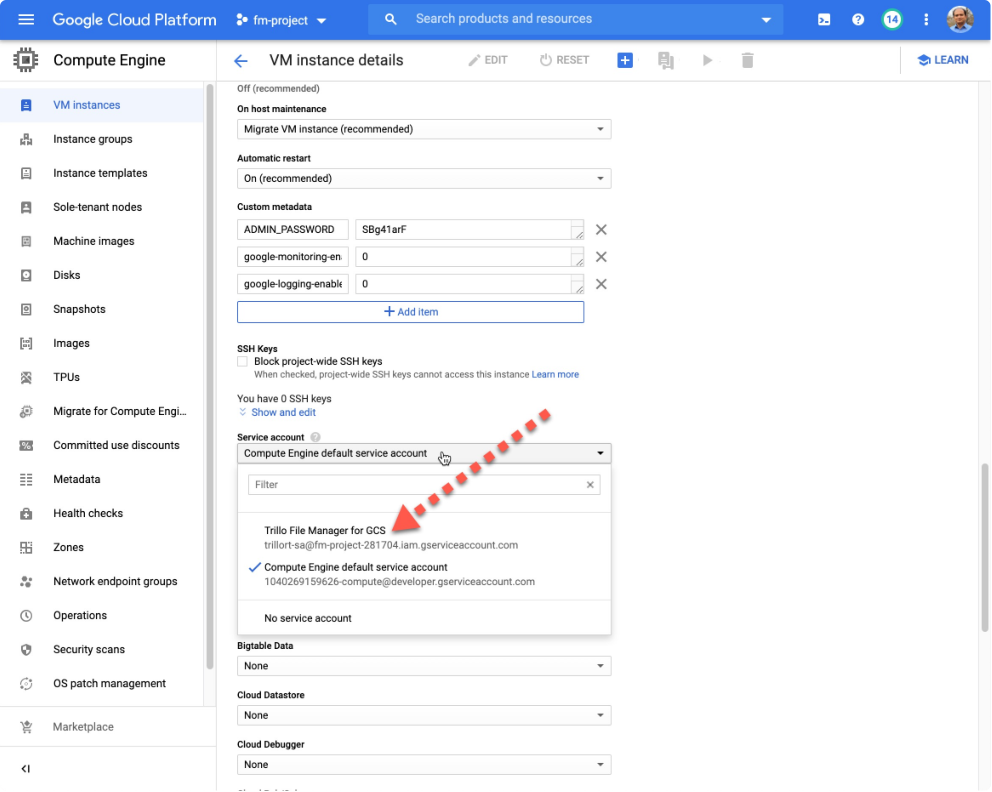

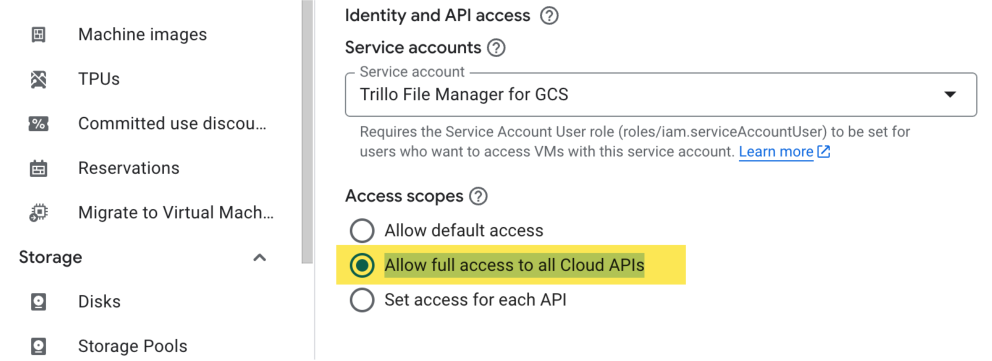

Step-3: Set the Service Account

Select the highlighted service account, ensuring its "access scope" grants the necessary permissions.

Note: If there is no effect on the "access scope" then enable "Allow full access to all Cloud APIs".

Note: Allow the full access to all cloud APIs.

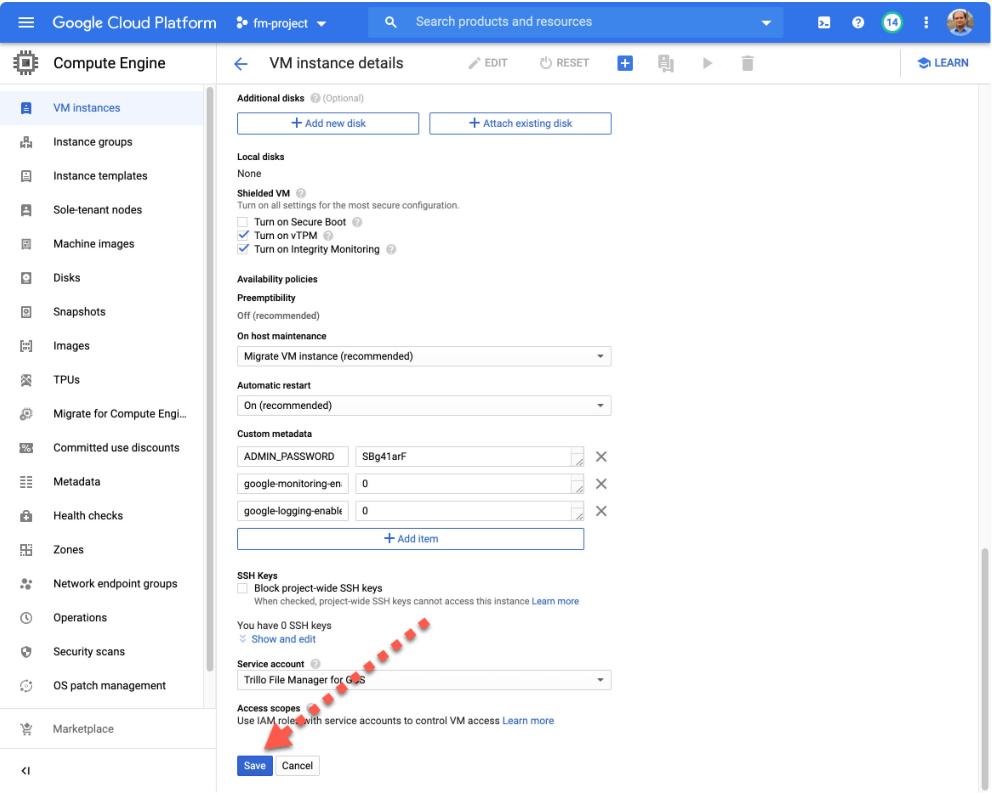

Save VM settings

Application Install

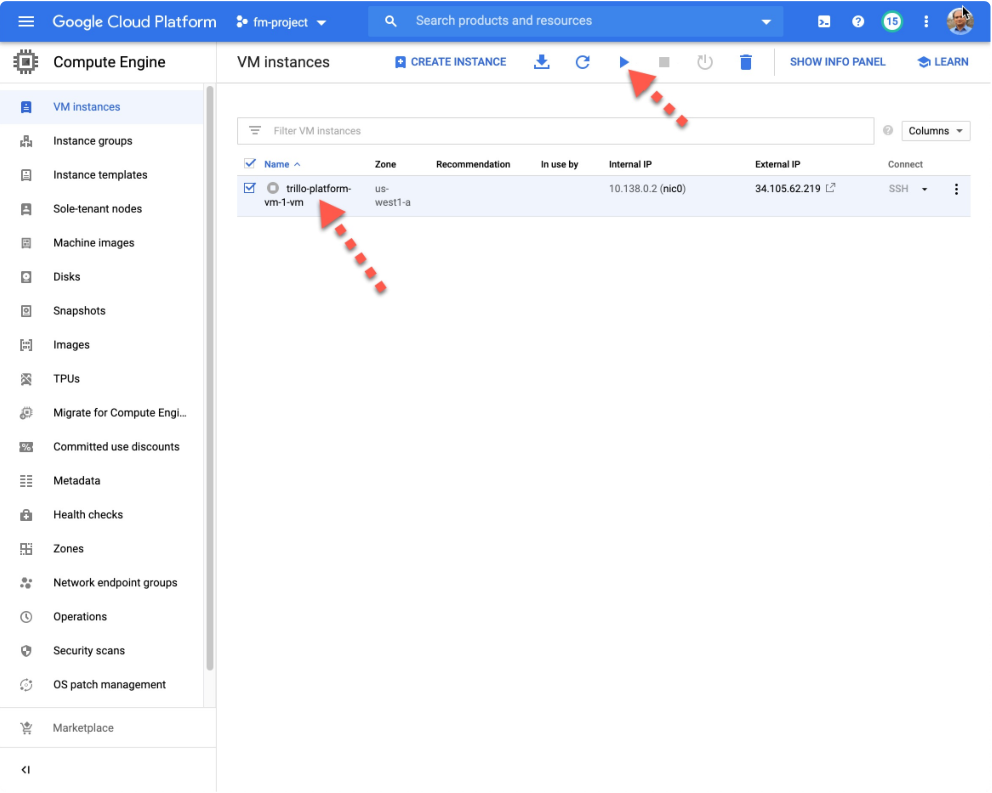

Start the File Manager VM

The virtual machine is stopped therefore start it.

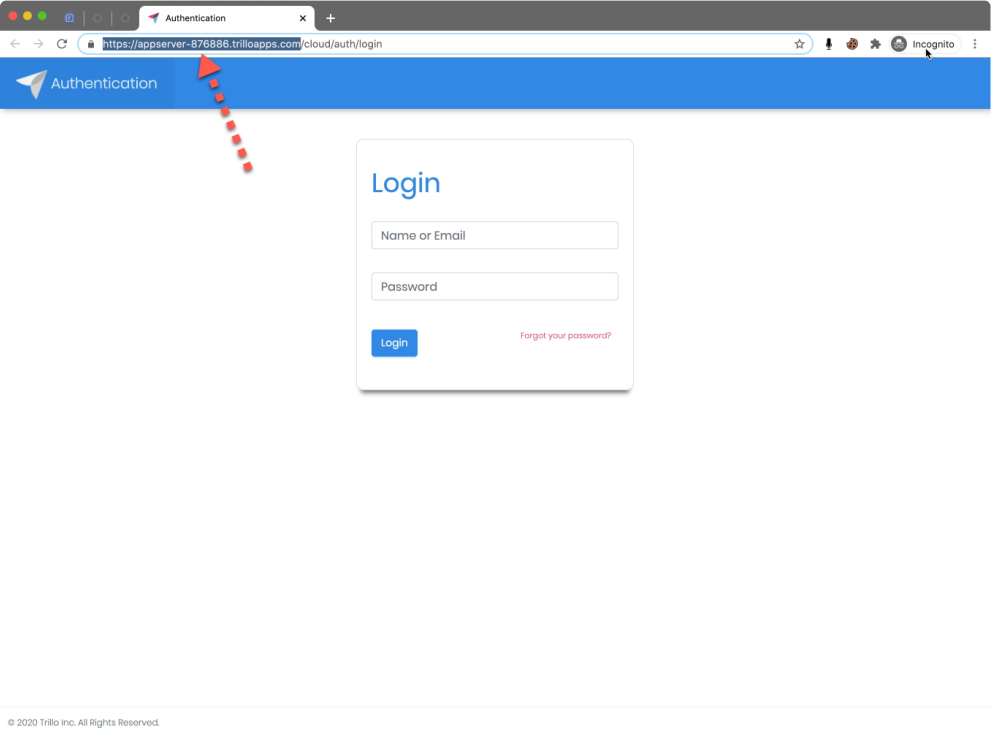

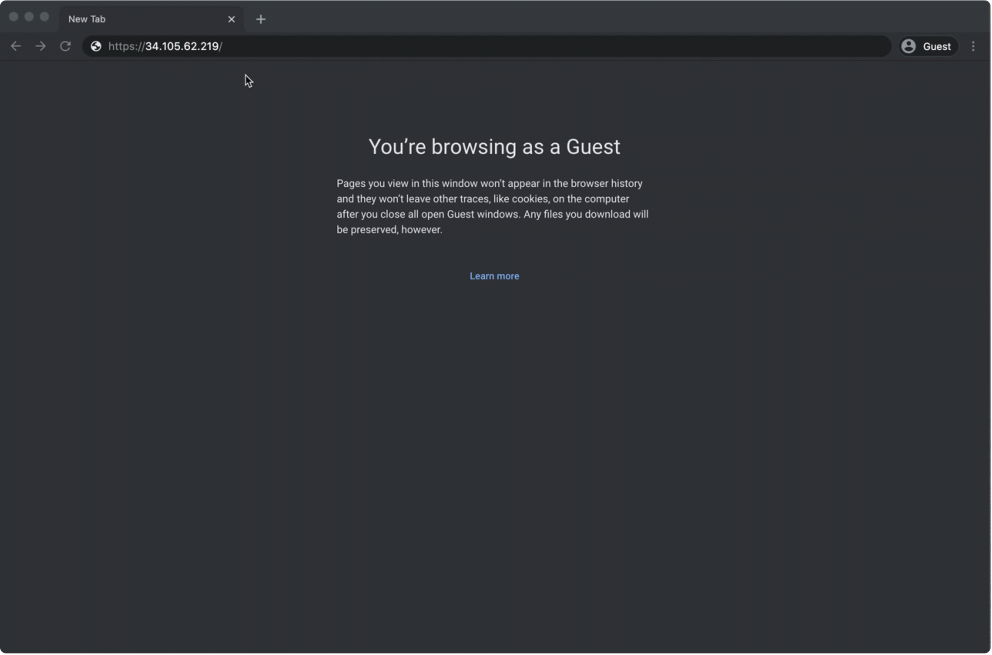

Bring up the Application Site

Optional: SSH into VM

User Creation

Creating Users

The primary purpose of the default admin account is to create and manage regular user accounts for the file manager. It is crucial to avoid using the admin account for SFTP and file management tasks, as this can lead to security vulnerabilities and potential misconfigurations.

In the following video, the admin will guide you through creating a new user account. This step-by-step tutorial ensures you can set up and manage user accounts effectively, delegating appropriate permissions to maintain a secure and efficient file management system. By following these best practices, you can ensure that the administrative functions remain secure while allowing regular users to perform their tasks without unnecessary risks.

User creation.mp45MB

Download

Open

Download Open

Features Demo

Video highlighting Trillo File Managers features

Tutorials Link

Download

Open

saas trillo.mp4 Download Open 63MB

User Roles and Capabilities

•Admin:

•Editor:

•User:

•Users ftp:

UserUI:

•Viewer:

Noteworthy:

The account with the name "admin" is the first account created and has the following roles and capabilities:

Bulk User Accounts Creation

Purpose

This document outlines the process for creating multiple user accounts simultaneously, ideal for efficiently on boarding larger groups into your application.

Prerequisites
Required Fields

The CSV file must include the following columns with unique values for certain fields:

Role Types

The system supports three core user roles:

Optional Fields
CSV File Format

userId,role,first name,last name,email,password,company name,dept name

user,user,usrname,one,user1@localhost.local domain,password xyz,company1,dept1 admin user,admin,usrname,two,admin user@localhost.local domain,password xyz,co mpany2,dept2

view user,viewer,usrname,three,view user@localhost.local domain,password xyz,com pany3,dept3

Instructions
1. Create the CSV File:
2. Import the CSV File:
3. Validation:
4. Account Creation:
Security Considerations

SFTP

SFTP -o identity file=~/.ssh/id_rsa saqib@apps-35-238-185-
249.trillo apps.com 2024 6387

#### Application Updates

The applications update is manual. You will need to SSH into the VM and run following commands in sequence. Once updated, you will have to clear browser cache so that new contents can be shown (Follow this link to reload application in the browser - https://fabric digital.co.nz/blog/how-to-hard-refresh-your-browser- - and clear cache )

sudo su
gcloud auth --quiet configure-docker
cd /opt/trillo
./update.py


#### Update SSH Config (if coming from old version)

###### The following steps are needed to be done only once (if missing)

1. On the VM, edit the following file (/etc/ssh/sshd_config) and change a line "Chroot directory %h" to "Chroot directory %h/gcs" (see below). finally, save and exit.

nano /etc/ssh/sshd_config

...
...
Chroot directory %h/gcs
...
...


2. Restart the ssh server using the command

/etc/init.d/ssh restart

#### Upgrade SFTP server for read-only users

- ssh into the vm.

- Create a new shell script “setup-SFTP-viewer.sh”

- Copy the value of bucket_Name from above and add to the script at the end of line#3 (below).

- Make it executable and run as sudo e.g., sudo ./setup-SFTP-viewer.sh

- Save the output of the script for troubleshooting (if needed).

!/usr/bin/env bash

set -x
BUCKET_NAME=

create read-only folder

mkdir /gcs-r

add a line to fstab

groupId=$(cut -d: -f3 https://docs.google.com/document/d/1YOI9sqOtn10MTUDvi28TT3nZGSoOG Uc klv jdk3iIok

FAQs

What are the capacity metrics of the File Manager

Here are the numbers for an optimal performance.

Is there any outside access that either you or any 3rd party retains to our data

The data resides exclusively inside your GCP project and no one can have access other than what you give inside the GCP console. Our privacy policy, EULA and TOC are publicly available.

After the evaluation period expires, can we make it production-ready

Yes, of course. All you need is to keep the subscription alive i.e. billing account should be active.

Where is the default initial admin password located

Your initial password is located on the compute engine meta-data settings. The - name of the meta data is ADMIN_PASSWORD.

What are the capabilities of the admin user

The admin is the super administrator of the application. The admin user does not have an SFTP account. The SFTP accounts belongs to the users which the admin creates

What is the default installation folder inside the Virtual machine

The installation folder is located at /opt/trillo

What is the significance of using a valid email address

The email of every individual user needs to be unique. You can specify any email address which is unique across your users. But if you would like this email to be used to recover a forgotten password, then it must very well be a valid mail address. Also, if you specify the correct email address at the time of account creation, then there is an invitation email sent to this user asking to join. They can then set their passwords. No other information is transmitted via email.

What is the default home folder name for individual users

It will always be "/Home" under which a user can create directories in files. Currently, it is not possible to change the default home directory of the user. It remains to be the same on the SFTP. If an inbound folder needs to be created, it should be created inside the home like ./Home/inbound

What is the concept of group folders

A group folder is essentially a shared drive where designated users can share files and folders. This group drive is mounted under individually selected users no - matter where they log in. The mounted folder can be found under ./Group Folders

A group folder cannot be deleted, unlike a general folder, because it is essentially a mounted drive.

Where can I see logs of the file transfers

Inside the application there is a menu item to check the logs. On the this page you will be able to see the transfers along with the timestamp. In case, you would like to - monitor and analyze such audit logs system wide then connect to the local mysql - server using the credentials provided in the docker compose.yaml located in the installation folder.

What about the compliance
How can I add the server in my own DNS

Yes, it is possible to transfer the file managers server name to your own DNS. Please contact us at support@trillo.io and have your DNS account ready. It will take a couple of hours to do the transfer which we will do with time and material (T&M).

Is there a different way to transfer files

The supported mode is to use either SFTP (no SSH/SCP) or WebUI. If you would like to transfer a large chunk of files then the best way to achieve is to use the upload utility (gsutil) provided by the Google cloud platform.

What is the format of specifying the ssh public key

Every SSH public key has three sections separated by white spaces. Please paste the complete key.

Sometimes a user created cannot login via SFTP

When SFTP VM runs that in GCP it may create GCP system wide SSH user - accounts automatically. if you are creating a user with user id which matches with - - auto created VM accounts then SFTP login will fail. All other non clashing SFTP will work fine.

Who is responsible for the software upgrades

Application binaries can only be upgraded by the DevOps of GCP project. Trillo has no backdoor with which the application binaries can be updated. The procedure of the upgrade is mentioned under the maintenance help page. However, Trillo can inquire about the license status and software version from the application if need be.

Where is the installation scripts of the application located

Is it possible to disable access via passwords for SFTP, ie, so you can only connect to SFTP using a key

Yes you can achieve this manually.

Is it possible to specify which bucket it should connect to

In our Ku bernet es Marketplace solution it is possible to specify your storage bucket. Only one storage bucket is required.

Are there any hard limits on file size, throughput (ie, MB/s), concurrent connections per user, maximum concurrent users, maximum users defined

That is so no such limit.

Can I access the mysql database directly to update / import / maintain users

Yes you can access it in our gke marketplace solution.

Do your charge scale with the instance size, or are they fixed

Our VM marketplace solution is fixed cost. For the scalable solution we recommend using ku bernet es marketplace app. The scalable solution is based on the number of containers running at any time.

is it possible to only Mount the home folder or the group folder via SFTP

yes it can be done globally only once since it impacts all the users that are mounted after making those changes. therefore plan ahead otherwise your previous user will not have the benefit of this global settings. this change can be done through the scripts that are located under the /gcs/system folder. for the details can be provided by writing email to us.

Releases

5.1.447
Docker Containers
5.1.393
Docker Containers
5.1.128
Docker Containers
5.0.971
Docker Containers
5.0.830
Docker Containers
5.0.610
Docker Containers
5.0.63
Docker Containers
5.0.33
Docker Containers
4.0.735
Docker Containers
4.0.634
Docker Containers
4.0.499
Docker Containers
4.0.258
4.0.204
3.0.1567
3.0.1122
3.0.1010
3.0.945
3.0.900
3.0.696
