NEC Kitchen Receptacle Requirements: Your 2023 Compliance Guide

When it comes to kitchen design and safety, understanding NEC (National Electrical Code) kitchen receptacle requirements is crucial. These codes ensure your kitchen is not only stylish but also safe and up to standards. Let's delve into the key aspects you need to know.

Understanding NEC Kitchen Receptacle Requirements

The NEC provides guidelines for electrical installations in kitchens, including the number, type, and placement of receptacles. These requirements are designed to prevent electrical hazards and ensure safety. Here's a breakdown of the key points:

Number of Receptacles

The NEC mandates a minimum number of receptacles based on the length of the countertop. For countertops over 12 inches wide, you'll need at least one receptacle for every 24 inches. For example, a 6-foot countertop would require at least three receptacles.

Additionally, there should be a receptacle within 24 inches of the sink, and no more than 20 inches from the edge of the countertop. This ensures that you have easy access to power for your appliances without having to use extension cords, which can pose safety risks.

Types of Receptacles

NEC requires that all 15- and 20-ampere receptacles in the kitchen be tamper-resistant. These receptacles have shutters that close over the slots when nothing is inserted, preventing foreign objects and small fingers from entering.

For the sake of convenience and safety, it's recommended to install GFCI (Ground Fault Circuit Interrupter) receptacles in the kitchen. GFCIs monitor the current flowing through them and can quickly shut off power if they detect a ground fault or current leakage, preventing electrical shocks.

Kitchen Receptacle Placement: NEC Guidelines

The placement of receptacles is just as important as the number and type. Here are some key points to consider:

• Above-Counter Receptacles: These should be installed on the wall above the countertop, with the bottom of the receptacle no more than 18 inches above the countertop.
• Under-Cabinet Receptacles: These should be installed on the underside of the cabinet, with the bottom of the receptacle no more than 12 inches above the countertop.

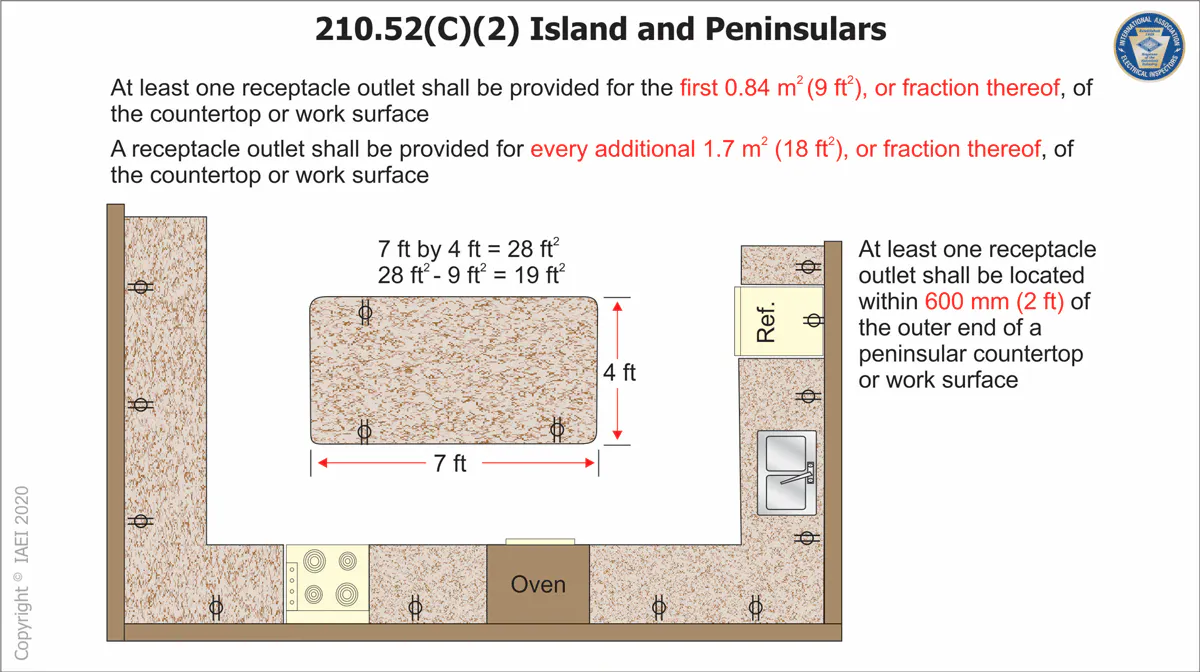

• Island Receptacles: If your kitchen island has a countertop, it should have at least one receptacle. If the countertop is over 12 inches wide, you'll need one receptacle for every 12 inches.

Special Considerations: Small Appliances and Microwave

For small countertop appliances like toasters and coffee makers, you'll need a dedicated 20-ampere, 125-volt receptacle. This should be installed on the countertop or above it, no more than 20 inches from the edge.

For microwaves, the NEC requires a dedicated 125-volt, 15- or 20-ampere circuit. If the microwave is over-the-range, the receptacle should be installed on the back of the cabinet above the range. If it's a built-in or countertop microwave, the receptacle should be installed on the countertop or above it, no more than 20 inches from the edge.

When to Call a Professional

While it's possible to install receptacles yourself, it's always a good idea to call a licensed electrician. They have the training and experience to ensure your kitchen's electrical system is safe and up to code. They can also help you plan your kitchen's electrical layout for optimal functionality and safety.

Remember, the NEC's kitchen receptacle requirements are designed to keep you and your family safe. By understanding and following these guidelines, you can ensure your kitchen is not only a beautiful space but also a safe one.
