6.5 Speaker Box Plans: Easy DIY Blueprints for Perfect Sound

For anyone looking to build a high-fidelity audio system on a budget, 6.5 speaker box plans offer the perfect entry point. These compact enclosures unlock a world of sonic potential, transforming a simple driver into a full-bodied listening experience. Unlike factory-installed solutions, a custom-built box ensures the speaker operates at its optimal performance level. This guide breaks down everything you need to know to construct your own sealed or ported enclosure.

Why 6.5 Inches Is the Sweet Spot

The 6.5-inch format strikes an ideal balance between size and performance, making it a favorite among audiophiles and installers. Unlike smaller 4 or 5-inch drivers, the 6.5-inch variant offers superior bass extension and displacement due to its larger cone surface area. This means you get deeper lows without requiring the space of a 6x9 or larger component. Consequently, it fits perfectly in smaller vehicles, doors, or bookshelf stands where space is at a premium.

Understanding Sealed vs. Ported Designs

The two primary philosophies in 6.5 speaker box plans are sealed and ported enclosures. A sealed box, featuring an airtight interior, delivers tight, accurate bass and a quick transient response. This design is ideal for music that requires clarity and precision, such as jazz or classical. Conversely, a ported box utilizes a tuned opening to enhance low-frequency output, producing louder and more impactful bass suitable for genres like rock or hip-hop.

Sealed Box Characteristics

• Delivers a clean and tight bass response.
• Offers better control over the speaker cone's movement.
• Requires less internal volume compared to ported boxes.
• Generally easier to construct due to simpler math and tolerances.

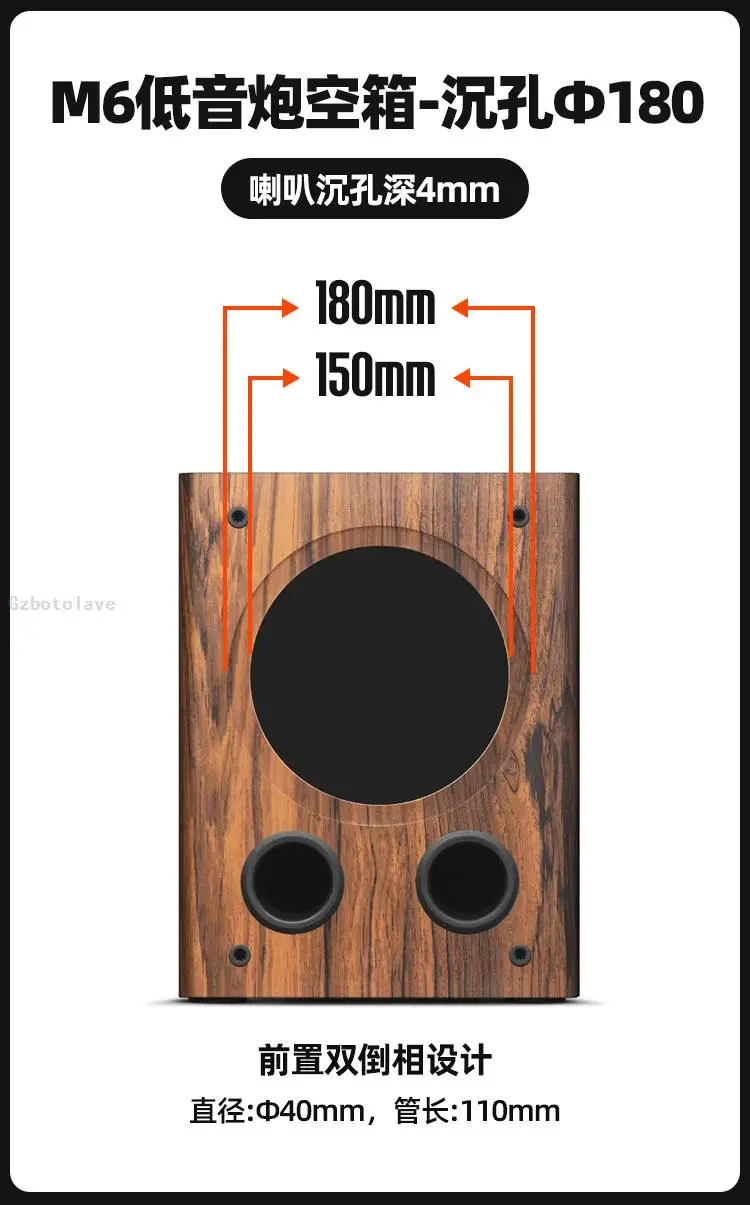

Ported Box Characteristics

• Provides higher sound pressure levels (SPL) for the same power input.
• Extends bass frequencies below the speaker's natural resonance.
• Requires a larger internal volume and precise port tuning.
• Delivers a more dynamic, "boomy" sound profile favored by some listeners.

Materials and Construction Essentials

The longevity and acoustic performance of your enclosure depend heavily on the materials used. Medium Density Fiberboard (MDF) is the industry standard due to its density, durability, and cost-effectiveness. It resists resonance and provides a stable platform for the speaker. For the interior surface, applying a damping material like Green Glue can further reduce unwanted vibrations that muddy the sound.

When cutting the panels, precision is critical. Gaps between panels or around the speaker mounting surface allow air leaks, which destroy the integrity of the enclosure's acoustic seal. Using a router to create a proper seat for the speaker ensures an airtight fit that is crucial for the design's efficiency.

Tools and Components Required

Embarking on this project requires a specific set of tools to ensure accuracy and safety. You will need a saw capable of making straight, clean cuts, whether a table saw or a circular saw with a guide. A router is essential for cutting the speaker baffle, and a drill is necessary for pilot holes and wire terminal installation. Additionally, you will need wood glue, screws, and typically silicone caulk to seal all internal seams.

Calculating the Internal Volume

One of the most critical steps in 6.5 speaker box plans is calculating the internal volume. This measurement dictates whether the box will function as intended based on the driver's specifications. You must account for the volume displaced by the speaker itself, the internal bracing, and any port tubing if using a ported design. Online calculators are invaluable resources, but understanding the formula ensures you verify the results and avoid construction errors that lead to boomy or muddy sound.

Final Assembly and Break-In

Once the box is constructed and the adhesive has fully cured, the installation of the speaker wiring and terminal strip is straightforward. Ensure all connections are soldered for reliability and heat-shrink tubing is used for protection. Before mounting the enclosure, perform a sound check using a multimeter to verify the voice coil impedance matches the amplifier's requirements. Finally, the break-in period is essential; playing music at moderate volumes for several hours allows the speaker's mechanical components to settle, resulting in optimal performance.
