Mastering Tongue and Groove Joints: Table Saw Techniques Made Easy

Creating tongue and groove joints with a table saw is a fundamental skill for any woodworker looking to achieve strong, seamless connections in paneling, cabinetry, and furniture. This method offers superior strength and alignment compared to simpler edge gluing, allowing for the expansion and contraction of wood while maintaining a smooth, continuous surface. While specialized equipment like a router table or shaper can expedite the process, a standard table saw, fitted with the right accessories, is remarkably effective for this task.

Understanding the Tongue and Groove Principle

The core concept is straightforward: one edge of the board features a raised strip, the tongue, and the adjacent board features a corresponding recessed channel, the groove. When fitted together, these two interlocking components create a joint that adds significant lateral stability to a panel. This is especially critical for wide planks, which are prone to warping and cupping without the reinforcement of a locked joint. The primary goal is consistent depth and a snug fit that requires firm hand pressure to assemble without needing a hammer or glue initially.

Essential Jigs and Setups for Precision

Safety and accuracy are paramount, and a dedicated jig is non-negotiable for repetitive work. A simple yet highly effective setup involves a wide sled featuring a vertical fence clamped directly to the table saw surface. This fence acts as a stop block, ensuring the groove's depth remains uniform across every pass. For the tongue, a similar jig can be configured, or you can use a dedicated tongue-cutting jig that holds the workpiece vertically against a fence. The key is to create a stable platform that removes the workpiece’s movement from the equation, allowing the sawblade's position to dictate the final dimensions.

• Setup a sacrificial fence on your sled for maximum stability.
• Use a stop block to control the length of the tongue and depth of the groove.
• Always use a push stick or push block to maintain control of the workpiece.

Setting the Blade Height and Fence Position

The dimensions of your joint are determined by two variables: blade height and fence distance. For a standard groove, the blade height should be set to exactly half the thickness of your workpiece. This creates a centered groove. To determine the fence position for the groove, subtract the desired groove width from the blade kerf width; the fence is then set to this measurement. For the tongue, the blade height remains the same, but the fence is moved to the desired tongue width measurement from the blade's outside edge. Double-check all measurements with a scrap piece before committing to your project stock.

The Step-by-Step Cutting Process

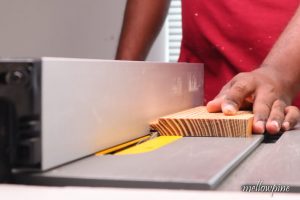

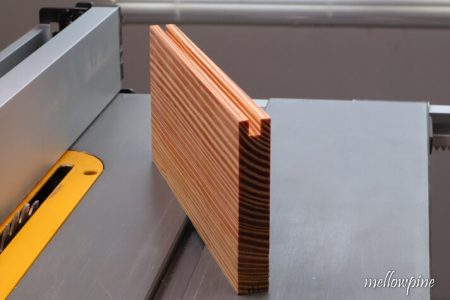

Begin by preparing your material; ensure all boards are flat, straight, and of uniform thickness. Start with the groove: position the edge of your board against the fence, make your first pass on one side, then flip the board to the opposite side to complete the groove, ensuring the cut is centered. When cutting the tongue, the process is inverted. Pass one side of the tongue, then carefully reposition the board to remove the waste material on the opposite side, continually sneaking up on the final fit. The goal is a groove and tongue that mate with moderate resistance, ensuring a tight bond when glued.

Advanced Tips and Common Problem Solving

Even with meticulous setup, issues can arise. A common problem is a tongue that is too tight; this is solved by slightly lowering the blade height or adjusting the fence to remove less material. Conversely, a loose tongue requires raising the blade or moving the fence closer to the blade. "Tear-out" on the edges of the tongue or groove is often caused by dull blades or pushing stock too quickly. Using a sharp, high-tooth-count blade and adding a backer board against the fence can mitigate this. For exceptionally wide boards, consider performing a final light pass on a router table to refine the edges.

Material Selection and Application

Not all wood is created equal when it comes to milling. Stable, kiln-dried lumber with consistent grain patterns yields the best results. Avoid highly figured or quarter-sawn oak for your first attempts, as its irregular grain can catch the blade unexpectedly. This joint is the cornerstone of traditional paneling, where grooves hide the substrate and tongues align the boards perfectly. It is also used in tabletop and cabinet door construction, where the seamless appearance is critical to the final aesthetic. Mastering this technique opens the door to a wide array of high-level woodworking projects.

Maintenance and Best Practices

To maintain peak performance, keep your table saw blade sharp and clean. Resin buildup can affect the accuracy of your cuts, so regular cleaning with a resin remover is recommended. Always disconnect power before adjusting the blade or checking measurements. Store your jig components together in your workshop so they are ready for the next project. By treating the setup with respect and prioritizing precision over speed, you will consistently produce professional-grade tongue and groove joints that are a testament to your craftsmanship.
