Hyundai Elantra 2023 Fuse Box Guide: Understanding Electrical Safety and Function
Navigating the electrical system of the 2023 Hyundai Elantra starts with understanding its fuse box—critical for diagnosing issues and ensuring reliable performance.
Hyundai Elantra 2023 Fuse Box Location and Layout
The 2023 Hyundai Elantra houses its fuse box(s) in two primary locations: under the dashboard on the driver’s side and near the engine bay fender. The under-dash panel manages low-voltage circuits, while the engine bay box controls high-current components like the starter and alternator. Each fuse box contains clearly labeled fuses and relays, helping owners quickly identify and replace blown fuses without guesswork.
Key Fuses and Their Functions
The Elantra’s fuse box contains essential fuses protecting vital systems—from the headlight and instrument cluster circuits to the HVAC and infotainment. Commonly referenced fuses include the 10A fuse for the radio, the 20A fuse for headlights, and the 30A fuse for the power windows. Referencing the owner’s manual or a detailed fuse box diagram ensures correct replacement and prevents damage to sensitive electronics.
Troubleshooting and Maintenance Tips
When faced with electrical faults, inspect the fuse box first—blown fuses often resolve issues like power loss or malfunctioning lights. Use a fuse tester to verify fuse integrity and replace only when necessary. Regular checks prevent overheating and extend fuse lifespan. Always follow safety protocols: disconnect the battery before servicing and avoid overloading circuits.
Mastering the 2023 Hyundai Elantra fuse box empowers drivers to maintain electrical safety and reliability. With clear access and proper understanding of each fuse’s role, routine checks and timely repairs become manageable—keeping your Elantra running smoothly for years.

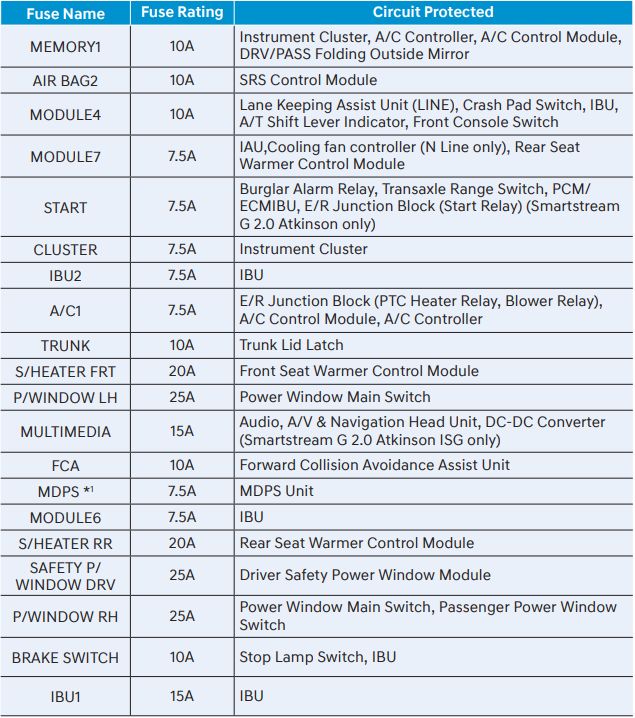

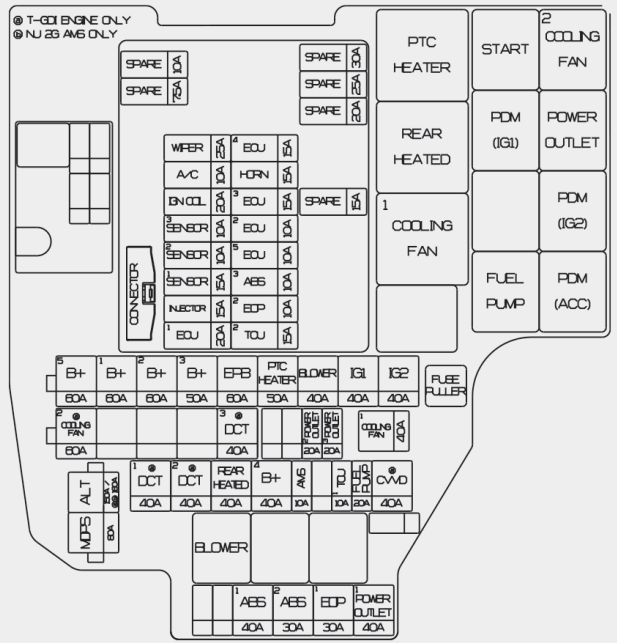

Hyundai Elantra fuse box diagrams change across years, pick the right year of your vehicle. Hyundai Elantra 2023 Fuse Box Info Passenger compartment fuse box location: The fuse box is located at the left side of the steering column at the bottom of the instrument panel. Engine compartment fuse box location: Fuse Box Diagram Layout Passenger compartment fuse box.
2023 Hyundai Elantra Fuse Box Diagram with Detailed Fuse Locations and Functions Locate the fuse box quickly by checking the driver's side under. 2023 Hyundai Elantra Specs, Price, Features, Milage (Brochure) Fuses A vehicle's electrical system is protected from electrical overload damage by fuses. This vehicle has 2 (or 3) fuse panels, one located in the driver's side panel bolster, the other in the engine compartment near the battery.
Fed up with electrical glitches in your Hyundai Elantra (2018-2023)? This DIY guide empowers you to locate and replace that pesky blown fuse like a pro! We'll unveil the mysteries of the fuse box. DOT.report provides a detailed list of fuse box diagrams, relay information and fuse box location information for the 2023 Hyundai Elantra. Click on an image to find detailed resources for that fuse box or watch any embedded videos for location information and diagrams for the fuse boxes of your vehicle.
View, print and download for free: fuse box diagram - HYUNDAI ELANTRA 2023 Owners Manual, 572 Pages, PDF Size: 7.28 MB. Search in HYUNDAI ELANTRA 2023 Owners Manual online. Hyundai Elantra Fuse Box and Relay Diagrams - Complete Guide Understanding your Hyundai Elantra's fuse box diagram is crucial for maintaining your vehicle's electrical system and troubleshooting common issues.
Get the wholesale-priced Genuine OEM Hyundai Fuse Box for 2023 Hyundai Elantra at HyundaiPartsDeal Up to 30% off MSRP. Hyundai Elantra fuse box and relays diagrams Explore interactive fuse box and relay diagrams for the Hyundai Elantra. Fuse boxes change across years, pick the year of your vehicle.
