2010 BMW X5 XDRIVE30i Belt Diagram: Complete Guide to Replacement Parts
Owning a 2010 BMW X5 XDRIVE30i means driving with refined power and precision—and maintaining critical components like the serpentine belt is essential for reliability. Mastering the belt diagram ensures timely replacements and avoids unexpected breakdowns.
2010 BMW X5 XDRIVE30i Belt Diagram Overview
The 2010 X5 XDRIVE30i features a single front serpentine belt responsible for driving the alternator, power steering pump, air conditioning compressor, and water pump. The belt routing is tightly engineered, with tensioners and pulleys aligned for efficient operation. A clear diagram helps mechanics and enthusiasts identify each pulley and labeling clearly, reducing installation errors during replacements.
Key Components and Diagram Breakdown

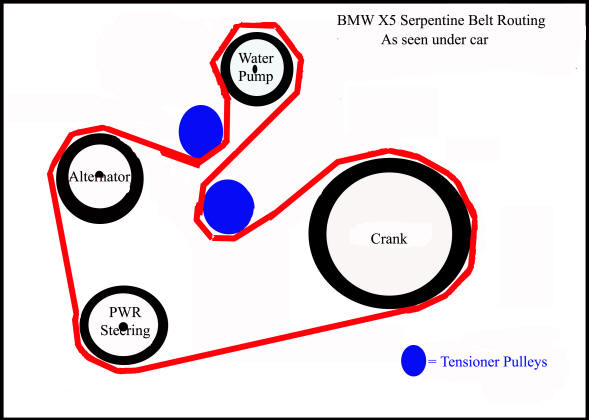

The serpentine belt in the 2010 X5 XDRIVE30i runs from the crankshaft pulley through the water pump, alternator, and power steering pump. The belt diagram highlights exact routing points, including tensioner alignment and pulley contact zones. Each component receives the precise power needed for optimal engine and accessory performance, making accurate belt installation crucial.
Replacement Tips and Maintenance Insights
When replacing the belt, always use an OEM-spec part or a high-quality equivalent rated for 90,000 to 120,000 miles. Inspect for cracks, glazing, or wear before installation. Refer to the belt diagram to avoid misrouting—especially around the water pump—where incorrect placement risks system failure. Regular checks every 30,000 miles ensure longevity and prevent costly damage.
Understanding the 2010 BMW X5 XDRIVE30i belt diagram empowers owners and mechanics to keep the powertrain running smoothly. With clear routing and proper maintenance, this belt remains a cornerstone of reliable performance—backed by authoritative guidance for lasting vehicle care.
Presenter, Chris Capredoni, provides a comprehensive DIY tutorial on how to efficiently replace a serpentine belt, (drive belt), on a BMW X5 E70 with the 3 litre inline 6 cylinder. Serpentine Belt Diagram for 2010 BMW X5 This BMW X5 belt diagram is for model year 2010 with 6 Cylinder 3.0 Liter engine and Serpentine. For more information on how to decode BMW part numbers, please read our article BMW part numbers explained and how to find and correctly read.
Choose one of the following options to display the part diagrams for your vehicle. Got a car repair question? 2CarPros will answer your question for free by providing information that will help solve your problem quickly. 2010 BMW X5 XDRIVE30I Replacement Belt Year 2010 Manufacturer BMW Model X5 XDRIVE30I Engine 3.0 Liter Specific Details SERPENTINE AUX AC OEM Part Number 11287549150 Belt Type K Micro V VBG Replacement Id 8UT0142565 Technical Specifications: (Inches) (mm) Outside Circumference 79.25 2012.95 Top Width 0.84 21.336 Belt De.
For the 2010 BMW X5 3.0 gas engine, the serpentine belt drives multiple accessories like the alternator and power steering pump. Check the belt routing diagram under the hood or in the owner's manual to ensure correct installation. Manuals and User Guides for BMW X5 xDrive30i 2010.
We have 1 BMW X5 xDrive30i 2010 manual available for free PDF download: Owner's Manual. Order Genuine BMW X5 Serpentine Belts online with affordable price today! BMW Parts Deal's large inventory of Serpentine Belts fit 2000. SERPENTINE BELT REPLACEMENT BMW X5 E70 If you have BMW X5 and you need to replace your serpentine belt or want to know how to remove the serpentine belt or install the serpentine belt on BMW X5 we.
In the table below you can see 1 X5 Workshop Manuals,0 X5 Owners Manuals and 58 Miscellaneous BMW X5 downloads. Our most popular manual is the BMW.
