Replacing a 3-Wire Female Electrical Plug: A Comprehensive Guide

If you're a homeowner or DIY enthusiast, replacing a 3-wire female electrical plug is a task you can tackle safely and effectively with the right knowledge and tools. This guide will walk you through the process step by step, ensuring you understand the safety precautions, required tools, and the replacement process itself.

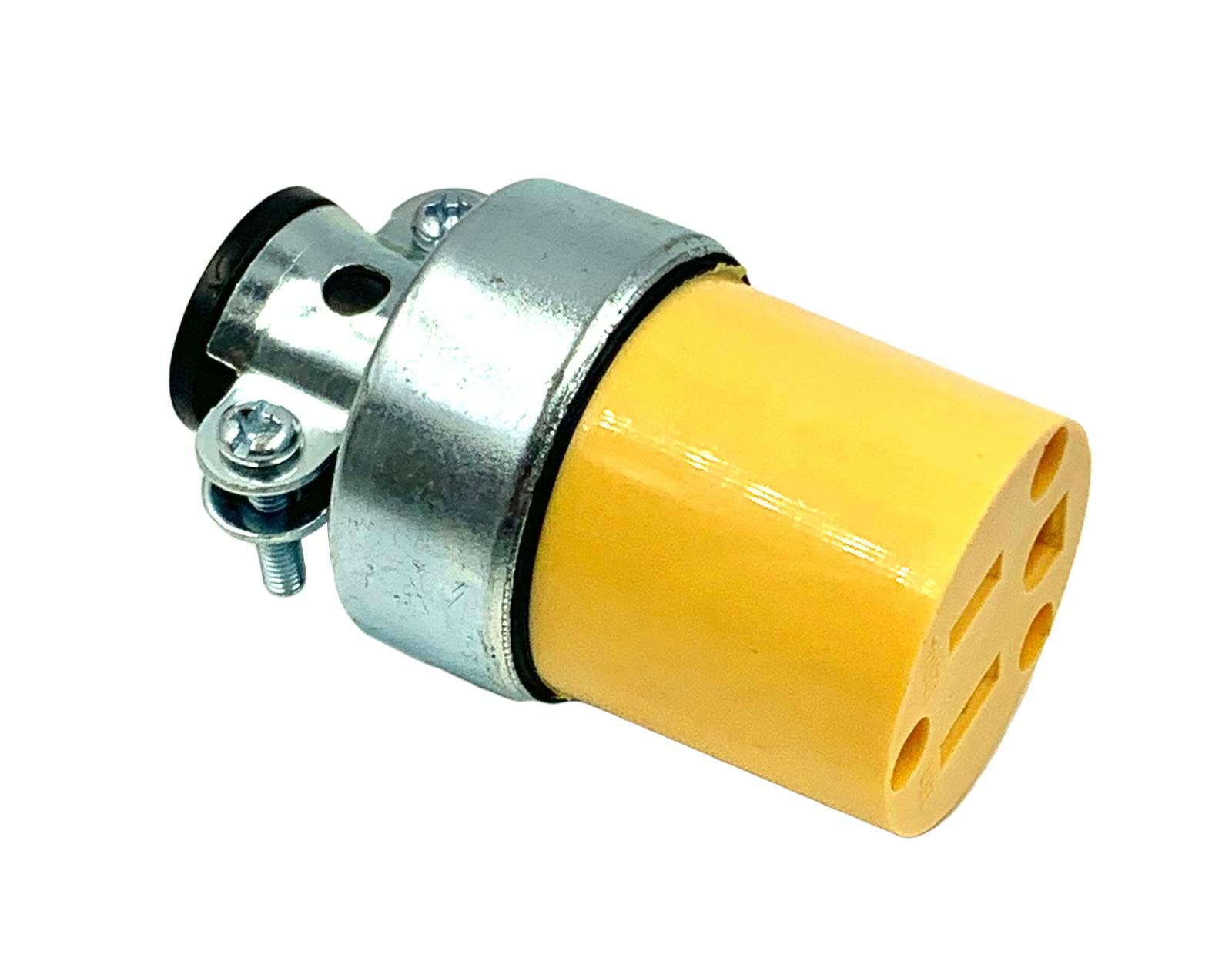

Understanding 3-Wire Female Electrical Plugs

Before we dive into the replacement process, let's understand what a 3-wire female electrical plug is. These plugs are typically used for 208/240-volt appliances and have three wires: two hot wires (black and red) and one neutral wire (white). The ground wire (green or bare) is usually connected to the plug's metal yoke.

Safety First: Tools and Precautions

Before you begin, ensure you have the following tools: voltage tester, flathead screwdriver, needle-nose pliers, wire stripper, and a new 3-wire female electrical plug. Always remember that safety is paramount when working with electricity:

• Turn off the power to the circuit at your home's main electrical panel.
• Use a voltage tester to ensure the power is off before starting any work.
• Never force wires or parts; if something doesn't fit or move easily, stop and reassess.
• Always follow local electrical codes and regulations.

Removing the Old Plug

With your safety precautions in place, you're ready to remove the old plug. Here's how:

1. Remove the cover plate using a flathead screwdriver.
2. Loosen the screws on the plug and remove the wires. Use a voltage tester to ensure the wires are not still hot.
3. Strip about 3/4 inch of insulation from each wire using wire strippers.

Installing the New Plug

Now that the old plug is removed, it's time to install the new one. Follow these steps:

1. Insert the wires into the new plug, ensuring the black wire goes to the brass terminal (hot), the red wire goes to the silver terminal (hot), and the white wire goes to the aluminum terminal (neutral). The ground wire (green or bare) should be wrapped around the plug's green screw.
2. Tighten the screws securely, but be careful not to overtighten and strip the wires.
3. Bend the wires back into the electrical box and replace the cover plate.

Testing the New Plug

Before turning the power back on, test your work with a voltage tester to ensure everything is connected correctly and safely. Once you've confirmed the new plug is working properly, turn the power back on at your main electrical panel.

When to Call a Professional

While replacing a 3-wire female electrical plug is a task many homeowners can handle, there are times when it's best to call a licensed electrician. If you're unsure about any part of the process, if the wires are damaged or frayed, or if the job requires working with high-voltage circuits, always err on the side of safety and contact a professional.
