If you're a DIY enthusiast, a professional mechanic, or run a workshop, you're likely familiar with the importance of an air compressor in your toolkit. However, the performance of your air compressor heavily relies on its pressure switch, a critical component that ensures your compressor operates safely and efficiently. Today, we're diving into the world of air compressor pressure switches, with a particular focus on the 175 PSI model.
Understanding Air Compressor Pressure Switches
Before we delve into the specifics of the 175 PSI pressure switch, let's first understand what a pressure switch does. In essence, a pressure switch is a safety device that monitors the pressure in your air compressor tank. It's responsible for turning the compressor on and off at predetermined pressure levels, ensuring that the tank doesn't overfill and potentially cause an explosion.
Pressure switches are typically set to turn the compressor on when the tank pressure drops to a certain level (the cut-in pressure) and turn it off when the tank pressure reaches a specific level (the cut-out pressure). The difference between these two pressures is known as the differential.

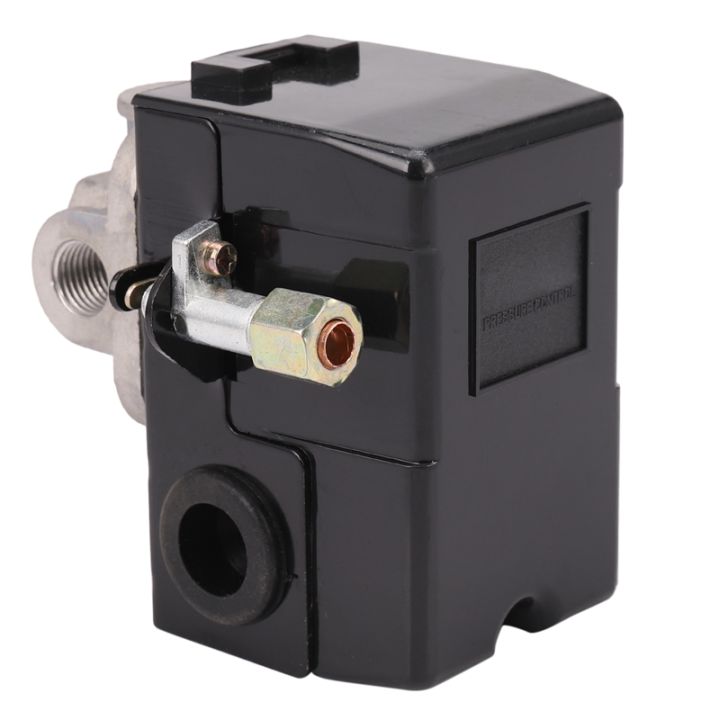

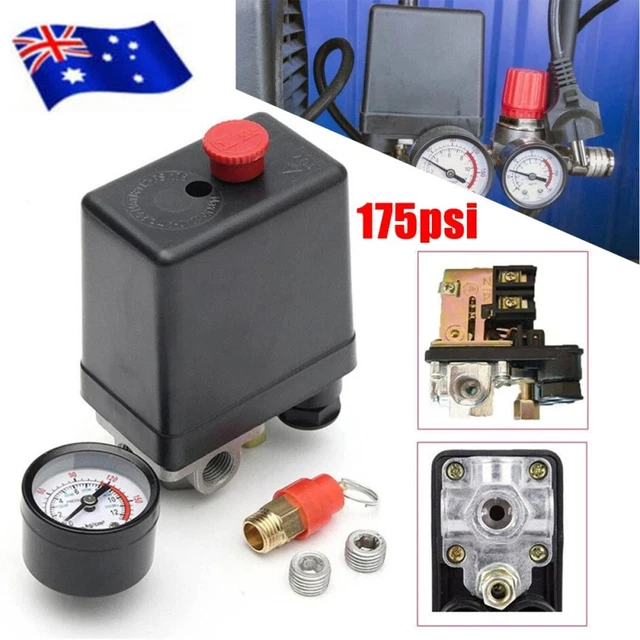

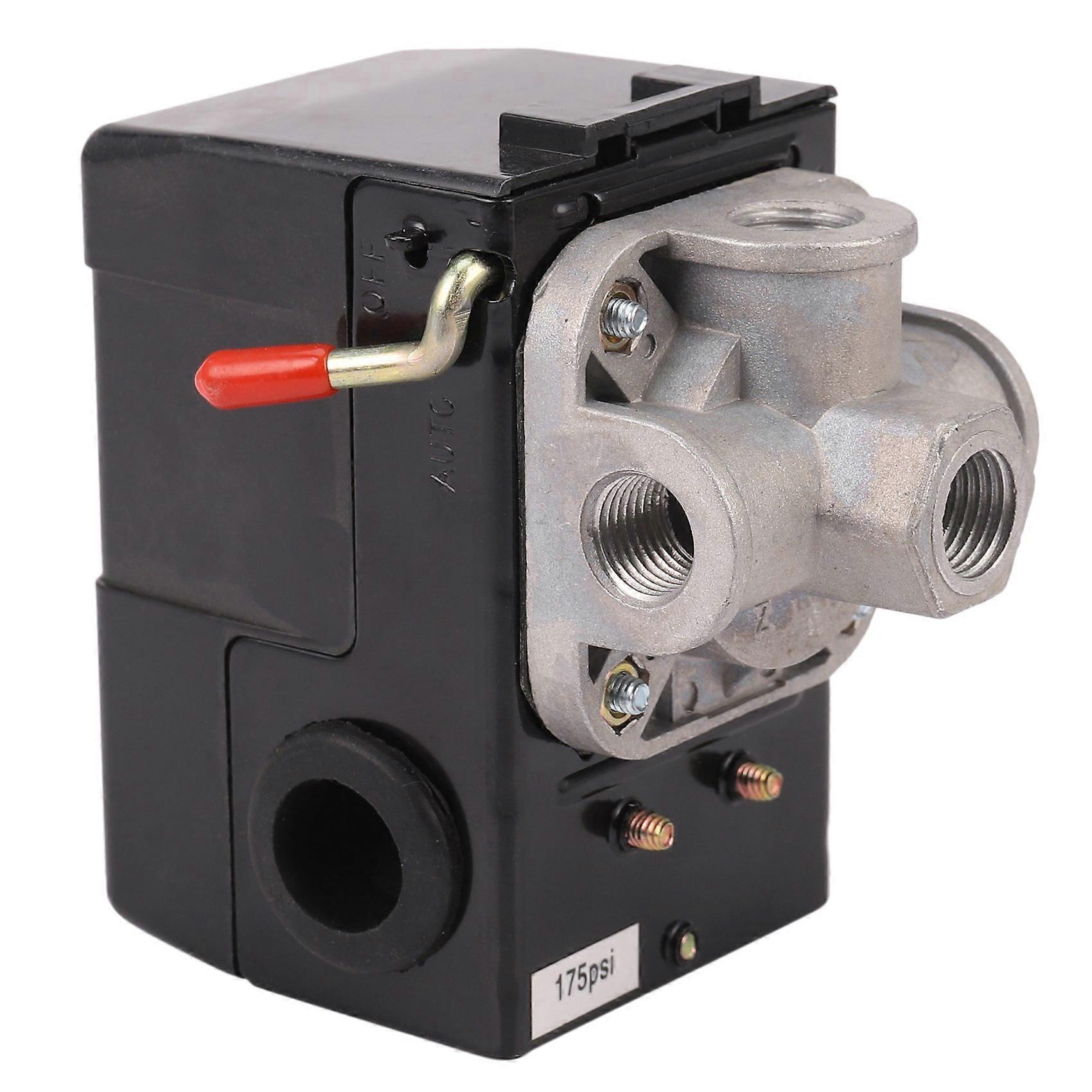

The 175 PSI Pressure Switch: A Closer Look
The 175 PSI pressure switch is designed to operate within a specific pressure range, typically between 150-175 PSI. This makes it ideal for compressors with tanks that hold around 20-30 gallons. Here are some key aspects of the 175 PSI pressure switch:
- Cut-In Pressure: This is the pressure at which the switch turns the compressor on. For a 175 PSI switch, the cut-in pressure is usually around 150 PSI.
- Cut-Out Pressure: This is the pressure at which the switch turns the compressor off. For a 175 PSI switch, the cut-out pressure is typically around 175 PSI.
- Differential: The difference between the cut-in and cut-out pressures. A 175 PSI switch usually has a differential of around 25 PSI.
Why Choose a 175 PSI Pressure Switch?
There are several reasons why you might choose a 175 PSI pressure switch for your air compressor:
- **Safety:** A 175 PSI switch ensures that your compressor tank doesn't exceed its safe operating pressure.
- **Efficiency:** By allowing the tank to empty to a lower pressure before refilling, a 175 PSI switch can help extend the life of your compressor's motor and reduce energy consumption.
- **Versatility:** A 175 PSI switch is suitable for a wide range of compressor tank sizes and can be used with various tools and applications.
Installing and Maintaining Your 175 PSI Pressure Switch
Installing a 175 PSI pressure switch is a straightforward process that typically involves disconnecting the power supply, removing the old switch, installing the new one, and reconnecting the power. However, it's crucial to follow the manufacturer's instructions to ensure the switch is installed correctly and safely.
Maintaining your pressure switch is equally important. Regularly inspect the switch for signs of wear or damage, and clean it to remove any dirt or debris that could affect its performance. Additionally, ensure that the switch is properly lubricated to prevent excessive wear and tear.
Troubleshooting Common Issues with 175 PSI Pressure Switches
While 175 PSI pressure switches are designed to be durable and reliable, they can sometimes malfunction. Some common issues include the switch not turning the compressor on or off at the correct pressures, or the compressor running continuously without turning off. If you encounter any of these issues, it's essential to troubleshoot the problem promptly to prevent further damage to your compressor.
| Issue | Possible Cause | Solution |
|---|---|---|
| Switch not turning compressor on | Low cut-in pressure or faulty switch | Adjust the cut-in pressure or replace the switch |
| Switch not turning compressor off | High cut-out pressure or faulty switch | Adjust the cut-out pressure or replace the switch |
| Compressor running continuously | Faulty switch or incorrect differential | Check the switch and adjust the differential if necessary |
If you're unsure about any aspect of installing, maintaining, or troubleshooting your 175 PSI pressure switch, it's always best to consult the manufacturer's instructions or seek professional advice.
In conclusion, the 175 PSI pressure switch plays a vital role in ensuring the safe and efficient operation of your air compressor. By understanding its functions, choosing the right switch for your compressor, and maintaining it properly, you can extend the life of your compressor and ensure that it performs at its best.
