2002 Chevy Cavalier MAP Sensor Location: Easy Guide & Replacement

Locating the map sensor on a 2002 Chevy Cavalier is a common diagnostic need for anyone troubleshooting rough idling, hesitation, or poor fuel economy. The manifold absolute pressure sensor, often abbreviated as MAP sensor, plays a critical role in calculating the correct air/fuel mixture for optimal engine performance. Understanding its specific location under the hood can save time and prevent unnecessary disassembly when diagnosing engine management issues.

Understanding the MAP Sensor Function

The MAP sensor works by measuring the vacuum or pressure within the intake manifold and relaying this data to the vehicle's Powertrain Control Module (PCM). This information is vital for the PCM to determine the engine's load conditions. In the 2002 Cavalier, which typically features the 2.2L Ecotec engine, the sensor ensures the engine runs smoothly across various RPMs and throttle inputs. A failing sensor can cause a lit Check Engine light, hard starts, or a noticeable lack of power during acceleration.

Primary Location Under the Hood

On the 2002 Chevy Cavalier, the MAP sensor is positioned on the rear side of the intake manifold. This location places it near the firewall, making it somewhat tricky to access without removing a few components. You will find it situated between the throttle body and the plenum, connected to the engine wiring harness via a two or three-pin electrical connector. The sensor itself is usually a small, cylindrical metal or plastic component designed to withstand high temperatures.

Step-by-Step Access Guide

• Open the hood and locate the air intake tube running from the throttle body to the aluminum intake manifold.
• Identify the two distinct metal pipes entering the top of the intake manifold; this is the throttle body assembly.
• The MAP sensor is bolted directly into the rear of the throttle body body or the intake runner just behind it.
• Carefully disconnect the electrical connector by pressing the release tab before pulling it off the sensor.
• Using an appropriate socket size, usually 7/16 inch or 11mm, loosen the bolt holding the sensor in place to remove it for inspection or replacement.

Visual Identification Aids

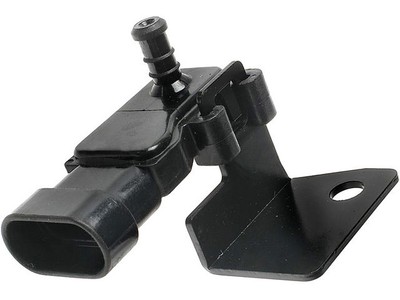

If you are having difficulty identifying the component visually, look for a small black box attached to a metal bracket. The sensor will have a vacuum hose connected to it, although on the 2002 Cavalier, this hose is often removed or routed to nowhere during manufacturing. The wiring harness is typically secured with a plastic zip tie near the sensor body. Refer to the image below for a general visualization of the sensor's placement relative to other major components.

Common Issues and Symptoms

A faulty MAP sensor can manifest in various ways that impact the driving experience. Since the sensor is responsible for relaying load information, a malfunction can cause the engine control unit to miscalculate fuel delivery. This often results in a lean or rich condition, leading to decreased fuel efficiency, engine stalling at stoplights, or a sudden loss of velocity when pressing the accelerator. Diagnosing the sensor with an OBD-II scanner is the best way to confirm if it is the root cause of these symptoms.

Replacement Tips and Considerations

When replacing the MAP sensor on your 2002 Cavalier, ensure that the new unit matches the original equipment manufacturer (OEM) specifications. Aftermarket sensors are widely available and generally cost-effective. It is crucial to apply a small amount of dielectric grease to the O-ring on the new sensor before installation to ensure a proper seal and prevent vacuum leaks. Once installed, clearing the trouble codes and taking the vehicle for a test drive will confirm whether the repair was successful.
