Unlocking Tone: Seymour Duncan Telecaster Wiring
When it comes to shaping your Telecaster's voice, few upgrades can make as significant an impact as swapping out your stock pickups for Seymour Duncan models. Known for their rich history and commitment to quality, Seymour Duncan offers a wide range of pickups that can transform your Telecaster's tone. Let's delve into the world of Seymour Duncan Telecaster wiring and explore how these legendary pickups can enhance your playing experience.
Understanding Your Telecaster's Wiring
Before we dive into Seymour Duncan's offerings, let's first understand the basic wiring of a Telecaster. A standard Telecaster features a simple, straightforward wiring scheme with two pickups, a three-way switch, a volume knob, and a tone knob. The bridge pickup is connected to the volume knob directly, while the neck pickup is connected to the tone knob. The three-way switch allows you to select between the bridge pickup, both pickups (in parallel), and the neck pickup.
Seymour Duncan's Telecaster Pickup Options
Seymour Duncan offers a variety of pickup options for Telecaster enthusiasts, each catering to different tonal preferences. Here are some of their most popular models:
- SD Tele '52: A faithful reproduction of the original '52 Telecaster pickup, offering a clear, bright tone with excellent dynamic range.
- SD Tele '54: Inspired by the '54 Telecaster pickup, this model delivers a warmer, rounder tone with increased output.
- SD Custom Shop '52 Slant: A vintage-inspired pickup with a slanted polepiece design, offering a unique blend of clarity and warmth.
- SD Custom Shop '54 Slant: Similar to its '52 counterpart, this pickup offers a warmer, rounder tone with a slanted polepiece design for added versatility.
- SD Little '59: A mini-humbucker designed to fit Telecaster routing, offering a warm, smooth tone reminiscent of a '59 PAF pickup.

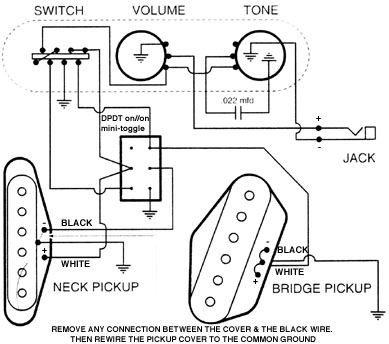

Wiring Seymour Duncan Pickups into Your Telecaster
Installing Seymour Duncan pickups into your Telecaster is a straightforward process that can be accomplished by most players with basic soldering skills. Here's a simple step-by-step guide to help you through the process:
- Remove the pickguard and disconnect the existing pickups from the wiring harness.
- Install the new Seymour Duncan pickups in the bridge and neck positions, ensuring they are properly aligned and secured.
- Connect the bridge pickup's hot wire to the volume potentiometer's input terminal (usually the one connected to the bridge pickup's tone pot in stock wiring).
- Connect the bridge pickup's ground wire to the ground bus on the pickguard or control plate.
- Connect the neck pickup's hot wire to the tone potentiometer's input terminal (usually the one connected to the neck pickup's tone pot in stock wiring).
- Connect the neck pickup's ground wire to the ground bus on the pickguard or control plate.
- Reconnect the three-way switch, volume pot, and tone pot to their respective terminals on the pickguard or control plate.
- Test your new pickups by plugging in and selecting each pickup position on the three-way switch.
Exploring Tone Shaping Options
While the basic Telecaster wiring scheme is simple and effective, there are numerous ways to modify your wiring to unlock even more tonal possibilities. Here are a few popular options to consider:
- Blade Switch: Replacing the three-way switch with a four-way blade switch allows you to access additional pickup combinations, such as series wiring for increased output and midrange punch.
- Coil Split: Adding a push-pull pot or mini-toggle switch to your volume or tone knob enables you to split the coils of your humbucker pickups, allowing you to access single-coil tones from your Seymour Duncan mini-humbuckers.
- Mid Boost: Installing a mid-boost circuit can help you cut through the mix in high-gain situations or add some extra growl to your Telecaster's voice.
Each of these modifications can help you tailor your Telecaster's tone to your unique playing style and musical preferences. Don't be afraid to experiment and find the combination that works best for you.
Conclusion
Seymour Duncan Telecaster wiring offers guitarists a wealth of tonal possibilities, from vintage-inspired clarity to modern, high-output growl. By understanding your options and experimenting with different pickup configurations and wiring modifications, you can unlock the full potential of your Telecaster. So, grab your soldering iron, and let's get wiring!
