netlist.h File Reference

This file defines the Netlist class, which stores the connectivity information of the components in a netlist. It is the base class for AtomNetlist and ClusteredNetlist. More...

#include <string>
#include <vector>
#include <unordered_map>
#include "vtr_range.h"
#include "vtr_logic.h"
#include "vtr_vector_map.h"
#include "logic_types.h"
#include "netlist_fwd.h"
#include "netlist_utils.h"
#include "netlist.tpp"

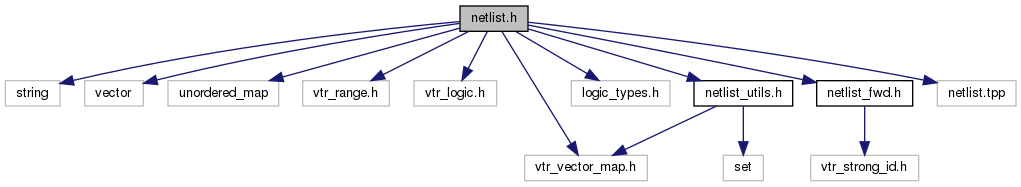

Include dependency graph for netlist.h:

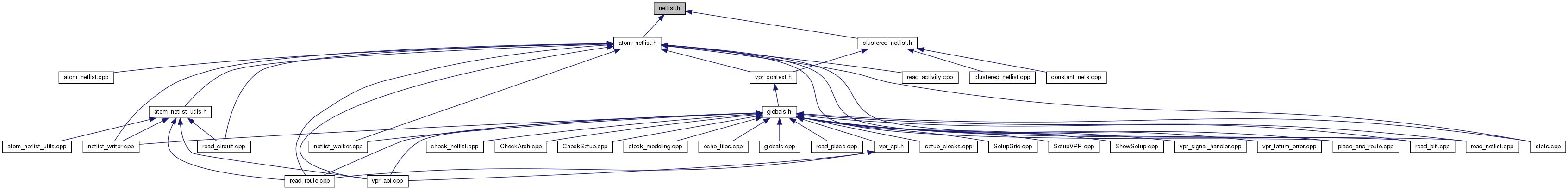

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
class	NetlistIdRemapper< BlockId, PortId, PinId, NetId >
class	Netlist< BlockId, PortId, PinId, NetId >

Detailed Description

This file defines the Netlist class, which stores the connectivity information of the components in a netlist. It is the base class for AtomNetlist and ClusteredNetlist.

Overview

The netlist logically consists of several different components: Blocks, Ports, Pins and Nets Each component in the netlist has a unique template identifier (BlockId, PortId, PinId, NetId) used to retrieve information about it. In this implementation these ID's are unique throughout the netlist (i.e. every port in the netlist has a unique ID, even if the ports share a common type).

Block

A Block is the primitive netlist element (a node in the netlist hyper-graph). Blocks have various attributes (a name, a type etc.) and are associated with sets of input/output/clock ports.

Block related information can be retrieved using the block_*() member functions.

Pins

Pins define single-bit connections between a block and a net.

Pin related information can be retrieved using the pin_*() member functions.

Nets

Nets represent the connections between blocks (the edges of the netlist hyper-graph). Each net has a single driver pin, and a set of sink pins.

Net related information can be retrieved using the net_*() member functions.

Ports

A Port is a (potentially multi-bit) group of pins.

For example, the two operands and output of an N-bit adder would logically be grouped as three ports. Ports have a specified bit-width which defines how many pins form the port.

Port related information can be retrieved using the port_*() member functions.

Usage

The following provides usage examples for common use-cases.

Walking the netlist

To iterate over the whole netlist use the blocks() and/or nets() member functions:

 Netlist netlist;

 //... initialize the netlist

 //Iterate over all the blocks
 for(BlockId blk_id : netlist.blocks()) {
     //Do something with each block
 }


 //Iterate over all the nets
 for(NetId net_id : netlist.nets()) {
     //Do something with each net
 }

To retrieve information about a netlist component call one of the associated member functions:

 //Print out each block's name
 for(BlockId blk_id : netlist.blocks()) {

     //Get the block name
     const std::string& block_name = netlist.block_name(blk_id);

     //Print it
     printf("Block: %s\n", block_name.c_str());
 }

Note that the member functions are associated with the type of component (e.g. block_name() yields the name of a block, net_name() yields the name of a net).

Tracing cross-references

It is common to need to trace the netlist connectivity. The Netlist allows this to be done efficiently by maintaining cross-references between the various netlist components.

The following diagram shows the main methods and relationships between netlist components:

           +---------+      pin_block()
           |         |<--------------------------+
           |  Block  |                           |
           |         |-----------------------+   |
           +---------+      block_pins()     |   |
              |   ^                          v   |
              |   |                       +---------+  net_pins()  +---------+
              |   |                       |         |<-------------|         |
block_ports() |   | port_block()          |   Pin   |              |   Net   |
              |   |                       |         |------------->|         |
              |   |                       +---------+  pin_net()   +---------+
              v   |                          ^   |
           +---------+      port_pins()      |   |
           |         |-----------------------+   |
           |  Port   |                           |
           |         |<--------------------------+
           +---------+      pin_port()

Note that methods which are plurals (e.g. net_pins()) return multiple components.

As an example consider the case where we wish to find all the blocks associated with a particular net:

 NetId net_id;

 //... Initialize net_id with the net of interest

 //Iterate through each pin on the net to get the associated port
 for(PinId pin_id : netlist.net_pins(net_id)) {

     //Get the port associated with the pin
     PortId port_id = netlist.pin_port(pin_id);

     //Get the block associated with the port
     BlockId blk_id = netlist.port_block(port_id);

     //Print out the block name
     const std::string& block_name = netlist.block_name(blk_id);
     printf("Associated block: %s\n", block_name.c_str());
 }

Netlist also defines some convenience functions for common operations to avoid tracking the intermediate IDs if they are not needed. The following produces the same result as above:

 NetId net_id;

 //... Initialize net_id with the net of interest

 //Iterate through each pin on the net to get the associated port
 for(PinId pin_id : netlist.net_pins(net_id)) {

     //Get the block associated with the pin (bypassing the port)
     BlockId blk_id = netlist.pin_block(pin_id);

     //Print out the block name
     const std::string& block_name = netlist.block_name(blk_id);
     printf("Associated block: %s\n", block_name.c_str());
 }

As another example, consider the inverse problem of identifying the nets connected as inputs to a particular block:

 BlkId blk_id;

 //... Initialize blk_id with the block of interest

 //Iterate through the ports
 for(PortId port_id : netlist.block_input_ports(blk_id)) {

     //Iterate through the pins
     for(PinId pin_id : netlist.port_pins(port_id)) {
         //Retrieve the net
         NetId net_id = netlist.pin_net(pin_id);

         //Get its name
         const std::string& net_name = netlist.net_name(net_id);
         printf("Associated net: %s\n", net_name.c_str());
     }
 }

Here we used the block_input_ports() method which returned an iterable range of all the input ports associated with blk_id. We then used the port_pins() method to get iterable ranges of all the pins associated with each port, from which we can find the associated net.

Often port information is not relevant so this can be further simplified by iterating over a block's pins directly (e.g. by calling one of the block_*_pins() functions):

 BlkId blk_id;

 //... Initialize blk_id with the block of interest

 //Iterate over the blocks ports directly
 for(PinId pin_id : netlist.block_input_pins(blk_id)) {

     //Retrieve the net
     NetId net_id = netlist.pin_net(pin_id);

     //Get its name
     const std::string& net_name = netlist.net_name(net_id);
     printf("Associated net: %s\n", net_name.c_str());
 }

Note the use of range-based-for loops in the above examples; it could also have written (more verbosely) using a conventional for loop and explicit iterators as follows:

 BlkId blk_id;

 //... Initialize blk_id with the block of interest

 //Iterate over the blocks ports directly
 auto pins = netlist.block_input_pins(blk_id);
 for(auto pin_iter = pins.begin(); pin_iter != pins.end(); ++pin_iter) {

     //Retrieve the net
     NetId net_id = netlist.pin_net(*pin_iter);

     //Get its name
     const std::string& net_name = netlist.net_name(net_id);
     printf("Associated net: %s\n", net_name.c_str());
 }

Creating the netlist

The netlist can be created by using the create_*() member functions to create individual Blocks/Ports/Pins/Nets.

For instance to create the following netlist (where each block is the same type, and has an input port 'A' and output port 'B'):

 -----------        net1         -----------
 | block_1 |-------------------->| block_2 |
 -----------          |          -----------
                      |
                      |          -----------
                      ---------->| block_3 |
                                 -----------

We could do the following:

 const t_model* blk_model = .... //Initialize the block model appropriately

 Netlist netlist("my_netlist"); //Initialize the netlist with name 'my_netlist'

 //Create the first block
 BlockId blk1 = netlist.create_block("block_1", blk_model);

 //Create the first block's output port
 //  Note that the input/output/clock type of the port is determined
 //  automatically from the block model
 PortId blk1_out = netlist.create_port(blk1, "B");

 //Create the net
 NetId net1 = netlist.create_net("net1");

 //Associate the net with blk1
 netlist.create_pin(blk1_out, 0, net1, PinType::DRIVER);

 //Create block 2 and hook it up to net1
 BlockId blk2 = netlist.create_block("block_2", blk_model);
 PortId blk2_in = netlist.create_port(blk2, "A");
 netlist.create_pin(blk2_in, 0, net1, PinType::SINK);

 //Create block 3 and hook it up to net1
 BlockId blk3 = netlist.create_block("block_3", blk_model);
 PortId blk3_in = netlist.create_port(blk3, "A");
 netlist.create_pin(blk3_in, 0, net1, PinType::SINK);

Modifying the netlist

The netlist can also be modified by using the remove_*() member functions. If we wanted to remove block_3 from the netlist creation example above we could do the following:

 //Mark blk3 and any references to it invalid
 netlist.remove_block(blk3);

 //Compress the netlist to actually remove the data associated with blk3
 // NOTE: This will invalidate all client held IDs (e.g. blk1, blk1_out, net1, blk2, blk2_in)
 netlist.compress();

The resulting netlist connectivity now looks like:

 -----------        net1         -----------
 | block_1 |-------------------->| block_2 |
 -----------                     -----------

Note that until compress() is called any 'removed' elements will have invalid IDs (e.g. BlockId::INVALID()). As a result after calling remove_block() (which invalidates blk3) we then called compress() to remove the invalid IDs.

Also note that compress() is relatively slow. As a result avoid calling compress() after every call to a remove_*() function, and instead batch up calls to remove_*() and call compress() only after a set of modifications have been applied.

Verifying the netlist

Particularly after construction and/or modification it is a good idea to check that the netlist is in a valid and consistent state. This can be done with the verify() member function:

 netlist.verify()

If the netlist is not valid verify() will throw an exception, otherwise it returns true.

Invariants

The Netlist maintains stronger invariants if the netlist is in compressed form.

Netlist is compressed ('not dirty')

If the netlist is compressed (i.e. !is_dirty(), meaning there have been NO calls to remove_*() since the last call to compress()) the following invariant will hold:

• Any range returned will contain only valid IDs

In practise this means the following conditions hold:

• Blocks will not contain empty ports/pins (e.g. ports with no pin/net connections)
• Ports will not contain pins with no associated net
• Nets will not contain invalid sink pins

This means that no error checking for invalid IDs is needed if simply iterating through netlist (see below for some exceptions).

NOTE: you may still encounter invalid IDs in the following cases:

• net_driver() will return an invalid ID if the net is undriven
• port_pin()/port_net() will return an invalid ID if the bit index corresponds to an unconnected pin

Netlist is NOT compressed ('dirty')

If the netlist is not compressed (i.e. is_dirty(), meaning there have been calls to remove_*() with no subsequent calls to compress()) then the invariant above does not hold.

Any range may return invalid IDs. In practise this means,

• Blocks may contain invalid ports/pins
• Ports may contain invalid pins
• Pins may not have a valid associated net
• Nets may contain invalid sink pins

Implementation Details

The netlist is stored in Struct-of-Arrays format rather than the more conventional Array-of-Structs. This improves cache locality by keeping component attributes of the same type in contiguous memory. This prevents unneeded member data from being pulled into the cache (since most code accesses only a few attributes at a time this tends to be more efficient).

Clients of this class pass nearly-opaque IDs (BlockId, PortId, PinId, NetId, StringId) to retrieve information. The ID is internally converted to an index to retrieve the required value from it's associated storage.

By using nearly-opaque IDs we can change the underlying data layout as need to optimize performance/memory, without disrupting client code.

Strings

To minimize memory usage, we store each unique string only once in the netlist and give it a unique ID (StringId). Any references to this string then make use of the StringId.

In particular this prevents the (potentially large) strings from begin duplicated multiple times in various look-ups, instead the more space efficient StringId is duplicated.

Note that StringId is an internal implementation detail and should not be exposed as part of the public interface. Any public functions should take and return std::string's instead.

Block pins/Block ports data layout

The pins/ports for each block are stored in a similar manner, for brevity we describe only pins here.

The pins for each block (i.e. PinId's) are stored in a single vector for each block (the block_pins_ member). This allows us to iterate over all pins (i.e. block_pins()), or specific subsets of pins (e.g. only inputs with block_input_pins()).

To accomplish this all pins of the same group (input/output/clock) are located next to each other. An example is shown below, where the block has n input pins, m output pins and k clock pins.

 -------------------------------------------------------------------------------------------------------------------
 | ipin_1 | ipin_2 | ... | ipin_n | opin_1 | opin_2 | ... | opin_m | clock_pin_1 | clock_pin_2 | ... | clock_pin_k |
 -------------------------------------------------------------------------------------------------------------------
 ^                                ^                                ^                                               ^
 |                                |                                |                                               |
begin                         opin_begin                    clock_pin_begin                                       end

Provided we know the internal dividing points (i.e. opin_begin and clock_pin_begin) we can easily build the various ranges of interest:

 all pins   : [begin, end)
 input pins : [begin, opin_begin)
 output pins: [opin_begin, clock_pin_begin)
 clock pins : [clock_pin_begin, end)

Since any reallocation would invalidate any iterators to these internal dividers, we separately store the number of input/output/clock pins per block (i.e. in block_num_input_pins_, block_num_output_pins_ and block_num_clock_pins_). The internal dividers can then be easily calculated (e.g. see block_output_pins()), even if new pins are inserted (provided the counts are updated).

Adding data to the netlist

The Netlist should contain only information directly related to the netlist state (i.e. netlist connectivity). Various mappings to/from elements (e.g. what CLB contains an atom block), and algorithmic state (e.g. if a net is routed) do NOT constitute netlist state and should NOT be stored here.

Such implementation state should be stored in other data structures (which may reference the Netlist's IDs).

The netlist state should be immutable (i.e. read-only) for most of the CAD flow.

Interactions with other netlists

Currently, the AtomNetlist and ClusteredNetlist are both derived from Netlist. The AtomNetlist has primitive specific details (t_model, TruthTable), and handles all operations with the atoms. The ClusteredNetlist contains information on the CLB (Clustered Logic Block) level, which includes the physical description of the blocks (t_logical_block_type), as well as the internal hierarchy and wiring (t_pb/t_pb_route).

The calling-conventions of the functions in the AtomNetlist and ClusteredNetlist is as follows:

Functions where the derived class (Atom/Clustered) calls the base class (Netlist) create_*()

Functions where the base class calls the derived class (Non-Virtual Interface idiom as described https://en.wikibooks.org/wiki/More_C%2B%2B_Idioms/Non-Virtual_Interface) remove_*() clean_*() validate_*_sizes() shrink_to_fit() The derived functions based off of the virtual functions have suffix *_impl()
