read_netlist.cpp File Reference

Read a circuit netlist in XML format and populate the netlist data structures for VPR. More...

#include <cstdio>
#include <cstring>
#include <ctime>
#include <map>
#include "pugixml.hpp"
#include "pugixml_loc.hpp"
#include "pugixml_util.hpp"
#include "vtr_assert.h"
#include "vtr_util.h"
#include "vtr_log.h"
#include "vtr_digest.h"
#include "vtr_memory.h"
#include "vtr_token.h"
#include "vpr_types.h"
#include "vpr_error.h"
#include "vpr_utils.h"
#include "hash.h"
#include "globals.h"
#include "atom_netlist.h"
#include "read_xml_util.h"
#include "read_netlist.h"
#include "pb_type_graph.h"

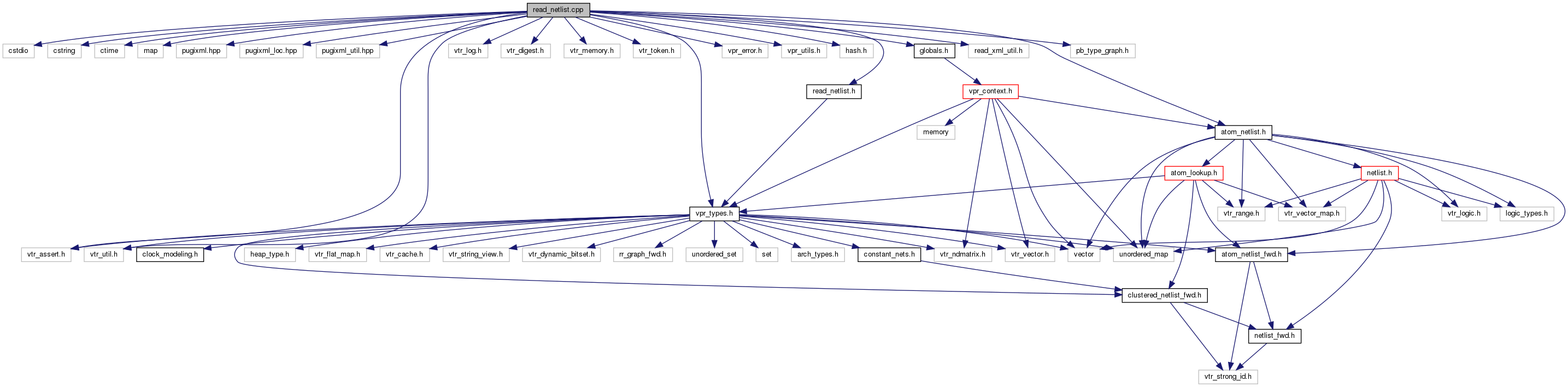

Include dependency graph for read_netlist.cpp:

Functions
static int	processPorts (pugi::xml_node Parent, t_pb *pb, t_pb_routes &pb_route, const pugiutil::loc_data &loc_data)
static void	processPb (pugi::xml_node Parent, const ClusterBlockId index, t_pb *pb, t_pb_routes &pb_route, int *num_primitives, const pugiutil::loc_data &loc_data, ClusteredNetlist *clb_nlist)
	XML parser to populate pb info and to update internal nets of the parent CLB. More...
static void	processComplexBlock (pugi::xml_node clb_block, const ClusterBlockId index, int *num_primitives, const pugiutil::loc_data &loc_data, ClusteredNetlist *clb_nlist)
	XML parser to populate CLB info and to update nets with the nets of this CLB. More...
static int	add_net_to_hash (t_hash **nhash, const char *net_name, int *ncount)
	Adds net to hashtable of nets. More...
static void	load_external_nets_and_cb (ClusteredNetlist &clb_nlist)
	This function updates the nets list and the connections between that list and the complex block. More...
static void	load_internal_to_block_net_nums (const t_logical_block_type_ptr type, t_pb_routes &pb_route)
static void	load_atom_index_for_pb_pin (t_pb_routes &pb_route, int ipin)
static void	mark_constant_generators (const ClusteredNetlist &clb_nlist, int verbosity)
static size_t	mark_constant_generators_rec (const t_pb *pb, const t_pb_routes &pb_route, int verbosity)
static t_pb_routes	alloc_pb_route (t_pb_graph_node *pb_graph_node)
static void	load_atom_pin_mapping (const ClusteredNetlist &clb_nlist)
	Walk through the atom netlist looking up and storing the t_pb_graph_pin associated with each connected AtomPinId. More...
static void	set_atom_pin_mapping (const ClusteredNetlist &clb_nlist, const AtomBlockId atom_blk, const AtomPortId atom_port, const t_pb_graph_pin *gpin)
ClusteredNetlist	read_netlist (const char *net_file, const t_arch *arch, bool verify_file_digests, int verbosity)
	Initializes the clb_nlist with info from a netlist. More...
template<typename T >
void	processAttrsParams (pugi::xml_node Parent, const char *child_name, T &atom_net_range, const pugiutil::loc_data &loc_data)
	This processes a set of key-value pairs in the XML. More...

Variables
static const char *	netlist_file_name = nullptr

Detailed Description

Read a circuit netlist in XML format and populate the netlist data structures for VPR.

Author

Jason Luu

Date

May 2009

Function Documentation

add_net_to_hash()

static int add_net_to_hash ( t_hash **  nhash, const char *  net_name, int *  ncount  )

static

Adds net to hashtable of nets.

If the net is "open", then this is a keyword so do not add it. If the net already exists, increase the count on that net

alloc_pb_route()

static t_pb_routes alloc_pb_route ( t_pb_graph_node *  pb_graph_node )

static

load_atom_index_for_pb_pin()

static void load_atom_index_for_pb_pin ( t_pb_routes &  pb_route, int  ipin  )

static

load_atom_pin_mapping()

static void load_atom_pin_mapping ( const ClusteredNetlist &  clb_nlist )

static

Walk through the atom netlist looking up and storing the t_pb_graph_pin associated with each connected AtomPinId.

load_external_nets_and_cb()

static void load_external_nets_and_cb ( ClusteredNetlist &  clb_nlist )

static

This function updates the nets list and the connections between that list and the complex block.

load_internal_to_block_net_nums()

static void load_internal_to_block_net_nums ( const t_logical_block_type_ptr  type, t_pb_routes &  pb_route  )

static

mark_constant_generators()

static void mark_constant_generators ( const ClusteredNetlist &  clb_nlist, int  verbosity  )

static

mark_constant_generators_rec()

static size_t mark_constant_generators_rec ( const t_pb *  pb, const t_pb_routes &  pb_route, int  verbosity  )

static

processAttrsParams()

template<typename T >

void processAttrsParams	(	pugi::xml_node	Parent,
		const char *	child_name,
		T &	atom_net_range,
		const pugiutil::loc_data &	loc_data
	)

This processes a set of key-value pairs in the XML.

e.g. block attributes or parameters, which must be of the form <attributes><attribute name="attrName">attrValue</attribute> ... </attributes>

processComplexBlock()

static void processComplexBlock ( pugi::xml_node  clb_block, const ClusterBlockId  index, int *  num_primitives, const pugiutil::loc_data &  loc_data, ClusteredNetlist *  clb_nlist  )

static

XML parser to populate CLB info and to update nets with the nets of this CLB.

Parameters

clb_nlist	Array of CLBs in the netlist
index	index of the CLB to allocate and load information into
loc_data	xml location info for error reporting

processPb()

static void processPb ( pugi::xml_node  Parent, const ClusterBlockId  index, t_pb *  pb, t_pb_routes &  pb_route, int *  num_primitives, const pugiutil::loc_data &  loc_data, ClusteredNetlist *  clb_nlist  )

static

XML parser to populate pb info and to update internal nets of the parent CLB.

Parameters

Parent	XML tag for this pb_type
pb	physical block to use
loc_data	xml location info for error reporting

processPorts()

static int processPorts ( pugi::xml_node  Parent, t_pb *  pb, t_pb_routes &  pb_route, const pugiutil::loc_data &  loc_data  )

static

read_netlist()

ClusteredNetlist read_netlist	(	const char *	net_file,
		const t_arch *	arch,
		bool	verify_file_digests,
		int	verbosity
	)

Initializes the clb_nlist with info from a netlist.

Parameters

net_file

Name of the netlist file to read

set_atom_pin_mapping()

static void set_atom_pin_mapping ( const ClusteredNetlist &  clb_nlist, const AtomBlockId  atom_blk, const AtomPortId  atom_port, const t_pb_graph_pin *  gpin  )

static

Variable Documentation

netlist_file_name

const char* netlist_file_name = nullptr

static
