read_route.cpp File Reference

#include <iostream>
#include <fstream>
#include <cstdio>
#include <cstring>
#include <ctime>
#include <sstream>
#include <string>
#include <unordered_set>
#include "atom_netlist.h"
#include "atom_netlist_utils.h"
#include "rr_graph.h"
#include "vtr_assert.h"
#include "vtr_util.h"
#include "tatum/echo_writer.hpp"
#include "vtr_log.h"
#include "check_route.h"
#include "route_common.h"
#include "vpr_types.h"
#include "globals.h"
#include "vpr_api.h"
#include "read_place.h"
#include "vpr_utils.h"
#include "vpr_error.h"
#include "place_and_route.h"
#include "timing_place.h"
#include "route_export.h"
#include "echo_files.h"
#include "read_route.h"
#include "binary_heap.h"

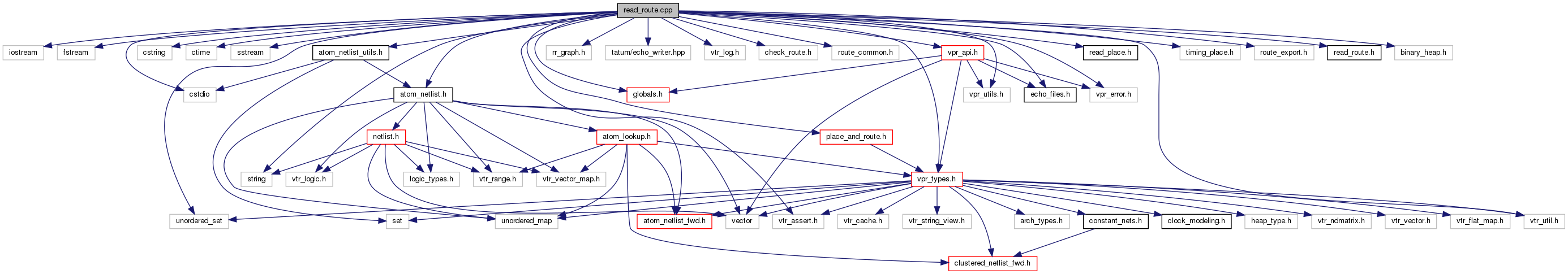

Include dependency graph for read_route.cpp:

Functions
static void	process_route (std::ifstream &fp, const char *filename, int &lineno)
	Walks through every net and add the routing appropriately. More...
static void	process_nodes (std::ifstream &fp, ClusterNetId inet, const char *filename, int &lineno)
static void	process_nets (std::ifstream &fp, ClusterNetId inet, std::string name, std::vector< std::string > input_tokens, const char *filename, int &lineno)
	Check if the net is global or not, and process appropriately. More...
static void	process_global_blocks (std::ifstream &fp, ClusterNetId inet, const char *filename, int &lineno)
	This function goes through all the blocks in a global net and verify it with the clustered netlist and the placement. More...
static void	format_coordinates (int &x, int &y, std::string coord, ClusterNetId net, const char *filename, const int lineno)
	Parse coordinates in the form of (x,y) into correct x and y values. More...
static void	format_pin_info (std::string &pb_name, std::string &port_name, int &pb_pin_num, std::string input)
	Parse the pin info in the form of pb_name.port_name[pb_pin_num] into its appropriate variables. More...
static std::string	format_name (std::string name)
	Return actual name by extracting it out of the form of (name) More...
static bool	check_rr_graph_connectivity (RRNodeId prev_node, RRNodeId node)
bool	read_route (const char *route_file, const t_router_opts &router_opts, bool verify_file_digests)
	Reads in the routing file to fill in the trace.head and t_clb_opins_used data structure. More...

Function Documentation

check_rr_graph_connectivity()

static bool check_rr_graph_connectivity ( RRNodeId  prev_node, RRNodeId  node  )

static

format_coordinates()

static void format_coordinates ( int &  x, int &  y, std::string  coord, ClusterNetId  net, const char *  filename, const int  lineno  )

static

Parse coordinates in the form of (x,y) into correct x and y values.

format_name()

static std::string format_name ( std::string  name )

static

Return actual name by extracting it out of the form of (name)

format_pin_info()

static void format_pin_info ( std::string &  pb_name, std::string &  port_name, int &  pb_pin_num, std::string  input  )

static

Parse the pin info in the form of pb_name.port_name[pb_pin_num] into its appropriate variables.

process_global_blocks()

static void process_global_blocks ( std::ifstream &  fp, ClusterNetId  inet, const char *  filename, int &  lineno  )

static

This function goes through all the blocks in a global net and verify it with the clustered netlist and the placement.

process_nets()

static void process_nets ( std::ifstream &  fp, ClusterNetId  inet, std::string  name, std::vector< std::string >  input_tokens, const char *  filename, int &  lineno  )

static

Check if the net is global or not, and process appropriately.

process_nodes()

static void process_nodes ( std::ifstream &  fp, ClusterNetId  inet, const char *  filename, int &  lineno  )

static

process_route()

static void process_route ( std::ifstream &  fp, const char *  filename, int &  lineno  )

static

Walks through every net and add the routing appropriately.

read_route()

bool read_route	(	const char *	route_file,
		const t_router_opts &	router_opts,
		bool	verify_file_digests
	)

Reads in the routing file to fill in the trace.head and t_clb_opins_used data structure.

Perform a series of verification tests to ensure the netlist, placement, and routing files match
