State relating the device. More...
#include <vpr_context.h>

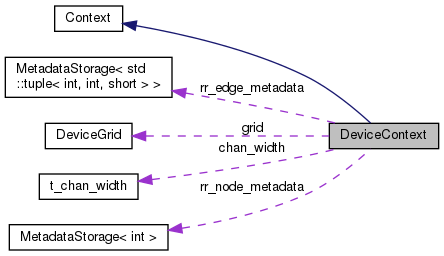

Data Fields | |
| DeviceGrid | grid |
| t_physical_tile_type_ptr | EMPTY_PHYSICAL_TILE_TYPE |
| t_logical_block_type_ptr | EMPTY_LOGICAL_BLOCK_TYPE |
| std::vector< t_physical_tile_type > | physical_tile_types |
| std::vector< t_logical_block_type > | logical_block_types |
| bool | has_multiple_equivalent_tiles |
| Boolean that indicates whether the architecture implements an N:M physical tiles to logical blocks mapping. More... | |
| t_chan_width | chan_width |
| chan_width is for x|y-directed channels; i.e. between rows More... | |
| t_rr_graph_storage | rr_nodes |
| std::vector< t_rr_indexed_data > | rr_indexed_data |
| std::vector< t_rr_rc_data > | rr_rc_data |
| Fly-weighted Resistance/Capacitance data for RR Nodes. More... | |
| std::vector< std::vector< int > > | rr_non_config_node_sets |
| Sets of non-configurably connected nodes. More... | |
| std::unordered_map< int, int > | rr_node_to_non_config_node_set |
| Reverse look-up from RR node to non-configurably connected node set (index into rr_nonconf_node_sets) More... | |
| t_rr_node_indices | rr_node_indices |
| The indicies of rr nodes of a given type at a specific x,y grid location. More... | |
| std::vector< t_rr_switch_inf > | rr_switch_inf |
| std::vector< t_segment_inf > | rr_segments |
| Wire segment types in RR graph. More... | |
| int | num_arch_switches |
| t_arch_switch_inf * | arch_switch_inf |
| std::vector< std::unique_ptr< ClockNetwork > > | clock_networks |
| std::vector< std::unique_ptr< ClockConnection > > | clock_connections |
| int | virtual_clock_network_root_idx |
| rr_node idx that connects to the input of all clock network wires More... | |
| MetadataStorage< int > | rr_node_metadata |
| Attributes for each rr_node. More... | |
| MetadataStorage< std::tuple< int, int, short > > | rr_edge_metadata |
| Attributes for each rr_edge. More... | |
| std::vector< std::map< int, int > > | switch_fanin_remap |
| switch_fanin_remap is only used for printing out switch fanin stats (the -switch_stats option) More... | |
| const t_arch * | arch |
| t_clock_arch * | clock_arch |
| std::string | read_rr_graph_filename |
| Name of rrgraph file read (if any). More... | |
Additional Inherited Members | |
 Public Member Functions inherited from Context | |
| Context ()=default | |
| Context (Context &)=delete | |
| Context & | operator= (Context &)=delete |
| virtual | ~Context ()=default |
Detailed Description
State relating the device.
This should contain only data structures describing the targeted device.
Field Documentation
◆ arch
| const t_arch* DeviceContext::arch |
◆ arch_switch_inf
| t_arch_switch_inf* DeviceContext::arch_switch_inf |
◆ chan_width
| t_chan_width DeviceContext::chan_width |
chan_width is for x|y-directed channels; i.e. between rows
◆ clock_arch
| t_clock_arch* DeviceContext::clock_arch |
◆ clock_connections
| std::vector<std::unique_ptr<ClockConnection> > DeviceContext::clock_connections |
◆ clock_networks
| std::vector<std::unique_ptr<ClockNetwork> > DeviceContext::clock_networks |
◆ EMPTY_LOGICAL_BLOCK_TYPE
| t_logical_block_type_ptr DeviceContext::EMPTY_LOGICAL_BLOCK_TYPE |
◆ EMPTY_PHYSICAL_TILE_TYPE
| t_physical_tile_type_ptr DeviceContext::EMPTY_PHYSICAL_TILE_TYPE |
◆ grid
| DeviceGrid DeviceContext::grid |
FPGA complex block grid [0 .. grid.width()-1][0 .. grid.height()-1]
◆ has_multiple_equivalent_tiles
| bool DeviceContext::has_multiple_equivalent_tiles |
Boolean that indicates whether the architecture implements an N:M physical tiles to logical blocks mapping.
◆ logical_block_types
| std::vector<t_logical_block_type> DeviceContext::logical_block_types |
◆ num_arch_switches
| int DeviceContext::num_arch_switches |
◆ physical_tile_types
| std::vector<t_physical_tile_type> DeviceContext::physical_tile_types |
◆ read_rr_graph_filename
| std::string DeviceContext::read_rr_graph_filename |
Name of rrgraph file read (if any).
Used to determine when reading rrgraph if file is already loaded.
◆ rr_edge_metadata
| MetadataStorage<std::tuple<int, int, short> > DeviceContext::rr_edge_metadata |
Attributes for each rr_edge.
key: <source rr_node_index, sink rr_node_index, iswitch> iswitch: Index of the switch type used to go from this rr_node to the next one in the routing. OPEN if there is no next node (i.e. this node is the last one (a SINK) in a branch of the net's routing). value: map of <attribute_name, attribute_value>
◆ rr_indexed_data
| std::vector<t_rr_indexed_data> DeviceContext::rr_indexed_data |
◆ rr_node_indices
| t_rr_node_indices DeviceContext::rr_node_indices |
The indicies of rr nodes of a given type at a specific x,y grid location.
◆ rr_node_metadata
| MetadataStorage<int> DeviceContext::rr_node_metadata |
Attributes for each rr_node.
key: rr_node index value: map of <attribute_name, attribute_value>
◆ rr_node_to_non_config_node_set
| std::unordered_map<int, int> DeviceContext::rr_node_to_non_config_node_set |
Reverse look-up from RR node to non-configurably connected node set (index into rr_nonconf_node_sets)
◆ rr_nodes
| t_rr_graph_storage DeviceContext::rr_nodes |
◆ rr_non_config_node_sets
| std::vector<std::vector<int> > DeviceContext::rr_non_config_node_sets |
Sets of non-configurably connected nodes.
◆ rr_rc_data
| std::vector<t_rr_rc_data> DeviceContext::rr_rc_data |
Fly-weighted Resistance/Capacitance data for RR Nodes.
◆ rr_segments
| std::vector<t_segment_inf> DeviceContext::rr_segments |
Wire segment types in RR graph.
◆ rr_switch_inf
| std::vector<t_rr_switch_inf> DeviceContext::rr_switch_inf |
◆ switch_fanin_remap
| std::vector<std::map<int, int> > DeviceContext::switch_fanin_remap |
switch_fanin_remap is only used for printing out switch fanin stats (the -switch_stats option)
array index: [0..(num_arch_switches-1)]; map key: num of all possible fanin of that type of switch on chip map value: remapped switch index (index in rr_switch_inf)
◆ virtual_clock_network_root_idx
| int DeviceContext::virtual_clock_network_root_idx |
rr_node idx that connects to the input of all clock network wires
Useful for two stage clock routing XXX: currently only one place to source the clock networks so only storing a single value
The documentation for this struct was generated from the following file:
