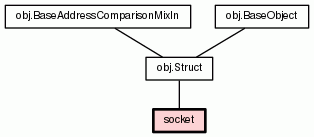

Class socket

Computes information about sockets of some addressing families.

This function is directly adapted from the kernel function
fill_socketinfo [1]. The original function is used to fill a struct
with addressing and other useful information about sockets of a few
key addressing families. All families are supported, but only the
following will return useful information:
  - AF_INET (IPv4)
  - AF_INET6 (IPv6)
  - AF_UNIX (Unix socket)
  - AF_NDRV (Network driver raw access)
  - AF_SYSTEM (Darwin-specific; see documentation [3])

Differences between the kernel function and this adaptation:
  - The kernel uses Protocol Families (prefixed with PF_). Rekall
  relies on Addressing Families (AF_) which are exactly the same.

  - The kernel fills a struct; this function returns a dict with the
  same members.

  - The kernel returns the data raw. This function converts endianness
  and unions to human-readable representations, as appropriate.

  - Only a subset of members are filled in.

  - Other differences as documented in code.

Returns:
  A dict with the same members as struct socket_info and related.
  Only member that's always filled is "soi_kind". That's not Spanish,
  but one of the values in this anonymous enum [2], which determines
  what other members are present. (Read the code.)

[1]
https://github.com/opensource-apple/xnu/blob/10.9/bsd/kern/socket_info.c#L98
[2]
https://github.com/opensource-apple/xnu/blob/10.9/bsd/sys/proc_info.h#L503
[3] "KEXT Controls and Notifications"
https://developer.apple.com/library/mac/documentation/Darwin/Conceptual/NKEConceptual/control/control.html

src_addr

For IPv[46] sockets, return source IP as string.

Get Method:

unreachable.src_addr(self) - For IPv[46] sockets, return source IP as string.

dst_addr

For IPv[46] sockets, return destination IP as string.

Get Method:

unreachable.dst_addr(self) - For IPv[46] sockets, return destination IP as string.

addressing_family

The Addressing Family corresponds roughly to OSI layer 3.

Get Method:

unreachable.addressing_family(self) - The Addressing Family corresponds roughly to OSI layer 3.

tcp_state

Get Method:

unreachable.tcp_state(self)

vnode

For Unix sockets, pointer to vnode, if any.

This is the same way that OS gathers this information in response to syscall [1] (this is the API used by netstat, among others).

1: https://github.com/opensource-apple/xnu/blob/10.9/bsd/kern/uipc_usrreq.c#L1683

Get Method:

unreachable.vnode(self) - For Unix sockets, pointer to vnode, if any.

unp_conn

For Unix sockets, the pcb of the paired socket. [1]

You most likely want to do sock.conn_pcb.unp_socket to get at the other socket in the pair. However, because the sockets are paired through the protocol control block, it's actually useful to have a direct pointer at it in order to be able to spot paired sockets.

1: https://github.com/opensource-apple/xnu/blob/10.9/bsd/sys/unpcb.h#L128

Get Method:

unreachable.unp_conn(self) - For Unix sockets, the pcb of the paired socket.

src_port

Get Method:

unreachable.src_port(self)

dst_port

Get Method:

unreachable.dst_port(self)

l4_protocol

Get Method:

unreachable.l4_protocol(self)

unix_type

Get Method:

unreachable.unix_type(self)

human_name

Get Method:

unreachable.human_name(self)

human_type

Get Method:

unreachable.human_type(self)
