VprContext Class Reference

This object encapsulates VPR's state. More...

#include <vpr_context.h>

Inheritance diagram for VprContext:

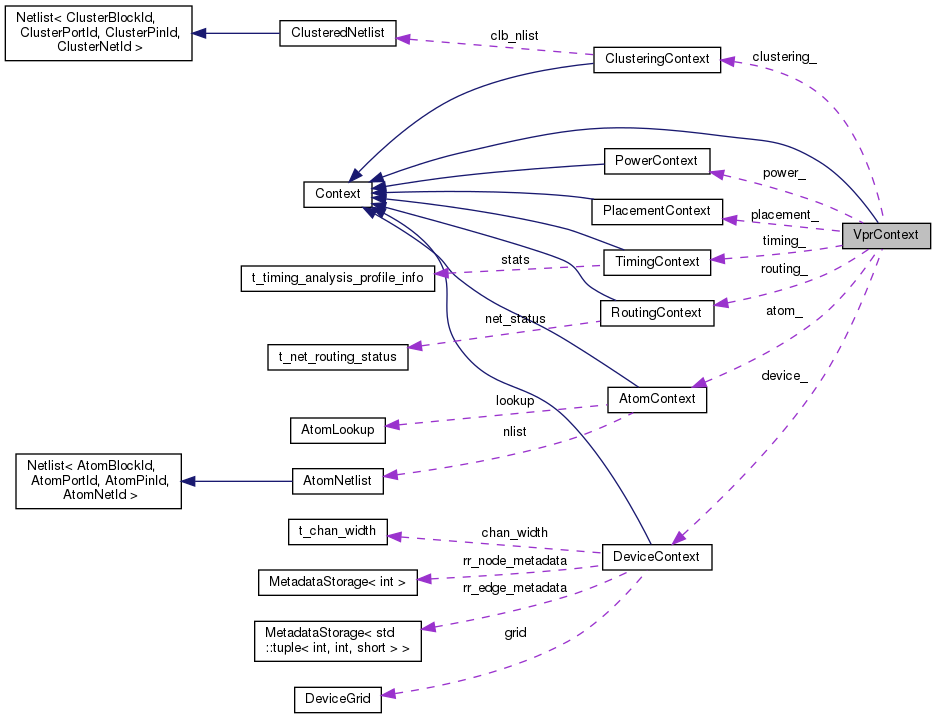

Collaboration diagram for VprContext:

Public Member Functions
const AtomContext &	atom () const
AtomContext &	mutable_atom ()
const DeviceContext &	device () const
DeviceContext &	mutable_device ()
const TimingContext &	timing () const
TimingContext &	mutable_timing ()
const PowerContext &	power () const
PowerContext &	mutable_power ()
const ClusteringContext &	clustering () const
ClusteringContext &	mutable_clustering ()
const PlacementContext &	placement () const
PlacementContext &	mutable_placement ()
const RoutingContext &	routing () const
RoutingContext &	mutable_routing ()
Public Member Functions inherited from Context
	Context ()=default
	Context (Context &)=delete
Context &	operator= (Context &)=delete
virtual	~Context ()=default

Private Attributes
DeviceContext	device_
AtomContext	atom_
TimingContext	timing_
PowerContext	power_
ClusteringContext	clustering_
PlacementContext	placement_
RoutingContext	routing_

Detailed Description

This object encapsulates VPR's state.

There is typically a single instance which is accessed via the global variable g_vpr_ctx (see globals.h/.cpp).

It is divided up into separate sub-contexts of logically related data structures.

Each sub-context can be accessed via member functions which return a reference to the sub-context:

• The default the member function (e.g. device()) return an const (immutable) reference providing read-only access to the context. This should be the preferred form, as the compiler will detect unintentional state changes.
• The 'mutable' member function (e.g. mutable_device()) will return a non-const (mutable) reference allowing modification of the context. This should only be used on an as-needed basis.

Typical usage in VPR would be to call the appropriate accessor to get a reference to the context of interest, and then operate on it.

For example if we were performing an action which required access to the current placement, we would do:

void my_analysis_algorithm() {
    //Get read-only access to the placement
    auto& place_ctx = g_vpr_ctx.placement();

    //Do something that depends on (but does not change)
    //the current placement...

}

If we needed to modify the placement (e.g. we were implementing another placement algorithm) we would do:

void my_placement_algorithm() {
    //Get read-write access to the placement
    auto& place_ctx = g_vpr_ctx.mutable_placement();

    //Do something that modifies the placement
    //...
}

Note

The returned contexts are not copyable, so they must be taken by reference.

Member Function Documentation

atom()

const AtomContext& VprContext::atom ( ) const

inline

clustering()

const ClusteringContext& VprContext::clustering ( ) const

inline

device()

const DeviceContext& VprContext::device ( ) const

inline

mutable_atom()

AtomContext& VprContext::mutable_atom ( )

inline

mutable_clustering()

ClusteringContext& VprContext::mutable_clustering ( )

inline

mutable_device()

DeviceContext& VprContext::mutable_device ( )

inline

mutable_placement()

PlacementContext& VprContext::mutable_placement ( )

inline

mutable_power()

PowerContext& VprContext::mutable_power ( )

inline

mutable_routing()

RoutingContext& VprContext::mutable_routing ( )

inline

mutable_timing()

TimingContext& VprContext::mutable_timing ( )

inline

placement()

const PlacementContext& VprContext::placement ( ) const

inline

power()

const PowerContext& VprContext::power ( ) const

inline

routing()

const RoutingContext& VprContext::routing ( ) const

inline

timing()

const TimingContext& VprContext::timing ( ) const

inline

Field Documentation

atom_

AtomContext VprContext::atom_

private

clustering_

ClusteringContext VprContext::clustering_

private

device_

DeviceContext VprContext::device_

private

placement_

PlacementContext VprContext::placement_

private

power_

PowerContext VprContext::power_

private

routing_

RoutingContext VprContext::routing_

private

timing_

TimingContext VprContext::timing_

private

---

The documentation for this class was generated from the following file:

• vpr_context.h
